DC Energy Monitoring
Dual RS485 Communication
Rated Voltage 0~1000V DC
DO/DI Function
UL certified
High Accuracy Class 0.5
Built-in Bipolar Power Source for Hall Sensors
+86-18702106858 / +86-21-69156352
Acrel DJSF1352-RN is a high-precision DC energy meter designed for applications such as telecommunications base stations, DC charging piles, and solar photovoltaic systems. It features dual DC input channels for monitoring voltage, current, power, and bidirectional energy (both forward and reverse) within the range of 0-1000V DC. The meter supports dual RS485 communication interfaces with Modbus-RTU protocol, ensuring reliable data transmission. It also includes built-in bipolar power sources for Hall sensors, 2DI/2DO functions, and high accuracy up to Class 0.5. Certified by UL, this meter is suitable for various DC systems, including EV chargers and energy storage systems.
| Technical Parameters | Value | ||||
| Input | Nominal value | Rated Voltage | Rate Current | ||

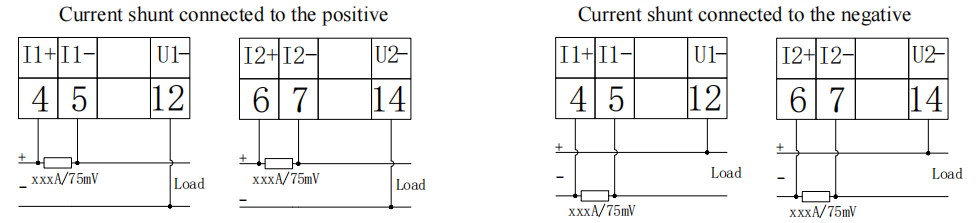

| DC 0-1000V See the physical wiring diagram |
Shunt：0-75mV； | ||||
| Hall sensor：0-5V,100mA and so on. | |||||
| Overload | 1.2 times rated (continuous); 2 times rated/1 second; | ||||
| Power consumption | Voltage: ≤0.2VA, current ≤0.1VA | ||||
| Accuracy Class | Class 1 or Class 0.5 | ||||
| Function | Display | 8-bit segment LCD screen (LCD) | |||
| Communication Interface | RS485（Two Channels Option） | ||||
| Communication protocol | Modbus-RTU，DL/T 645-2007，DLT698 | ||||
| Switch | Switch output | 2 Relay outputs, 2A/30VDC or 2A/250VAC | |||
| Switch input | 2 dry contact inputs | ||||
| Pulse output | A second pulse output, a energy pulse output | ||||
| See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH | |||||
| Power Supply | Voltage range | AC/DC 85-265V or DC12V(±10%)or DC24V(±10%) or DC48V(±10%) | |||
| Power consumption | ≤ 3W | ||||
| Power frequency withstand voltage | Power supply // Signal input / / Other circuits 3.5kV/1min | ||||
| Other circuits not connected to each other except power supply and signal input 2kV/1min | |||||
| Impulse withstand voltage | ±6.5KV | ||||
| Insulation resistance | ≥ 40M Ω | ||||
| Average barrier-free working hours | ≥50000h | ||||
| Environment | Temperature | Normal operating temperature: -25 °C ~ +65 °C; Limit working temperature: -40 °C ~ +70 °C; | |||
| Storage temperature: -40℃～+80℃ | |||||
| Humidity | ≤93%RH, no condensation, no corrosive gas | ||||
| Altitude | ≤2500m | ||||
