DC 6-Channels -48V Energy Meter for Telecom Base Station

6 Channels DC Measurement

Rated Voltage: -48V DC (-40~-60V)

Power Supply for Hall Sensor ±12V

Hall-sensor Zero-drift Calibration

RS485 Communication

LCD Display (Optional)

Send Inquiry Contact Us

PREV: AC Dual Circuits Energy Meter for Multi-Inverter Hybrid System
NEXT: MID Certified AC Single Phase Energy Meter with External CT

Describe

AMC16(L)-DETT base-station DC energy metering module is engineered for sites that require tenant-level billing but whose switch-mode power supplies lack per-user energy measurement.

It simultaneously meters 6 DC circuits while supplying operating power to the companion Hall-effect sensors.

An industrial-grade RS485 port with Modbus-RTU protocol and SGS-verified CE conformity ensure full compliance with EU standards.

Cooperating Customers:

Specifications

Technical parameter		Index
Input	DC rated voltage	1 channel: -48VDC


	DC current	6 channels hall sensors output is 5V,current ratio can be set according to the actual ratio
	Commercial power monitoring	1 channel transmitter input: 0-5VDC or 4-20mA

		Voltage:1.2times continued,2 times continued 1s;
	Overload capacity	Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors)		1%In≤I≤10%In accuracy ±2.5%; I>10%In accuracy ±2%
Measurement resolution		Voltage output accuracy 0.01V; current output accuracy 0.01A;
		power output accuracy 0.01kw; energy output accuracy 0.01kWh.
Functions	Basic function	Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication.





	Metering function	Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts.
		Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.
	Alarm function	DC voltage output low alarm,DC voltage output high alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm,memory failure alarm, AC input power failure alarm
	Timing function	support broadcast timing, could remote timing to the meter through RS485 communication.
	Communication	Single channel RS485, baudrate 9600bps, can be set to 1200BPS, 2400bps, 4800bps.
		Communication protocol: standard or custmized

Dimension & Wiring Diagram

Application Scenario

Telecom Tower Base Station EMS Solution

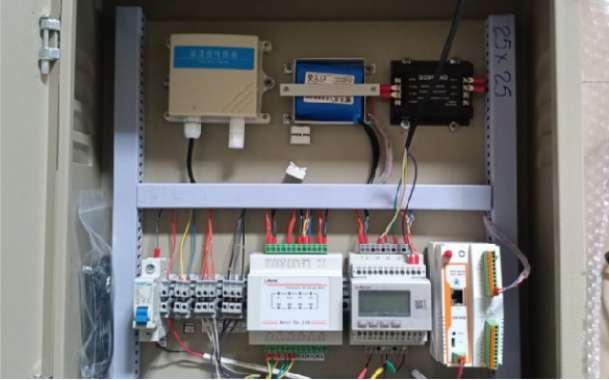

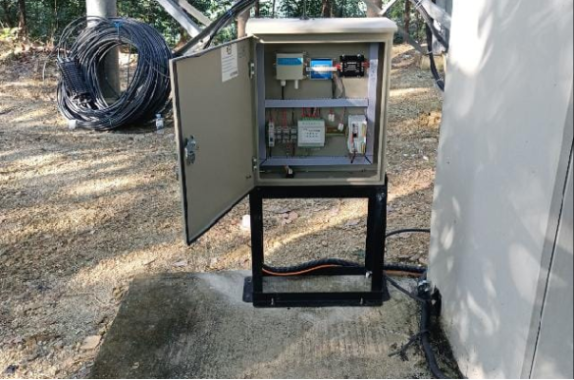

Work Site Application
