DeutschUplink data: RS485, Modbus-RTU
Accuracy 0.5 class
maximum 60 ATE temperature sensors data collection
4DI/2DO
Panel: 96*96*17mm, depth:65mm
Substation & Power Distribution
Substation & Power Distribution
Structure

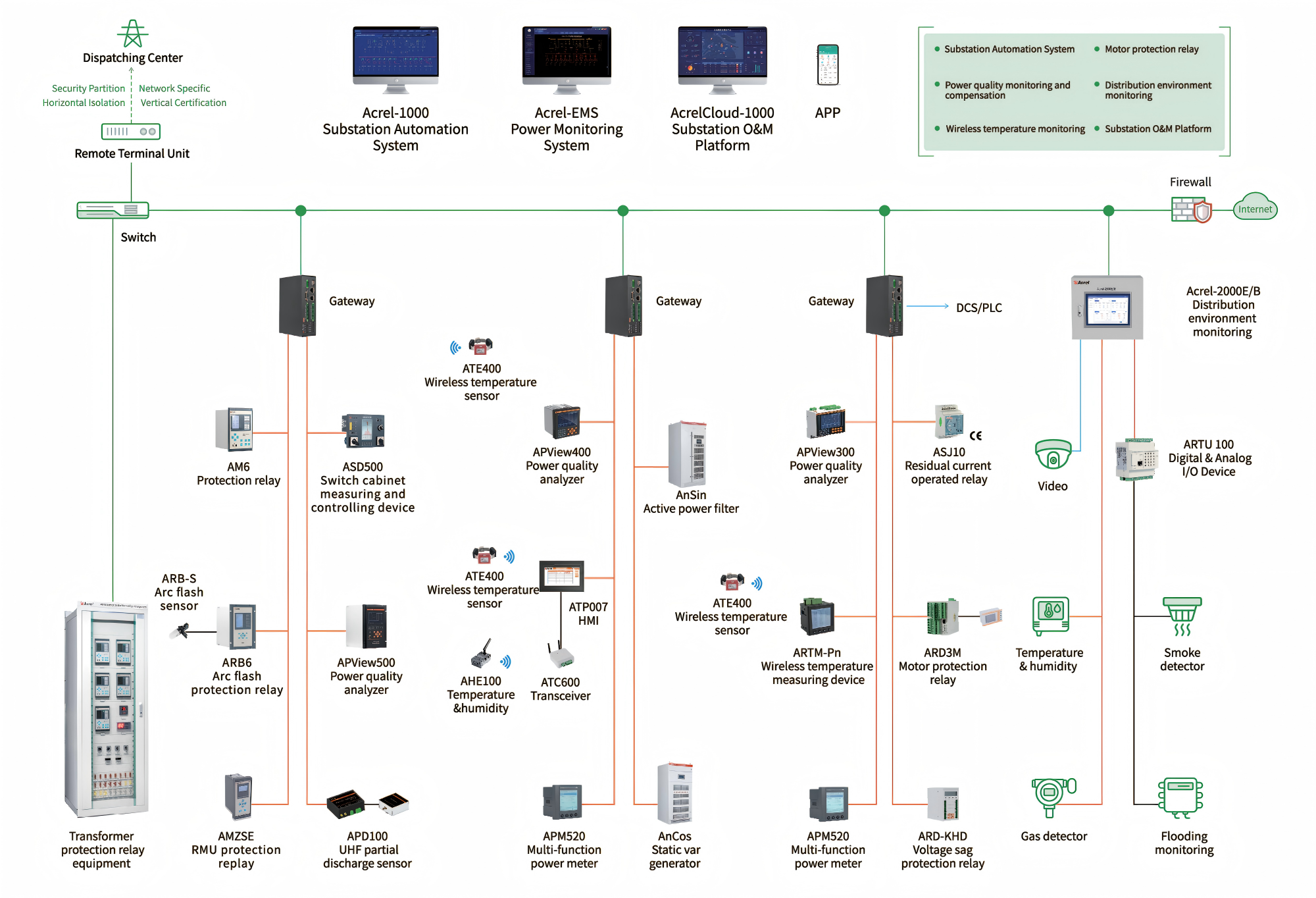

Power Monitoring System

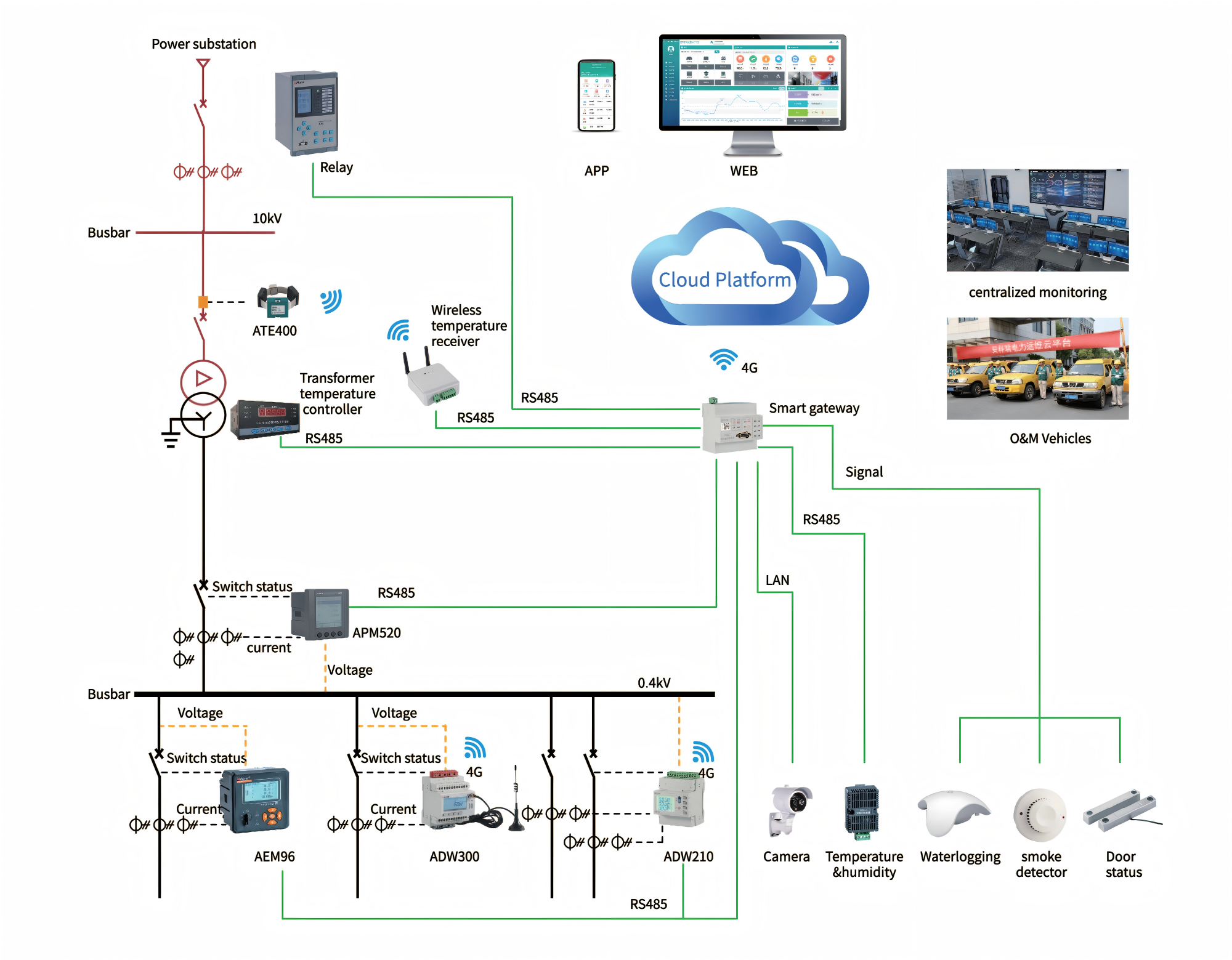

Substation O&M
Application
-

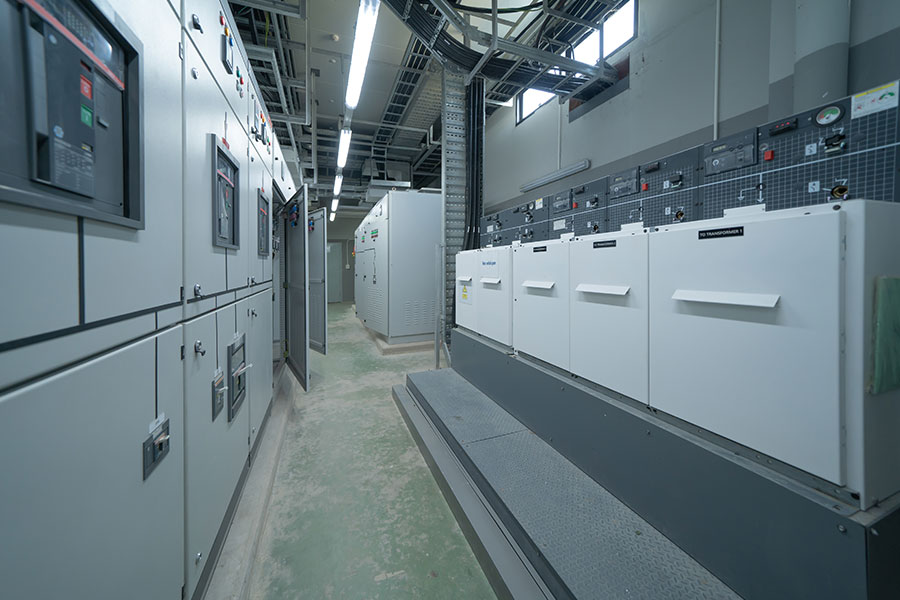

Distribution Room
Project
Overview
Acrel Substation & Distribution Room Solution provides a comprehensive, cyber-secure digital infrastructure for power systems. The solution features protection relays, power quality analyzers, and arc-flash protection relays to safeguard critical power equipment. Wireless bus-bar temperature sensors and partial discharge products enable continuous monitoring of switchgear health.
Multifunction panel meters collect and transmit real-time power data, supporting seamless integration with third-party DCS/PLC systems and devices from Schneider, Siemens, or ABB. Edge gateways aggregate data and transmit it to the Acrel EMS platform, offering users web-based dashboards, mobile apps for remote monitoring, and advanced analytics for predictive maintenance.
This integrated approach enhances power reliability, enables efficient O&M through condition-based monitoring, and supports sustainability goals by optimizing energy use and reducing downtime.
Products
-
ARTM-Pn ARTM-Pn Panel Mounted RS485 Wireless Temperature Measuring E...
View More -
ATC600 ATC600 Din Rail Mounted RS485 Wireless Temperature Receiver
View MoreCE&RED Certification
Model:C: Receiver; Z: Repeater; M: Receiver
Uplink data: RS485, Modbus-RTU
35mm Din Rail Mounted
ATC600-C receive 240 ATE400, ACE100
ATC600-Z: The Lora Relay is forwarded to ATC600-C, and the forwarding distance can reach 1000 meters;
ATC600-M can receive 240 ATE300M, ATE210
Power Supply: AC/DC 85V-264V or DC 12~48V
-
ATE400 ATE400 Alloy Chip Fixing Wireless Temperature Sensor
View MoreCT-powered, starting current≥5A
470MHz、433Mhz Wireless Frequency
15s Sampling frequency
15s Transmission frequency
-50℃~125℃ Temperature Range
Application: cable joints/Busbars/Contacts in LV/HV Switchgear
-
APView400 APView400 Class A Certificated Power Quality Analyzer
View MoreIEC61000-4-30 Ed3 Class A Certificate
IEC60253-22 Class 0.2S
Disturbance Waveform Recording
Disturbance Direction Detection
2000+ Waveform Recording
5000+ SOE Recording
-
AMC96L-E4/KC AC Three Phase Programmable Panel Mounted Energy Meter
View MoreAC Three Phase Measurement
Input Current: 5A/1A by CTs
THD with 2-31st Harmonics
Ture RNS Measurement
4DI & 2DO
Pulse Output
-
APM810 AC Three Phase Programmable Panel Mounted Energy Meter
View MoreTrue RMS Measurements
THD with 63rd Harmonics
K-Factor and Crest Factor
Unbalance & Phase Angles
Demands and Multi-Tariff energy
Max/Min Log with Timestamp
