Data Center AC Incoming Line
Independent 2 Channels Three-phase Inlet
2nd-63rd Harmonic
8DI 4DO + 1 Temp. and Humidity
Ethernet Communication (Optional)
3 Channels RS485 Communication
Data Center

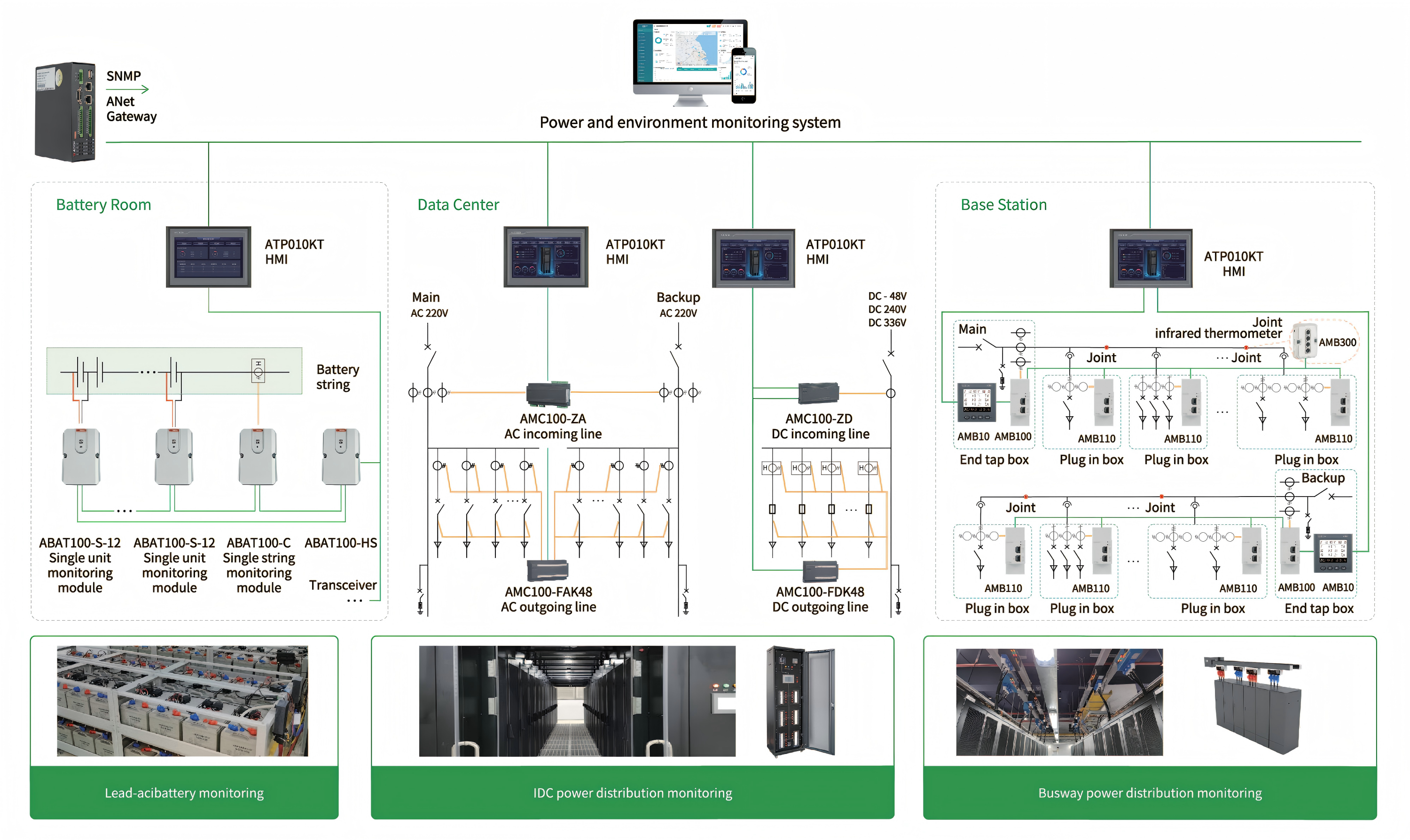

Acrel IDC Data Centers Solution offers all - in - one monitoring and control for data centers. It encompasses power monitoring, power - quality monitoring and management, energy - consumption analysis, and battery monitoring and management. The solution adopts a multi - layer architecture, starting with the SNMP Anet Gateway. Power and environment monitoring system sits above it, overseeing battery rooms and data centers. It tracks parameters like voltage and temperature. Below are the products: the ABAT100 Series for lead - acid battery monitoring, the AMC100 for precision power distribution monitoring, and the AMB Series for busway power monitoring. This solution has been applied in projects like Tiktok, China Mobile, and Chindata.
Data Center AC Incoming Line
Independent 2 Channels Three-phase Inlet
2nd-63rd Harmonic
8DI 4DO + 1 Temp. and Humidity
Ethernet Communication (Optional)
3 Channels RS485 Communication
Data Center DC Incoming Line
Independent 2 Channels Three-phase Inlet
2nd-63rd Harmonic
8DI 4DO + 1 Temp. and Humidity
Ethernet Communication (Optional)
3 Channels RS485 Communication
Data Center AC Outgoing Lines
A+B Independent 24 Circuits(48 In Total)
2nd-63rd Harmonic
kWh Class 0.5
48DI Wet Nodes
3 Channels RS485 Communication
Data Center AC Outgoing Lines
A+B Independent 24 Circuits(48 In Total)
2nd-63rd Harmonic
kWh Class 0.5
48DI Wet Nodes
3 Channels RS485 Communication
