Event recording
leakage protection
AC380V/690V
programmable DI and DO
Analog output
Anti-shaking function
+86-18702106858 / +86-21-69156352

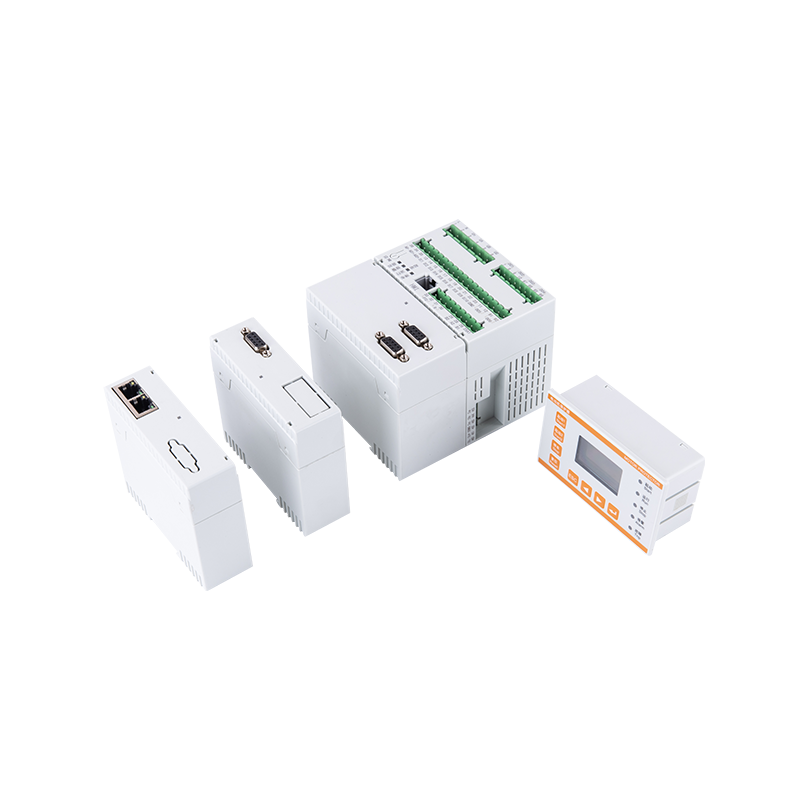

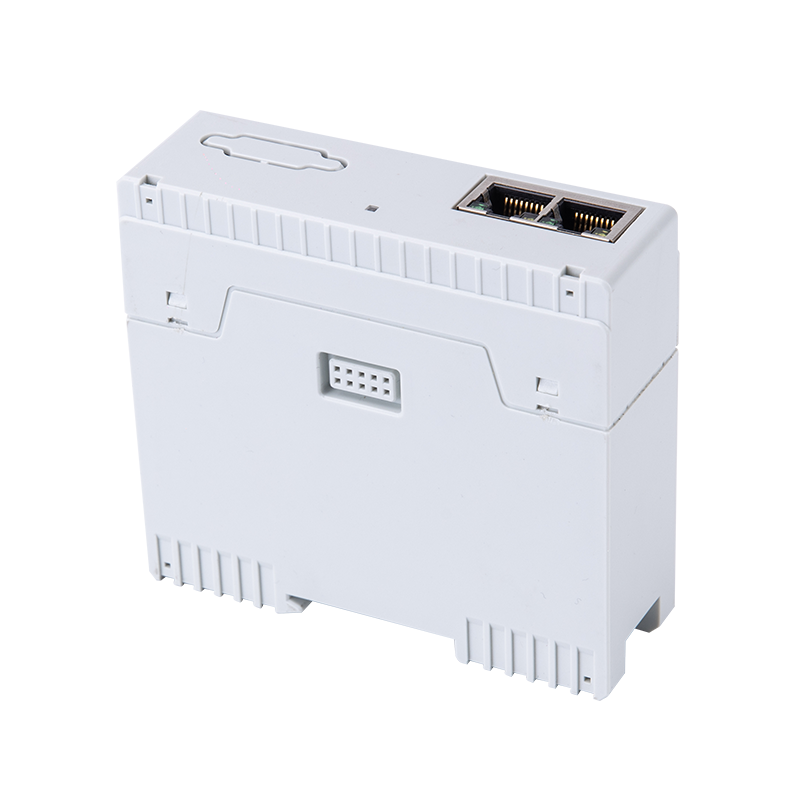

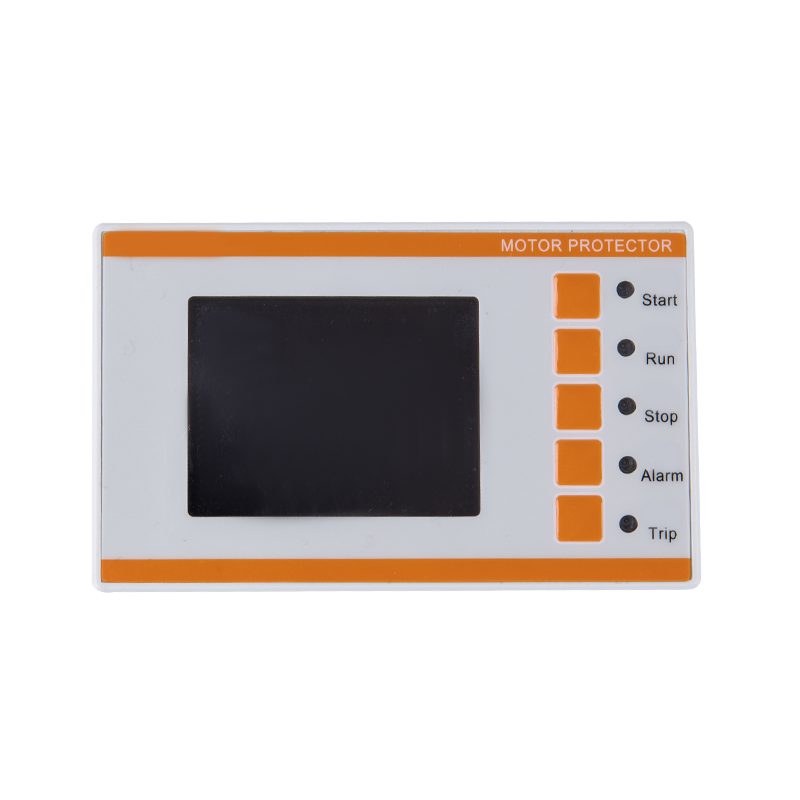

The Acrel ARD3M is a comprehensive motor protection controller designed for low-voltage motors with rated voltages up to AC380V/690V. It features event recording, leakage protection, and programmable DI/DO for flexible control. The device supports anti-shaking functionality to ensure stable operation and includes analog output for monitoring purposes. With its robust protection mechanisms and versatile communication options, the ARD3M is ideal for various industrial applications, ensuring reliable motor management and efficient system integration.
| Technical parameters | Technical indicators | |
| Protector auxiliary power supply | AC85-265V/DC100-350V | |
| Rated working voltage of the motor | AC220V / 380V, 50Hz / 60Hz | |
| Rated operating current of the motor | 1 (0.1A-5000A) | Integrated/Split current transformer |
| 5 (0.1A-5000A) | ||
| 25（6.3A-25A） | ||
| 100（25A-100A） | ||
| 250（63A-250A） | Split current transformer | |
| 800（250A-800A） | ||
| Relay output contact capacity | Impedance load | AC250V、10A |
| Switching input | 8 channels of passive dry contact (active DC110V, DC220V, AC220V input can be optional) | |
| Communication | RS485 Modbus_RTU, Profibus_DP | |
| Environment | Working temperature | -10ºC～55ºC |
| Storage temperature | -25ºC～70ºC | |
| Relative humidity | ≤95﹪No condensation, no corrosive gas | |
| Altitude | ≤2000m | |
| Pollution levels | Class 3 | |
| Protection grade | Main body IP20, split display module IP54 (installed on the cabinet panel) | |
| Installation category | Level III | |
