MID Certified 600A Direct Input DC Energy Meter for EV Charger

MID Certificated

Rated Current 4-600A

Rated Voltage DC 0-1000V

Accuracy Class B (Class 1)

RS485 Communication

Pulse Output

Send Inquiry Contact Us

PREV: No previous product
NEXT: MID Certified 360A Direct Input DC Energy Meter for EV Charger

Describe

Acrel DJSF1352-D-600 is a DIN-rail DC energy meter engineered for 600A EV-charging, photovoltaic, and battery-storage applications. It simultaneously measures, displays, and records DC voltage (0–1000 V), bi-directional current (4–90 A primary, 600 A max), instantaneous power (kW), and cumulative active energy (kWh) with Class-1/B accuracy. A segment LCD and optional DJSF1352-L remote display module provide real-time readings of voltage, current, power, date/time, internal temperature, and both forward and reverse energy registers.

Power-supply flexibility is ensured by a 9–36 Vdc auxiliary input consuming ≤3 W. Two galvanically-isolated RS-485 ports (RJ12 + screw terminals) support Modbus-RTU, DL/T 645-2007, and DL/T-698 protocols, allowing daisy-chain integration with EMS, SCADA, or OCPP back-ends. Programmable pulse outputs (100–300 imp/kWh) enable revenue-grade metering and MID certification workflows.

Designed for harsh environments, the meter withstands –40 °C to +70 °C, 95 %RH non-condensing, 4.4 kV/1 min Hi-Pot, 6 kV surge, and ≥40 MΩ insulation. DIN-35 rail mounting, 0.5 N·m terminal torque, and shielded-twisted-pair cabling instructions simplify installation while minimizing EMI. Parameters—address, baud rate, parity, energy decimals, anti-tamper flags—are password-protected (0001 default) via on-board buttons or remote register writes.

DJSF1352-D-600 delivers reliable sub-metering for solar combiner boxes, DC fast EV chargers, and industrial UPS systems.

Specifications

DJSF1352-D-600		Parameters
Input	Value	Voltage Input DC 0-1000V
		Current Input 4-600A
	Power Consumption	Voltage: ≤0.2VA, current ≤0.1VA
Accuracy		Class B(Class 1)
Function	Display	Segment LCD screen (LCD)
	Communication	RS485
		Modbus-RTU,DL/T 645-2007,DLT698
	Pulse Output	A second pulse output, a energy pulse output
		See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH
Power Supply	Voltage range	DC 9—36V
	Power consumption	≤ 3W
Power frequency withstand voltage		Power supply // Signal input / / Other circuits 4.4kV/1min
Impulse withstand voltage		±6KV
Insulation resistance		≥ 40M Ω
Average barrier-free working hours		≥50000h
Environment	Temperature	Working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃~+70℃
	Humidity	≤95%RH, no condensation, no corrosive gas
	Altitude	≤2000m

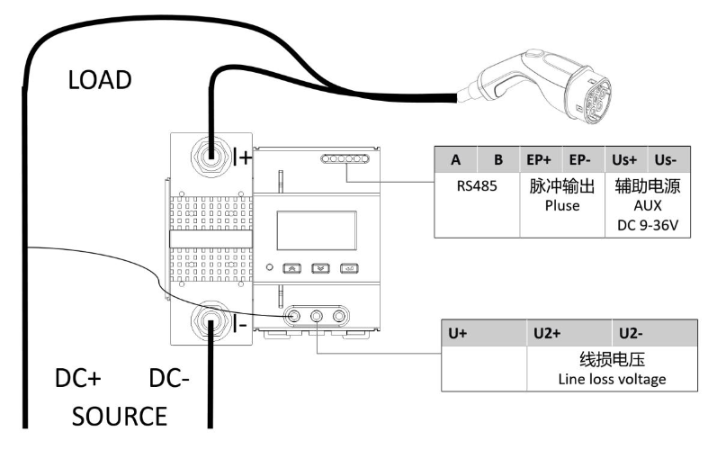

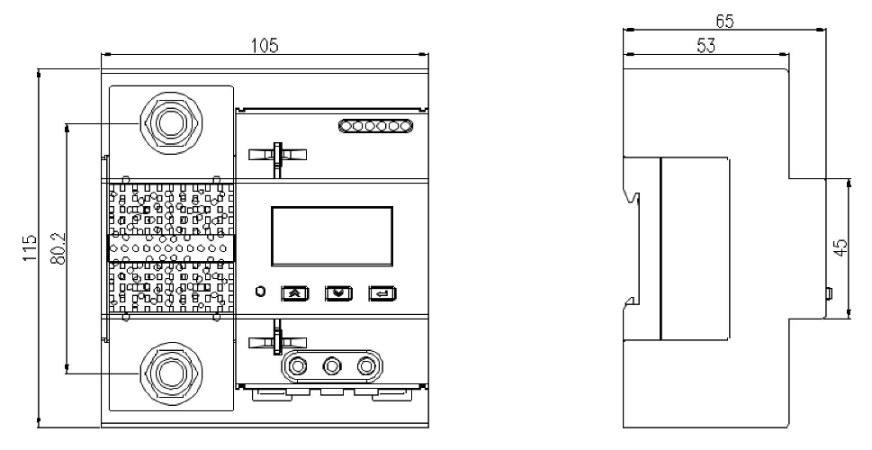

Dimension & Wiring Diagram

Application Scenario

Renewable Energy

Work Site Application
