Split Core
High Accuracy Class 0.5
Current Input 20-6000A
Current Output 5(1)A
Rectangular Hole Design
Measurement of current (I)
Application: Renovation Projects
+86-18702106858 / +86-21-69156352

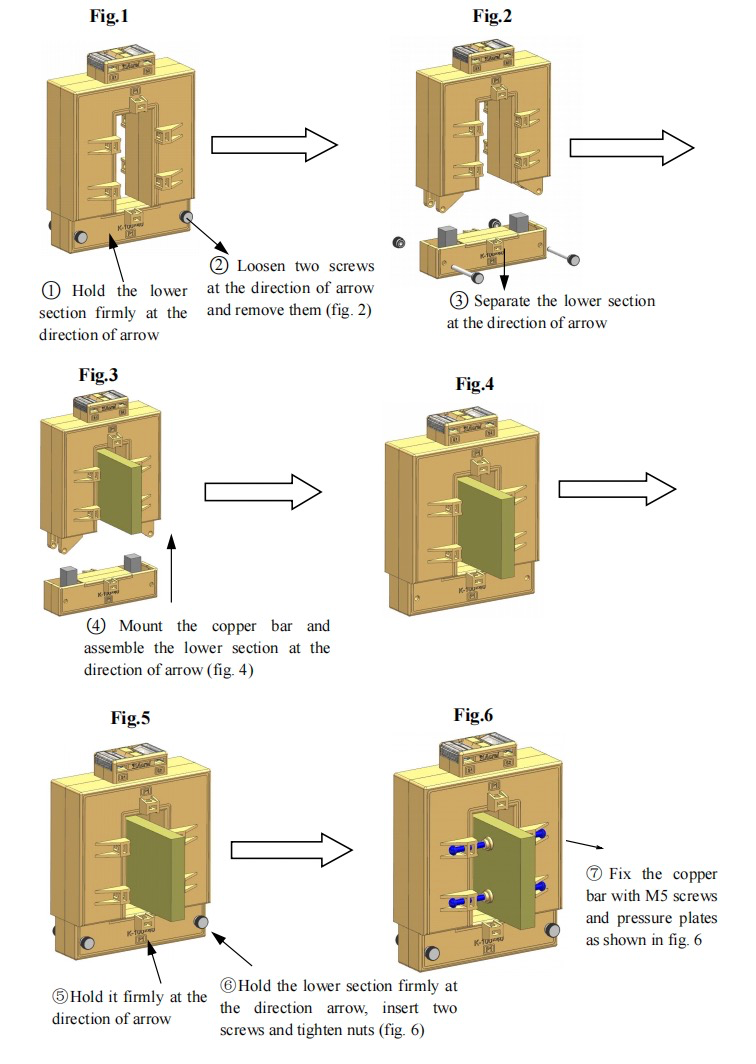

The AKH-0.66/K series is designed for power grid upgrades, allowing easy installation. Its split-core design enables quick mounting without removing the primary bus, ensuring continuous operation and improved efficiency. Ideal for relay protection, measurement, and metering, this series helps save manpower, materials, and costs.
|

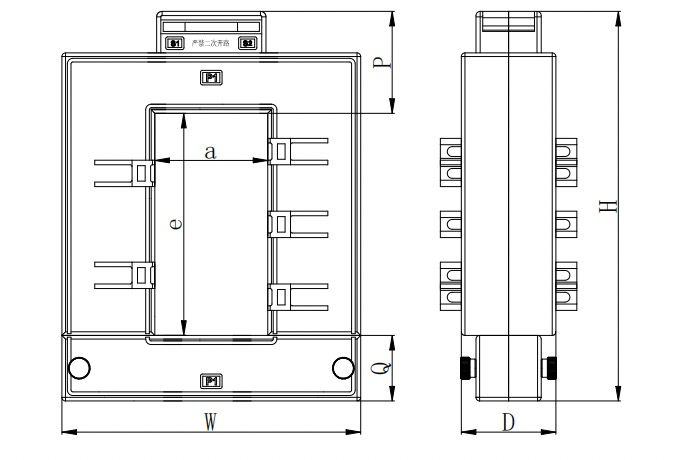

Spcification |
Rared curant matio |
Precision degree and corresponding rated load (VA) |
Straight- |
Bus Spec(mm) /number |
||
|
0.2 |
0.5 |
1.0 |
||||
|
K-30×20 |
20-75/1A |
|
|
0.2 |
1 |
30×10/1 |
|
100-150/5(1)A |
|
|
1 |
|
|
|
|
200/5(1)A |
|
|
1.5 |
|
|
|
|
250-300/5(1)A |
|
1.5 |
|
|
|
|
|
350-400/5(1)A |
|
2.5 |
|
|
|
|
|

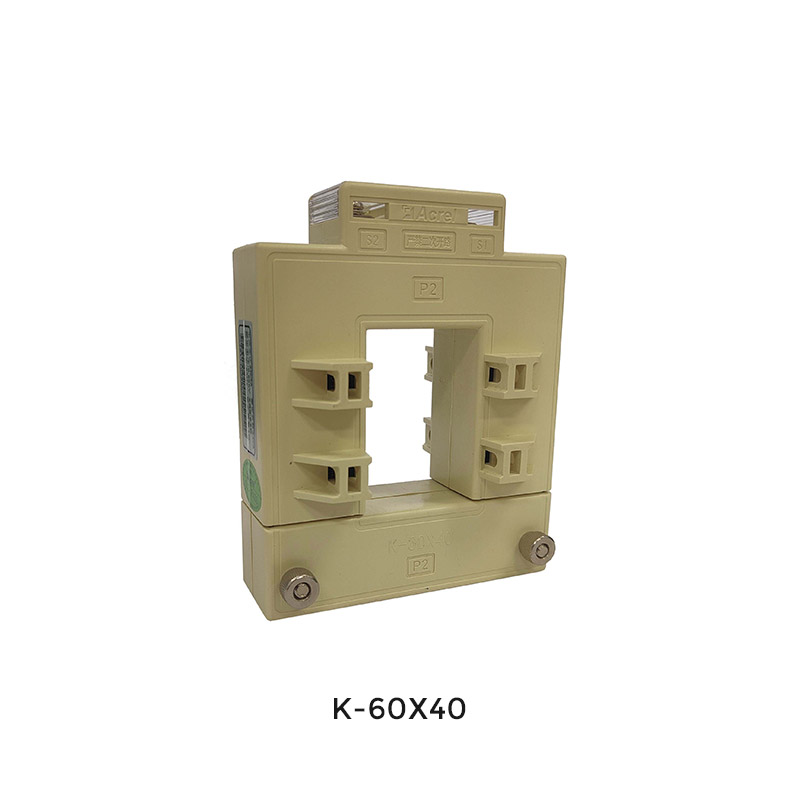

K-60×40 |
250-300/5(1)A |
|
|
1.5 |
1 |
60×10/1-2 |
|
350-450/5(1)A |
|
1.5 |
|
|
|
|
|
500-800/5(1)A |
|
2.5 |
|
|
|
|
|
1000-1250/5(1)A |
|
5 |
|
|
|
|
|
1500/5(1)A |
|
10 |
|
|
|
|
|

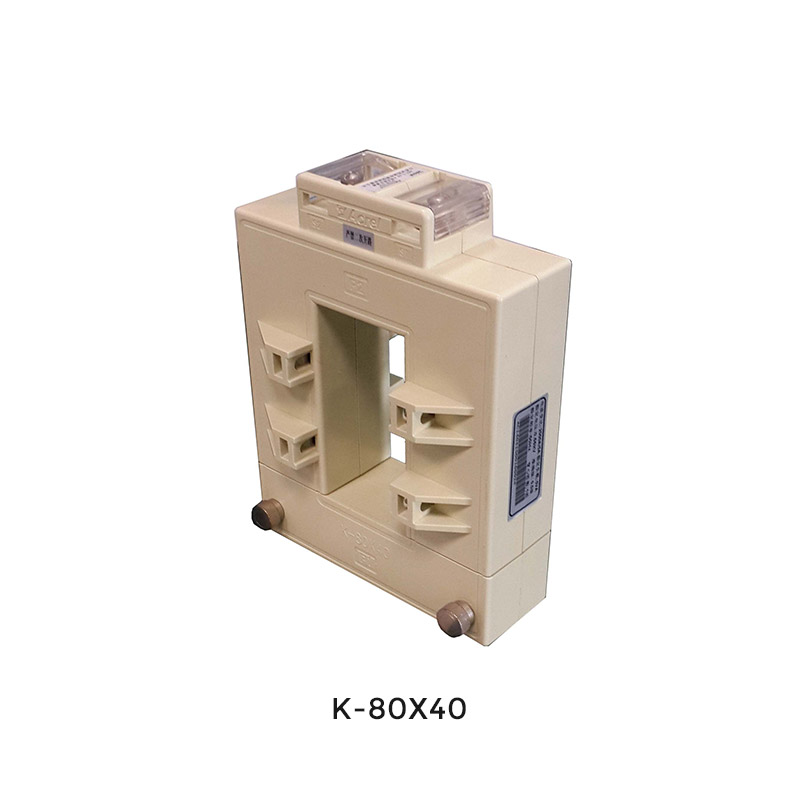

K-80×40 |
300/5(1)A |
|
|
1.5 |
1 |
80×10/1-2 |
|
350-450/5(1)A |
|
2.5 |
|
|
|
|
|
500-800/5(1)A |
|
5.0 |
1 |
|
|
|
|
1000-2000/5(1)A |
|
10 |
|
|
|
|
|
2500-3000/5(1)A |
10 |
|
|
|
|
|
|

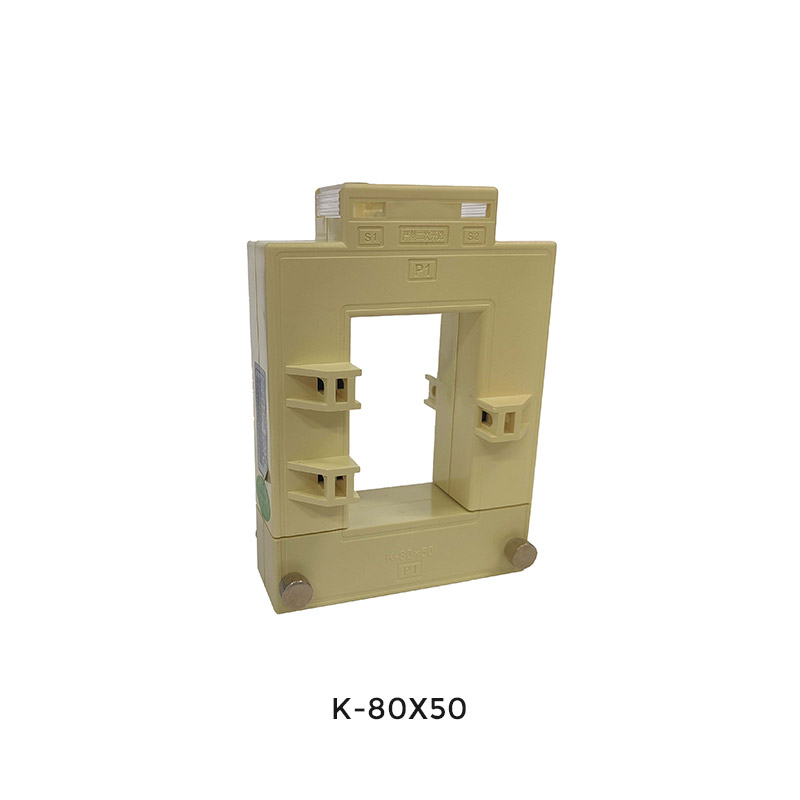

K-80×50 |
250-300/5(1)A |
|
|
1.5 |
1 |
80×10/1-3 |
|
400-450/5(1)A |
|
1.5 |
|
|
|
|
|
500-800/5(1)A |
|
2.5 |
|
|
|
|
|
1000-1500/5(1)A |
|
5 |
|
|
|
|
|

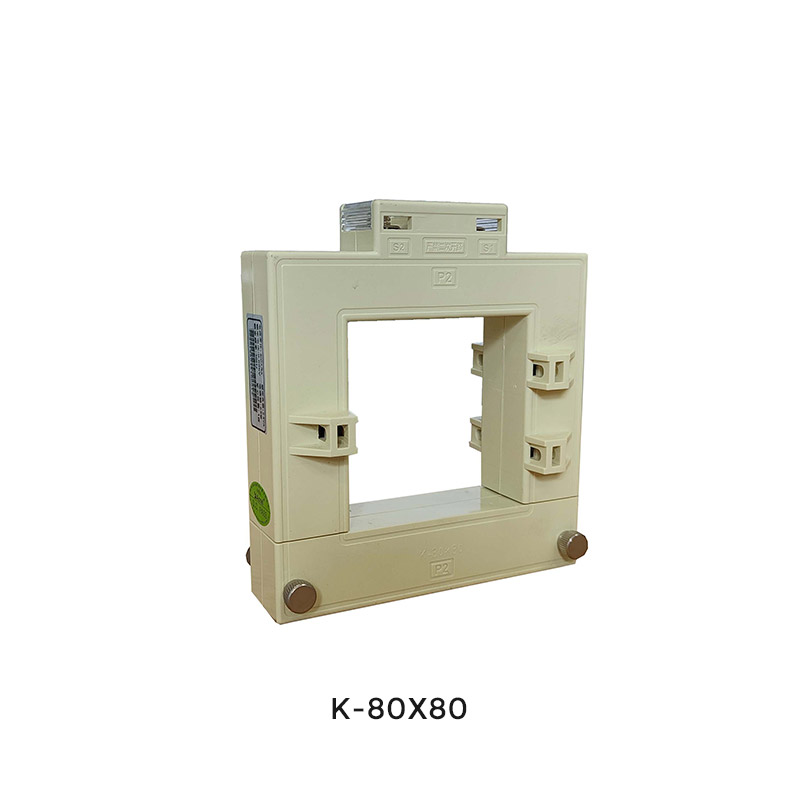

K-80×80 |
200-300/5(1)A |
|
|
1.5 |
1 |
80×10/1-4 |
|
400-450/5(1)A |
|
1.5 |
|
|
|
|
|
500-800/5(1)A |
|
2.5 |
|
|
|
|
|
1000/5(1)A |
|
5 |
|
|
|
|
|

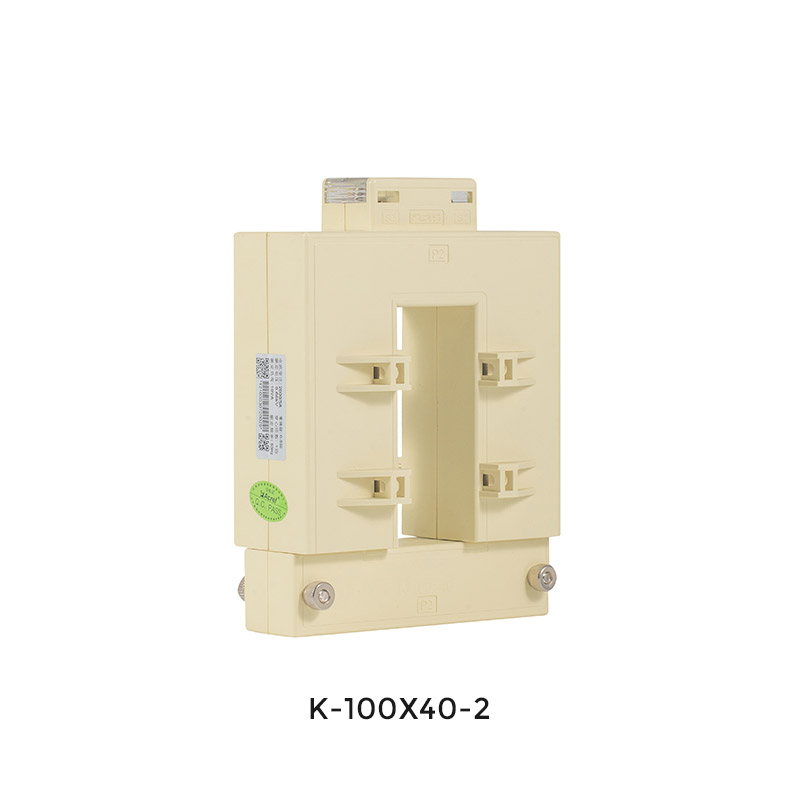

K-100×40 |
1000-2000/5(1)A |
|
10 |
|
1 |
100×10/1-2 |
|
2500-3000/5(1)A |
10 |
|
|
|
|
|
|
4000A/5(1)A |
15 |
|
|
|
|
|
|

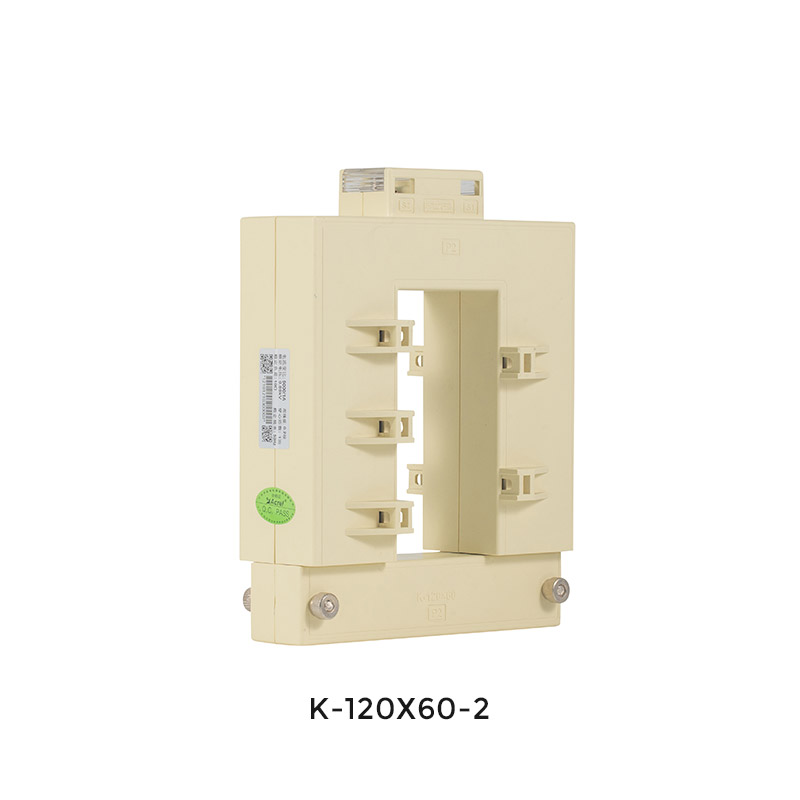

K-120×60 |
400-450/5(1)A |
|
2.5 |
|
1 |
120×10/1-3 |
|
500-800/5(1)A |
|
5 |
|
|
|
|
|
1000-2000/5(1)A |
|
10 |
|
|
|
|
|
2500-4000/5(1)A |
10 |
|
|
|
|
|
|

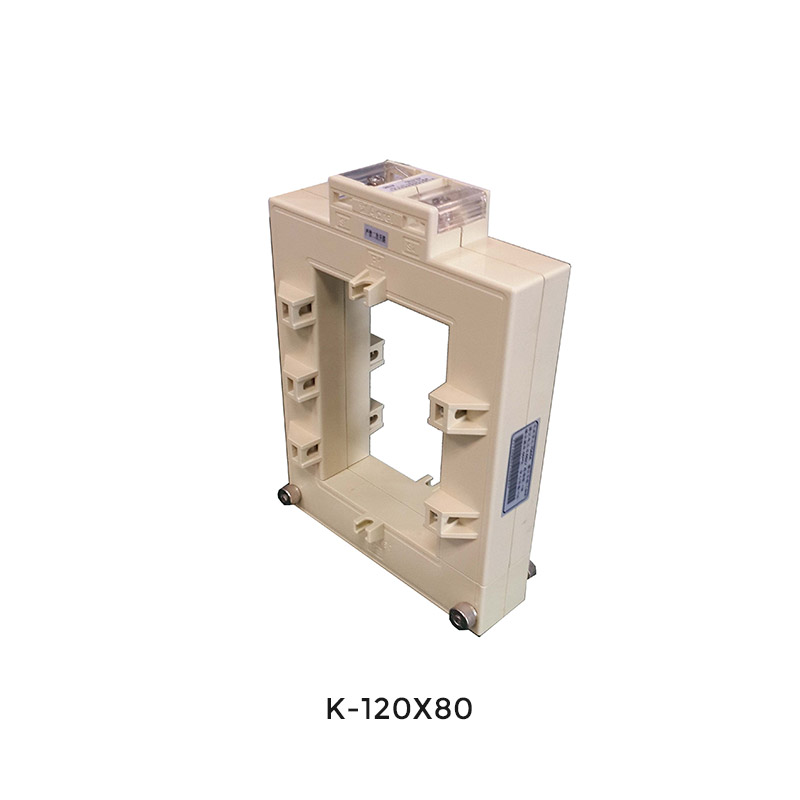

K-120×80 |
500-800/5(1)A |
|
2.5 |
|
1 |
120×10/1-4 |
|
1000-1200/5(1)A |
|
5 |
|
|
|
|
|
1250-1500/5(1)A |
|
7.5 |
|
|
|
|
|
2000/5(1)A |
|
10 |
|
|
|
|
|

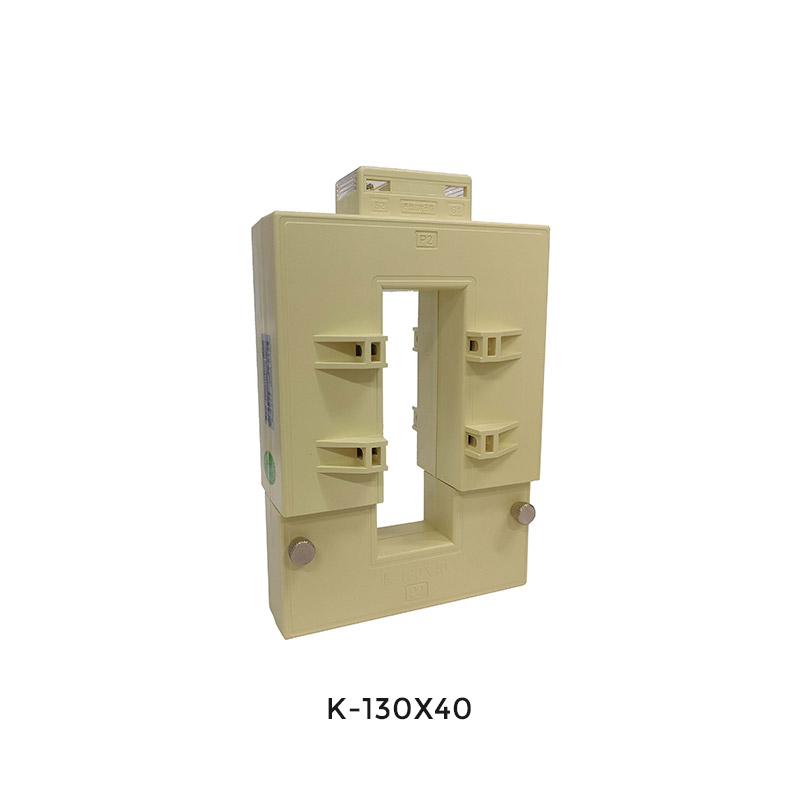

K-130×40 |
1000-2000/5(1)A |
|
10 |
|
1 |
130×10/1-2 |
|
2500-4000/5(1)A |
10 |
|
|
|
|
|
|
K-130×40N |
1000-2000/5(1)A |
|
10 |
|
1 |
130×10/1-2 |
|
2500-3000/5(1)A |
10 |
|
|
|
|
|
|
4000-5000/5(1)A |
15 |
|
|
|
|
|
|
K-130×50 |
1000-2000/5(1)A |
|
10 |
|
1 |
130×10/1-3 |
|
2500-3000/5(1)A |
10 |
|
|
|
|
|
|
4000-5000/5(1)A |
15 |
|
|
|
|
|
|

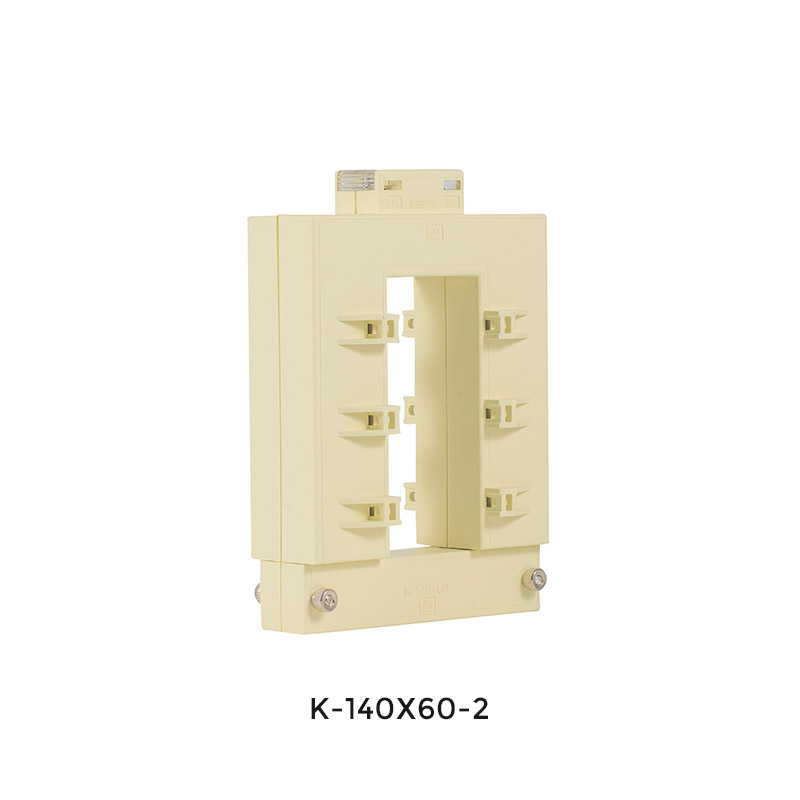

K-140×60 |
1000-2000/5(1)A |
|
10 |
|
1 |
130×10/1-3 |
|
2500-3000/5(1)A |
10 |
|
|
|
|
|
|
4000-5000/5(1)A |
15 |
|
|
|
|
|
|

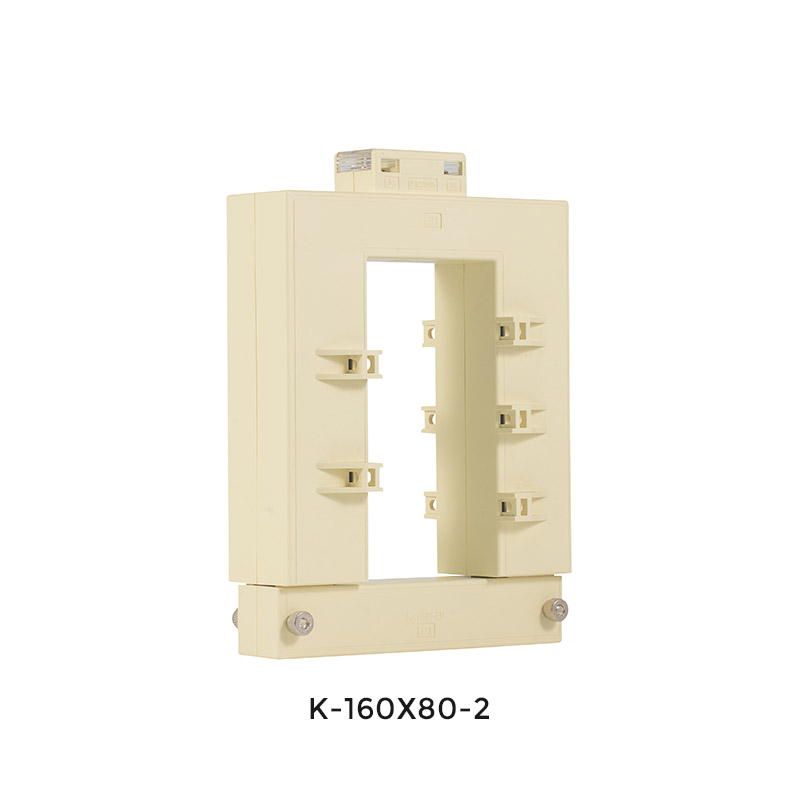

K-160×80 |
1000-2000/5(1)A |
|
10 |
|
1 |
150×10/1-4 |
|
2500-3000/5(1)A |
10 |
|
|
|
|
|
|
4000-6000/5(1)A |
15 |
|
|
|
|
|
|

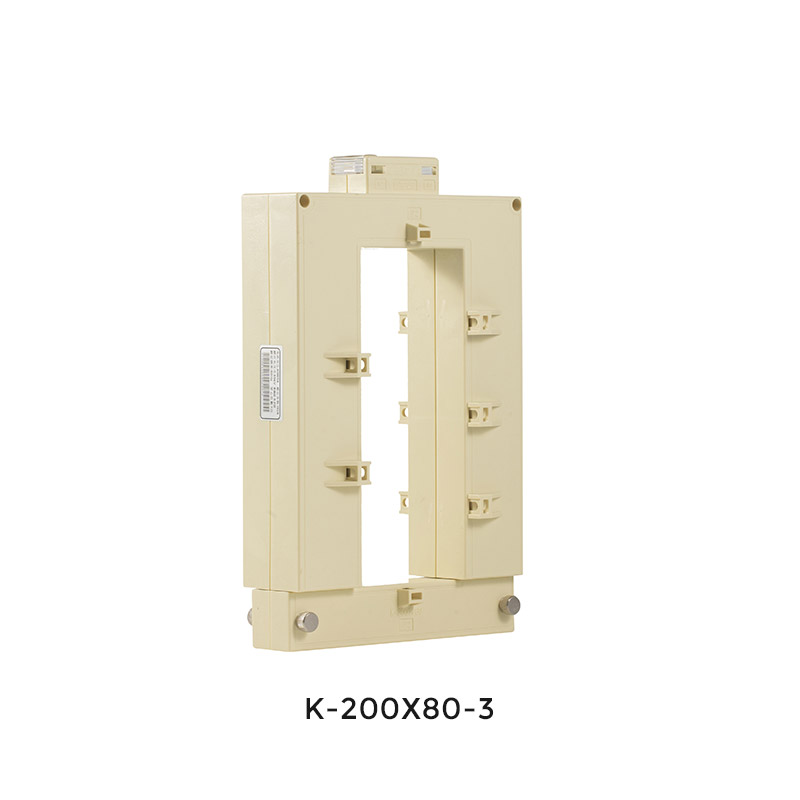

K-200×80 |
1000-2000/5(1)A |
|
10 |
|
1 |
200×10/1-4 |
|
2500-3000/5(1)A |
10 |
|||||
|
4000-6000/5(1)A |
15 |
|||||

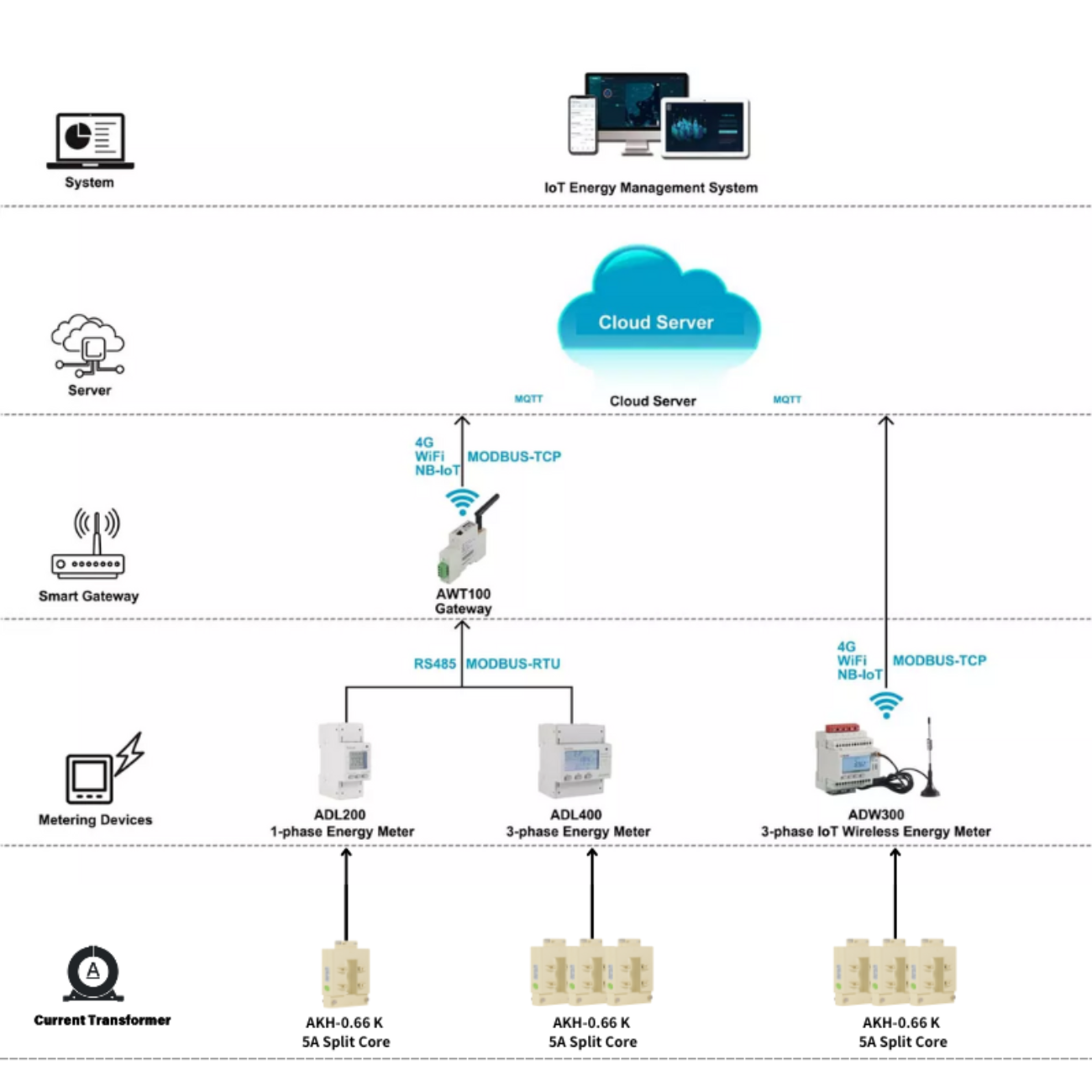

Application Scenario
Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
MID Certificated
For IoT Energy Management, Factory, School
Split Core
Clamp on Installation
High Accuracy Class 0.5
150-1000A Input Current
5A/1A Secondary Output
Application: Renovation Projects
Event recording
Start control function
programmable DI and DO
Profibus-DP communication
Anti-shaking function
Analog output
Event recording
leakage protection
AC380V/690V
programmable DI and DO
Analog output
Anti-shaking function
Split Core
High Accuracy Class 0.5
Current Input 20-6000A
Current Output 5(1)A
Rectangular Hole Design
Measurement of current (I)
Application: Renovation Projects
IEC61000-4-30 Ed3 Class A Certificate
IEC60253-22 Class 0.2S
Disturbance Waveform Recording
Disturbance Direction Detection
2000+ Waveform Recording
5000+ SOE Recording
Multi-Circuits Measurement
Max. 4 Channels Three Phase or 12 Channels Single Phase
CE Certificated
RS485 Communication
Application: Base station
Solid Core
High Accuracy Class 0.5
5A output
Measurement of current (I)
Application: Busbar,Cables. New construction projects
Uplink data: RS485, Modbus-RTU
Accuracy 0.5 class
maximum 60 ATE temperature sensors data collection
4DI/2DO
Panel: 96*96*17mm, depth:65mm
CE&RED Certification
Model:C: Receiver; Z: Repeater; M: Receiver
Uplink data: RS485, Modbus-RTU
35mm Din Rail Mounted
ATC600-C receive 240 ATE400, ACE100
ATC600-Z: The Lora Relay is forwarded to ATC600-C, and the forwarding distance can reach 1000 meters;
ATC600-M can receive 240 ATE300M, ATE210
Power Supply: AC/DC 85V-264V or DC 12~48V
CT-powered, starting current≥5A
470MHz、433Mhz Wireless Frequency
15s Sampling frequency
15s Transmission frequency
-50℃~125℃ Temperature Range
Application: cable joints/Busbars/Contacts in LV/HV Switchgear
Split Core Clamp on Installtion
High Accuracy Class 0.5
5A/1A
Measurement of I
Application: Renovation Projects
