Split Core
Clamp on Installation
High Accuracy Class 0.5
150-1000A Input Current
5A/1A Secondary Output
Application: Renovation Projects
+86-18702106858 / +86-21-69156352

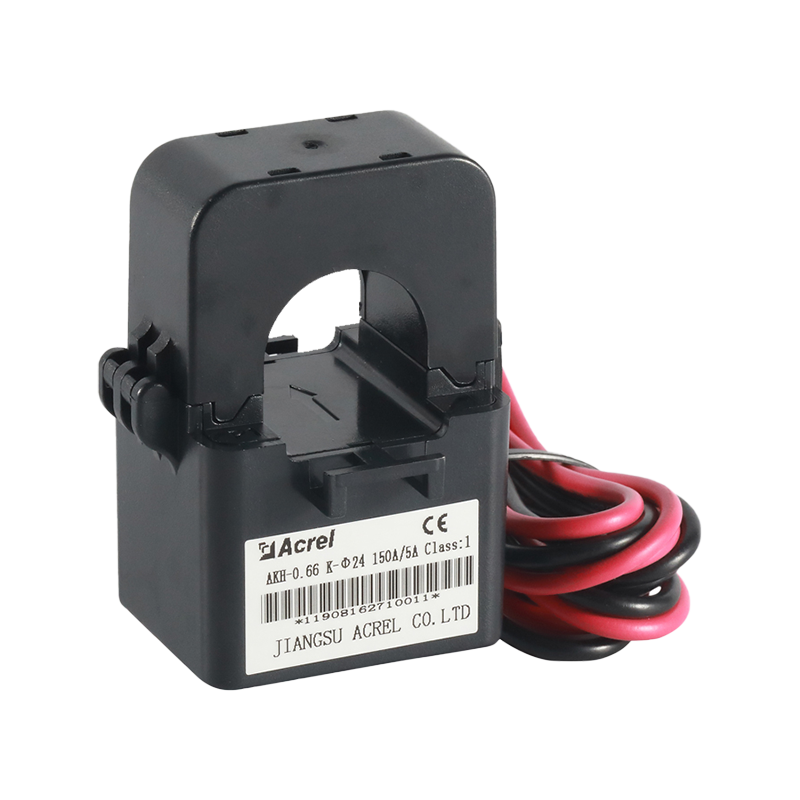

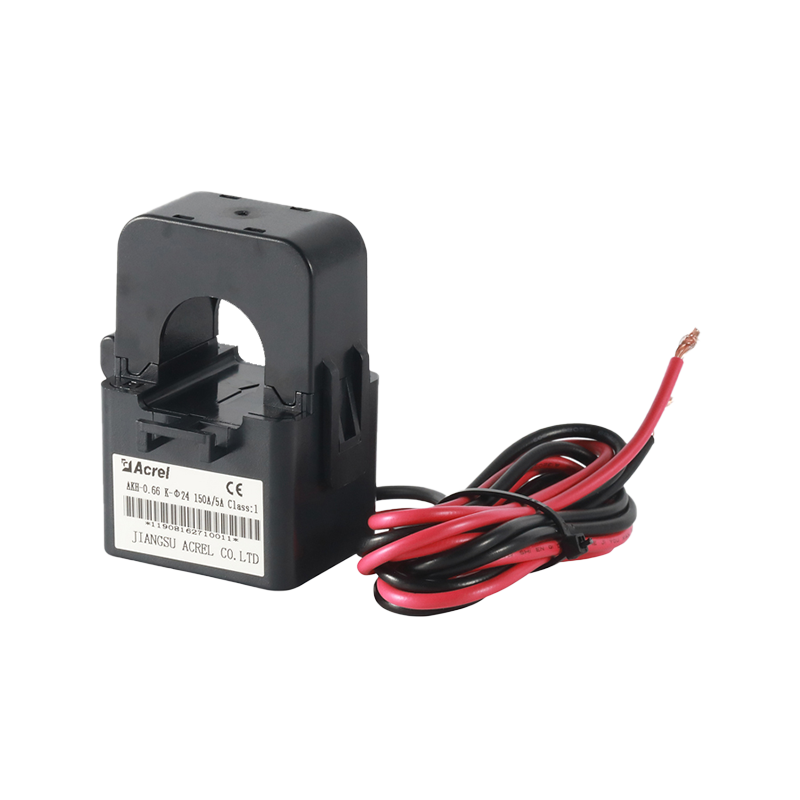

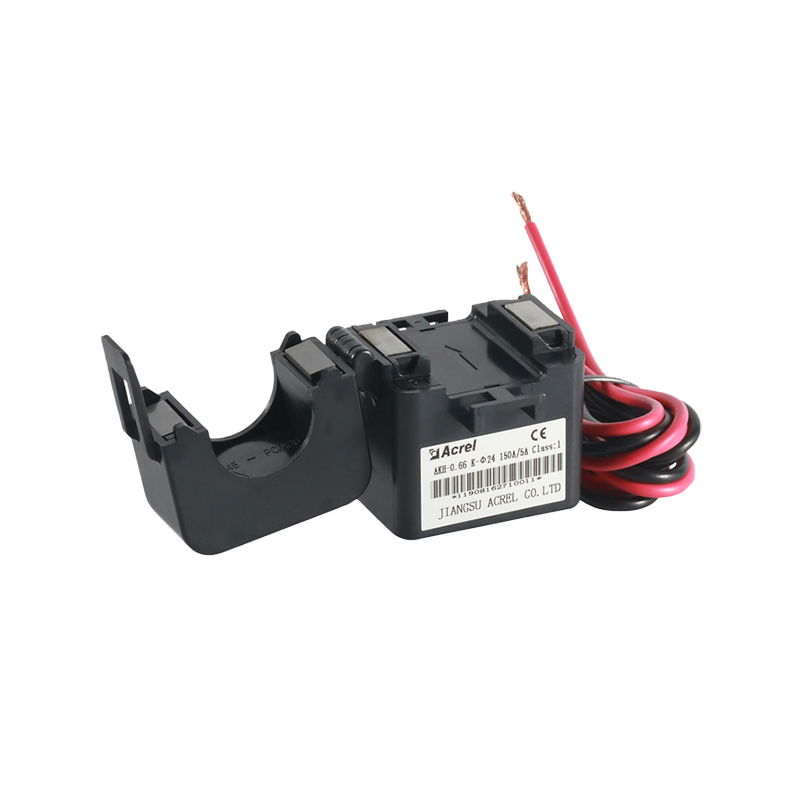

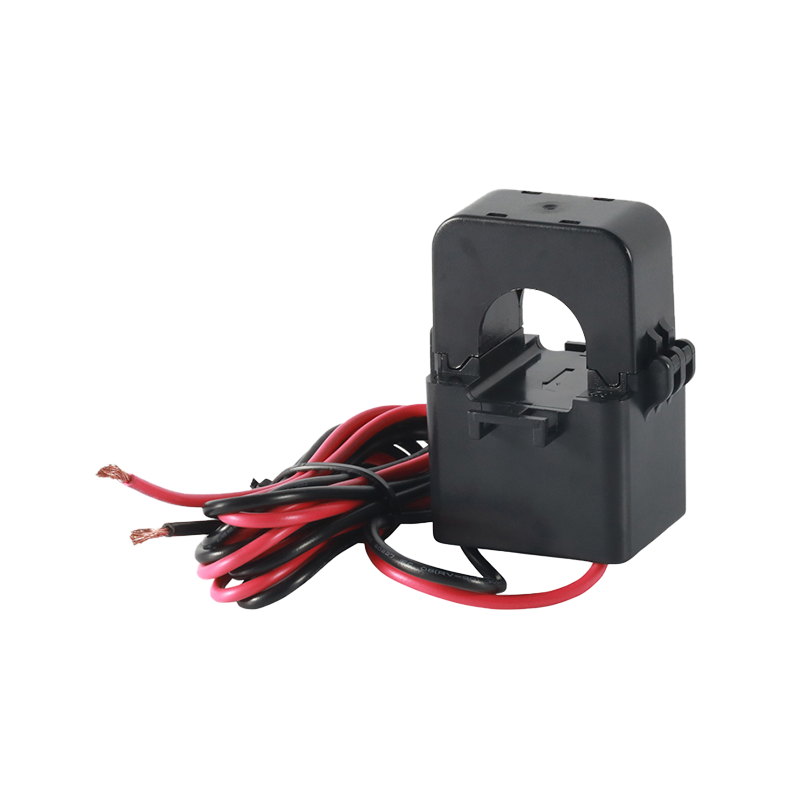

The AKH-0.66/K-Φ series split current transformers are designed for urban and rural power grid reconstruction projects. They feature a compact size, high accuracy, strong load capacity, and easy installation. These transformers convert high AC currents into manageable values and can be connected to meters or relays for current measurement and equipment protection.

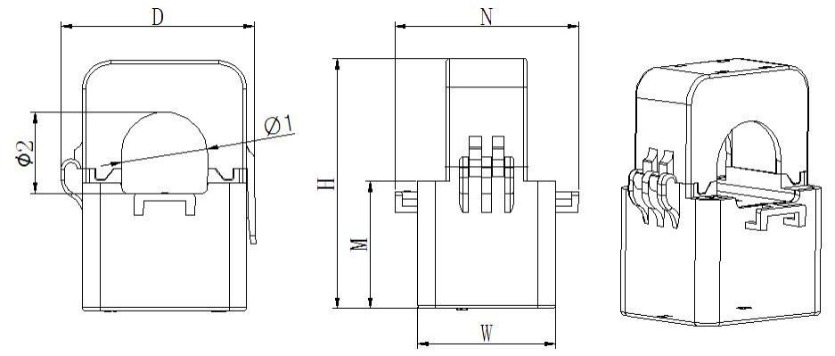

| Spcification | Rared curant matio (A) |
Precision degree | Straight- through tums |
MW.abke outer diameter (mm |
|
| 0.5 | 1 | ||||
| K-Φ24 | (150-200)A/5(1)A | 1 | 1 | Φ24 | |
| (250-300)A/5(1)A | 1.5 | 1 | |||
| K-Φ36 | (300-400)A/5(1)A | 1.5 | 1 | Φ36 | |
| (500-600)A/5(1)A | 1.5 | 1 | |||
| K-Φ50 | 500A/5(1)A | 1.5 | 1 | Φ50 | |
| (600-700)A/5(1)A | 2.5 | 1 | |||
| (800-900)A/5(1)A | 5 | 1 | |||
| 1000A/5(1)A | 10 | 1 | |||
