Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
For IoT Energy Management, Factory, School
+86-18702106858 / +86-21-69156352
Acrel ADL400 AC Three Phase Energy Meter is a compact yet powerful solution for energy measurement and management. It boasts high precision with Class C accuracy and a rated current of 80A direct connection. The meter has MID certification, ensuring reliability and compliance with international standards. It features a 35mm DIN rail mount for easy installation, along with a pulse output for additional functionality.
Its RS485 communication port supports MODBUS-RTU protocol, making it ideal for integration into IoT energy management systems, SCADA systems, and various control systems. The ADL400 can analyze harmonics from the 2nd to 32nd order, providing valuable insights for energy optimization. With its 4 modules and 72mm width, this energy meter is suitable for factories, schools, and other industrial settings where efficient energy monitoring and management are crucial.
| Project | Performance Parameter | ||

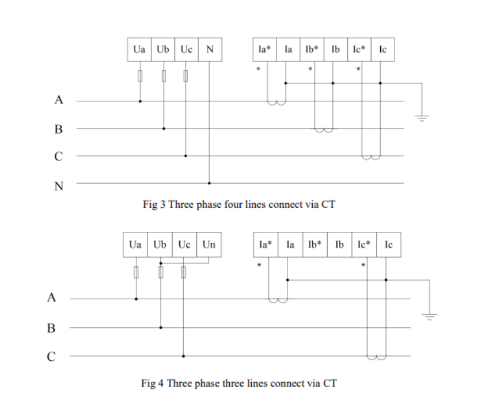

| Specification | 3 Phase 3 Wires, 3 Phase 4 Wires | ||
| Measurement | Voltage | Reference Voltage | 3*230/400V |
| Consumption | <10VA (Single Phase) | ||
| Inpedance | >2MΩ | ||
| Accuracy Class | Error ±0.2% | ||
| Current | Input Current | 80A/100A Directly Access | |
| Consumption | <1VA Single Phase Rated Current | ||
| Accuracy Class | Error ±0.2% | ||
| Power | Active, Reactive, Apparent, Power, Error ±0.2% | ||
| Frequency | 45-65Hz, Error ±0.2% | ||
| Metering | Active Energy Class (kWh) | Class C | |
| Clock | ≤0.5s/d | ||
| Digit Signal | Energy Pulse Output | 1 Active Photocoupler Output | |
| Pulse | Width of Pulse | 80±20ms | |
| Pulse Constant | 10000 imp/kWh | ||
| Communication | Interface and Communication Protocol | RS485: Modbus-RTU | |
| Range of Communication Address | Modbus-RTU: 1-247 | ||
| Environment | Working Temperature | -25℃ to +55℃ | |
| Relative Humidity | ≤95% (No Condensation) | ||

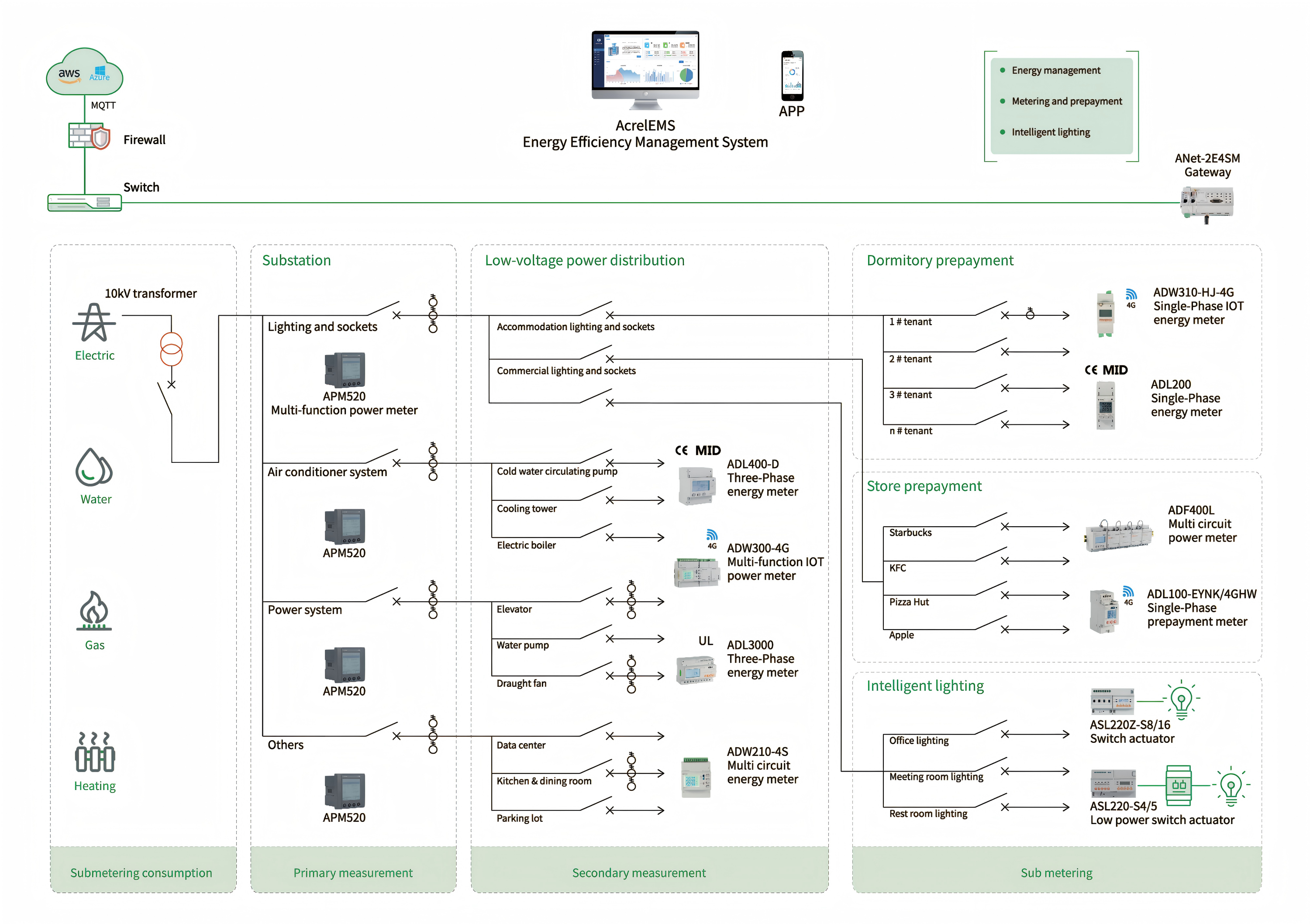

Energy Efficiency Management System

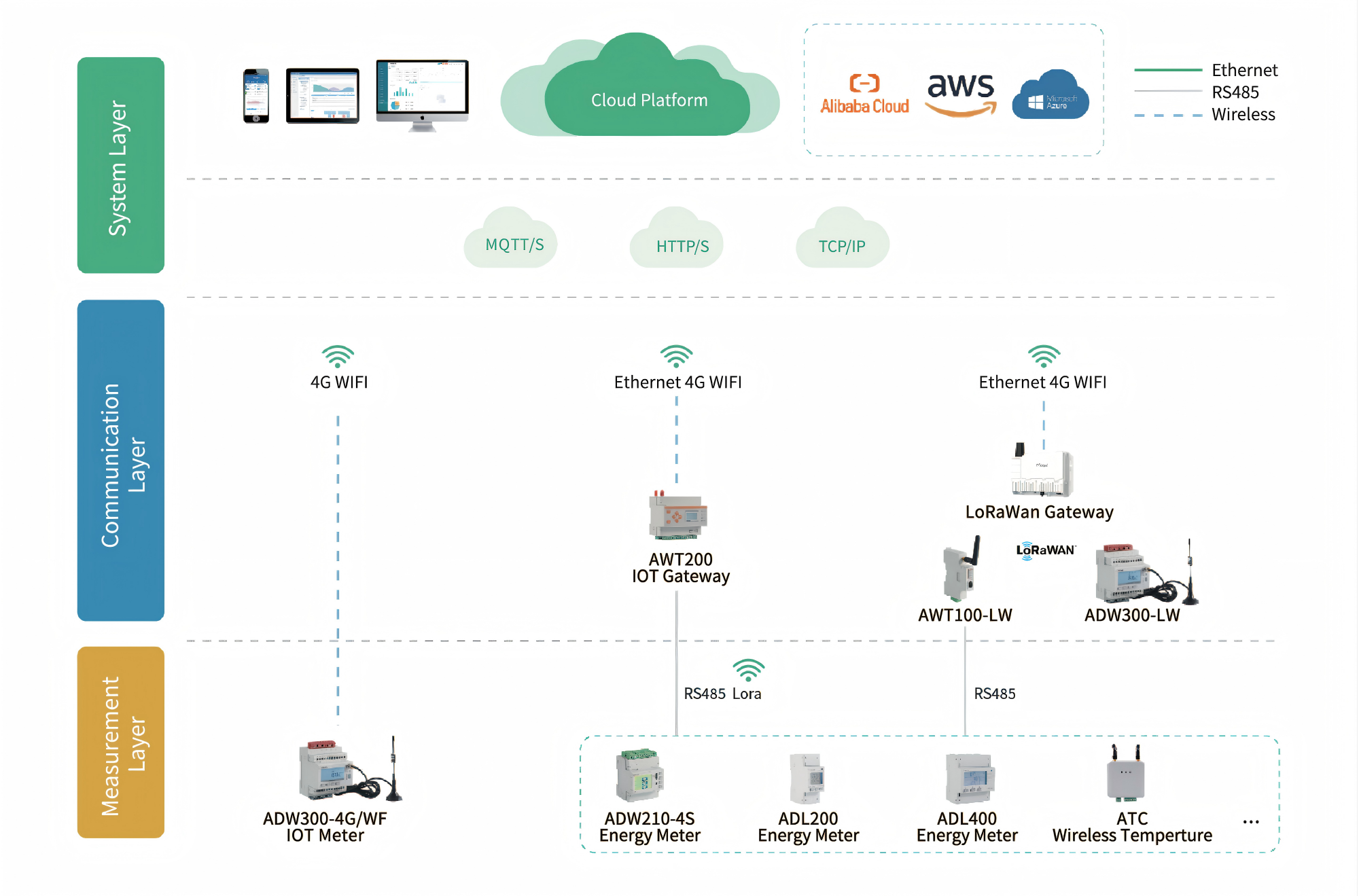

IoT Energy Management System
