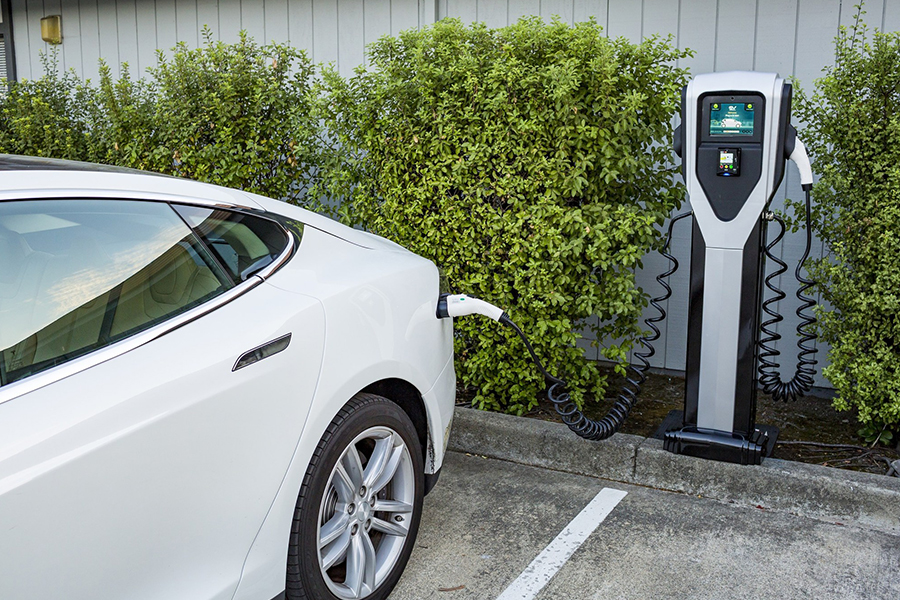

EV Charging Station
-

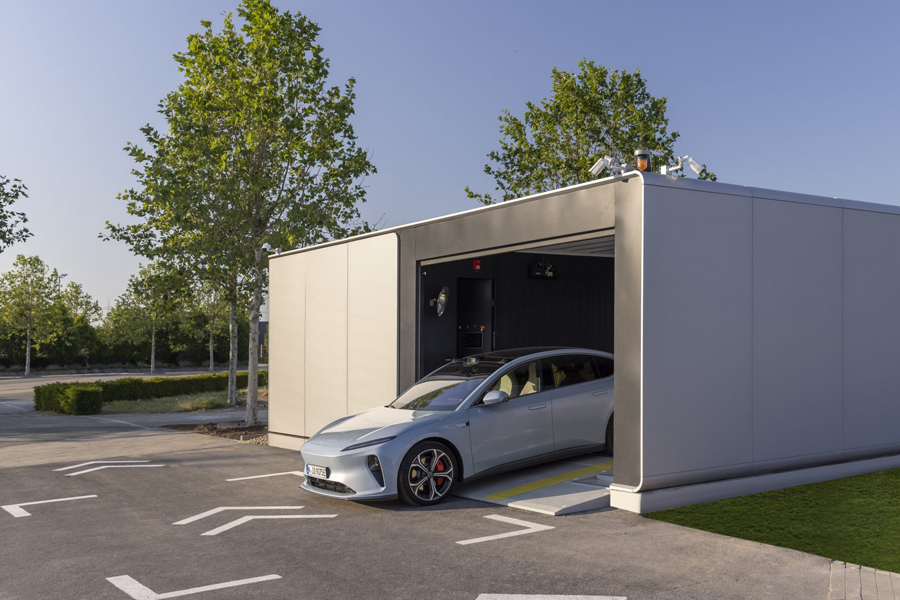

Battery Swap Station
Project
Overview

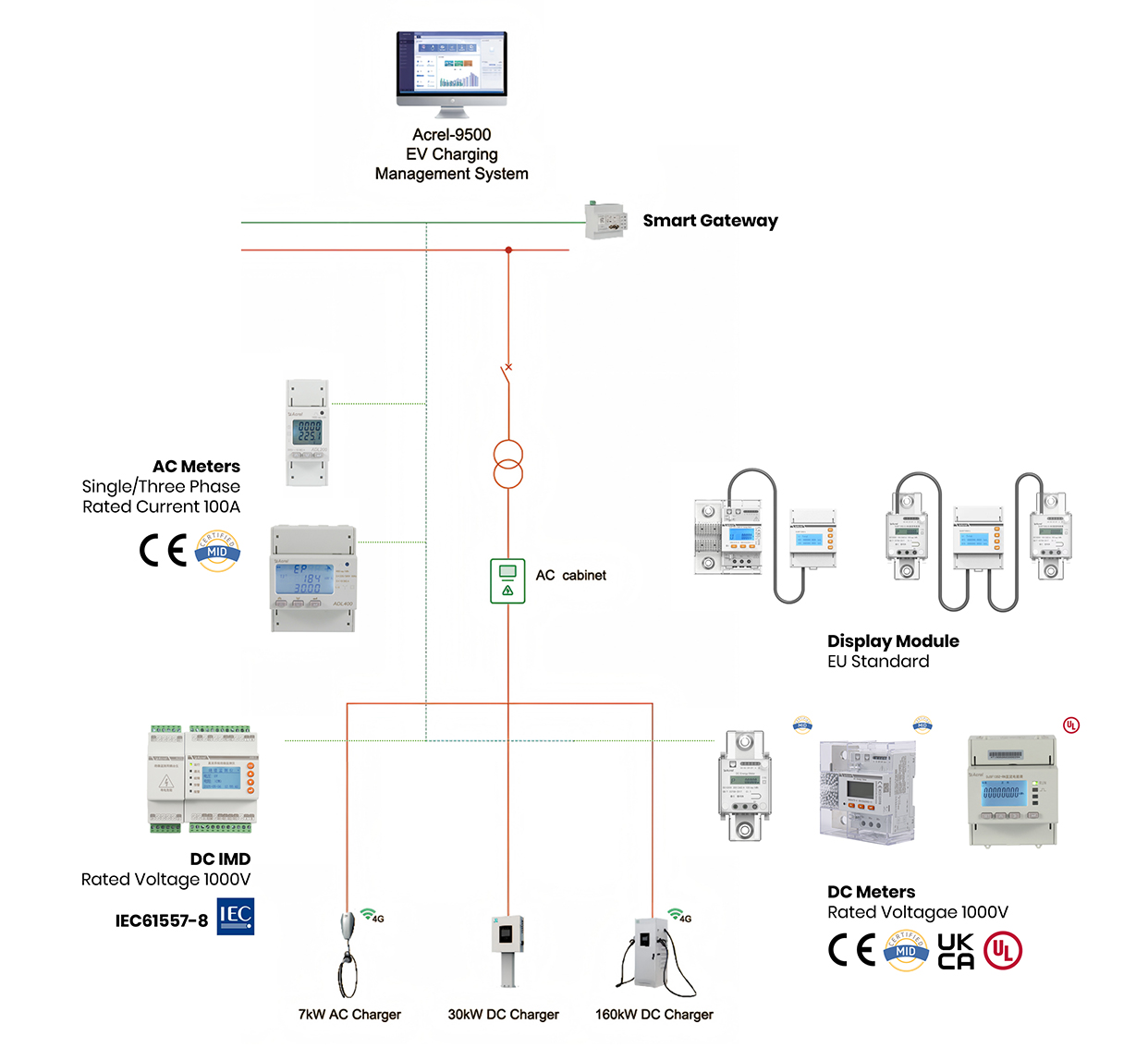

Acrel's EV Charger Metering Solution provides a comprehensive and efficient energy measurement system for EV charging stations.
For AC charging, it offers single-phase and three-phase energy meters with a maximum current rating of 100A, equipped with MID certification, meeting EU standards.
In DC charging scenarios, Acrel provides the DJSF1352 series of DC meters, which not only support direct connection of high currents up to 600A but also come with MID and UL certifications, ensuring accuracy and safety in energy measurement.
Moreover, Acrel's Insulation Monitoring Device (IMD) complies with IEC61557-8, guaranteeing safe insulation monitoring during the charging process.
By integrating advanced metering devices and adhering to stringent international standards, Acrel ensures reliable and precise energy measurement, supporting the widespread adoption and efficient operation of EV charging infrastructure.
Products
-
AIM-D100-TH AIM-D100-TH DC Din Rail Insulation Monitoring Device IMD wit...
View More -
AIM-D500-CA AIM-D500-CA DC Din Rail Insulation Monitoring Device IMD wit...
View MoreIEC61557-8
Rated Voltage: 50V~1000V
Accordance with the CHAdeMO 3.0 & Combined Charging System (CCS)
Undervoltage and Overvoltage Detection
Stop Mode for Disabling the Measuring Pulse Generator
-
ADL200 AC Single Phase Direct Access DIN Rail RS485 Energy Meter
View MoreAC Single Phase Measurement
80A Direct Input Current
CE-MID Certificated
High Accuracy Class 1
DIN Rail Installation
RS485 Communication
Application: IoT Energy Management, Factory, School
-
ADL400 100A AC Three Phase 100A Input Energy Meter for EV Charger Meteri...
View MoreRated Current 100A Directly
MID Certificated
High Accuracy Class C
Rated Voltage 3*230/400V
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
-
DJSF1352-RN UL Certified DC Input 0-1000V Energy Meter for EV Charger
View MoreDC Energy Monitoring
Dual RS485 Communication
Rated Voltage 0~1000V DC
DO/DI Function
UL certified
High Accuracy Class 0.5
Built-in Bipolar Power Source for Hall Sensors
-
DJSF1352-D-360 MID Certified 360A Direct Input DC Energy Meter for EV Char...
View MoreMID Certificated
Rated Current 360A
Rated Voltage DC 0-1000V
Accuracy Class B (Class 1)
RS485 Communication
Pulse Output
-
DJSF1352-D-600 MID Certified 600A Direct Input DC Energy Meter for EV Charg...
View MoreMID Certificated
Rated Current 4-600A
Rated Voltage DC 0-1000V
Accuracy Class B (Class 1)
RS485 Communication
Pulse Output
