Event recording
Start control function
programmable DI and DO
Profibus-DP communication
Anti-shaking function
Analog output
+86-18702106858 / +86-21-69156352

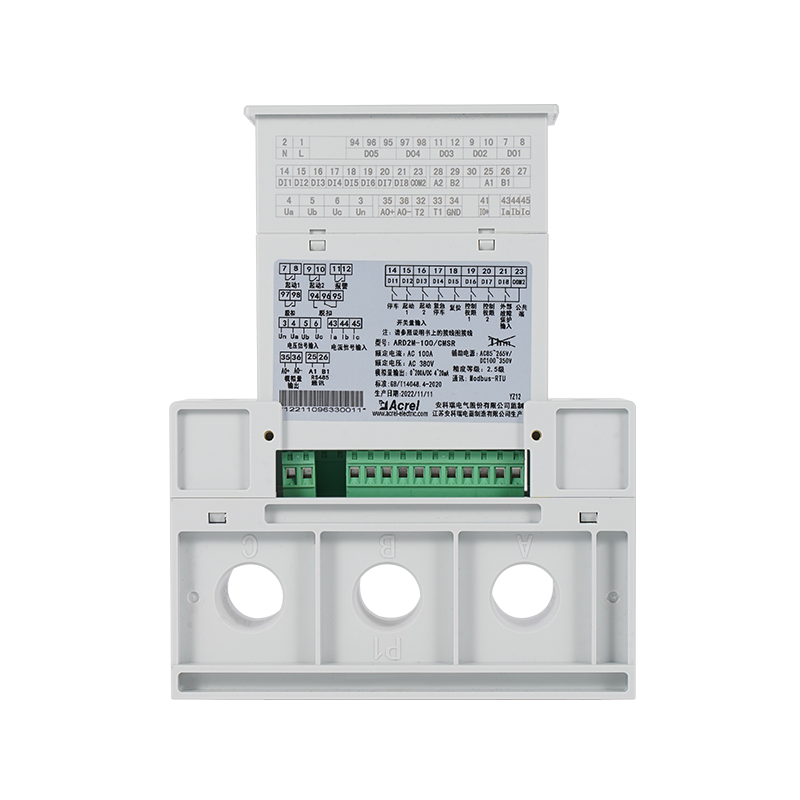

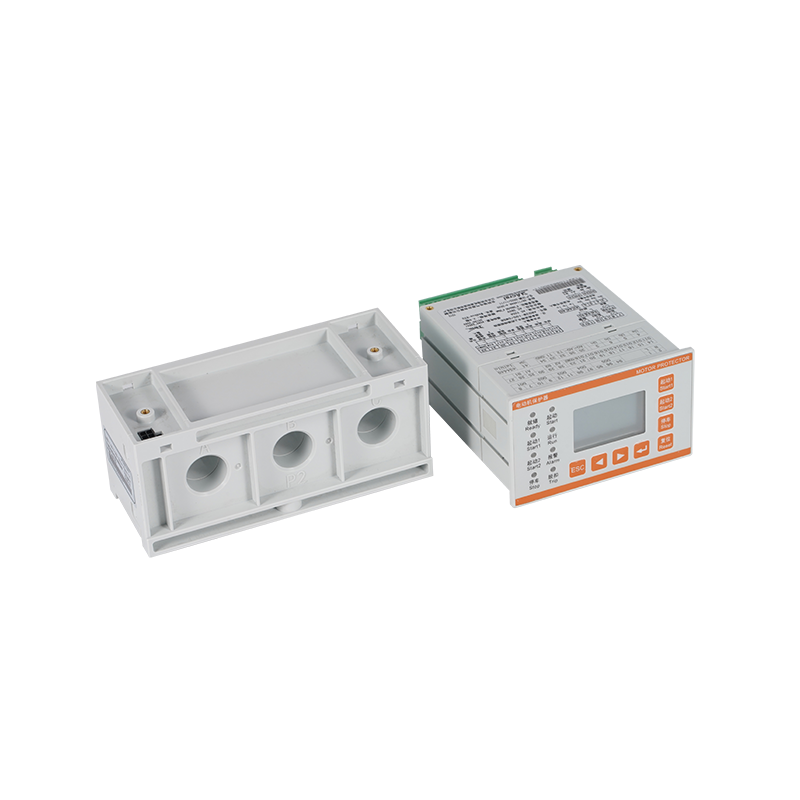

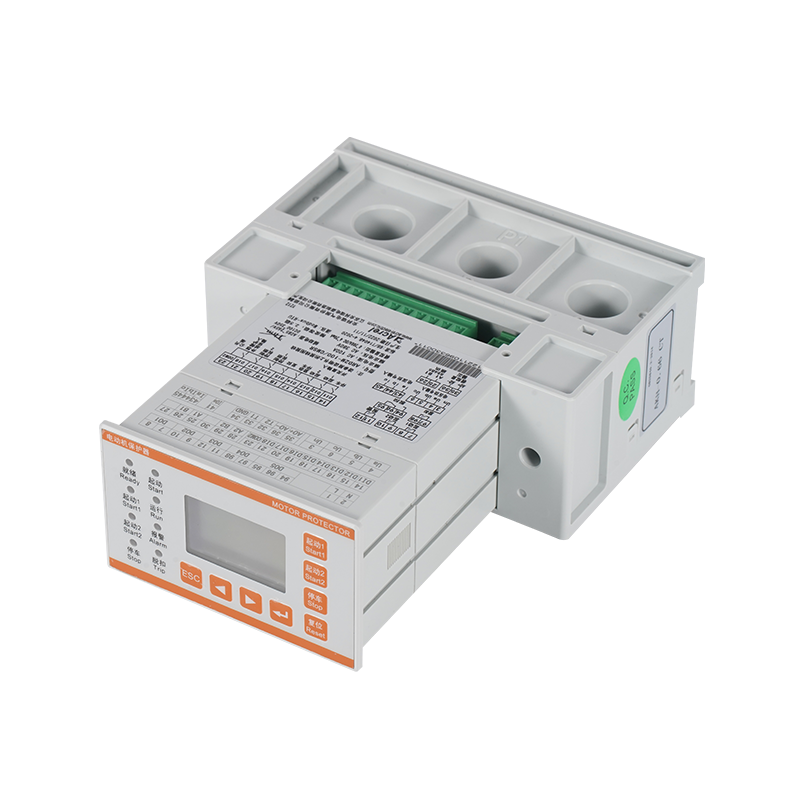

The Acrel ARD2M is a multifunctional motor protection controller designed for low-voltage motor circuits. It features event recording, start control function, and programmable DI/DO for flexible motor control. Supporting Profibus-DP communication, it integrates an anti-shaking function for stable operation and includes analog output for monitoring. The ARD2M provides comprehensive protection, precise control, and reliable communication for industrial motor management.
| Technical parameters | Technical indicators | |
| Protector auxiliary power supply | AC85-265V/DC100-350V | |
| Rated working voltage of the motor | AC220V / 380V, 50Hz / 60Hz | |
| Rated operating current of the motor | 1 (0.1A-5000A) | Integrated/Split current transformer |
| 5 (0.1A-5000A) | ||
| 25（6.3A-25A） | ||
| 100（25A-100A） | ||
| 250（63A-250A） | Split current transformer | |
| 800（250A-800A） | ||
| Relay output contact capacity | Impedance load | AC250V、10A |
| Switching input | 8 channels of passive dry contact (active DC110V, DC220V, AC220V input can be optional) | |
| Communication | RS485 Modbus_RTU, Profibus_DP | |
| Environment | Working temperature | -10ºC～55ºC |
| Storage temperature | -25ºC～70ºC | |
| Relative humidity | ≤95﹪No condensation, no corrosive gas | |
| Altitude | ≤2000m | |
| Pollution levels | Class 3 | |
| Protection grade | Main body IP20, split display module IP54 (installed on the cabinet panel) | |
| Installation category | Level III | |
