8 Channels Temperature Measurement
Support PT100/Thermocouple Sensors
High Accuracy Class 0.5
2 Channels Alarm output
RS485 Communication
+86-18702106858 / +86-21-69156352

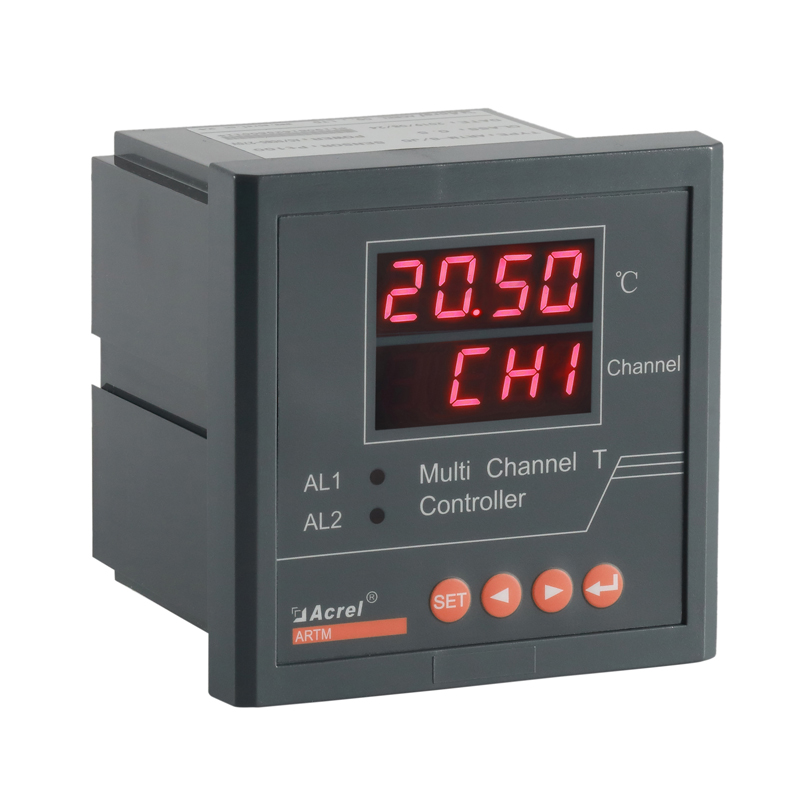

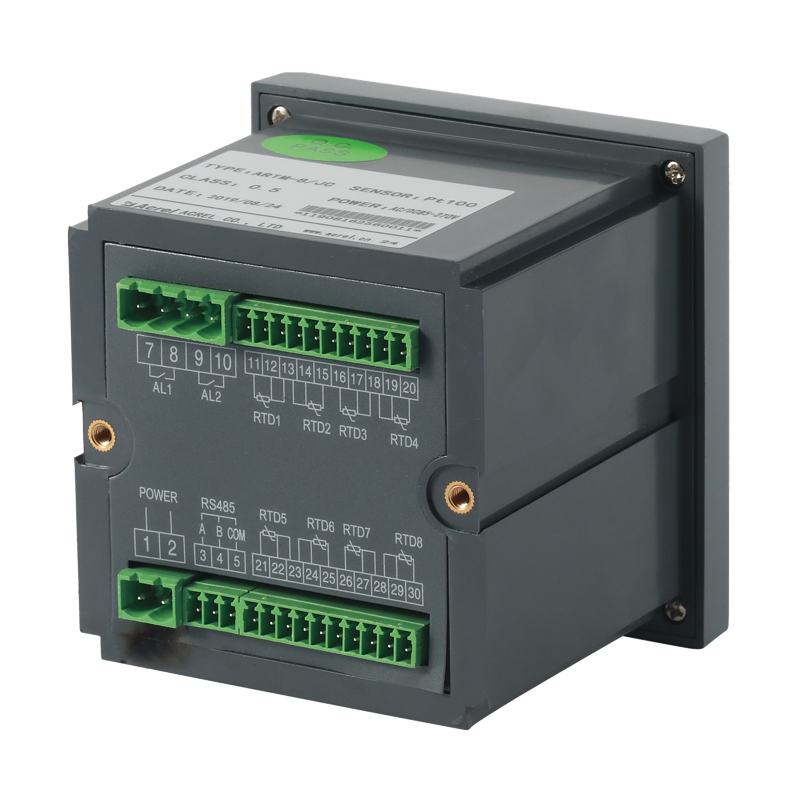

ARTM-8 temperature inspection instrument can be connected to PT 100 thermocouple sensor. It is mainly suitable for temperature measurement and control of multiple channels, and applied to temperature measurement of low voltage electrical contact, transformer winding, motor winding and other places.
|
Technical Features Function |
Features |
|
|
ARTM-8 |
||
|
Number of measurement channels |
8 |
|
|
Input signal |
Pt100； |
|
|
Measurement Range |
Pt100: Maximum support -99.9℃～600℃, the actual range depends |
|
|
Accuracy class (standard signal) |
PT100：-200℃~200℃，±1℃； |
|
|
Auxiliary power |
voltage range |
AC85~265V、DC100~300V， |
|
Power consumption |
≤2W |
|
|
Alarm Output |
Routes |
2 Channels Alarm output |
|
Capacity |
AC250V/5A，DC30V/5A |
|
|
Communication |
Protocol |
Modbus-RTU |
|
Interface |
RS485 |
|
|
Baud rate |
1200, 2400, 4800, 9600, 19200 |
|
|
Environment |
TEMP |
Work: -10~+55℃, Storage: -25~+70℃ |
|
HUM |
≤95%, non condensing, non corrosive gas environment |
|
