6 Channels NTC cable
Class 1
Sampling frequency: 1-240s
-40℃～150℃ Temperature Range
Wireless distance: 1000m in open space
+86-18702106858 / +86-21-69156352

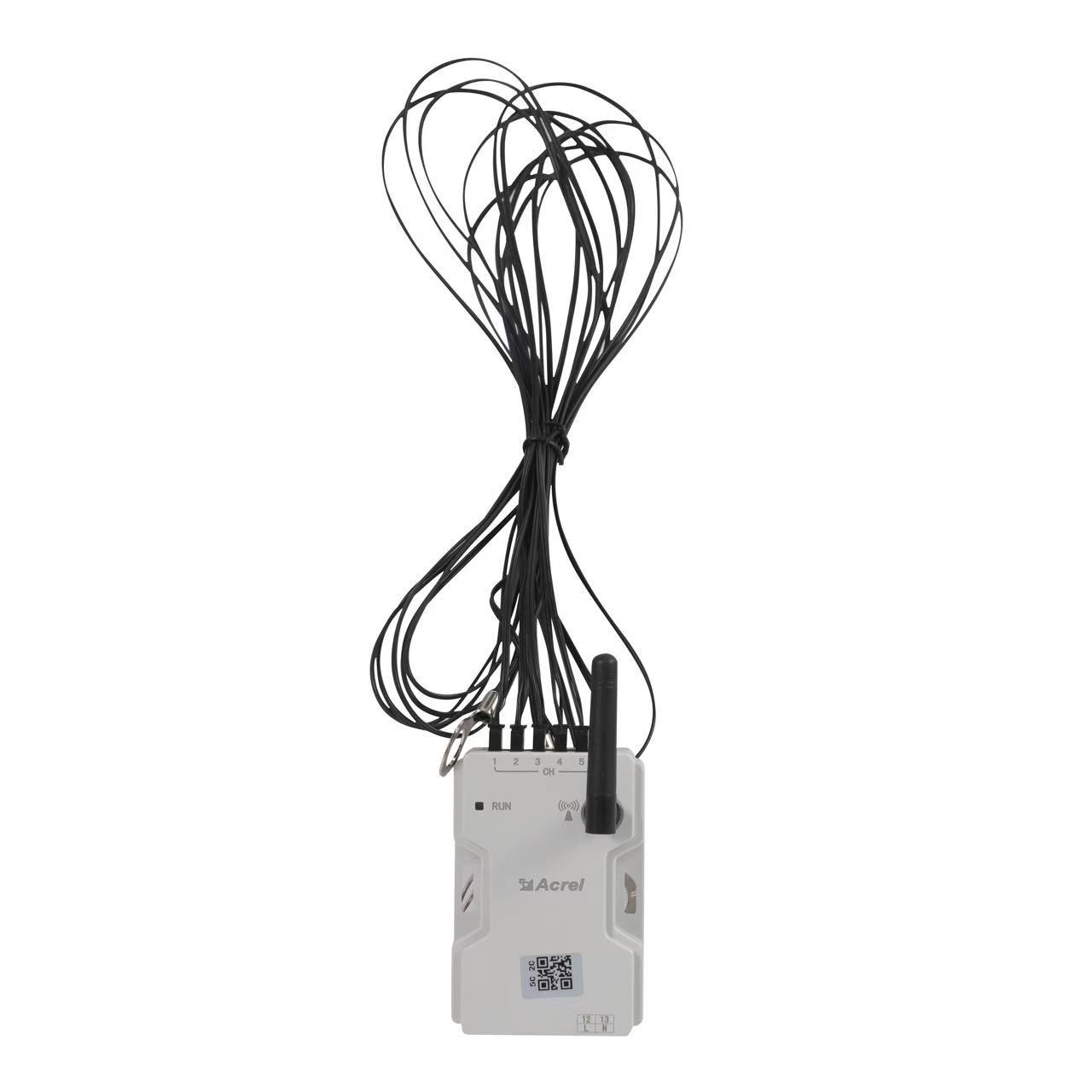

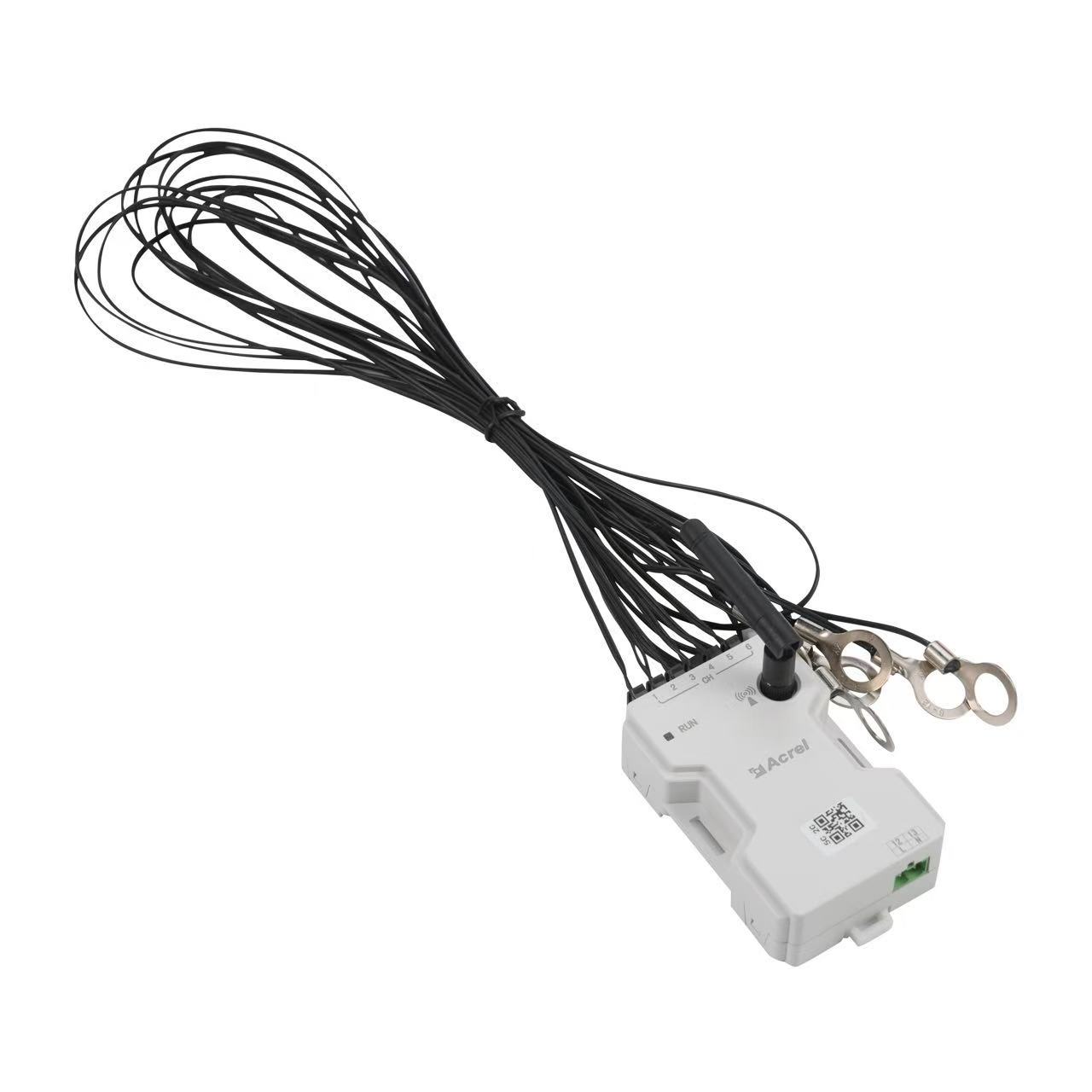

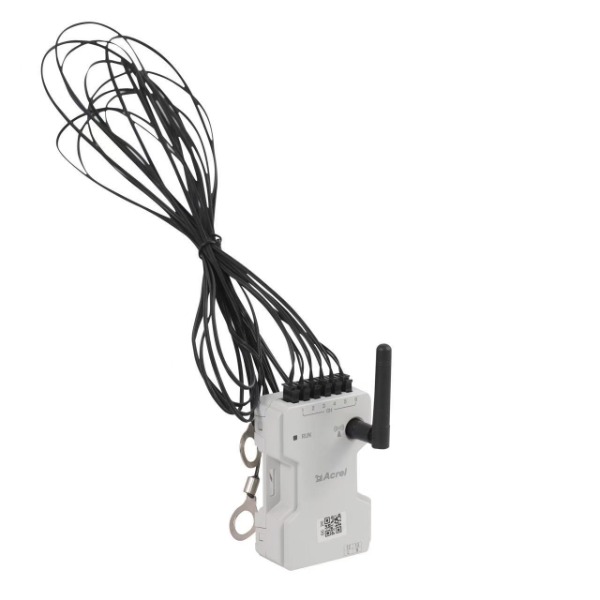

The ATE300M multi-channel wireless temperature sensor revolutionizes thermal monitoring across electrical distribution infrastructure by completely eliminating physical data cabling.
Engineered for critical applications—including low-voltage drawer cabinets, main distribution panels, and surface mounting on capacitor banks or reactors—this device transmits real-time temperature measurements through robust radio frequency communication.

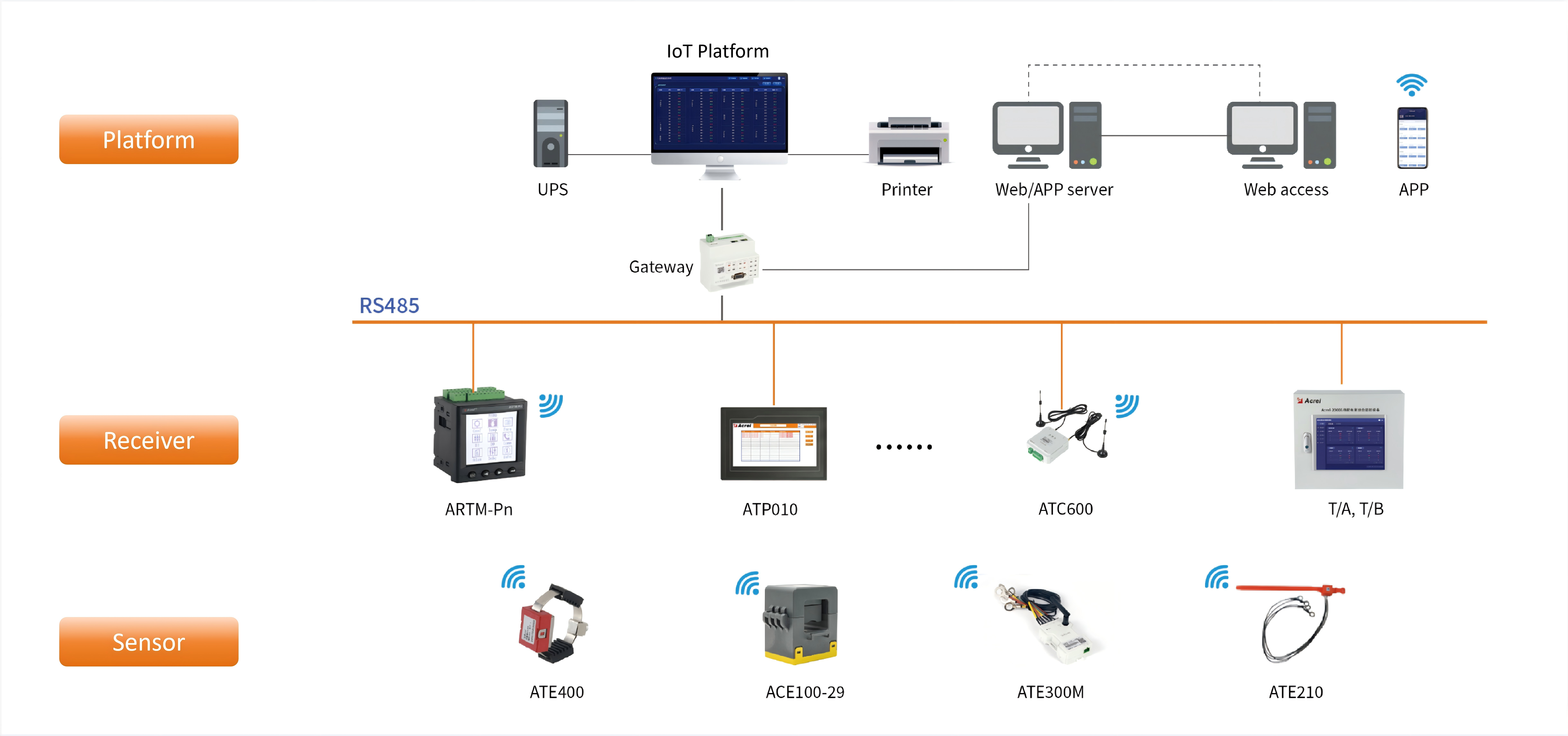

A dedicated wireless receiver captures these thermal data streams and relays them to local displays or integrates seamlessly with remote SCADA platforms for comprehensive network-wide surveillance. This architecture enables instantaneous detection of abnormal heat buildup at connection nodes, triggering proactive alerts that prevent equipment failures before they escalate.
The cable-free design not only circumvents electromagnetic interference and high-voltage installation hazards but also slashes deployment complexity and costs. Particularly transformative in space-constrained switchgear where traditional wired sensors pose safety risks, the ATE300M establishes wireless connectivity as the definitive standard for intelligent, scalable temperature management in modern power distribution ecosystems.
|

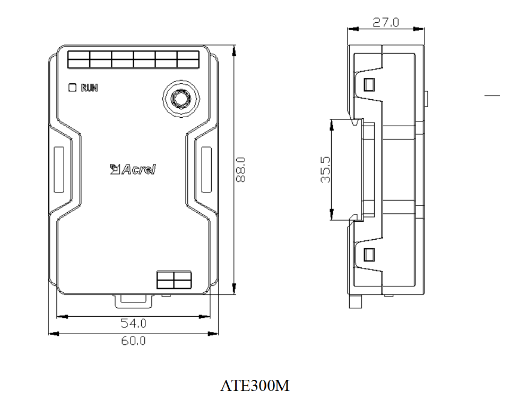

ATE300M多回路式温度传感器 ATE300M multi Loop temperature sensor
|
无线频率 Wireless frequency |
433-510MHz |
|
通讯距离 Communication distance |
空旷1000m 1000m in open area |
|
|
采集频率 Sampling frequency |
1-240s |
|
|
工作电源 Power source |
AC 85~265V、DC 100~300V |
|
|
安装方式 Installation |
导轨式/扎带式 Rail type/Tie type |
|
|
测温范围 Range of temperature |
-40℃~+150℃ |
|
|
精度 Precision |
±1℃ |
|
|
传感器探头 Sensor probe |
1-6路可选，分体式NTC：孔径12mm，长0.5m、1.2m、2.5m. Options 1-6, split-type NTC: aperture 12mm, lengths 0.5m, 1.2m, 2.5m. |
|
|
应用范围 Application |
低压抽屉柜内电气接头 Joints in low voltage switchgears |
