Electrical parameter measurement :U,I,f,P,Q,PF,Ep,Eq,Es[50/51] Overcurrent , 3stages;
[50N/51N]Zero-sequence overcurrent protection (3 stages earth fault);[59] Over voltage protection;[27] Under voltage protection;[81U] Under frequency;[26/63] Non-electricity protection;[79] Auto-reclose;
Application scenario: Municipal construction, hospitals, schools, hotels, commercial buildings, etc.;

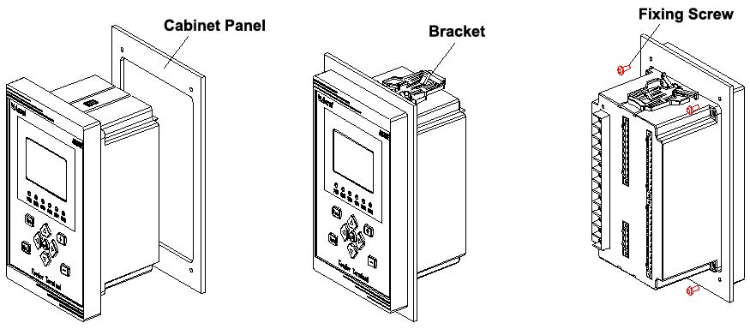

Installation method: Embedded installation, snap fixing.
+86-18702106858 / +86-21-69156352
When a severe fault (short-circuit, earth-fault) threatens the network, AM3SE trips the faulty feeder, motor, transformer or busbar in milliseconds, limiting damage and keeping the rest of the system alive. If an abnormal condition (overload, unbalance, under-voltage) appears, it raises an instant alarm so operators can act before costly downtime occurs.
From a single hardware platform AM3SE delivers dedicated protection for every user-side asset: main transformer, incomer, distribution transformer, motor, capacitor bank, PT, busbar and automatic-transfer schemes—ensuring faults are cleared fast, losses are minimized and power stays on.
| Characteristics | AM3SE |
| Power Supply | |
| Rated voltage | AC/DC 110V or AC/DC 220V or DC 48V or DC 24V |
| Range | Rated voltage × (1±20%) |
| Burden | ≤10W ( DC ) |
| PT Inputs | |
| Rated value | AC 100V or |
| V | |
| PT rated secondary range | 0.1V～120V |
| Accuracy | 0.5S |
| Burden | ≤0.5VA (each phase) |
| Voltage withstand | Continuous: 1.2 Un |
| 10s: 2 Un | |
| Phase CT Inputs (Protection Current) | |
| CT rated secondary range | AC 5A or 1A |
| Dynamic | 15 × CT rated current |
| Accuracy | 0.5S |
| Burden | ≤0.5VA (each phase) |
| Thermal withstand | Continuous: 2 In |
| 1s: 40 In | |
| Frequency | |
| Rated frequency | 50Hz or 60Hz |
| Frequency range | 45 ~ 55Hz or 60Hz |
| Accuracy | ±0.1Hz |
| Digital Inputs | |
| Operating nominal voltage | AC/DC 110V or AC/DC 220V or DC48V or DC24V |
| Voltage threshold | 70% of nominal voltage |
| Reset threshold | 55% of nominal voltage |
| Burden | ≤ 1W (each phase) (DC220V) |
| Digital Outputs | |
| Make and carry | ≥ 10000 operations |
| Making capacity | ≥ 1000W, L / R = 40ms |
| Continuous current | ≥ 5A |
| Short duration carry current | ≥ 30A for 200ms |
| Breaking capacity | ≥ 30W, L/R = 40ms |
