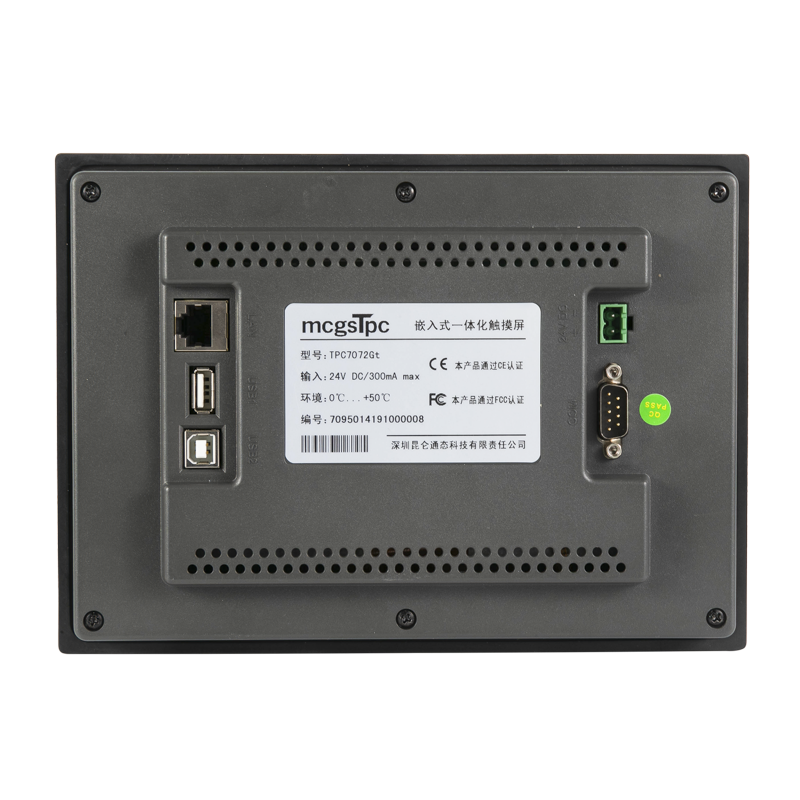

7 inch Display Module for Substation O&M System

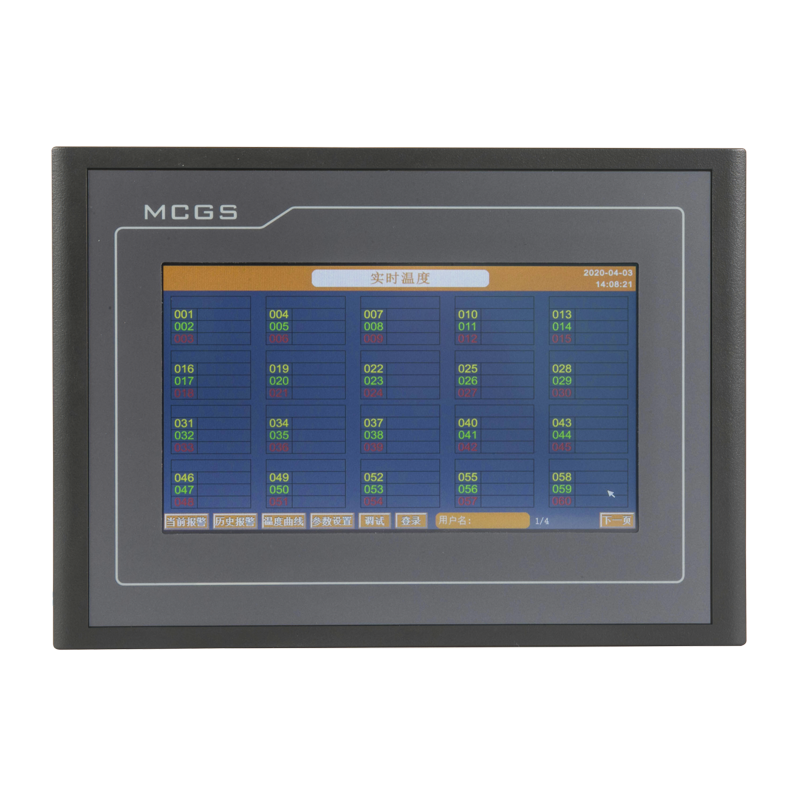

7-inch Touch-Screen

Receive Max. 240 Sensors

Work with SCADA System

Contact Us
PREV: 4G AC Single Phase Prepaid Meter for Billing System
NEXT: AC Three Phase Panel Mounted LCD Energy Meter

+86-18702106858 / +86-21-69156352

[email protected]

  • Describe

  • ATP007 is a 7-inch touch-screen controller engineered for centralized wireless temperature monitoring across critical electrical infrastructure. It orchestrates up to 240 wireless sensors deployed on high-voltage switchgear contacts, cable terminations, and transformer windings, eliminating safety risks inherent in direct-contact measurement through complete electrical isolation. The system achieves ±1°C precision with 0.1°C resolution, accommodating diverse sensor types—from battery-powered ATE200 to CT-powered ATE400 and multi-loop ATE300M—to suit varying installation constraints. Real-time thermal mapping, configurable alarm thresholds with buzzer notification, and 300-day trend analytics empower predictive maintenance protocols, reducing unplanned downtime. Dual RS485/Ethernet interfaces with native Modbus-RTU/TCP support ensure frictionless integration with existing SCADA and cloud platforms, while USB data export enables offline diagnostics. Operating on 24VDC supply with robust EMC immunity and 3km altitude tolerance, the ATP007 provides utilities, data centers, and industrial facilities with a turnkey solution for thermal anomaly detection, asset protection, and data-driven lifecycle optimization.

  • Specifications
  •  Technical Parameters Value
    Input Connection Single phase-2-wire, 3-phase-3-wire, 3-phase-4-wire
    Frequency 45-65Hz
    Voltage Rating:
    single-phase :AC 100V、400V
    Three-phase: AC 3×57.7V/100V(100V)、3×220V/380V(400V)、3×380V/660V(660V)(96 size only)
    Overload:1.2 fold rating {continuous) : 2 fold rating for 1 second
    Power consumption:< 0.5VA
    Current Rating: AC IA、5A
    Overload:1.2 fold rating(continuous);10fold rating for 1 second
    Power consumption:< 0.5VA
    Output Electric energy Output mode:open-collector photo-coupler pulse
    Pulse constant: 10000imp/kWh(settable)，see wiring diagram for details；
    Communication RS485port, Modbus -RTU protocol,DLT645 protocol(versions 07 and 97)，
    baud rate 1200 ~ 38400
    Function Switching input Dry contact input, built-in power supply;if the model is KA,it is AC 220V active.
    Switching output Output mode: Relay normally open contact output
    Contact capacity: AC 250V/3A、 DC 30V/3A
    Analog output 4 - 20mA
     Accuracy class Frequency:0.05Hz,Current、Voltage:0.2 class,Reactive power:l .0class,Reactive Electric energy:l .0class, active power:0.5class,active electric energy: 0.5class,2-31th harmonic measurement:±1%
     Power supply AC/DC 85-265V or DC24V（±20%）or DC48V(±20%)
    power consumption≤10VA
    Security Power frequency withstand voltage Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min;
    Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min;
    Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;
    Insulation resistance Input、Output end to machine enclosure >100MΩ
    Environment Temperature work: -25°C~+65°C  storage: -40°C ~+80°C
    Humidity ≤93%RH Non-condensing
    Altitude ≤2500m

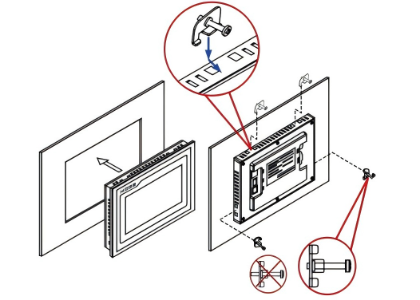

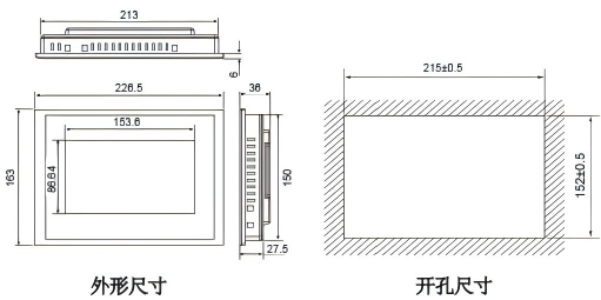

  • Dimension & Wiring Diagram

  • Application Scenario

  • Power Monitoring Solution

  • Work Site Application
