Solid Core
High Accuracy Class 0.5
IEC/EN61869-1;IEC/EN61869-2;CE
Horizontal square hole type
Application: Busbar,Cables. New construction projects
+86-18702106858 / +86-21-69156352

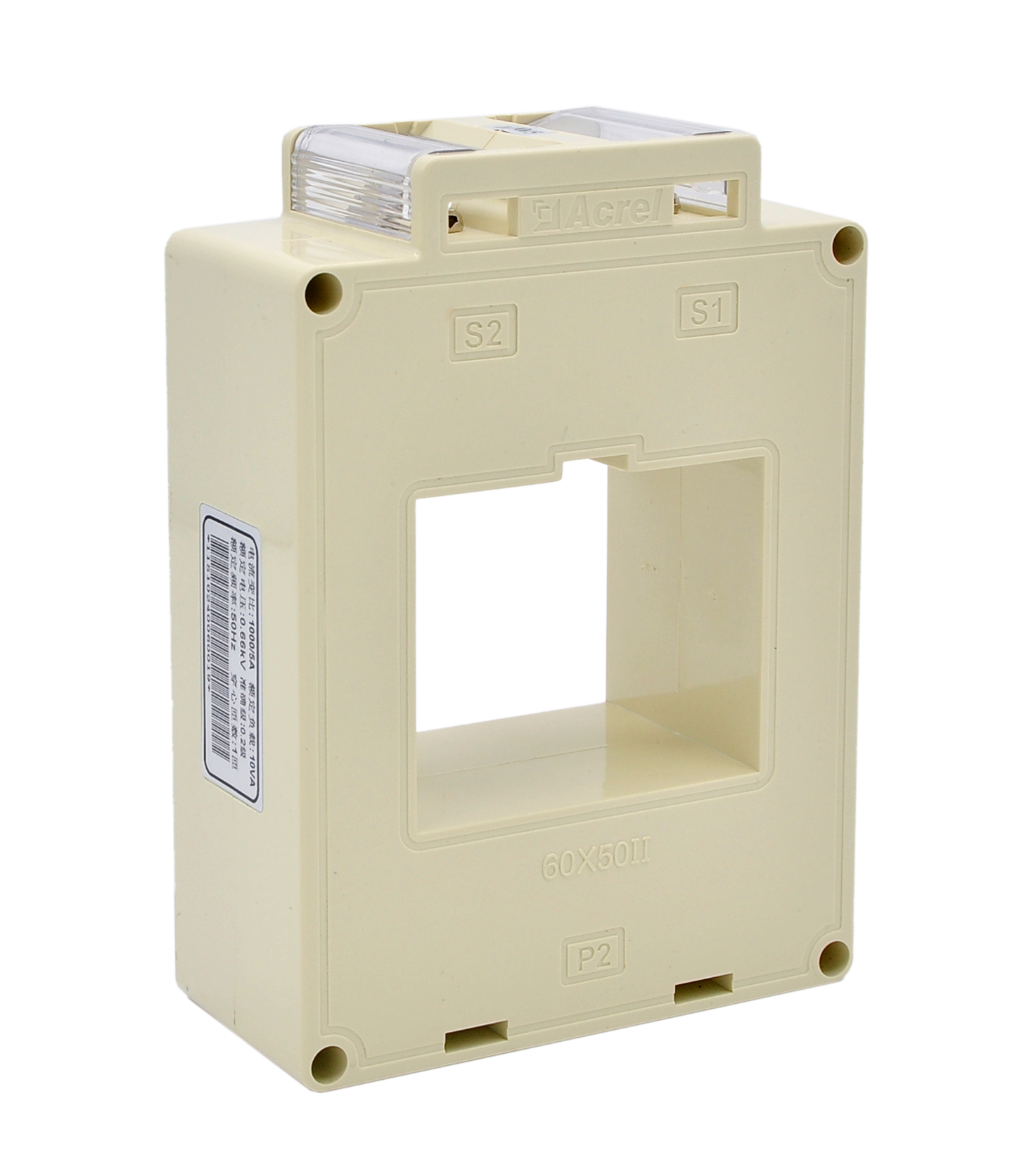

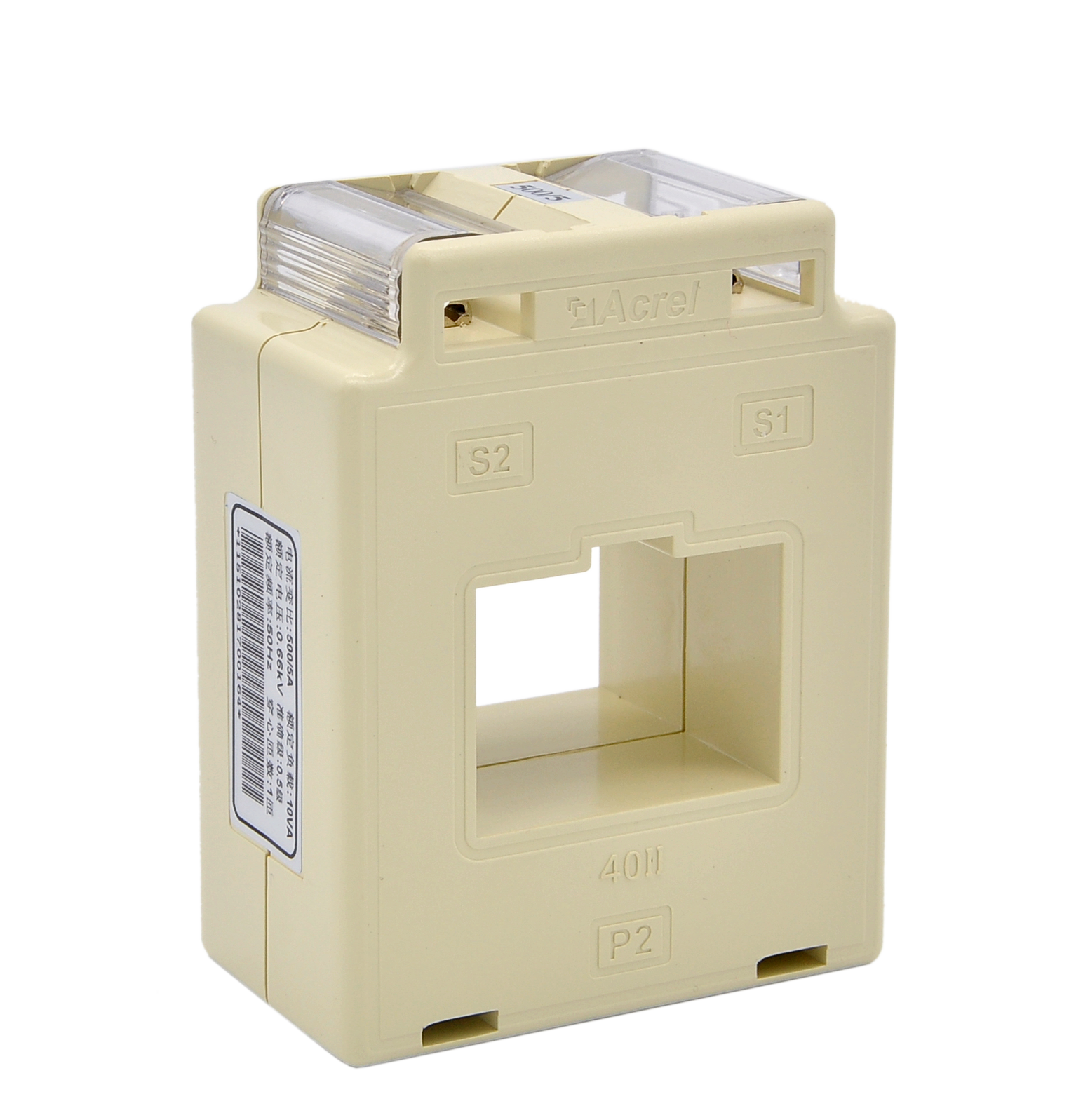

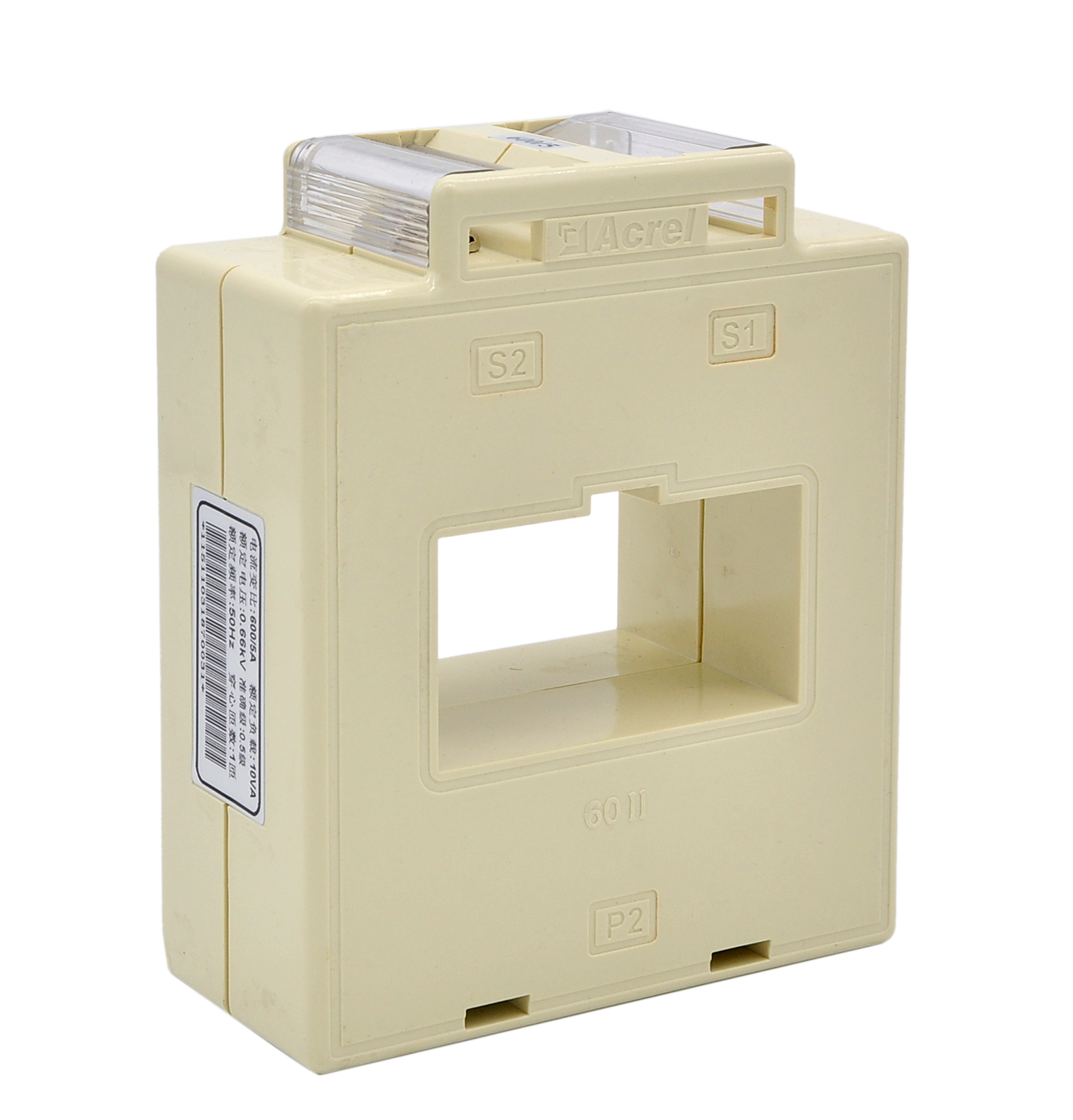

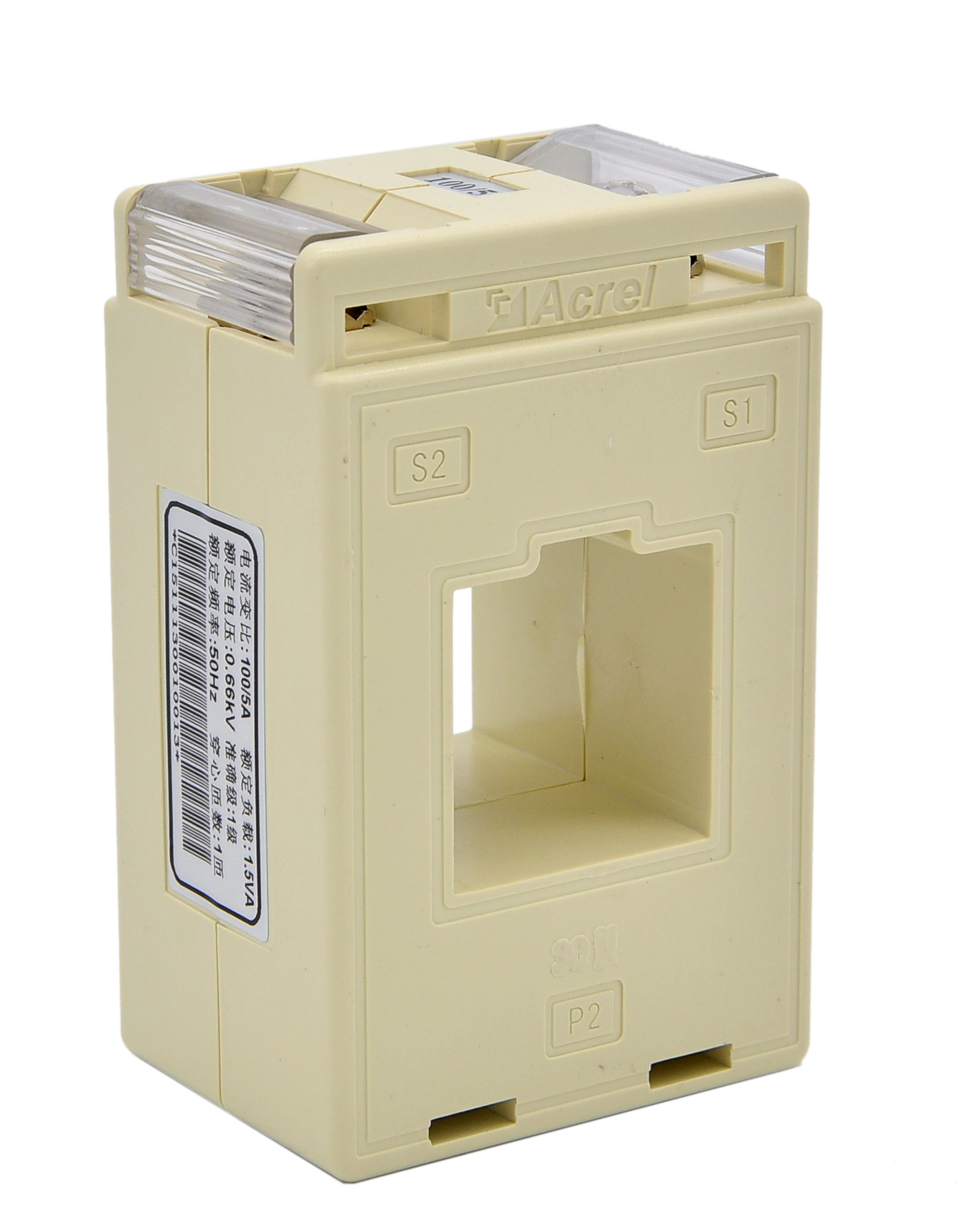

AKH-0.66-II is a square-aperture, through-type current transformer built for crowded switchboards. Its glass-fiber reinforced housing slips straight over 1-6 rectangular bars or bundled cables up to 260 mm wide, eliminating the need for dismantling bus-work during retrofits. Offered in ratios from 100/5 A to 6300/5 A and accuracy classes 0.2, 0.5 or 1, the core delivers 5 VA-30 VA burden capacity while keeping linearity within ±0.2 %. A 3 kV/1 min withstand and –30 °C to +70 °C rating let it ride out harsh motor-control centres, photovoltaic combiners or shipboard panels. Two M5 studs or DIN rail clips provide vibration-proof mounting in any orientation, and the 45 mm depth preserves precious cabinet space. CE-marked to IEC 61869-2, the transformer feeds meters, relays or PLCs with a clean 5 A signal, turning high primary currents into safe, measurable data without copper work or shutdown.
|

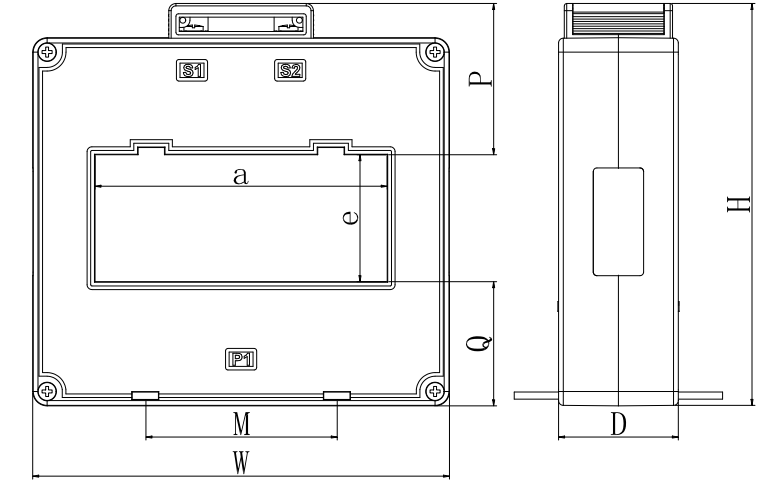

Size（mm）
Type |
Outline size |
Through size |
Mounting size |
Toler ance |
|||||||
|
W |
H |
D |
a |
e |
M |
N |
P |
Q |
Φ |
||
|
30II |
62 |
98 |
45 |
32 |
32 |
28 |
57.5 |
36.5 |
29.5 |
5 |
±1 |
|
40II |
79 |
103 |
45 |
43 |
31.5 |
48 |
57.5 |
43 |
28.5 |
5 |
|
|
50II |
87 |
113 |
45 |
52 |
32 |
30 |
57.5 |
45 |
36 |
5 |
|
|
60II |
102 |
125 |
45 |
61 |
33 |
42 |
57.5 |
50.5 |
41.5 |
5 |
|
|
60×50II |
102 |
142 |
45 |
62 |
51.5 |
42 |
57.5 |
51.5 |
39 |
5 |
|
|
80II |
117 |
119 |
45 |
82 |
32 |
60 |
57.5 |
48 |
39 |
5 |
|
|
80×50II |
120 |
141 |
45 |
82 |
52 |
60 |
57.5 |
49.5 |
39.5 |
5 |
|
|
100II |
145 |
125 |
45 |
103 |
35 |
80 |
57.5 |
49.5 |
40.5 |
5 |
|
|
100×50II |
145 |
155 |
50 |
103 |
55 |
80 |
70.5 |
57.5 |
42.5 |
5 |
±2 |
|
100×80II |
152 |
190 |
55 |
104 |
85 |
80 |
70.5 |
59.5 |
45.5 |
5 |
|
|
120×50II |
174 |
168 |
50 |
122 |
53 |
80 |
70.5 |
63 |
52 |
5 |
|
|
120×80II |
160 |
193 |
60 |
122 |
72 |
54 |
70.5 |
68 |
53 |
5 |
|
|
130×50II |
176 |
160 |
50 |
135 |
55 |
85 |
70.5 |
59.5 |
45.5 |
5 |
|
|
150×50II |
210 |
176 |
55 |
155 |
55 |
103 |
70.5 |
70.5 |
50.5 |
5 |
|
|
180×50II |
240 |
181 |
60 |
185 |
55 |
40/40/40 |
83 |
70.5 |
55.5 |
5 |
|
|
200×50II |
247 |
172 |
55 |
205 |
60 |
102 |
83 |
63 |
49 |
5 |
±3 |
|
220×50II |
280 |
190 |
60 |
225 |
55 |
65/55/65 |
83 |
73.5 |
61.5 |
5 |
|
|
260×50II |
320.5 |
191 |
60 |
264.5 |
54.5 |
65/55/65 |
83 |
75.5 |
61 |
5 |
|
|
170×100II |
227 |
230 |
60 |
172 |
105 |
103 |
83 |
70 |
55 |
5 |
|
|
260×100II |
308 |
226 |
63 |
265 |
103 |
181 |
83 |
69 |
54 |
5 |
|
