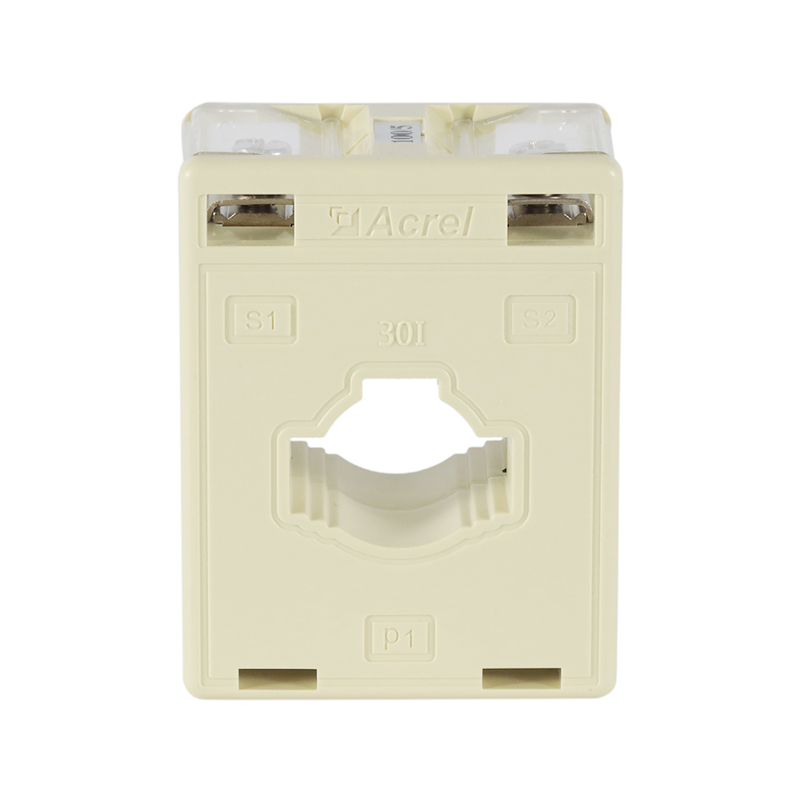

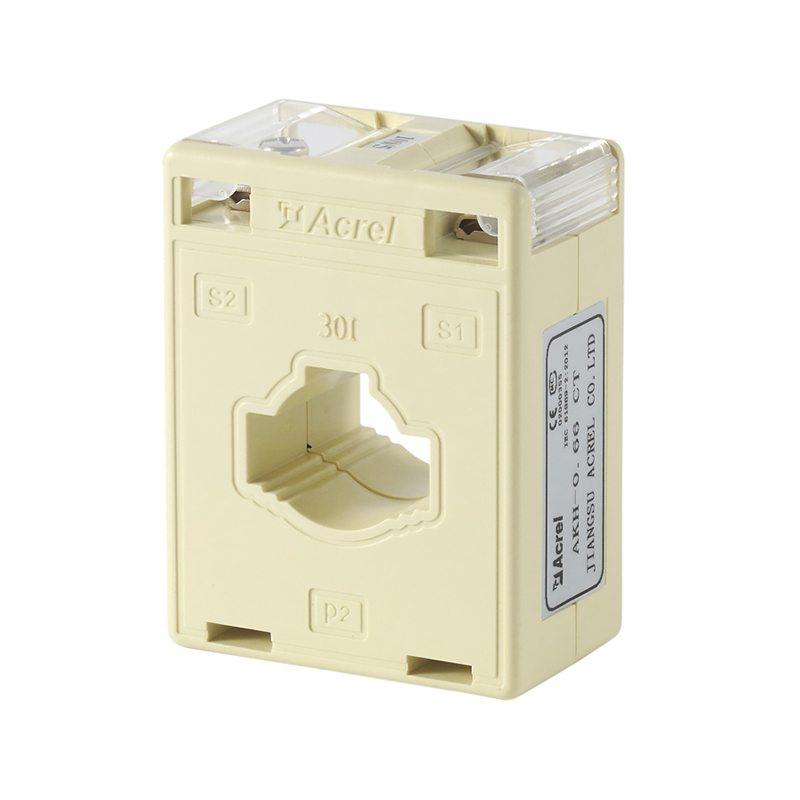

Solid Core
High Accuracy Class 0.5
5A output
Measurement of current (I)

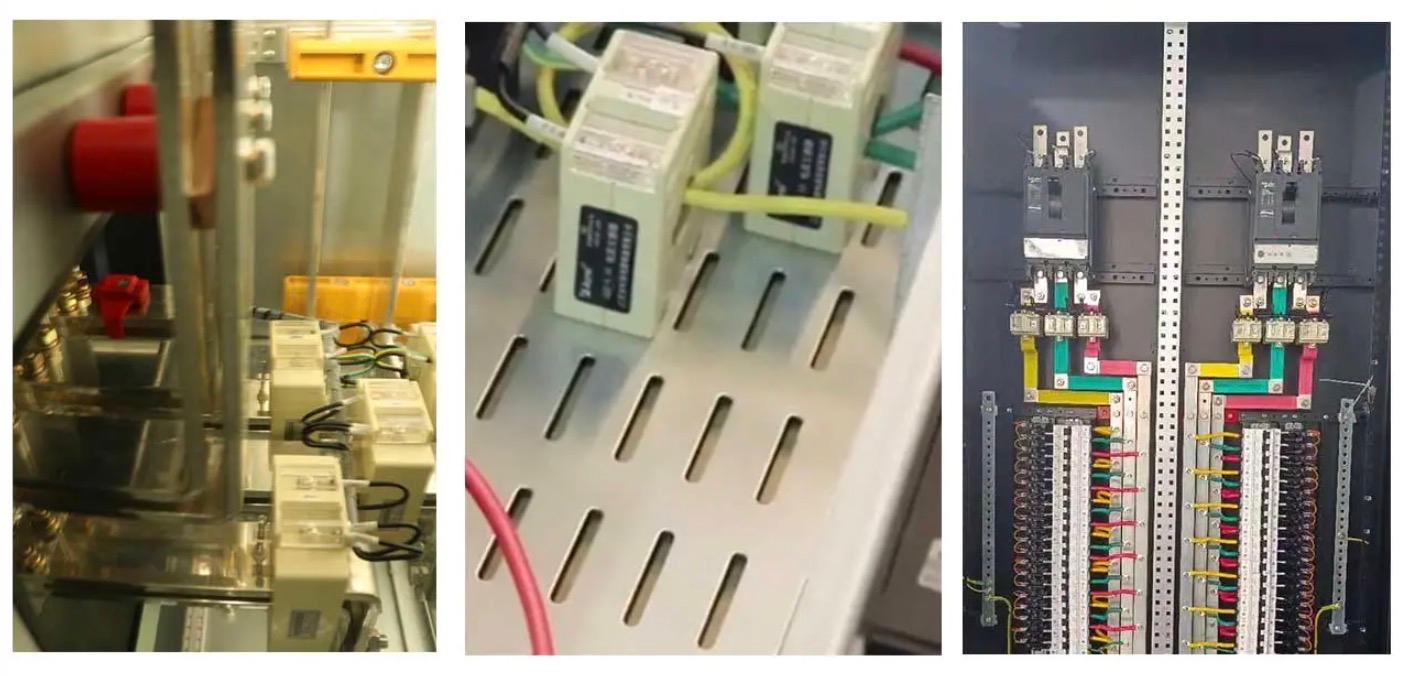

Application: Busbar,Cables. New construction projects
+86-18702106858 / +86-21-69156352

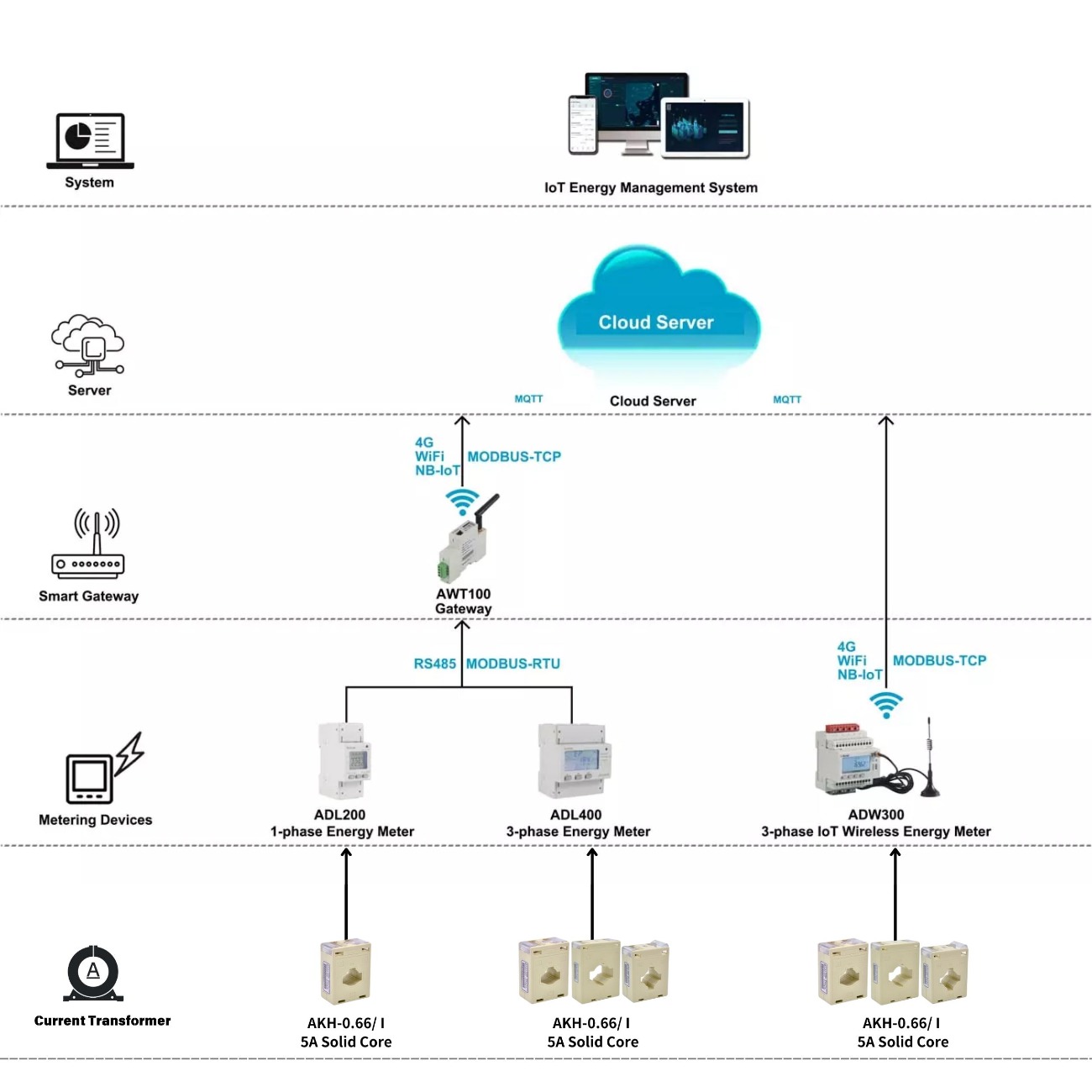

This current transformer is designed to convert high AC currents into smaller, manageable signals for monitoring and protection. It is commonly paired with panel meters or relays for accurate current measurement and equipment protection. Featuring a clear polycarbonate flip cover for easy visual inspection of secondary wiring, it offers a convenient and user-friendly design. The square-round hole accommodates both cables and busbars, ensuring flexible installation. Widely used in various electrical systems, the CT complies with GB20840.2-2014 (equivalent to IEC 61869-2:2012) and is CE certified.
| Specification | Rated Current Ratio | Precision degree and corresponding rated load (VA/Ω) | Straight-through tums | Bus spec(mm)/number | Max. cable outer diameter (mm) | Installtion | ||
| （A） | 0.2 | 0.5 | 1 | |||||
| 20I | 50/5(1) | / | / | 1.5 | 2 | / | Ф20 | A |
| 75/5(1) | / | 2.5 | / | 2 | ||||
| 100/5(1) | / | / | 1.5 | 1 | ||||
| 150/5(1) | / | 2.5 | / | 1 | ||||
| 200/5(1) | / | 2.5 | / | 1 | ||||
| 30I | 15/5(1) | / | / | 1.5 | 5 | / | Ф22 | A |
| 20/5(1) | / | / | 1.5 | 4 | ||||
| 25-30/5(1) | / | / | 1.5 | 3 | ||||
| 40-60/5(1) | / | / | 1.5 | 2 | ||||
| 75-100/5(1) | / | / | 1.5 | 1 | 30×10/1 | A、B | ||
| 150-200/5(1) | / | 2.5 | / | 1 | ||||
| 250/5(1) | / | 3.75 | / | 1 | ||||
| 300-450/5(1) | / | 5 | / | 1 | ||||
| 500/5(1) | / | 10 | / | 1 | ||||
| 600/5 | / | 10 | / | 1 | ||||
| 40I | 10/5(1) | / | / | 1.5 | 10 | / | Ф30 | A |
| 15/5(1) | / | / | 1.5 | 8 | ||||
| 20/5(1) | / | / | 1.5 | 5 | ||||
| 25-30/5(1) | / | / | 1.5 | 4 | ||||
| 40/5(1) | / | / | 1.5 | 3 | ||||
| 50-75/5(1) | / | / | 1.5 | 2 | ||||
| 100/5(1) | / | / | 1.5 | 1 | 40×10/1 | A、C | ||
| 150/5(1) | / | / | 2.5 | 1 | ||||
| 200/5(1) | / | 2.5 | / | 1 | ||||
| 250/5(1) | / | 3.75 | / | 1 | ||||
| 300-450/5(1) | / | 5 | / | 1 | ||||
| 500-800/5(1) | / | 10 | / | 1 | ||||
| 60I | 150/5(1) | / | / | 2.5 | 1 | 60×10/1 | Ф44 | A、C |
| 200-250/5(1) | / | 2.5 | / | 1 | 60×6/ | |||
| 300-450/5(1) | / | 5 | / | 1 | 1月2日 | |||
| 500-800/5(1) | / | 10 | / | 1 | ||||
| 1000-1250/5(1) | 10 | / | / | 1 | ||||
| 1500-2000/5(1) | 20 | / | / | 1 | ||||
| 80I | 150/5(1) | / | / | 2.5 | 1 | 80×10/1 | Ф50 | A、C |
| 200-250/5(1) | / | 2.5 | / | 1 | ||||
| 300-450/5(1) | / | 5 | / | 1 | ||||
| 500-800/5(1) | / | 10 | / | 1 | ||||
| 1000-1250/5(1) | 10 | / | / | 1 | ||||
| 1500-2000/5(1) | 20 | / | / | 1 | ||||
| 2500/5(1) | 30 | / | / | 1 | ||||

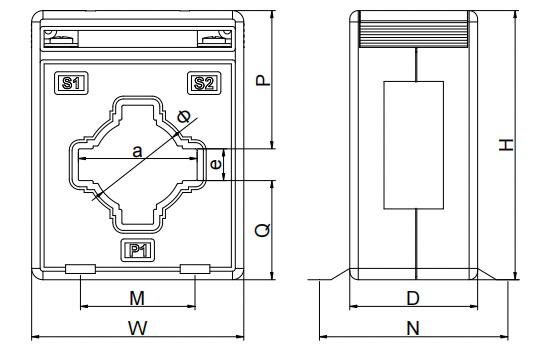

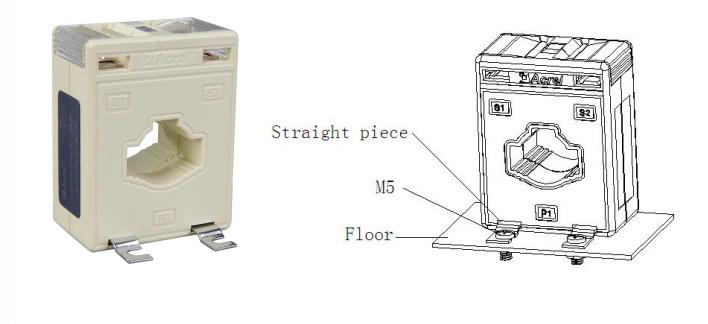

A.Fixed by straight piece

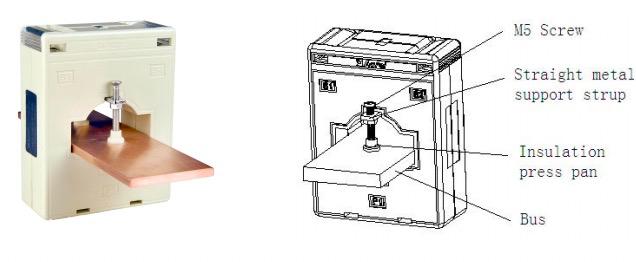

B.

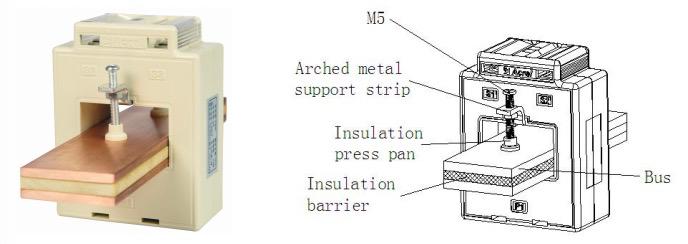

C.
