Solid Core
High Accuracy Class 0.5
IEC/EN61869-1;IEC/EN61869-2;CE
Vertical square hole type
Application: Busbar,Cables. New construction projects
+86-18702106858 / +86-21-69156352

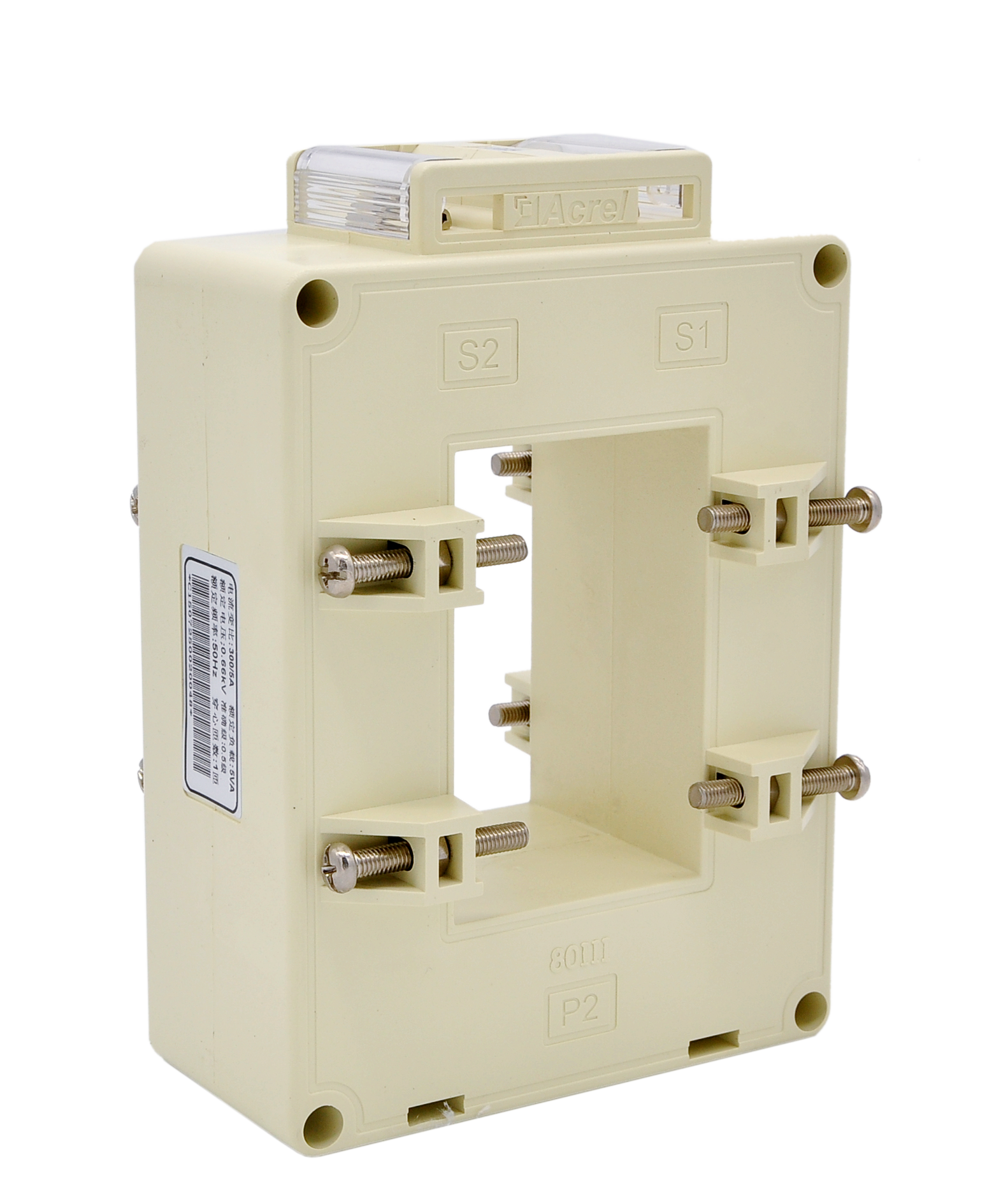

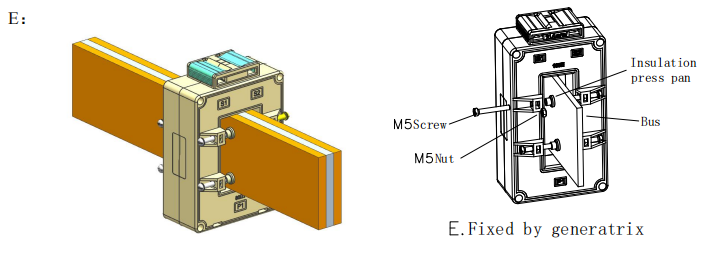

AKH-0.66-III stands vertical, saving precious panel width while still swallowing 1–3 bar busses or fat cable bundles through its square, 52 mm-deep window. The glass-reinforced case, only 55 mm front-to-back, carries ratios from 200/5 A up to 5000/5 A in class 0.2 or 0.5, delivering 2.5 VA–30 VA without saturation up to 0.69 kV. A 3 kV/1 min hipot and –30 °C…+70 °C rating let it live inside motor-control centres, rooftop PV combiners or marine switchboards without extra shelter. Two slotted feet accept M6 studs or DIN clips, so the CT hangs firmly even when heavy busbars vibrate. CE-marked to IEC 61869-2, it feeds meters, relays or data loggers a true 5 A mirror of primary current, turning high-power conductors into safe, measurable signals while cutting installation time to a single screw-driver turn.
|

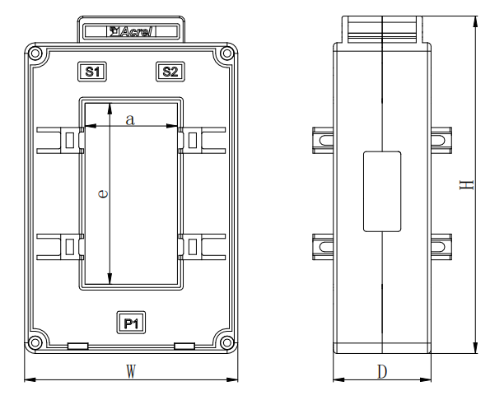

Size（mm）
Type |
Outline size |
Through size |
Mounting size |
Tolerance |
|||||
|
W |
H |
D |
Φ |
a |
e |
M |
N |
||
|

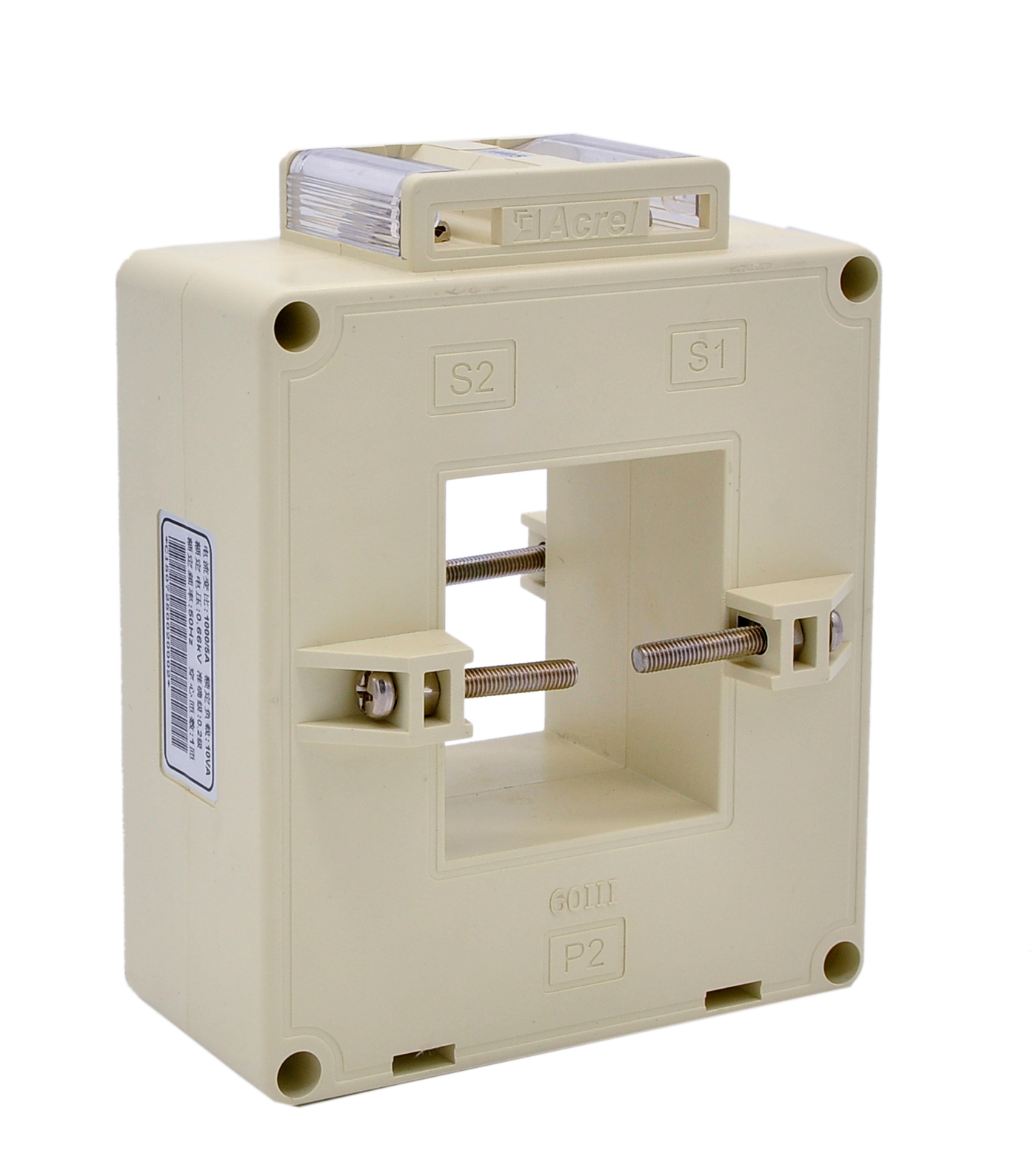

60III |
117 |
147 |
55 |
/ |
52 |
62 |
/ |
/ |
±2 |
|
80III |
117 |
167 |
55 |
/ |
52 |
82 |
/ |
/ |
|
|

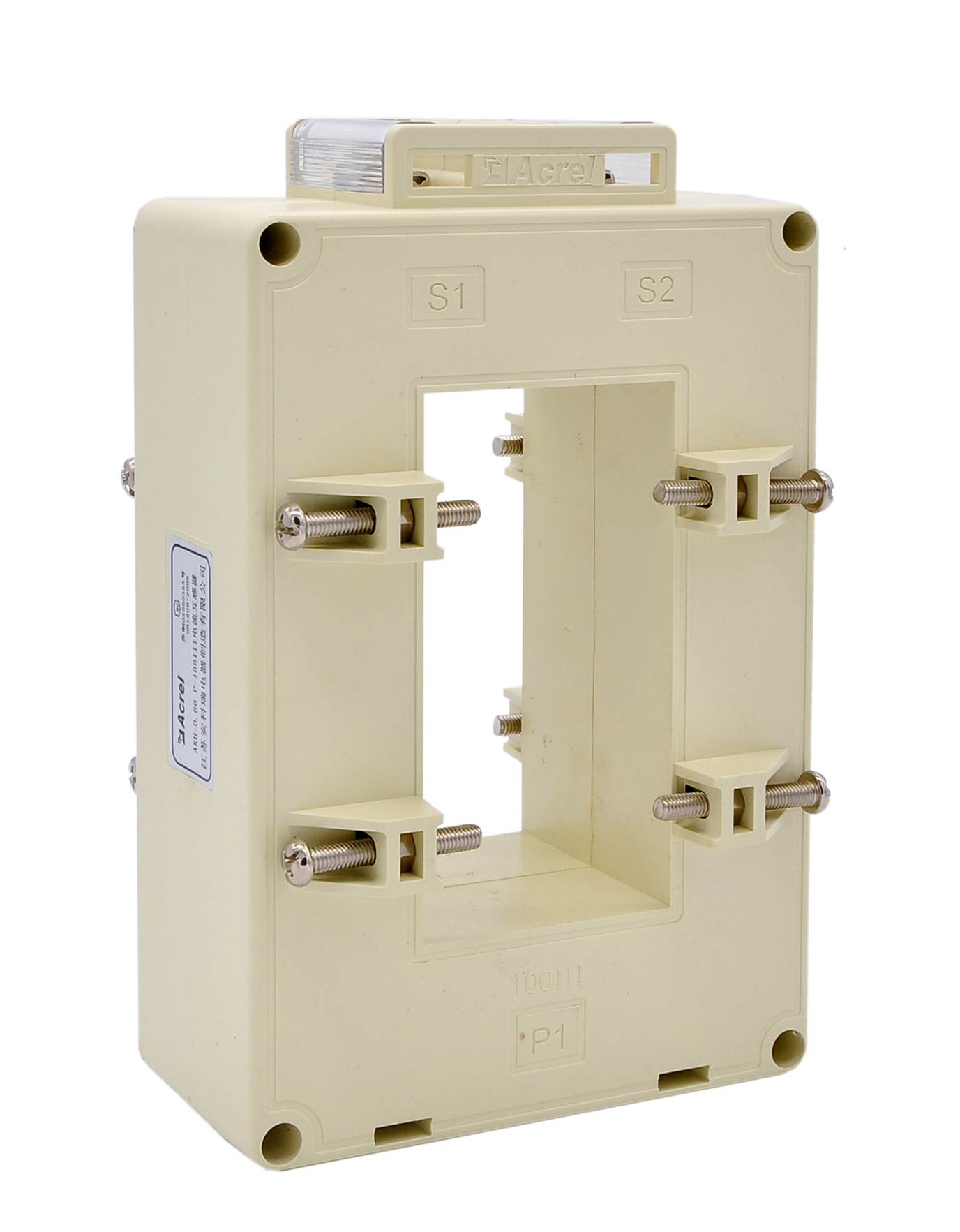

100III |
120 |
190 |
55 |
/ |
52 |
102 |
/ |
/ |
|
|

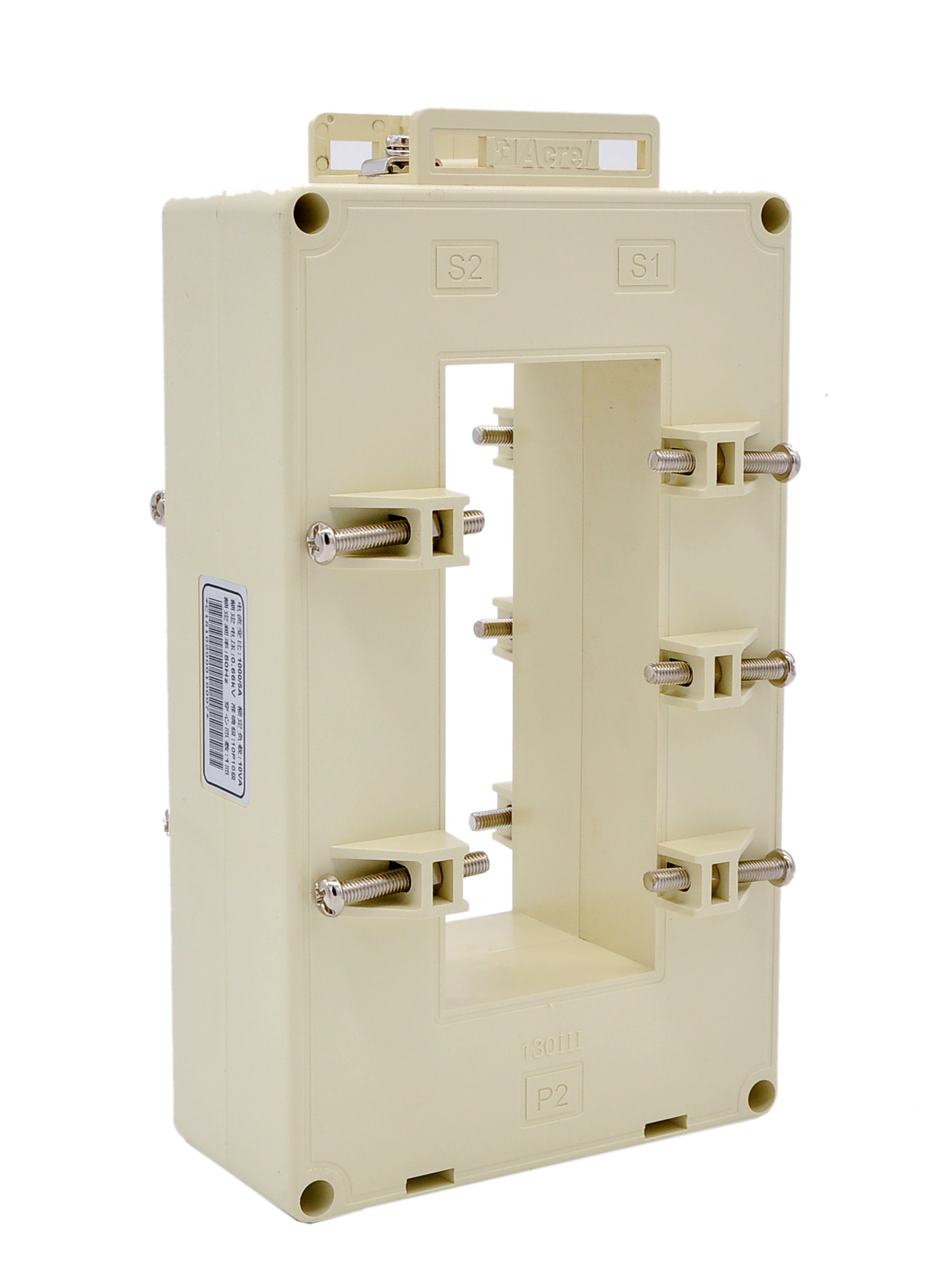

130III |
125 |
224 |
55 |
/ |
52 |
132 |
/ |
/ |
|
