Three-Phase Energy Monitoring System
Multi-Circuit Current Measurement Solution
Rated Current 5A/100A/400A/600A
4DI/2DO (Passive)
Industrial & Commercial Energy Management
EV Charging And Distribution Monitoring
+86-18702106858 / +86-21-69156352

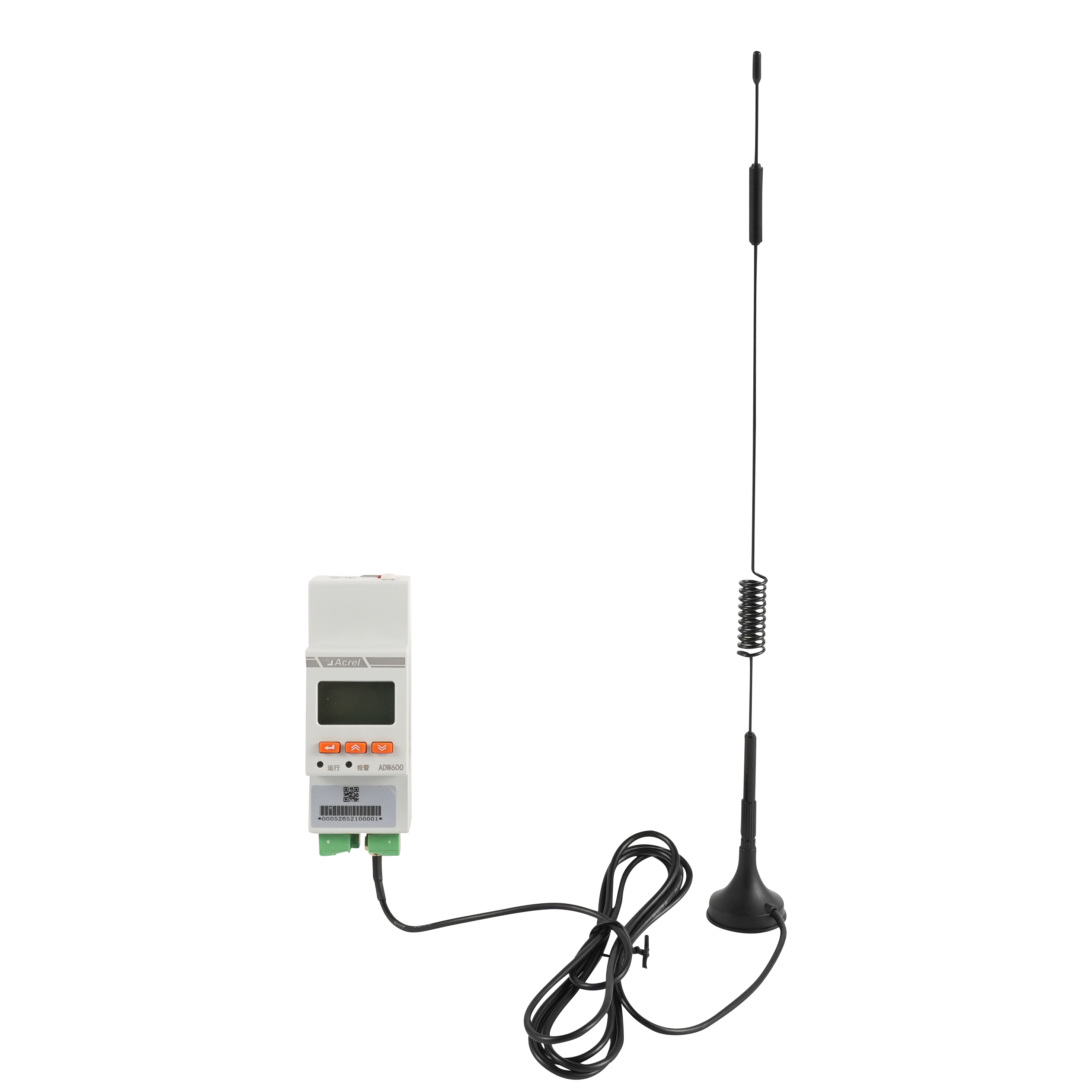

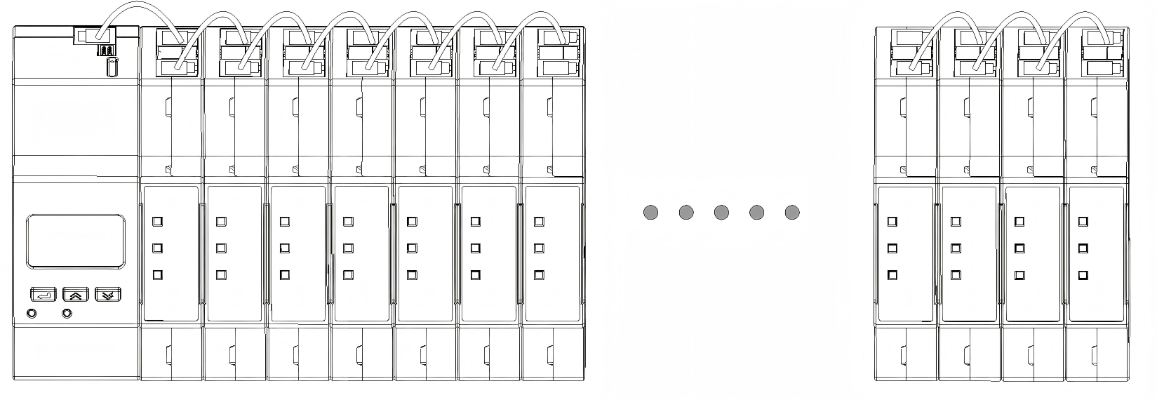

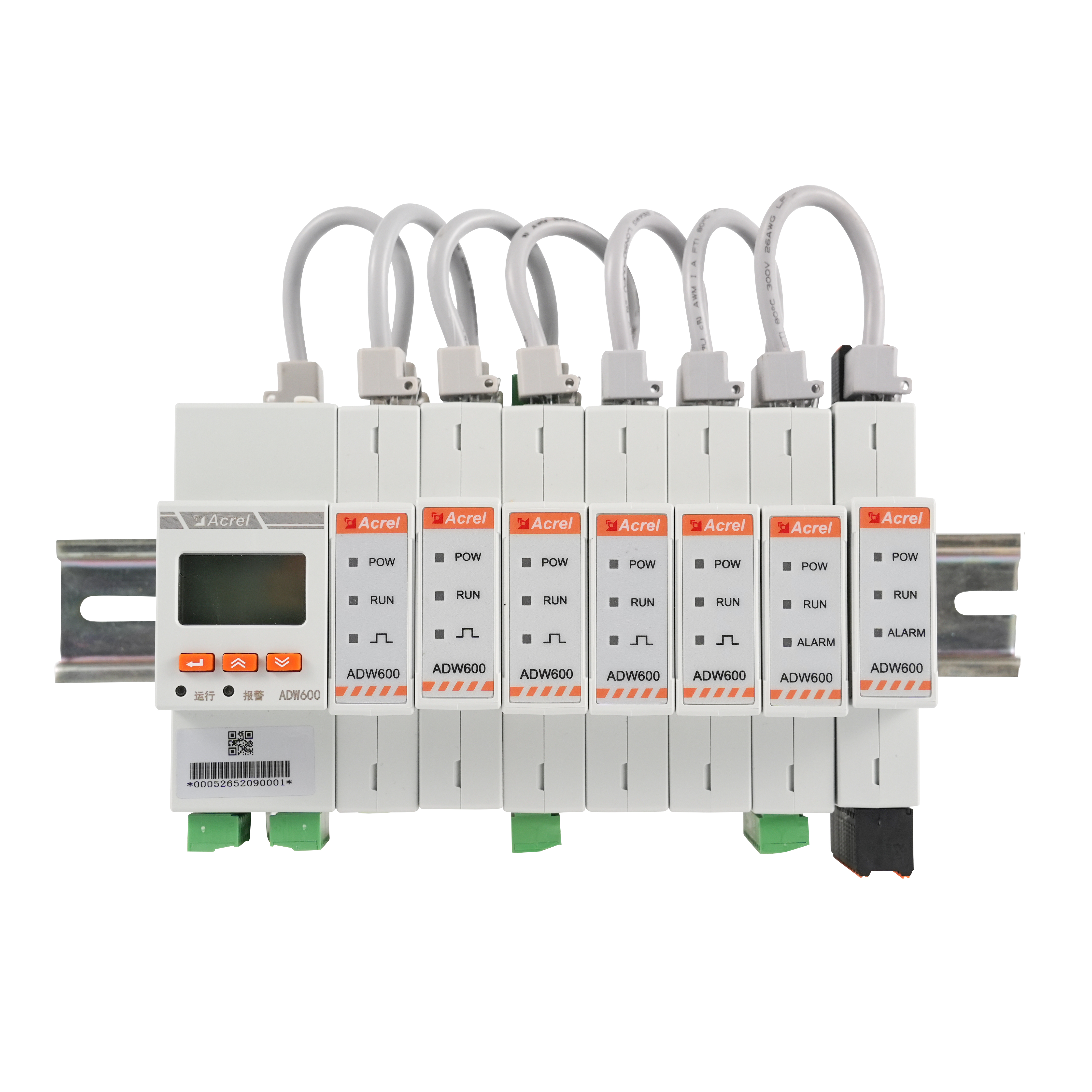

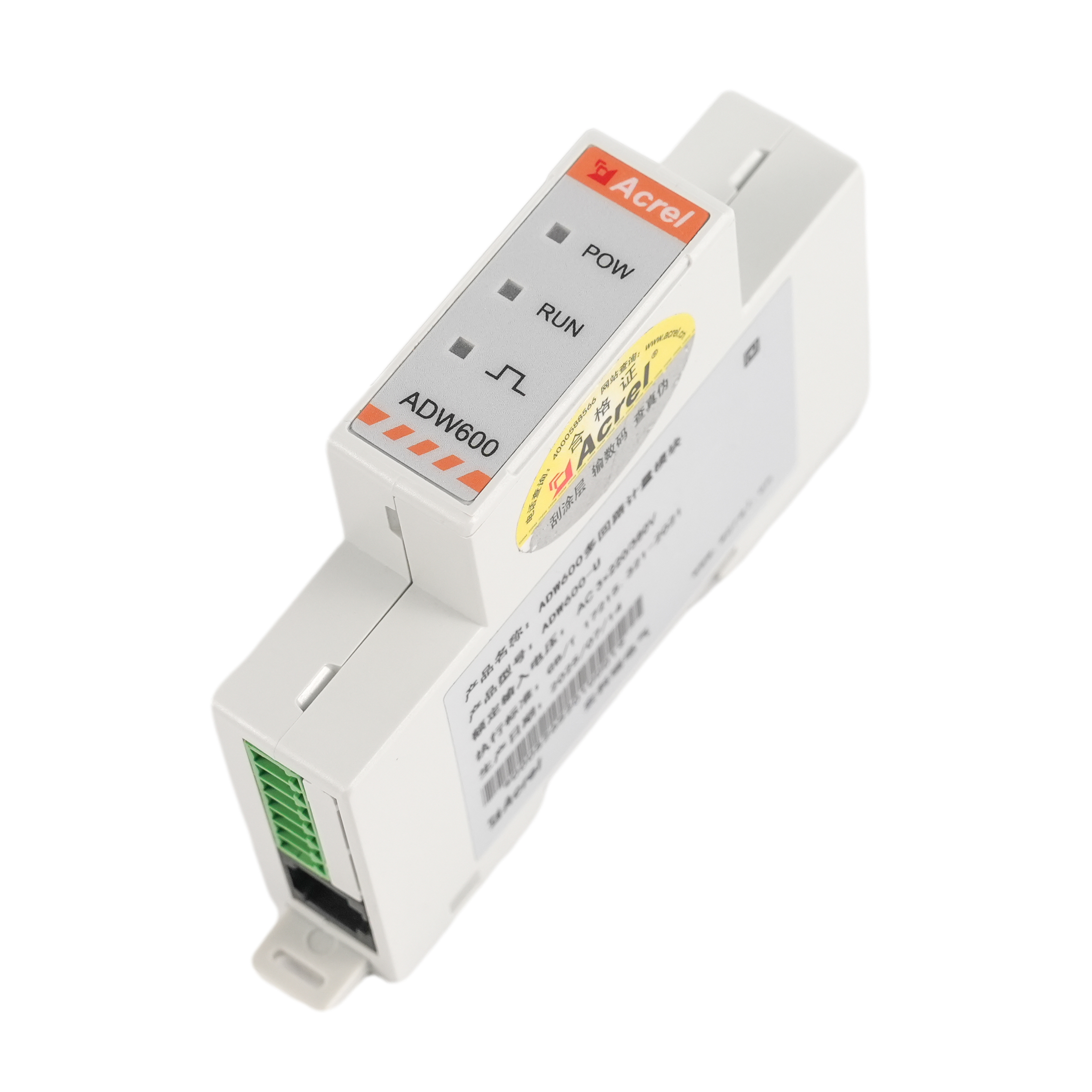

The ADW600 is an advanced IoT-based energy monitoring solution designed for modern power distribution systems. It supports three-phase energy monitoring, enabling accurate measurement of voltage, current, power, and energy consumption across multiple circuits. With its multi-circuit current measurement capability, the ADW600 is ideal for applications requiring centralized monitoring of distributed loads.
This smart energy meter integrates high-accuracy voltage and power metering with flexible communication options, making it suitable for complex environments. Its IoT-enabled architecture allows seamless data transmission for real-time analysis and remote management, supporting efficient industrial and commercial energy management.
The ADW600 is widely used in EV charging stations, data centers, commercial buildings, and power distribution systems, where reliable and scalable monitoring is essential. By providing detailed energy insights and improving operational visibility, it helps users optimize energy efficiency, reduce costs, and enhance system safety.
With its compact design and powerful functionality, the ADW600 is a reliable solution for next-generation smart energy monitoring and IoT power management applications.
|

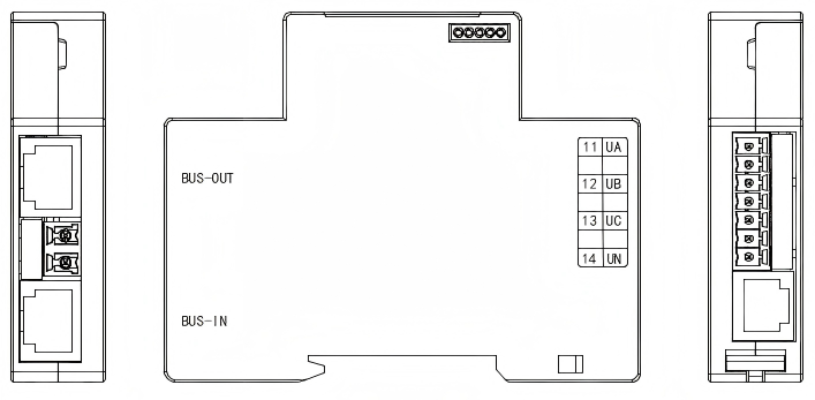

ADW600-U |
Rated Voltage |
3×57.7/100V，3×220/380V，3×100V, 3×380V |
|
Voltage Accuracy |
0.5% |
|
|
Frequency |
45-65Hz |
|
|
Power Consumption |
<0.5VA (each phase) |
|
|

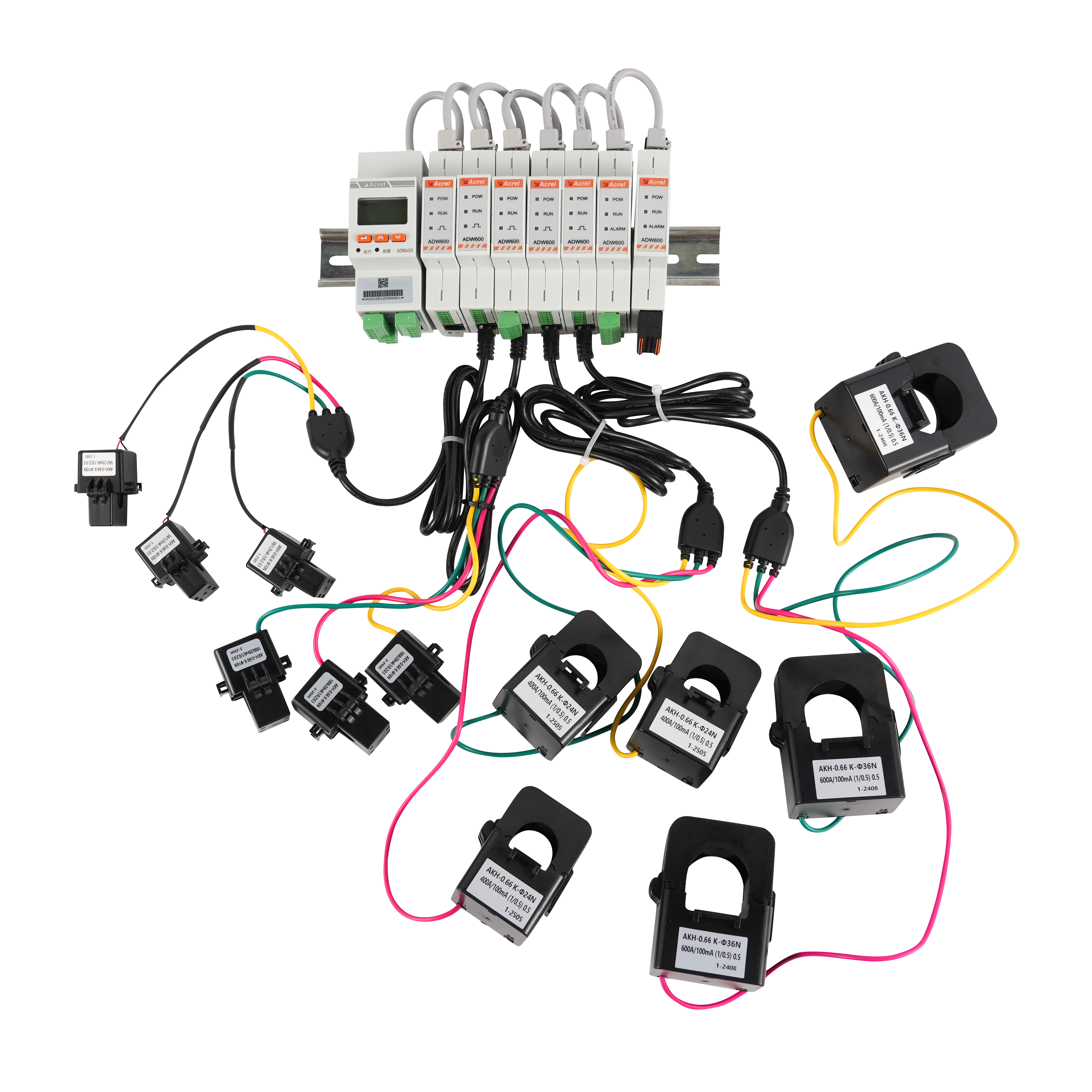

ADW600-I |
Input Current |
D10：0.03-0.15(6)A，D16：0.8-2(100)A，D24：3.2-8(400)A，D36：4.8-12(600)A |
|
Accuracy of Active Energy |
B Class |
|
|
Pulse width of energy |
80±20ms |
|
|
Active Energy Pulse Constant |
D10：6400imp/kWh，D16：400imp/kWh，D24：100imp/kWh，D36：60imp/kWh |
|
|
Power Consumption |
<1VA (each phase) |
|
|
ADW600-K |
DI |
4-channel passive input, built-in DC12V power supply |
|
DO |
2-channel passive output, capacity AC230V/DC30V, 3A |
|
|
ADW600-TL |
Temperature Measurement |
12-channel temperature measurement, accuracy:±2℃, with 12 temperature measurement leads. |
|
Residual Current Measurement |
4-channel residual current measurement, input range up to 1mA, accuracy 1%, residual current transformer must be purchased separately |
Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
For IoT Energy Management, Factory, School
Split Core
Clamp on Installation
High Accuracy Class 0.5
150-1000A Input Current
5A/1A Secondary Output
Application: Renovation Projects
Event recording
Start control function
programmable DI and DO
Profibus-DP communication
Anti-shaking function
Analog output
Event recording
leakage protection
AC380V/690V
programmable DI and DO
Analog output
Anti-shaking function
Split Core
High Accuracy Class 0.5
Current Input 20-6000A
Current Output 5(1)A
Rectangular Hole Design
Measurement of current (I)
Application: Renovation Projects
