Wireless Comm. 4G/WiFi/LoRa/LoRaWAN
Input Current 5A by CTs
Modbus-RTU/MQTT Protocol

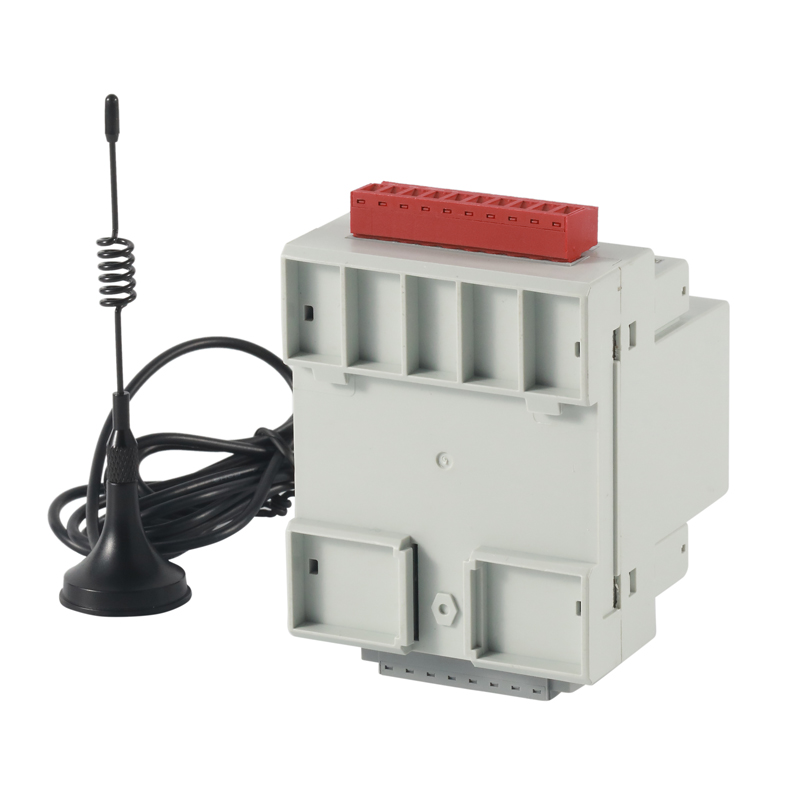

35mm DIN Rail Mounted

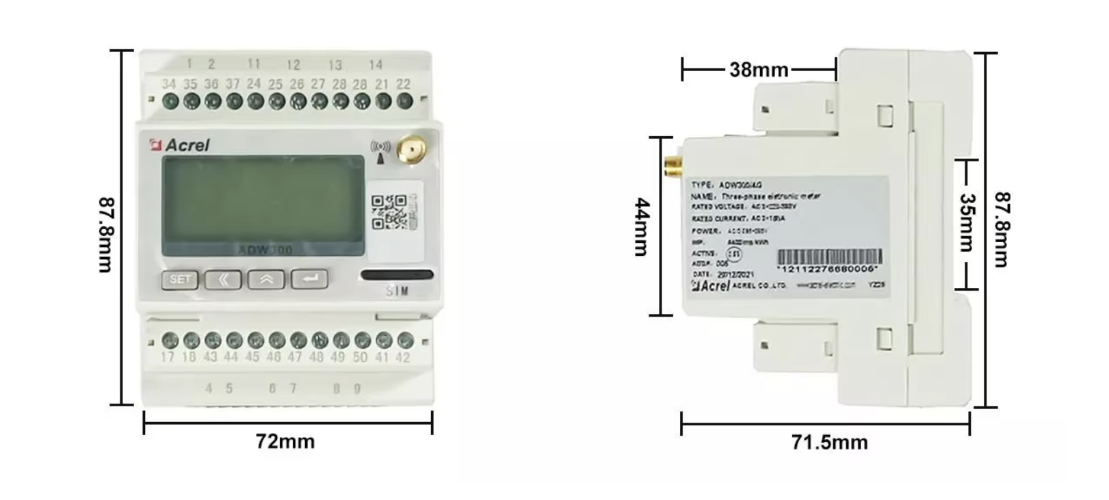

4 Modules 72mm Width
CE Certificated
For IoT Energy Management, Factory, School
+86-18702106858 / +86-21-69156352

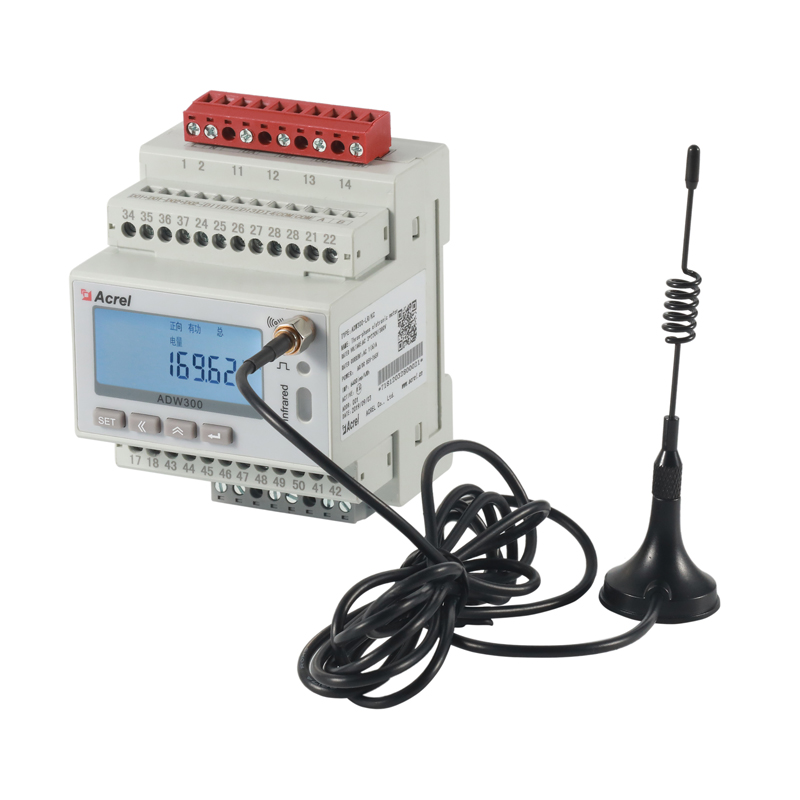

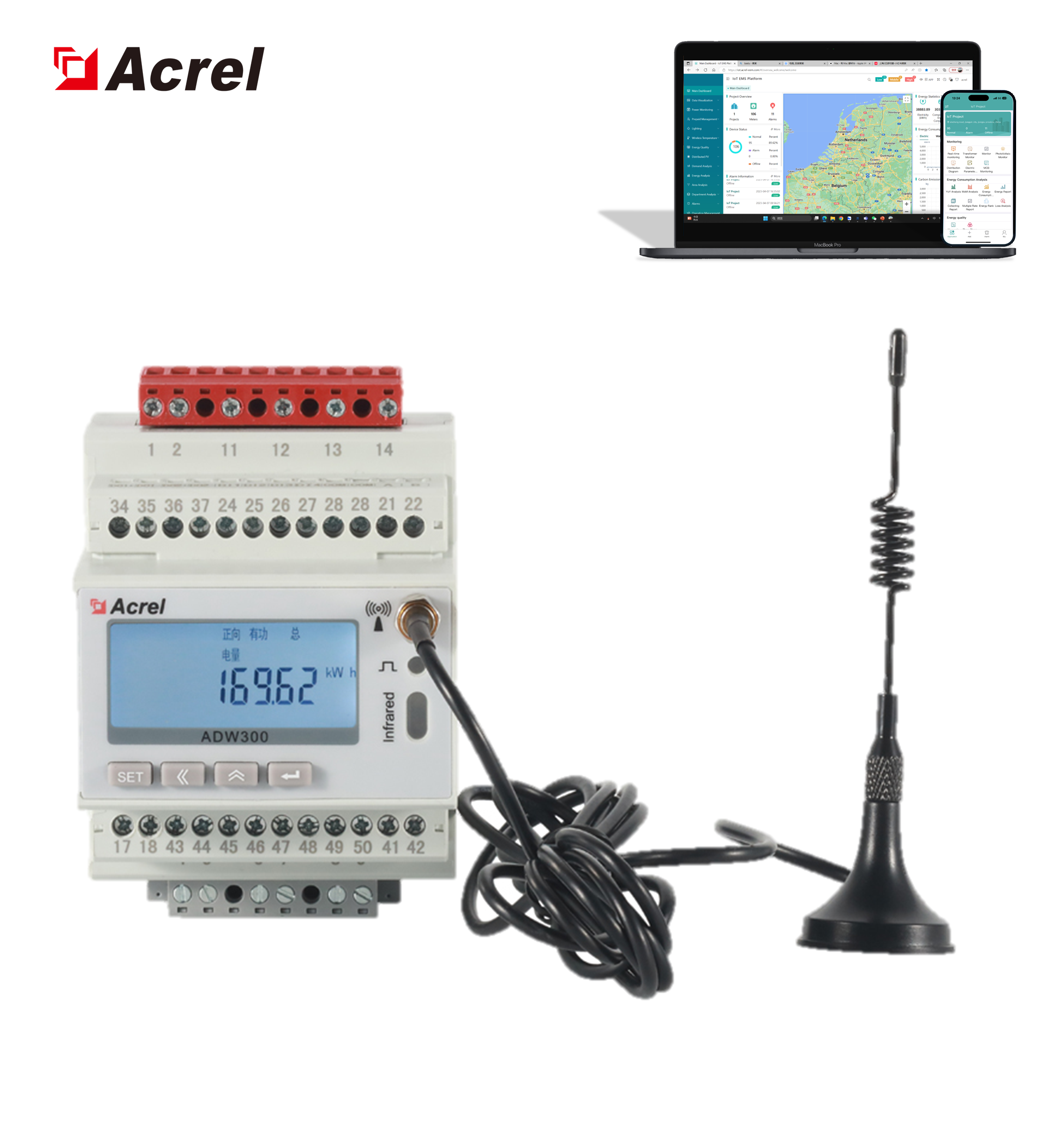

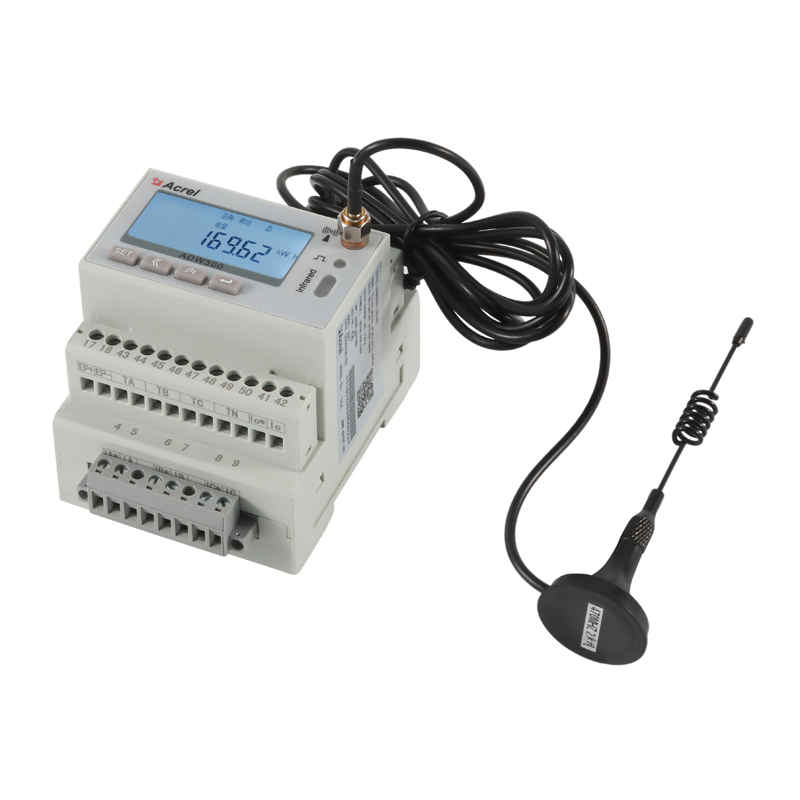

ADW300 is a versatile and advanced wireless energy meter designed for efficient energy management in various settings such as IoT energy management systems, factories, schools and other commercial or industrial environments. It offers multiple wireless communication options, including 4G, WiFi, LoRa and LoRaWAN, ensuring flexible and reliable data transmission to meet different application requirements.
Equipped with Input Current 5A by CTs, it can accurately measure electricity consumption. The ADW300 supports Modbus-RTU/MQTT Protocol, making it easy to integrate with existing systems and facilitating smooth data exchange.
Moreover, the ADW300 has obtained CE Certification, guaranteeing its safety and quality. Whether you are managing energy in a factory, school or any other facility, the ADW300 provides accurate measurement data and remote monitoring capabilities, helping you optimize energy usage, reduce costs and improve energy efficiency.
| Parameter | Description | |

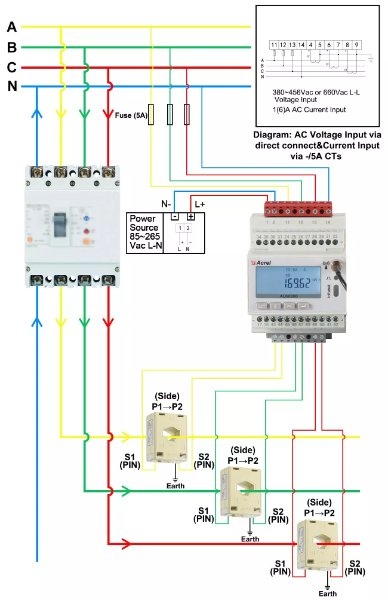

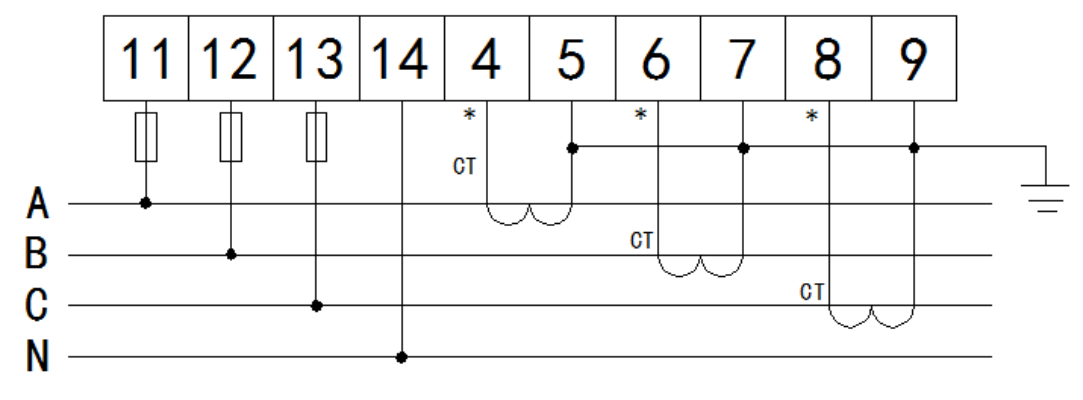

| Input | Nominal Voltage | For High Voltage: 3×57.7~69.24Vac L-N & 100~120Vac L-L (Paired with PT) |
| ------------------------------ | ||
| Voltage | For Low Voltage: 3×220~264Vac L-N & 3x380~456Vac L-L | |
| (Direct Connect) 3×380~456Vac L-N & 3x660~792Vac L-L | ||
| Frequency | 50Hz~60Hz | |
| Comsumption | ＜0.5 VA (Each phase) | |
| Input | 3×1(6)A | |
| Current | 1‰ Ib (Class 0.5S)，4‰ Ib (Class 1) | |
| <1VA (Each phase) | ||
| Auxiliary | Power Supply | 85~265Vac L-N |
| Power | Power consumption | <2W |
| Measurement | Standard | IEC 62053-22:2003，IEC 62053-21:2003 |
| Performance | Active Power Accuracy | Class 0.5S（ADW300）Class 1（ADW300W） |
| Temperature Measuring Accuracy | ±2℃ | |
| Pulse | Width of pulse | 80±20ms |
| Pulse constant | 6400imp/kWh , 400imp/kWh | |
| Communication | WirelessCommunication | 4G (built in world-wide 4G module for global server frequency bands) |
| WiFi (2.4GHz), LoRa, NB-IoT, RS485 (standard MODBUS-RTU) | ||
| InfraredCommunication | Constant baud rate 1200 | |
| Interface | RS485(A+、B-) | |
| Connection Mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU | |
| Environment | Operating Temperature | -20℃~55℃ |
| Storage Temperature | -40℃~70℃ | |
| Humidity | ≤95% (No condensation) | |
| Altitude | ||
