Support Modbus Protocol
35mm DIN Rail Mounted
Extend battery pack life
Early warning and battery equalization

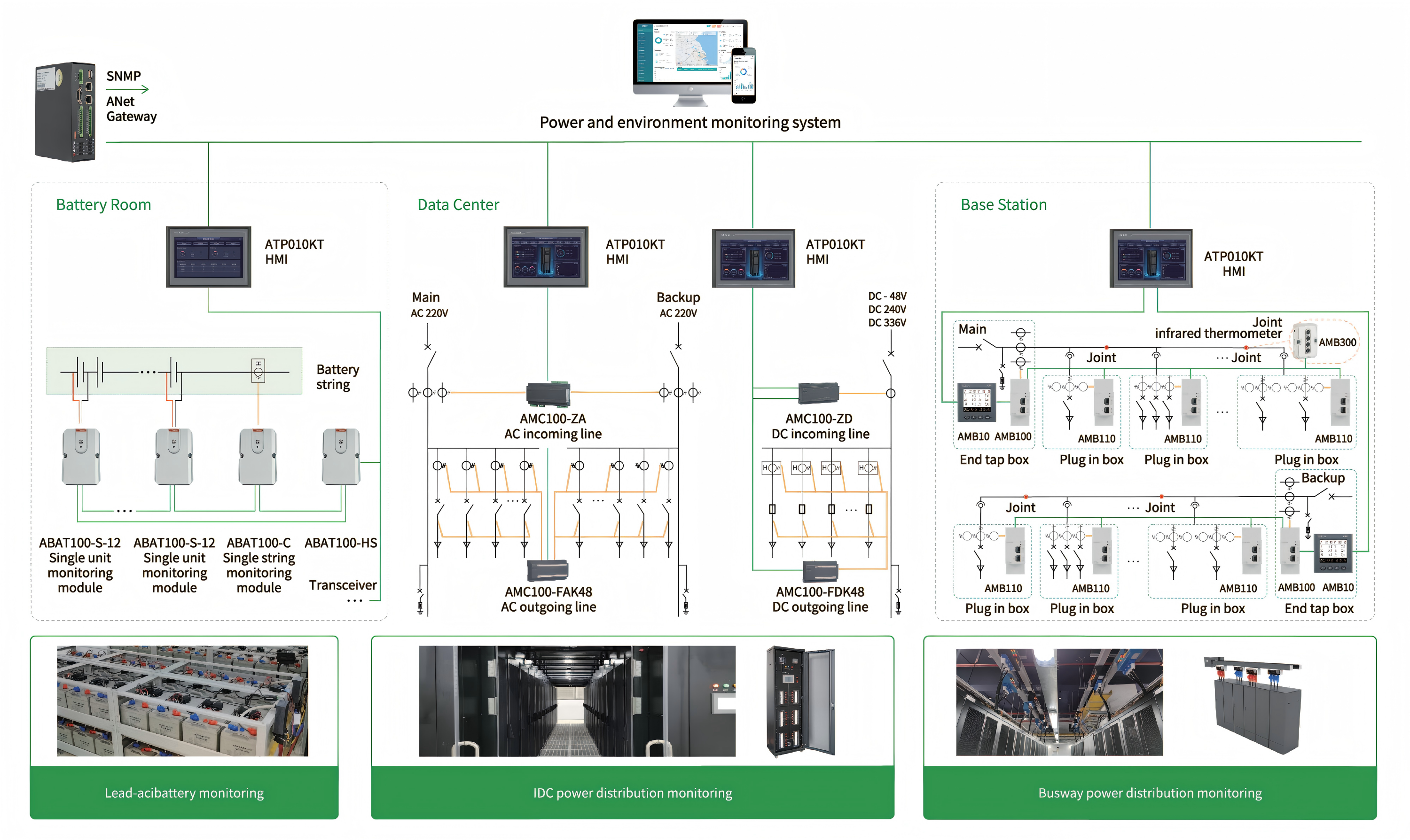

For UPS Monitoring/Data Center
SOC SOH Monitoring
+86-18702106858 / +86-21-69156352

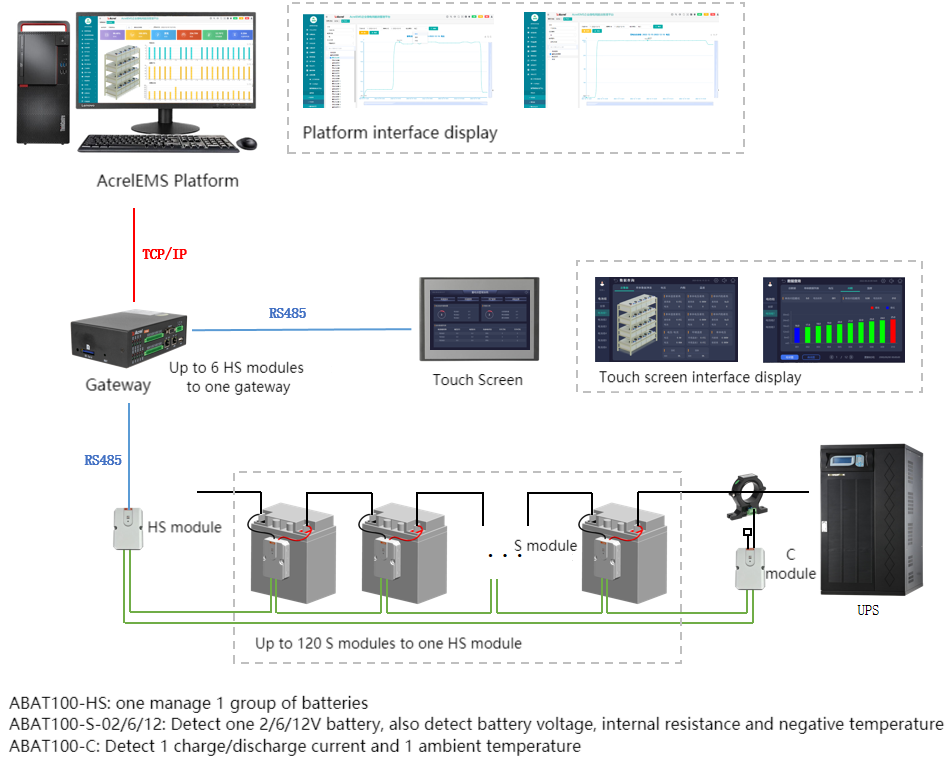

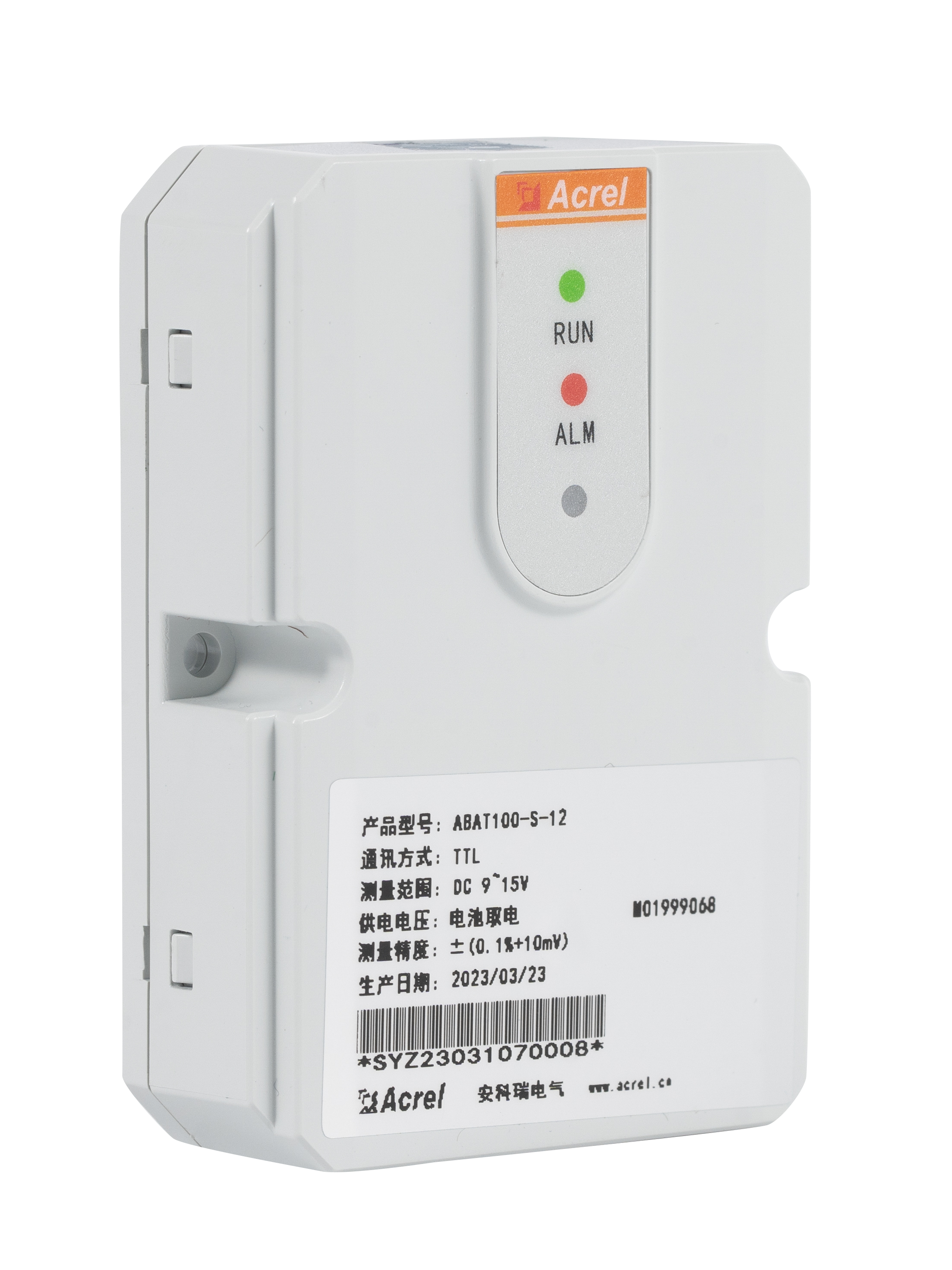

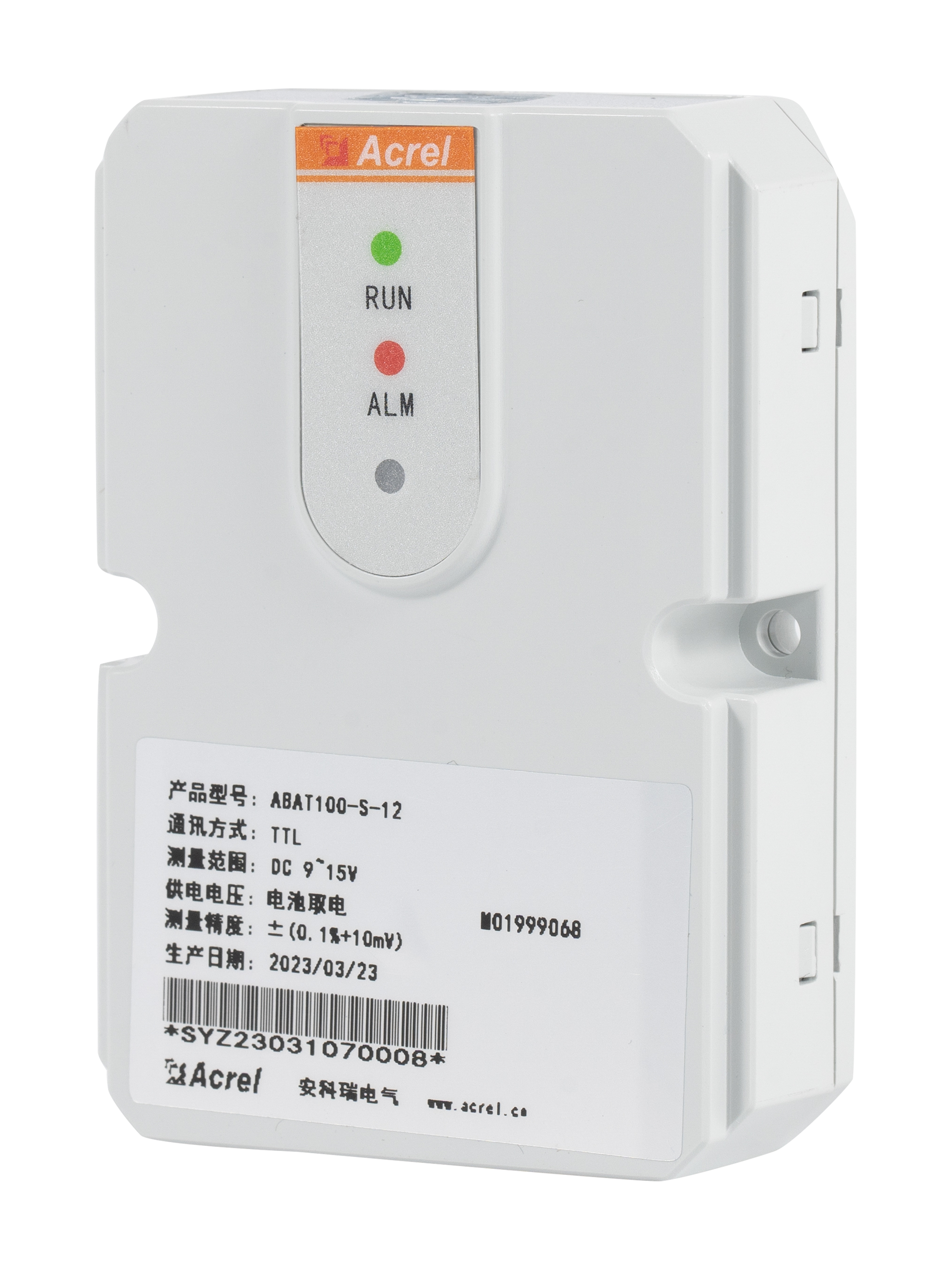

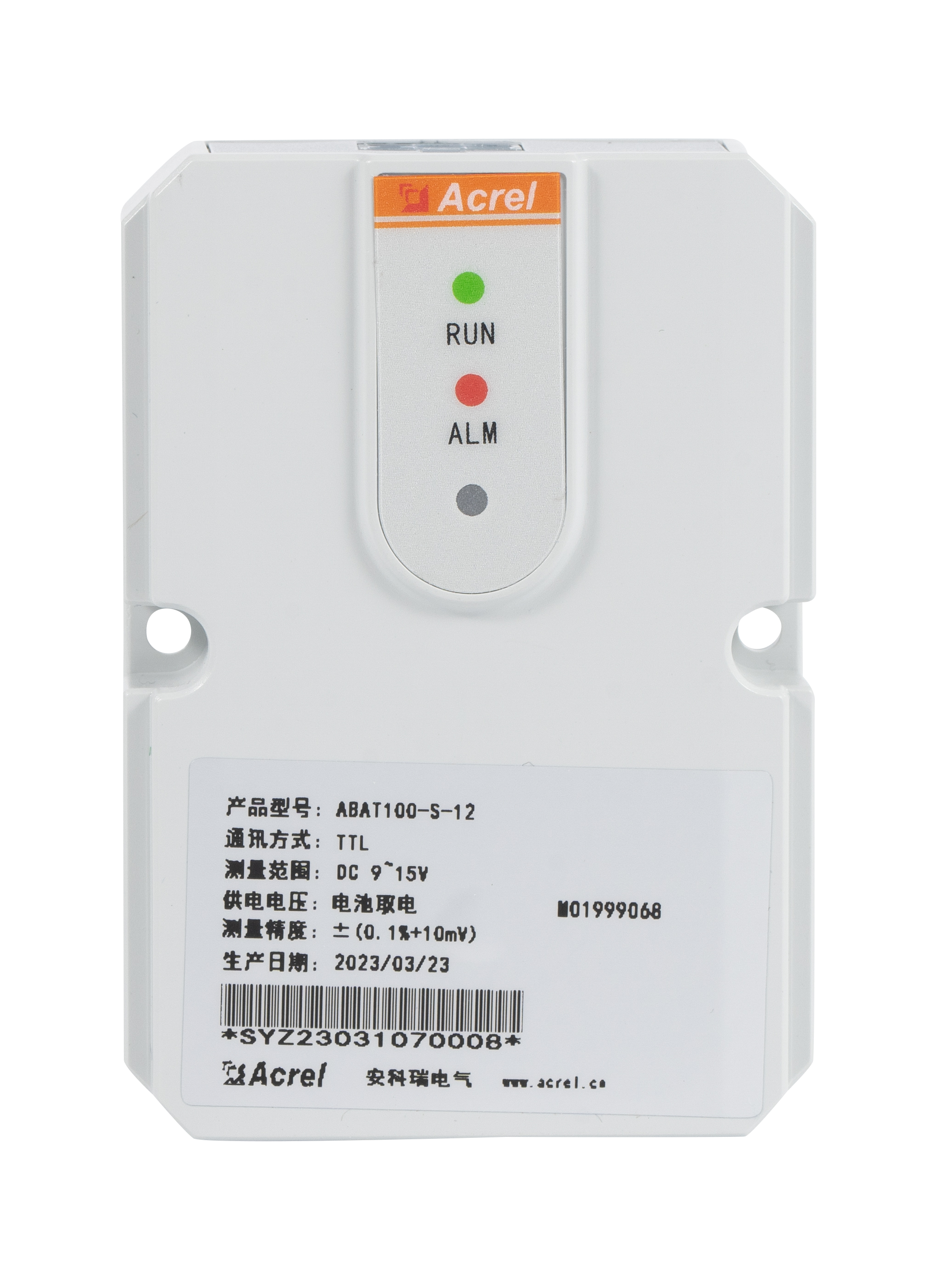

ABAT100-S-12 monitorsbattery voltage, internal resistance and negative terminal temperature, draws only 5 mA from the host cell and quietly watches voltage, internal resistance and negative-terminal temperature around the clock. An on-board 16-bit delta-sigma front end keeps resistance resolution at 1 µΩ and voltage accuracy within ±0.1 %, enough to spot a 5 % degradation weeks before it becomes a load-loss risk. Data leaves the module through an isolated UART link speaking Modbus-RTU; the user sets any address 1-247, so 120 units can share one twisted pair without clash. Automatic self-test is requested by the upstream ABAT100-HS collector, eliminating manual rounds. Reverse-polarity, opto-isolated protection and 2 kV withstand let it live safely inside high-frequency UPS cabinets. From -10 °C to +50 °C it keeps reporting, helping operators turn guess-work into calendar-based replacement and stretch battery life up to 30 %.
|
Technical parameters |
Description |
||
|
Working Environment |
Operating temperature: -10℃～50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa |
||
|
Monitoring Capability |
One S-module monitors one battery |
||
|
Monitoring Scope |
2V, 6V, 12V battery with capacity less than 3000AH |
||
|
Measurement range and accuracy |
Measurement content |
Scope |
Accuracy |
|
|
Single Voltage |
2V, 6V, 12V |
±0.1% |
|
|
Single internal resistance |
50～65535uΩ |
(Resolution) 1uΩ |
|
|
Negative temperature |
-5℃～+105℃ |
±1°C |
|
Power requirements
|
Directly from the monitored battery, 2V module normal operation of the absorption current of 10mA, the maximum is not more than 13mA, 6V, 12V module normal operation of the absorption current of 5mA, the maximum is not more than 7mA, different modules absorption current consistency is very high |
||
|
Protection |
Measuring circuit and power circuit with two levels of protection, with reverse connection protection and opto-isolation |
||
|
Communication Interface |
UART port, support MODBUS protocol |
||
|
Insulation withstand voltage |
2000VAC |
||
|
Weight |
90g |
||
