Data Center AC Outgoing Lines
A+B Independent 24 Circuits（48 In Total）
2nd-63rd Harmonic
kWh Class 0.5
48DI Wet Nodes
3 Channels RS485 Communication
+86-18702106858 / +86-21-69156352

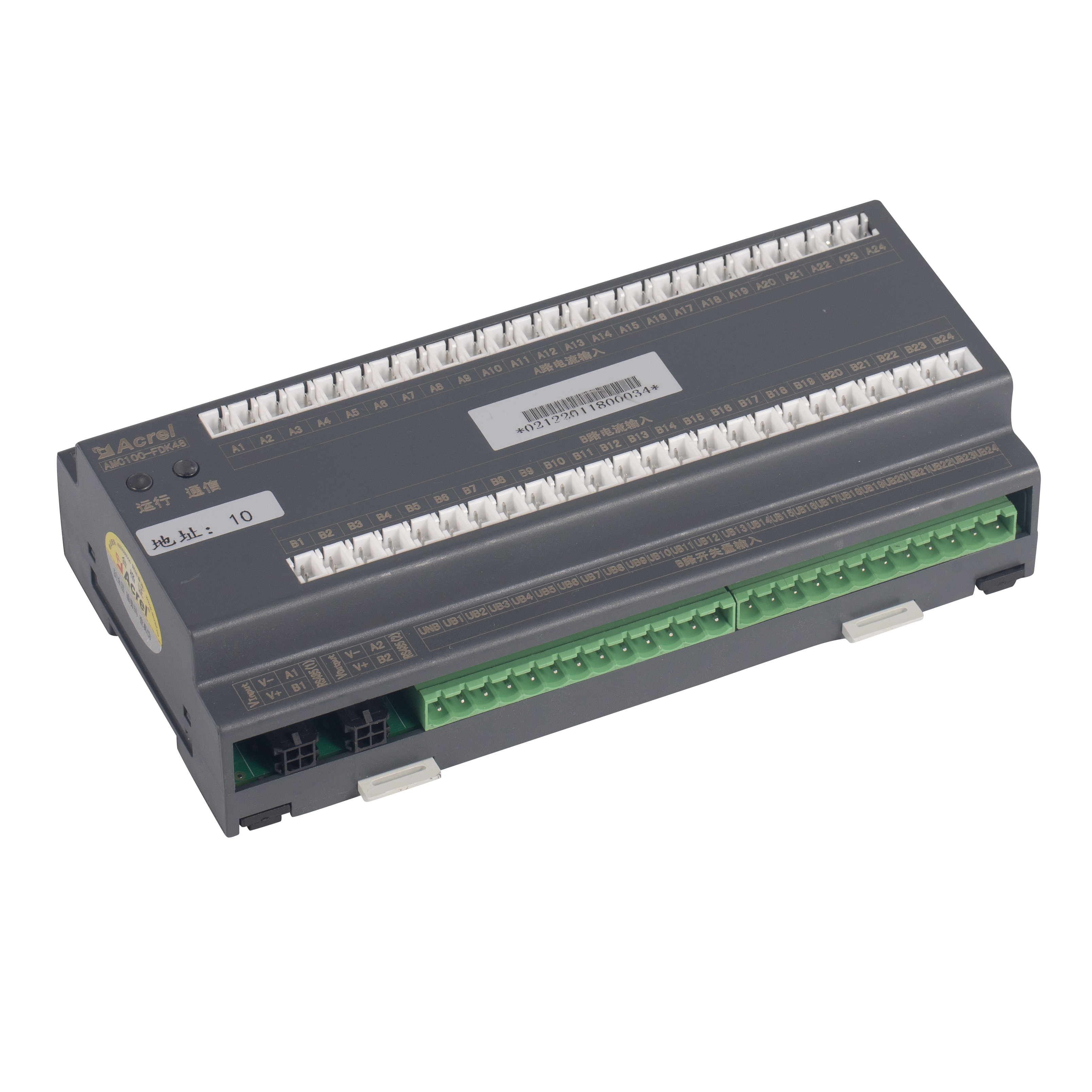

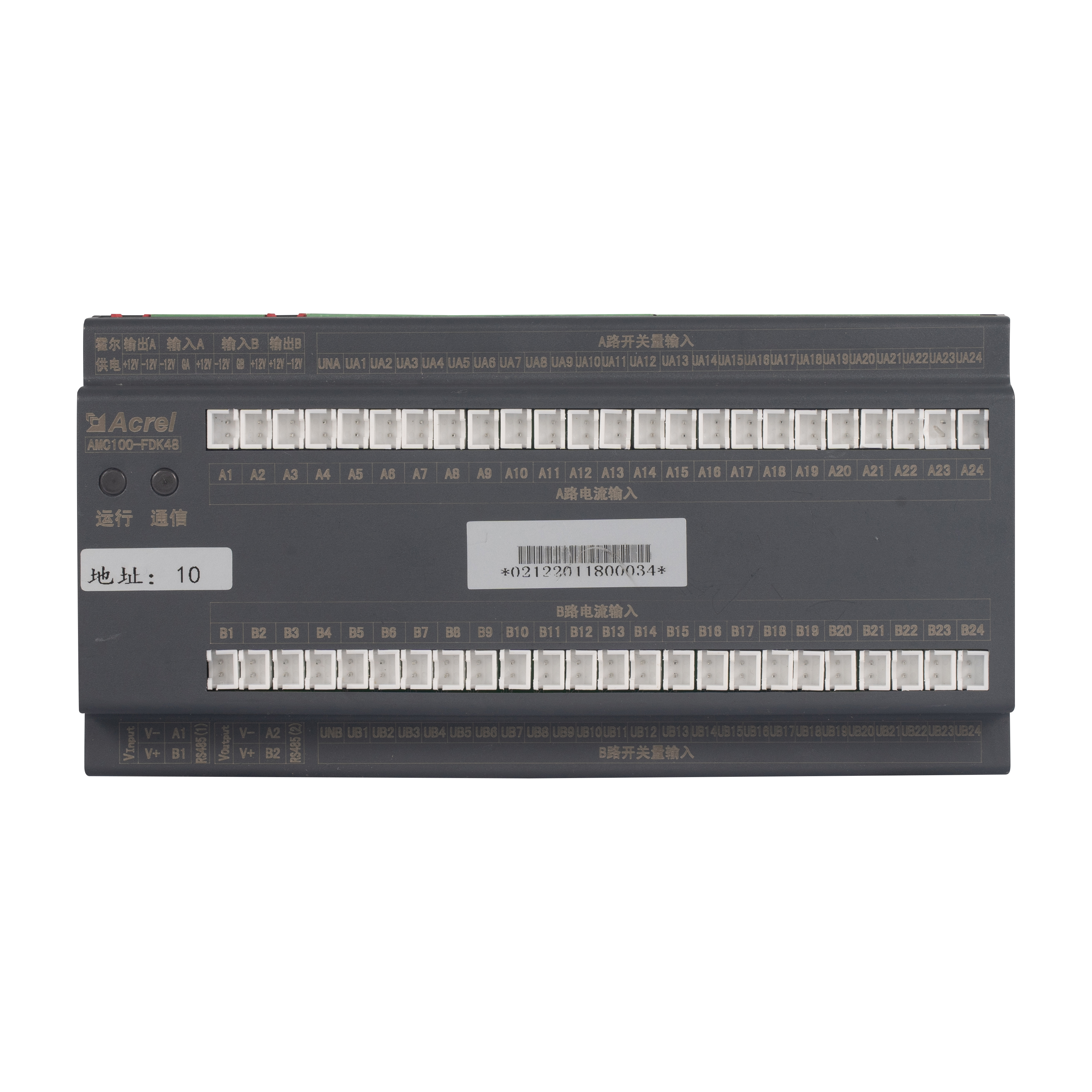

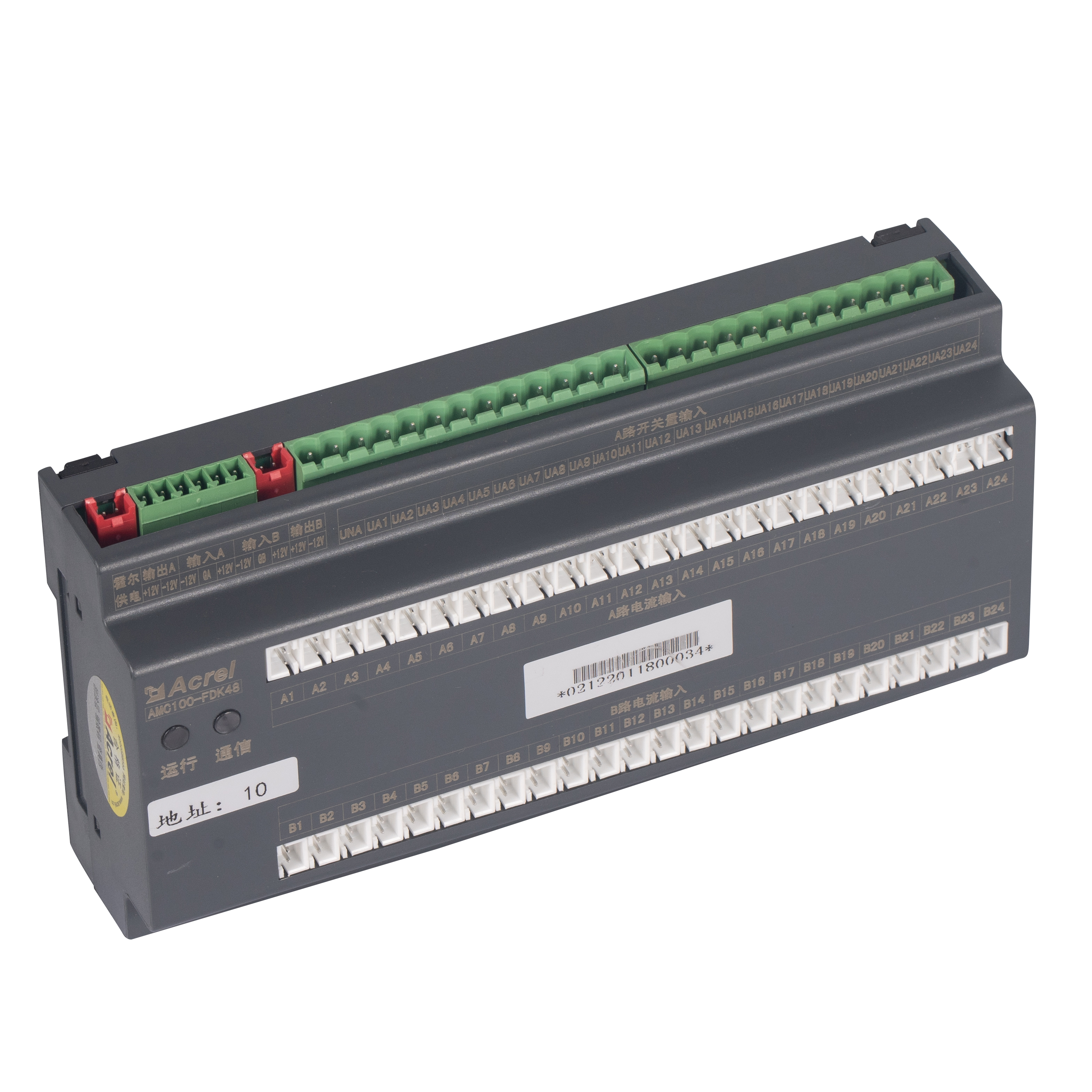

AMC100-FDK48 is Acrel’s DIN-rail DC precision power-distribution monitoring unit engineered for data-center server racks. It simultaneously tracks full electrical parameters of A+B dual three-phase feeds, 192 outgoing circuits, 8 DI / 4 DO status points, 2 leakage channels, 1 temperature-humidity sensor and 63 harmonics. Three RS485 Modbus-RTU ports enable seamless BMS/DCIM integration. Compact 180 mm housing, ±0.5 % accuracy, per-channel alarm thresholds and instant sound-light warning slash energy waste and downtime, making it the scalable heart of green data-center DC busway or PDU monitoring solutions.
| Model | AMC100-FAK30 | AMC100-FAK48 | |
| Measurement parameters | Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, 2-31 times total current harmonic content | ||
| Rated | 220VAC | ||
| Bus voltage | Measuring range | ±20% | |
| Overload | Instantaneous voltage 2 times/sec | ||
| Current outlet loop | Rated | 50mA | |
| Range | 0.125～60mA | ||
| Overload | Continuous 1.2 times, instantaneous 10 times/sec | ||
| Input frequency | AC45～65Hz | ||
| Measure | Outlet | Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1 | |
| Auxiliary power | Powered by AMC100-ZA; DC 12-24V power supply when used alone | ||
| Environment | Temperature | Work: -15℃～55℃ Storage: -25℃～70℃ | |
| Humidity | Relative humidity≤93% | ||
| elevation | ≤2500m | ||
| Communication | RS485/Modbus-RTU | ||
| Installation Method | DIN35mm rail or bottom plate installation | ||
| Protection level | IP20 | ||
| Pollution level | 2 | ||
| Insulation | The insulation resistance between all terminals and the conductive parts of the shell is not less than 100MΩ | ||
| Security | |||
| Withstand voltage | The voltage and current signals of circuit A//the voltage and current signals of circuit B//other ports meet AC2kV for 1min, the leakage current should be less than 2mA, and there is no breakdown or flashover. | ||
| Electromagnetic compatibility | Anti-static interference | Level 4 | |
| Resistance to radio frequency electromagnetic field radiation | Level 3 | ||
