AC Three Phase Measurement
Input Current: 5A/1A by CTs
THD with 2-31st Harmonics
Ture RNS Measurement
4DI & 2DO
Pulse Output
+86-18702106858 / +86-21-69156352

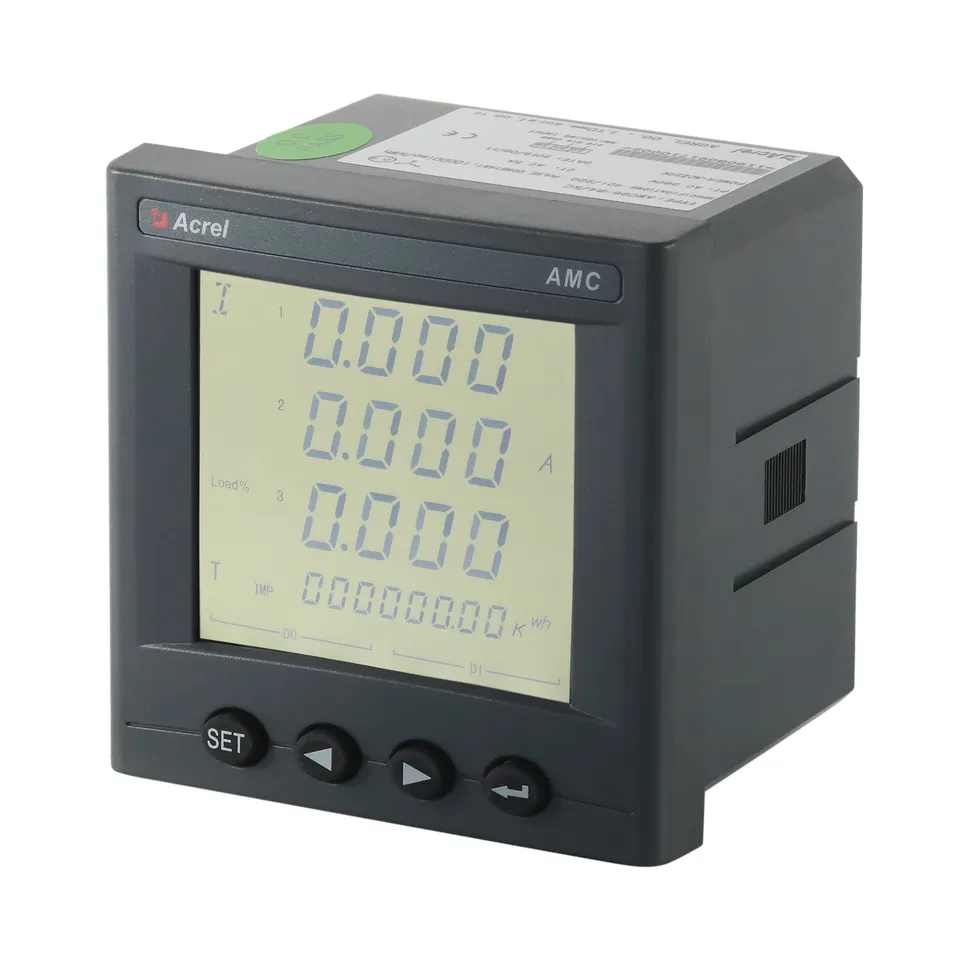

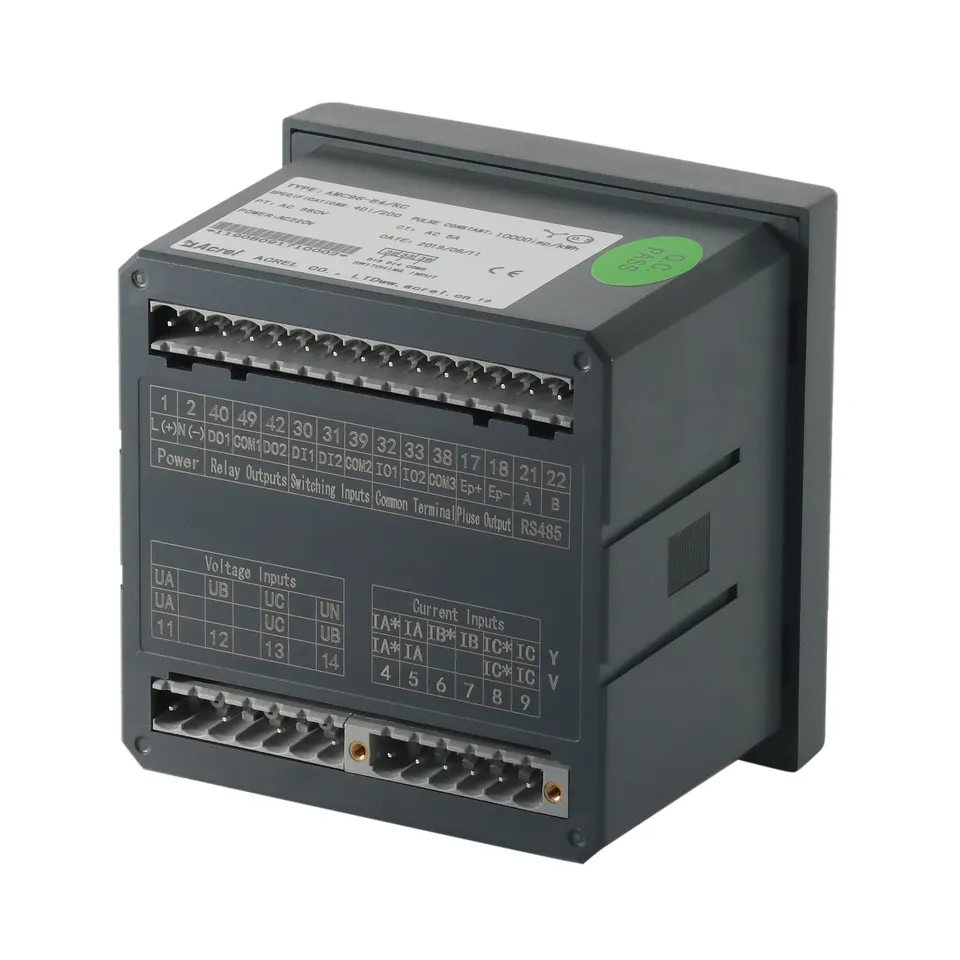

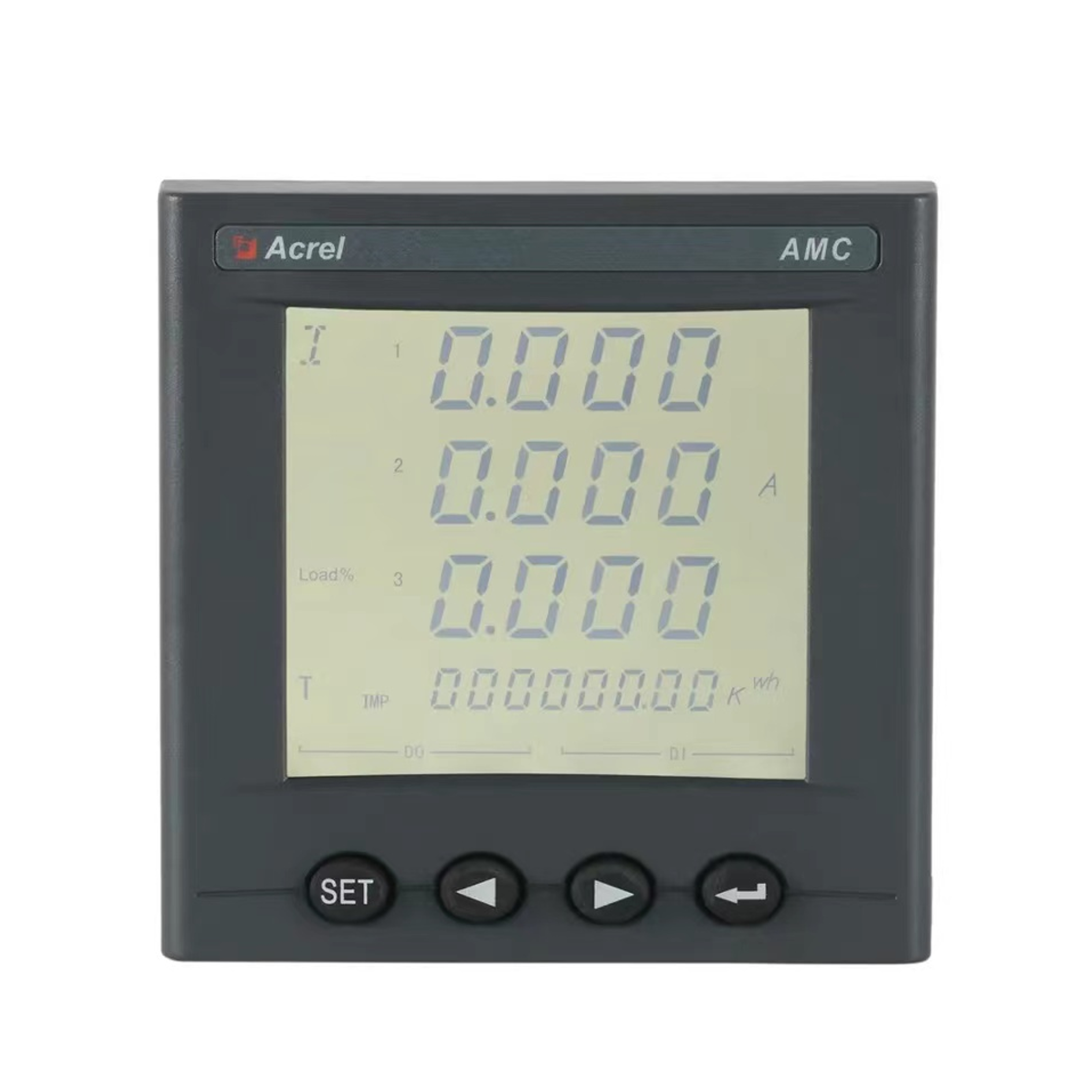

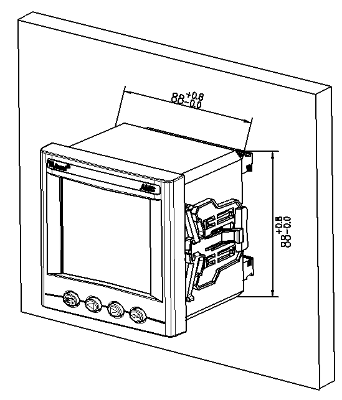

AMC96L-E4/KC is a high-accuracy AC three-phase programmable panel-mounted energy meter engineered for real-time power monitoring, energy management and power-quality analysis in industrial, commercial and data-center installations. The 96×96 mm compact DIN case with 0.5-class multifunction measurement delivers true RMS readings of voltage, current, active/reactive/apparent power, power factor, frequency, import/export kWh and kvarh with Modbus-RTU RS485 communications for seamless SCADA, BMS or EMS integration. Four quadrant tariff metering, 31st harmonic distortion capture, THD analysis, demand recording, load profiling and four tariff TOU support enable precise billing and efficiency optimization. Wide-range 3×57.7/100 V…3×380/660 V, 0.02-6 A direct connect or CT input, bi-directional energy counters, pulse output, relay alarm and tamper-proof seal make the AMC96L-E4/KC ideal for switchgear, distribution boards, PV plants, EV charging stations and smart-grid applications while meeting IEC 62053-22, IEC 61557-12 and CE standards.
| Technical Parameters | Value | |||
| Input | Connection | Single phase-2-wire, 3-phase-3-wire, 3-phase-4-wire | ||
| Frequency | 45-65Hz | |||
| Voltage | Rating: | |||
| single-phase :AC 100V、400V | ||||
| Three-phase: AC 3×57.7V/100V(100V)、3×220V/380V(400V)、3×380V/660V(660V)(96 size only) | ||||
| Overload:1.2 fold rating {continuous) : 2 fold rating for 1 second | ||||
| Power consumption:< 0.5VA | ||||
| Current | Rating: AC IA、5A | |||
| Overload:1.2 fold rating(continuous);10fold rating for 1 second | ||||
| Power consumption:< 0.5VA | ||||
| Output | Electric energy | Output mode:open-collector photo-coupler pulse | ||
| Pulse constant: 10000imp/kWh(settable)，see wiring diagram for details； | ||||
| Communication | RS485port, Modbus -RTU protocol,DLT645 protocol(versions 07 and 97)， | |||
| baud rate 1200 ~ 38400 | ||||
| Function | Switching input | Dry contact input, built-in power supply;if the model is KA,it is AC 220V active. | ||
| Switching output | Output mode: Relay normally open contact output | |||
| Contact capacity: AC 250V/3A、 DC 30V/3A | ||||
| Analog output | 4 - 20mA | |||
| Accuracy class | Frequency:0.05Hz,Current、Voltage:0.2 class,Reactive power:l .0class,Reactive Electric energy:l .0class, active power:0.5class,active electric energy: 0.5class,2-31th harmonic measurement:±1% | |||
| Power supply | AC/DC 85-265V or DC24V（±20%）or DC48V(±20%) | |||
| power consumption≤10VA | ||||
| Security | Power frequency withstand voltage | Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; | ||
| Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; | ||||
| Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min; | ||||
| Insulation resistance | Input、Output end to machine enclosure >100MΩ | |||
| Environment | Temperature | work: -25°C~+65°C storage: -40°C ~+80°C | ||
| Humidity | ≤93%RH Non-condensing | |||
| Altitude | ≤2500m | |||
