Wireless Comm. 4G/WiFi/LoRa/LoRaWAN
Input Current: 100A by CTs
Modbus-RTU/MQTT Protocol
35mm DIN Rail Mounted

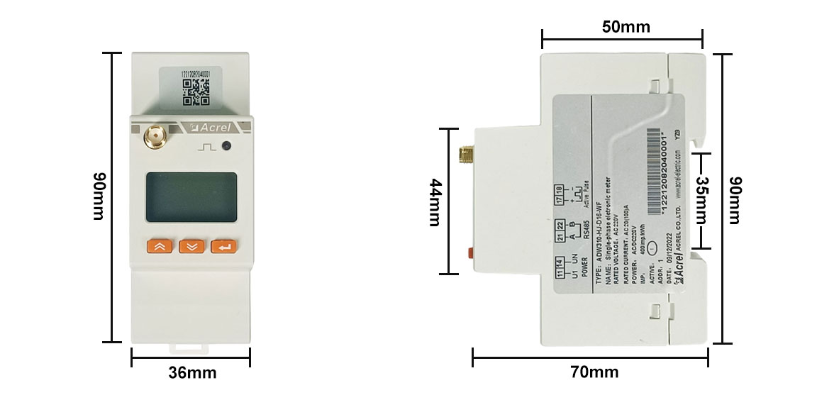

2 Modules 36mm Width
CE Certificated
For IoT Energy Management, Factory, School
+86-18702106858 / +86-21-69156352
ADW310 is a 1-phase DIN-rail wireless IoT energy meter engineered for real-time active energy, voltage, current, power, PF & frequency logging in 85-265 VAC networks.
With embedded 4G LTE, Wi-Fi, NB-IoT, LoRaWAN plus Modbus-RTU RS485, it streams encrypted data directly to any MQTT cloud, SCADA, EMS or billing portal without gateways .

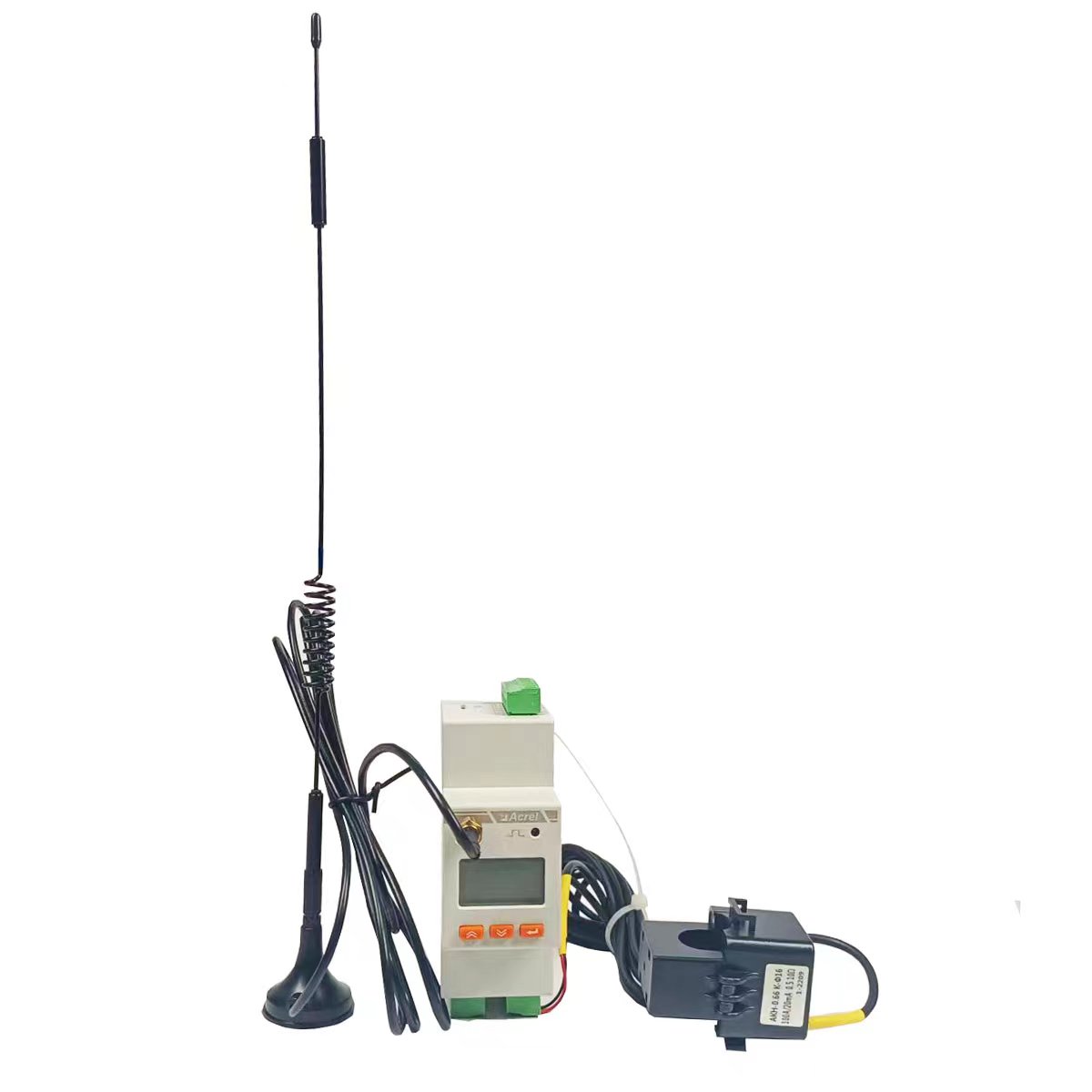

It supports split-core CTs for 100 A loads, and offers anti-tamper cover, 8-digit LCD, 1-pulse output and 3-key configuration. Built-in RTC, TOU tariff registers and 30-day load profiles enable smart-grid applications, solar net-metering, EV charging analytics, smart-building sub-metering and utility AMI rollouts while complying with IEC 62053-21 & CE.
| Parameters | ||
| Voltage input | rated voltage | 220V |
| reference frequency | 50Hz | |
| power dissipation | <0.5VA(Each phase) | |
| current input | input currenton | 5(20)A（D10）、20(100)A（D16） |
| starting current | 1‰Ib(0.5S class)，4‰Ib(1 class) | |
| power dissipation | <1VA(Each phase) | |
| Measurement performance | meet a criterion | GB/T17215.322-2008，GB/T17215.321-2008 |
| Accuracy of active power | 1class | |
| impulse | pulse length | 80±20ms |
| Pulse constant | 400imp/kWh | |
| communication | wireless | Transmission on 470MHz and maximum distance in open space is 1km；4G；WiFi；LoraWAN |
| interface | RS485(A、B) | |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU、DL/T 645-07 | |
| Voltage input | rated voltage | 220V |
| reference frequency | 50Hz | |
| power dissipation | <0.5VA(Each phase) | |
| current input | input currenton | 5(20)A（D10）、20(100)A（D16） |
| starting current | 1‰Ib(0.5S class)，4‰Ib(1 class) | |
| power dissipation | <1VA(Each phase) | |
| Measurement performance | meet a criterion | GB/T17215.322-2008，GB/T17215.321-2008 |
| Accuracy of active power | 1class | |
| impulse | pulse length | 80±20ms |
| Pulse constant | 400imp/kWh | |
| communication | wireless | Transmission on 470MHz and maximum distance in open space is 1km；4G；WiFi；LoraWAN |
| interface | RS485(A、B) | |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU、DL/T 645-07 |
