Wireless AC Three Phase CT Access Prepaid Meter for Billing System

Rated Current: 5A by CTs

Bulit-in Relay

For Prepaid/Postpaid Billing System

Wireless WiFi/4G Communication Optional

RS485 Communication

Send Inquiry Contact Us

PREV: AC Single/Three Phase Multi-Circuits DIN Rail Modular Power Meter
NEXT: Wireless AC Three Phase 80A Prepaid Meter for Billing System

Describe

ADL300-EY is a cutting-edge energy meter designed for precision and versatility. With a rated current of three phase 80A direct input, it's ideal for high-load applications. Its built-in relay enables automatic circuit control and protection, enhancing safety and efficiency.

The device supports both prepaid and postpaid billing systems, making it adaptable to various business models. It offers optional wireless communication via WiFi/4G, alongside reliable RS485 wired communication, ensuring flexible and robust data transmission.

This combination of features makes ADL100-EY perfect for energy management in commercial buildings, industrial facilities, and more, providing accurate monitoring and efficient control.

Specifications

Technical Parameter		ADL100-EY	ADL300-EY
Voltage	Reference voltage	220V	3×220/380V
	Reference frequency	50Hz
	Consumption	<4VA(Each phase)
Current	Input current	10(60)A	1(6)A ,10(80)A
	Starting current	Connect directly: 0.004 Ib, connect via CT: 0.002In
	Consumption	<4VA (Maximum current)
Measurement performance	Accuracy of measuring	1 Class	0.5s Class
Clock accuracy		Error ≤0.5s/d
Active pulse	Pulse width	80ms±20ms
	Pulse constant	1600imp/kWh	6400imp/kWh,400 imp/kWh
Communication	Interface	RS485(A+、B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU
Temperature range	Work temperature	-25℃~55℃
	Storage Temperature	-40℃~70℃
Relative humidity		≤95%(No condensation)
Altitude		<2000m

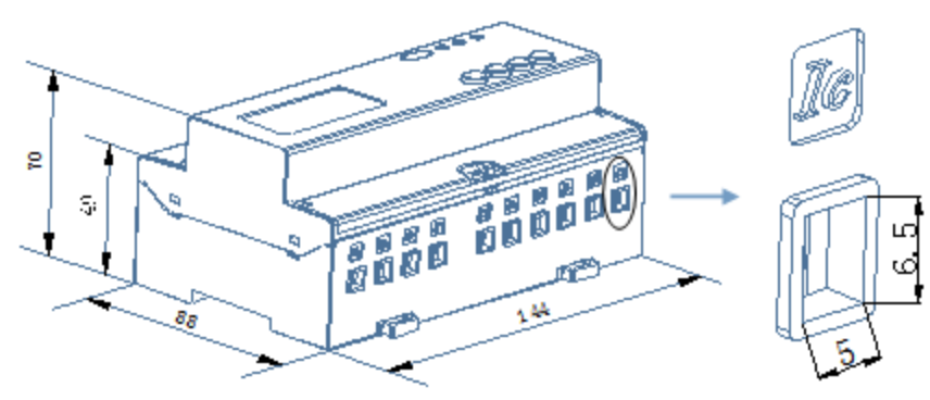

Dimension & Wiring Diagram

Application Scenario

Energy Efficiency Management System

Work Site Application
