Temperature Measure -50°C to 125°C
Current Measure 1-400A
High Accuracy Class 1
CT Powered
Backup Battery
Wireless Communication
+86-18702106858 / +86-21-69156352

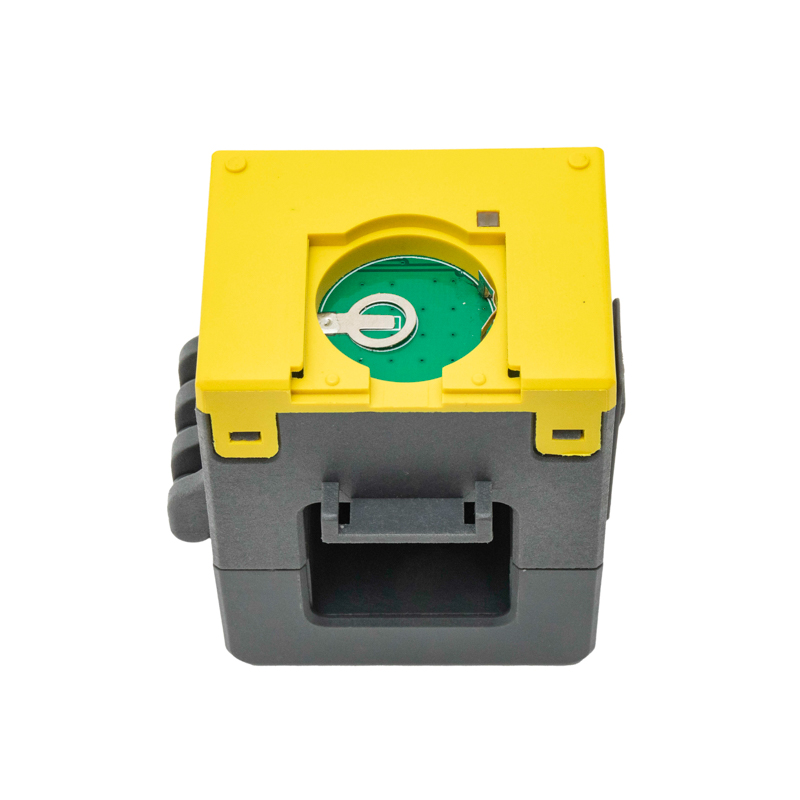

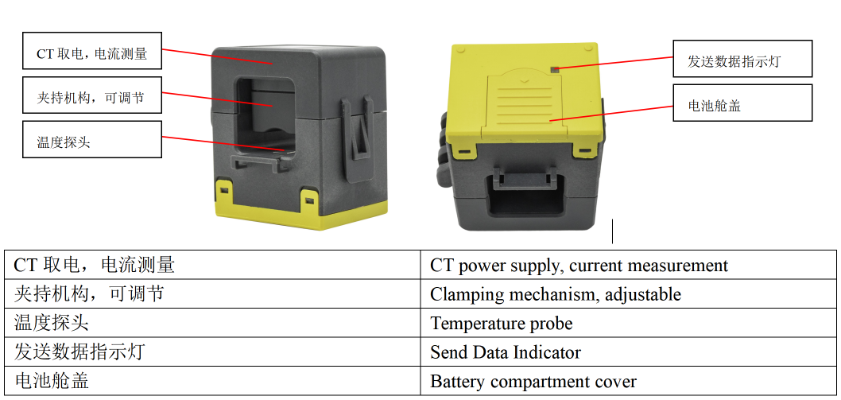

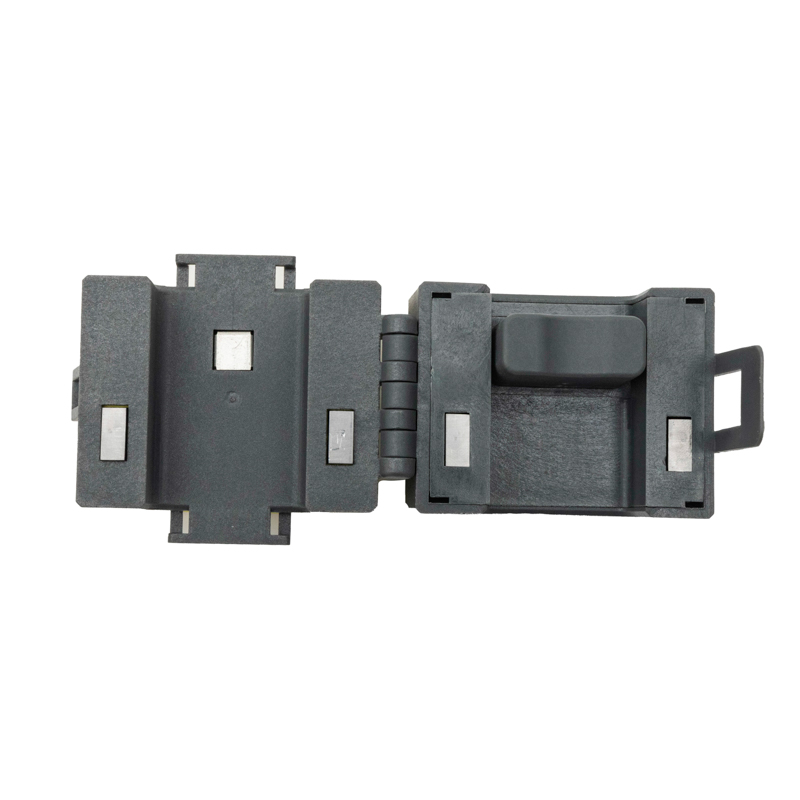

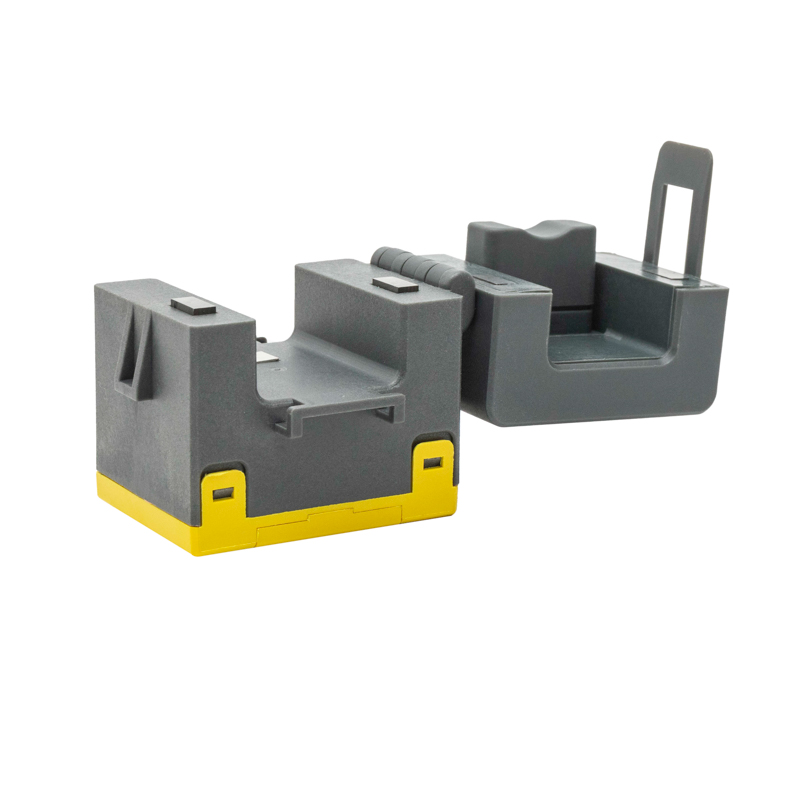

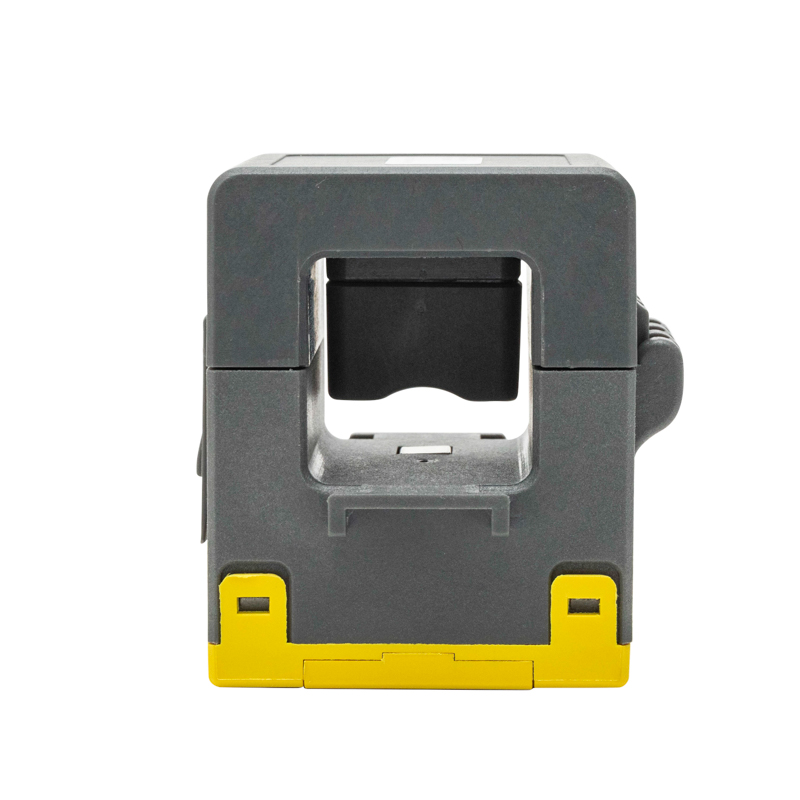

ACE100-29 wireless temperature and current composite sensor delivers dual-parameter monitoring for low-voltage switchgear cable health. Engineered with a tool-free snap-on clamp accommodating 6-29mm cables, it combines electromagnetic CT energy harvesting (activating at ≥2.5A load) with a replaceable 3-year CR2450 battery backup, ensuring uninterrupted data acquisition across -50°C to 125°C thermal range and 1-400A current span. The sensor achieves ±1°C temperature accuracy and 1% current precision, transmitting real-time data via 470MHz/433MHz wireless every 10-30 seconds when CT-powered or every 3 minutes in battery mode. Its adjustable clamping mechanism maintains direct thermal contact while the LED indicator confirms transmission status. Scalable for industrial deployments, each unit integrates seamlessly with the ATC600-C concentrator, which aggregates up to 240 sensors for centralized visualization on ATP007/ATP010 HMIs, enabling predictive maintenance and intelligent power distribution management without wiring complexity.
|
Items |
Features |
|
|
Range |
Temperature |
-50℃~125℃ |
|
Current |
1~400A，AC |
|
|
Precision |
Temperature |
±1℃ |
|
Current |
1%FS |
|
|
Resolution |
Temperature |
0.1℃ |
|
Current |
0.01A |
|
|
Sampling & Transmission cycle |
CT-powered：10~30S；Battery：3min |
|
|
CT-powered, starting current |
≥2.5A，AC |
|
|
Battery life |
3 years(25℃)， Replaceable(CR2450) |
|
|
Wireless frequency |
470Mhz/433Mhz |
|
|
Communication distance |
150m in open area |
|
|
Environment |
-40~+85℃；≤95% RH |
|
|
Installation |
Open snap type |
|
|
Cable diameter |
6~29mm |
|
