8-way client/server connection
RS485 Modbus-RTU
Support IPV4, IPV6
35mm din rail mounted
2-way 10-100mbits adaptive Ethernet communication
For Smart Power Distribution Automation
+86-18702106858 / +86-21-69156352

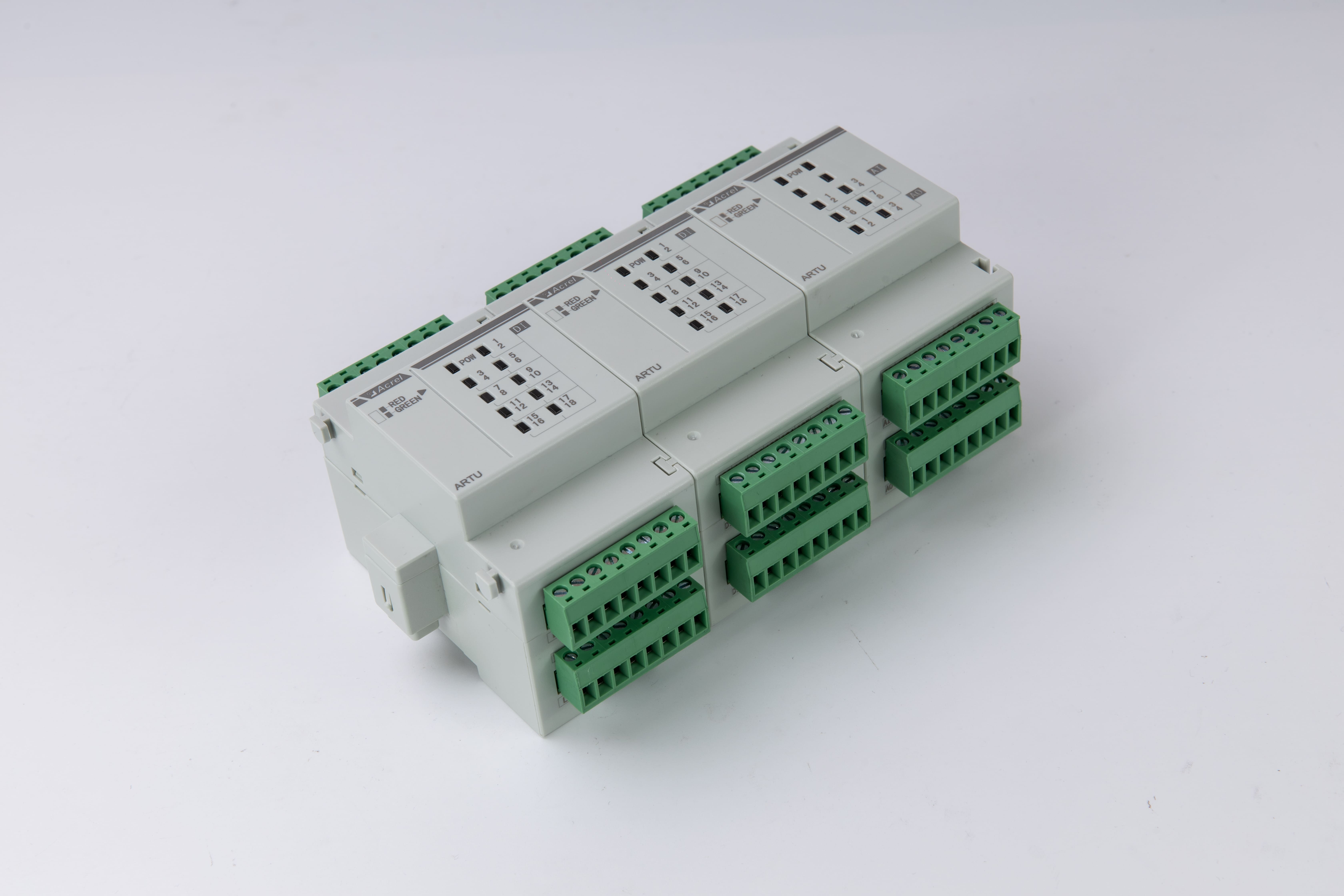

ARTU Remote Terminal Units—built for smart power-distribution automation—pack enterprise-grade intelligence into a 35 mm DIN-rail slice only 90 mm deep. The ARTU100 series offers 8-way client/server connectivity that lets you mix local I/O expansion and upstream SCADA on the same rail without extra gateways. Field devices wire straight to 16 digital inputs, 8 relay outputs, 8 universal analog channels (0-20 mA / 0-10 V / RTD) while two independent, 10/100 Mbit auto-sensing Ethernet ports—each supporting both IPv4 and IPv6—provide redundant ring-topology communication or simultaneous IT/OT network separation. An isolated RS485 port handles Modbus-RTU master/slave, polling 32 devices at 115 kbps and transparently tunneling them over TCP to any IPv6-ready DCS or cloud broker. Optional 2G/4G or LoRa radios slide into the side bay for last-mile wireless backhaul, keeping the unit online when copper or fiber is impossible. Built-in MQTT, IEC 60870-5-104 shorten integration to minutes.
|
Power supply |
AC/DC 85-265V、 DC48V |
||
|
Power consumption |
≤9W (excluding modules); ≤15W (including modules, up to 3 modules) |
||
|
Model |
ARTU100-K32 |
32-path DI (active/passive, optional) |
|
|
|
ARTU100-K16 |
16-path DI (active/passive, optional) |
|
|
|
ARTU100-KJ8 |

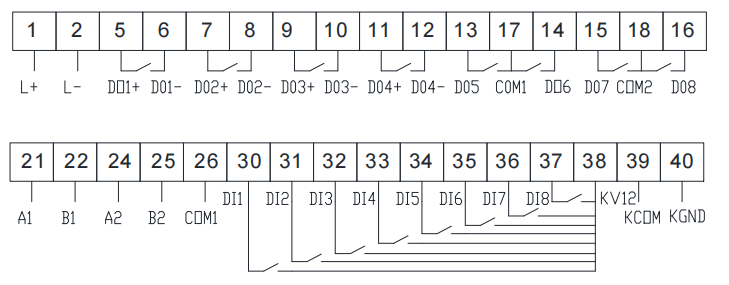

8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity: AC 250V/3A DC 30V/3A; |
|
|
|
ARTU100-KJC8 |
8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-close contact output, contact capacity: AC 250V/3A DC 30V/3A; |
|
|
Communication |
485 communication |
RS485 interface |
2-path 485 communication; Modbus-RTU protocol; baud-rate 1200 ~ 38400bps |
|
Others |
Dial switch |
10 bits |
|
|
|
Indicator light |
20 indicator lights |
|
