CE&RED Certification
Model:C: Receiver; Z: Repeater; M: Receiver
Uplink data: RS485, Modbus-RTU

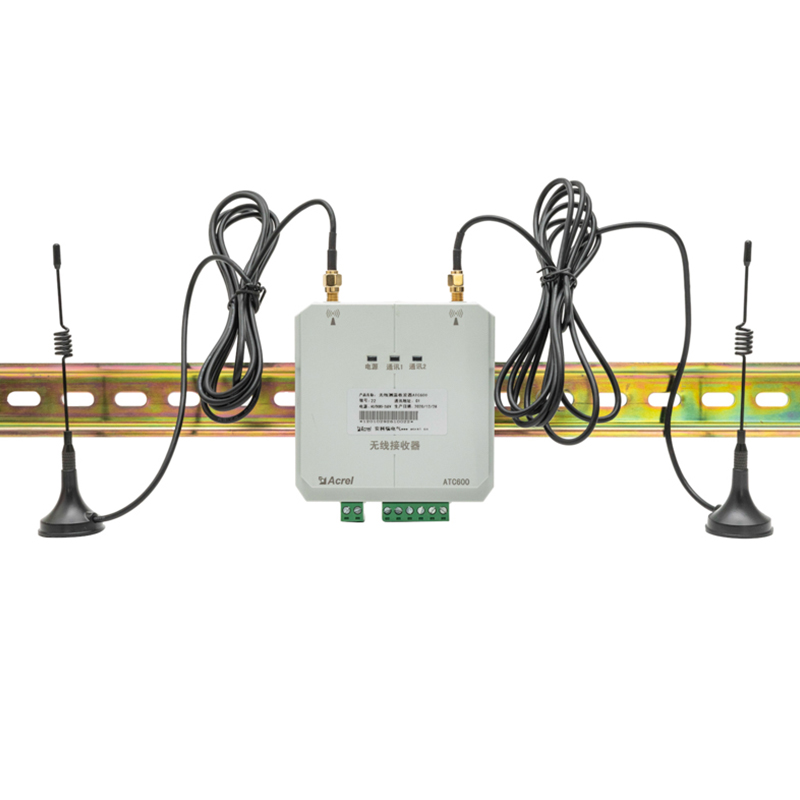

35mm Din Rail Mounted
ATC600-C receive 240 ATE400, ACE100
ATC600-Z: The Lora Relay is forwarded to ATC600-C, and the forwarding distance can reach 1000 meters;
ATC600-M can receive 240 ATE300M, ATE210
Power Supply: AC/DC 85V-264V or DC 12~48V
+86-18702106858 / +86-21-69156352

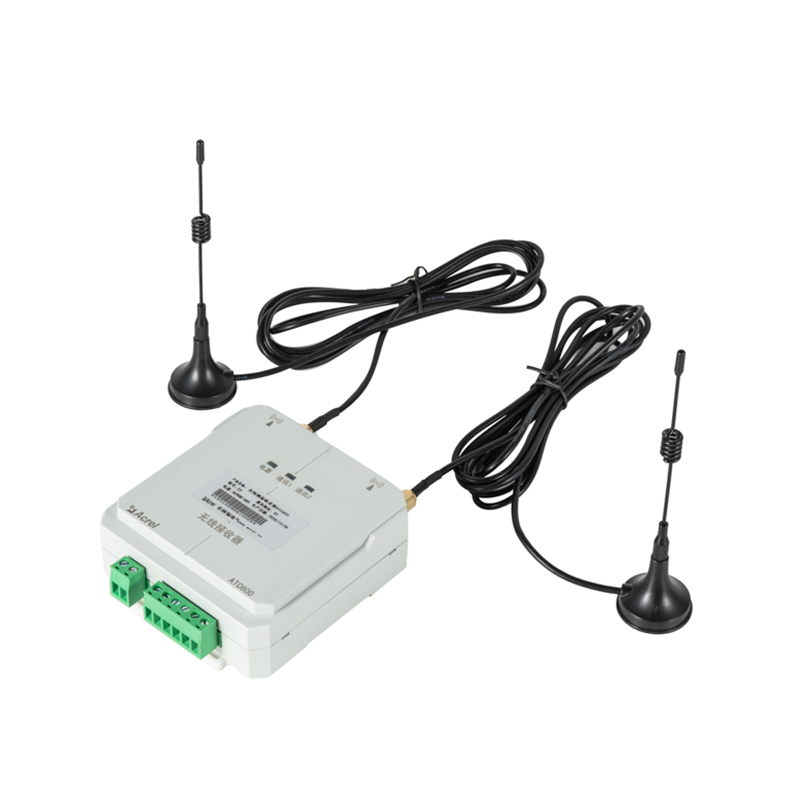

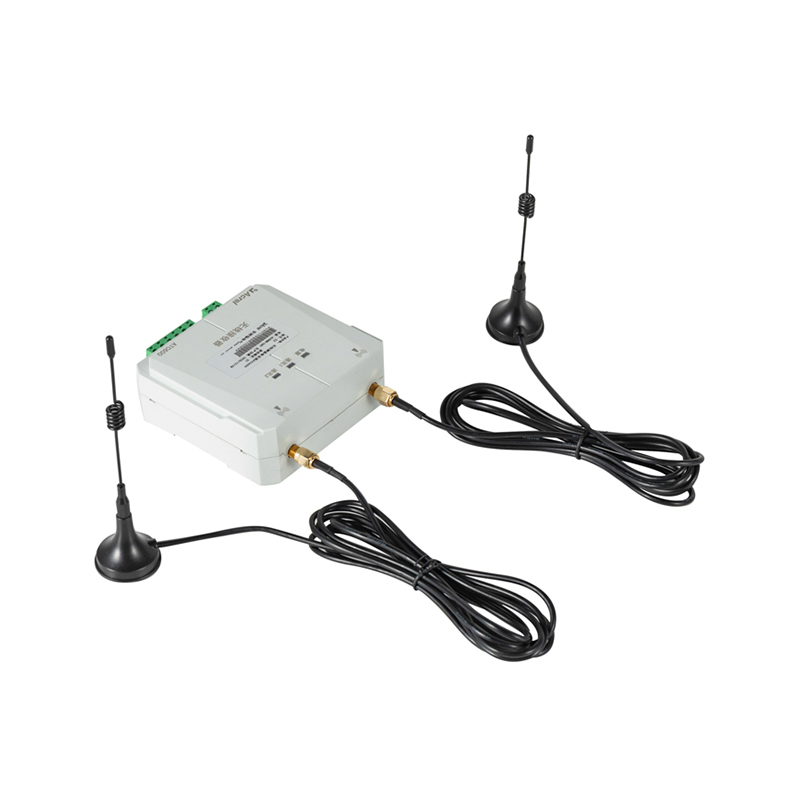

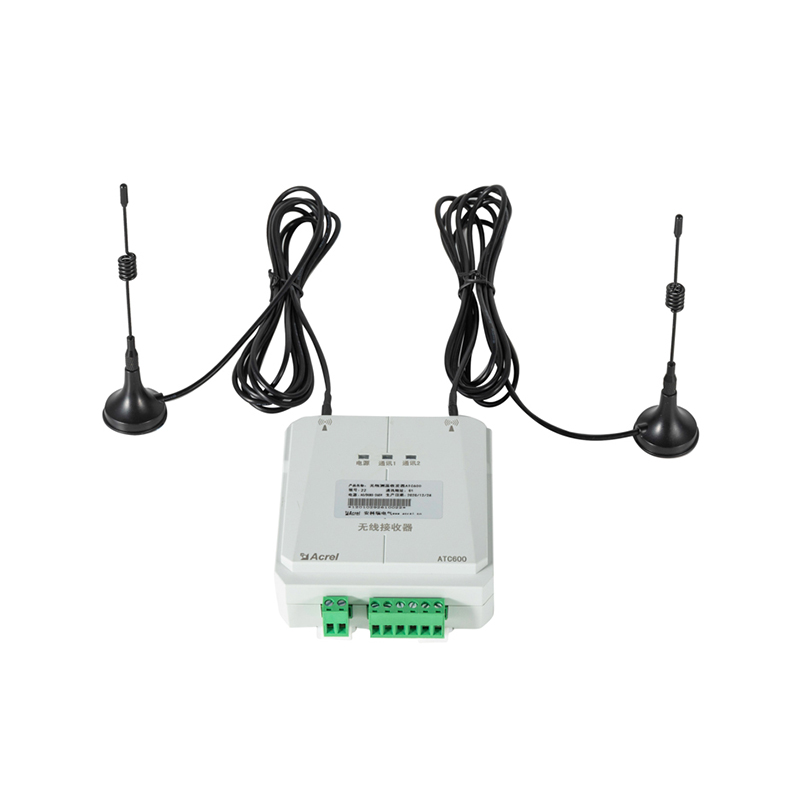

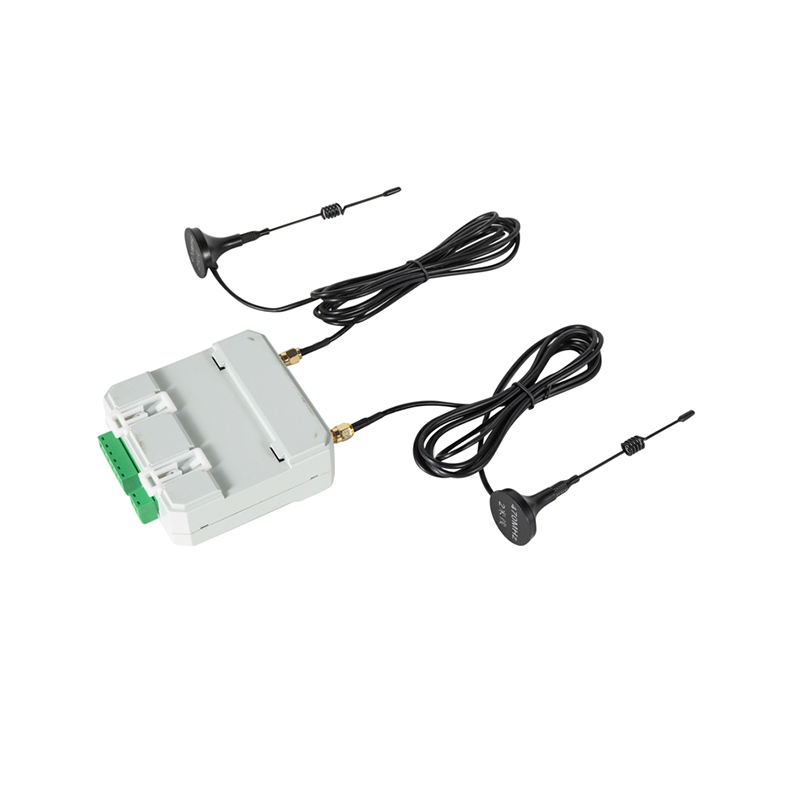

The ATC600 is a wireless temperature monitoring receiver designed for use in electrical systems. It operates at 470 MHz and supports communication with sensors over distances up to 150 meters, and between receivers up to 1 kilometer in open areas. The device can manage up to 240 sensor points and is powered by AC/DC 85–264V. It features two passive relay outputs (5A at AC250V/DC30V) and supports RS485 communication with MODBUS-RTU protocol, making it easy to integrate into SCADA or remote monitoring systems.
| Models Parametric |
ATC600-C | ATC600-Z | ATC600-M |
| Function | Receiver | Repeater(Signal Booster) | Receiver |
| Matching Sensors | ATE400;AHE100; ACE100; ATE300P | ATE400 | ATE300M |
| Power Source | AC/DC100~265V；DC12~48V | ||
| Power | ≤2W | ||
| Temperature Points | 240 points | --- | 1440 points |
| Resolution | 0.1℃ | --- | 0.1℃ |
| Range of Temperature | -50℃~+125℃ | --- | -40℃~+150℃ |
| Precision | ±1℃ | --- | ±1℃ |
| Wireless frequency | 433/470Mhz | 433/470Mhz | 433Mhz~510Mhz |
| Wireless distance | Receiving sensor | Receiving sensor | Receiving sensor 1km |
| 150m/470Mhz,50m/433Mhz | 150m/470Mhz,50m/433Mhz | (in open area) | |
| (in open area)；Receiving | (in open area)；Realy | ||
| repeater 1km | distance 1km | ||
| (in open area) | (in open area) | ||
| Communication | RS485 | ||
| Baud rate(bps) | 2400、4800、9600、19200 | ||
| Protocol | MODBUS-RTU | --- | MODBUS-RTU |
| Relay output | 2 passive output，capacity 5A/AC250V，5A/DC30V | ||
| Environment | Temperature:-20 ℃～+55 ℃；Humidity:≤95% | ||
