Programable Digital Inputs
Suitable for Ring Main Unit
8 DI & 5 DO
4 Input Current & 3 Input Voltage
Fault Recorder
ANSI 50N/51/51N/46/49F/27/59N...
+86-18702106858 / +86-21-69156352

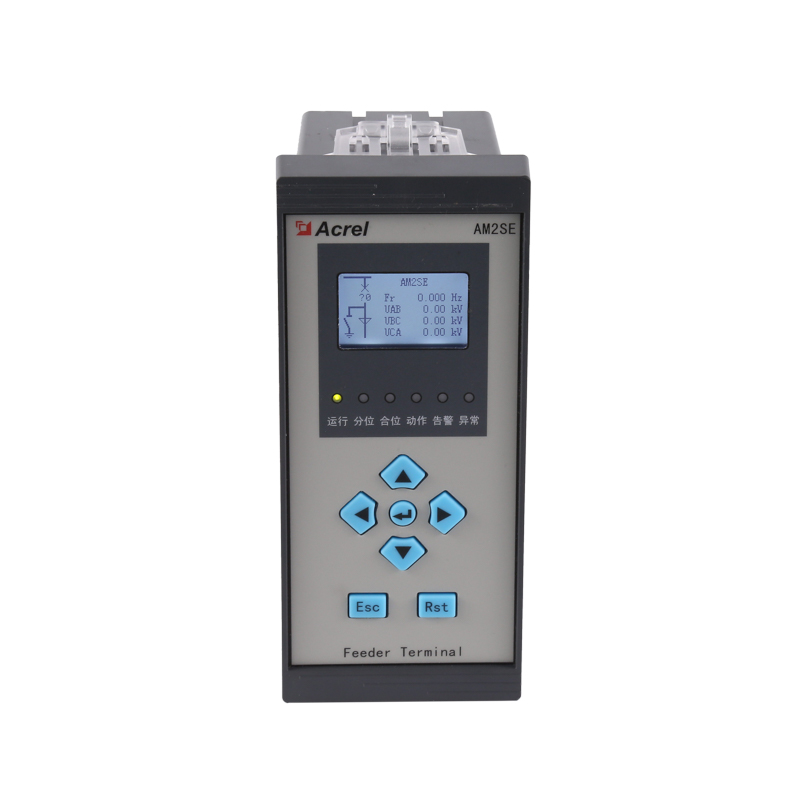

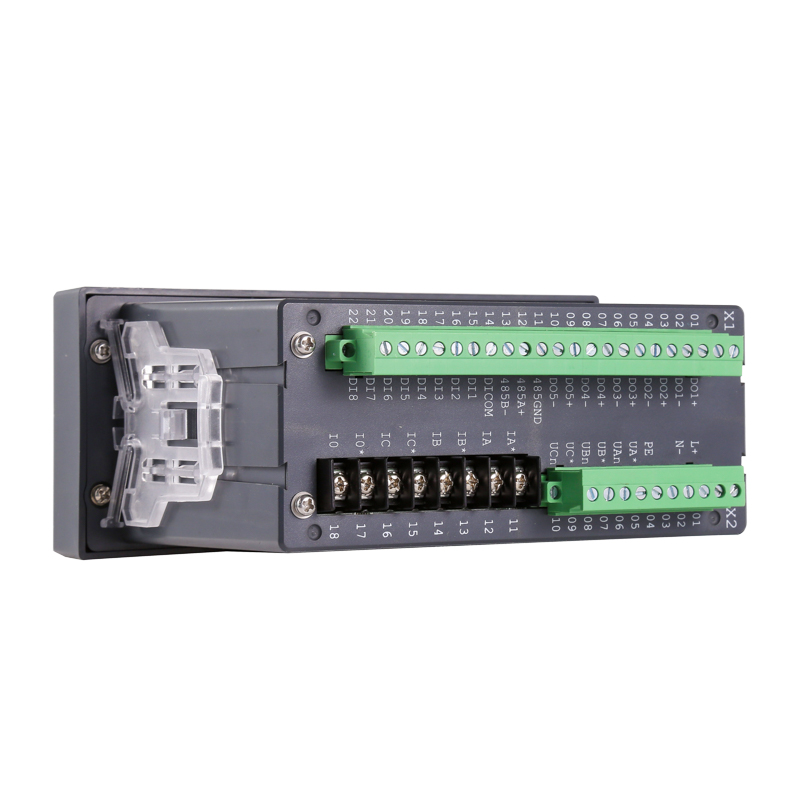

Acrel AM2SE protection relay is a highly adaptable solution designed for medium voltage (10kV) applications. It features a modular design with programmable digital inputs (8 DI & 5 DO), making it ideal for ring main units and MV switchgear. The relay supports 4 input currents and 3 input voltages, providing flexibility for various feeder protection scenarios.
Equipped with advanced protection functionalities, the AM2SE complies with ANSI standards including 50N, 51, 51N, 46, 49F, 27, and 59N. It includes a fault recorder for detailed event analysis, enhancing system reliability and maintenance efficiency.
The relay offers versatile communication options with support for Modbus-RTU/TCP and IEC 60870-5-103 protocols. Its powerful CPU ensures efficient data processing and integration into modern power systems. Additionally, the AM2SE provides USB connectivity for easy configuration and programmable 4-20mA DC outputs for analog signal transmission.
With its robust design and extensive feature set, the AM2SE protection relay is a reliable choice for safeguarding medium voltage networks, ensuring efficient and secure power distribution.

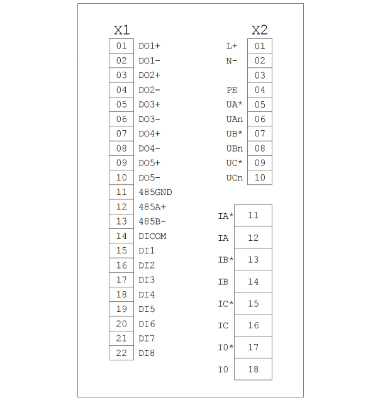

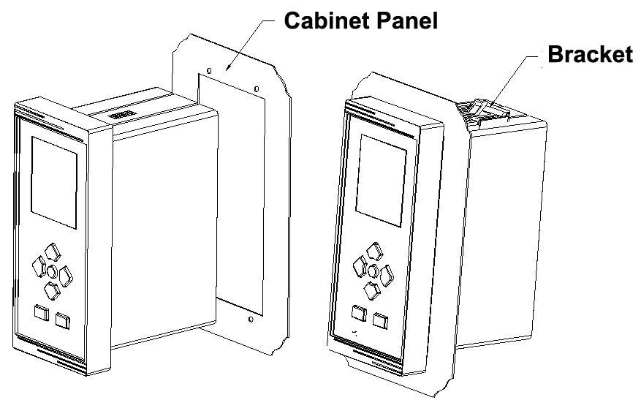

| Technical Parameters | Value | |||
| Input | Connection | Single phase-2-wire, 3-phase-3-wire, 3-phase-4-wire | ||
| Frequency | 45-65Hz | |||
| Voltage | Rating: | |||
| single-phase :AC 100V、400V | ||||
| Three-phase: AC 3×57.7V/100V(100V)、3×220V/380V(400V)、3×380V/660V(660V)(96 size only) | ||||
| Overload:1.2 fold rating {continuous) : 2 fold rating for 1 second | ||||
| Power consumption:< 0.5VA | ||||
| Current | Rating: AC IA、5A | |||
| Overload:1.2 fold rating(continuous);10fold rating for 1 second | ||||
| Power consumption:< 0.5VA | ||||
| Output | Electric energy | Output mode:open-collector photo-coupler pulse | ||
| Pulse constant: 10000imp/kWh(settable)，see wiring diagram for details； | ||||
| Communication | RS485port, Modbus -RTU protocol,DLT645 protocol(versions 07 and 97)， | |||
| baud rate 1200 ~ 38400 | ||||
| Function | Switching input | Dry contact input, built-in power supply;if the model is KA,it is AC 220V active. | ||
| Switching output | Output mode: Relay normally open contact output | |||
| Contact capacity: AC 250V/3A、 DC 30V/3A | ||||
| Analog output | 4 - 20mA | |||
| Accuracy class | Frequency:0.05Hz,Current、Voltage:0.2 class,Reactive power:l .0class,Reactive Electric energy:l .0class, active power:0.5class,active electric energy: 0.5class,2-31th harmonic measurement:±1% | |||
| Power supply | AC/DC 85-265V or DC24V（±20%）or DC48V(±20%) | |||
| power consumption≤10VA | ||||
| Security | Power frequency withstand voltage | Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; | ||
| Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; | ||||
| Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min; | ||||
| Insulation resistance | Input、Output end to machine enclosure >100MΩ | |||
| Environment | Temperature | work: -25°C~+65°C storage: -40°C ~+80°C | ||
| Humidity | ≤93%RH Non-condensing | |||
| Altitude | ≤2500m | |||
