True RMS Measurements
THD with 63rd Harmonics
K-Factor and Crest Factor
Unbalance & Phase Angles
Demands and Multi-Tariff energy
Max/Min Log with Timestamp
+86-18702106858 / +86-21-69156352

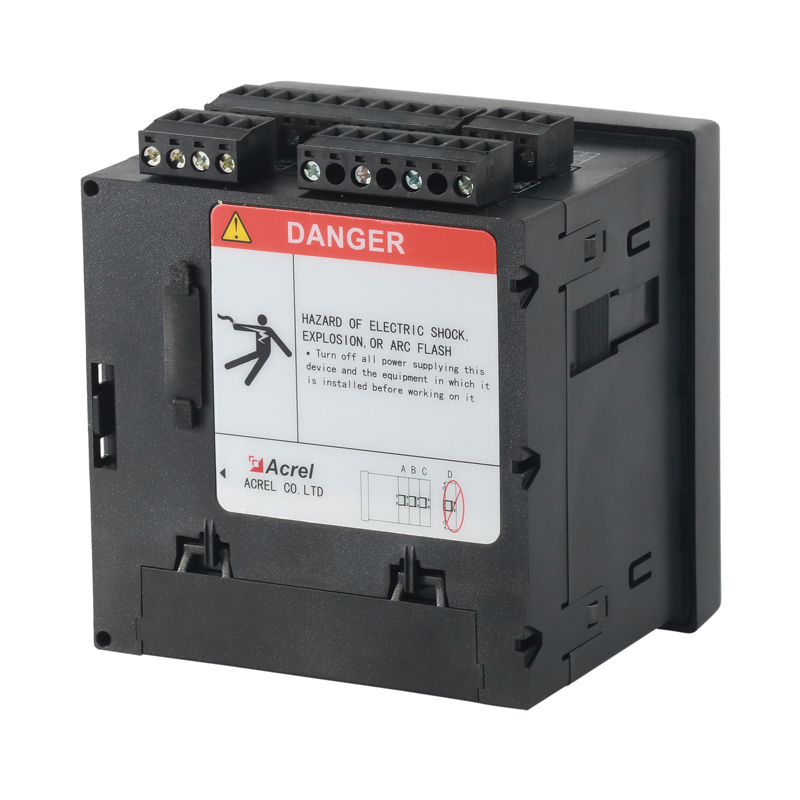

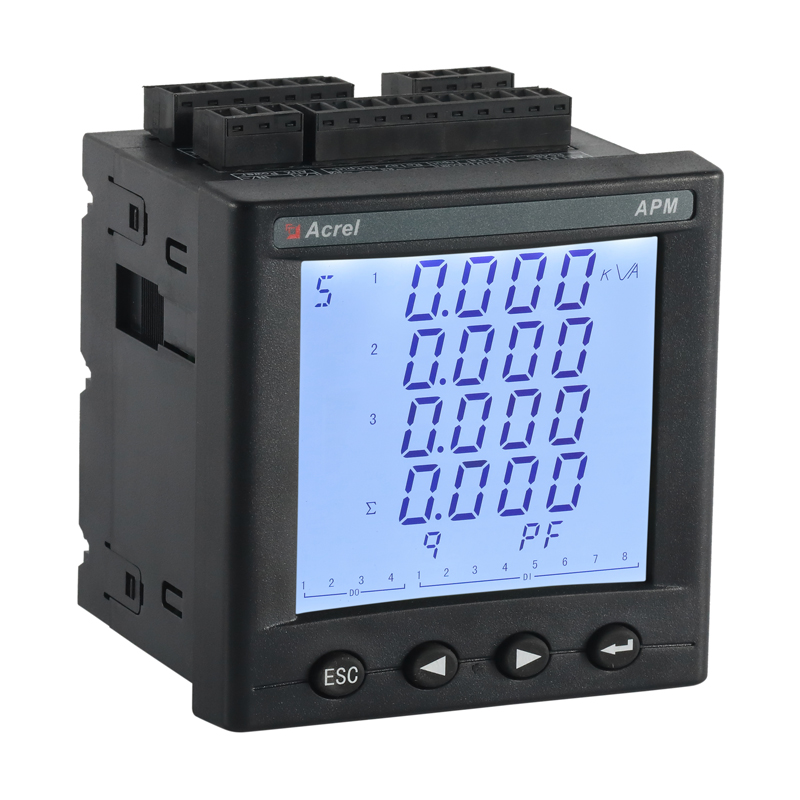

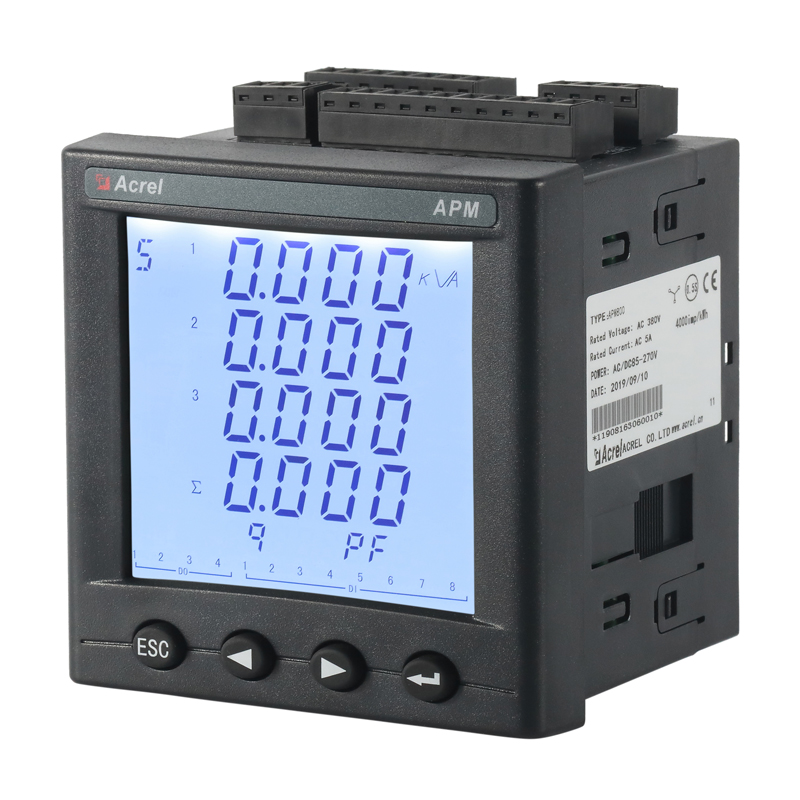

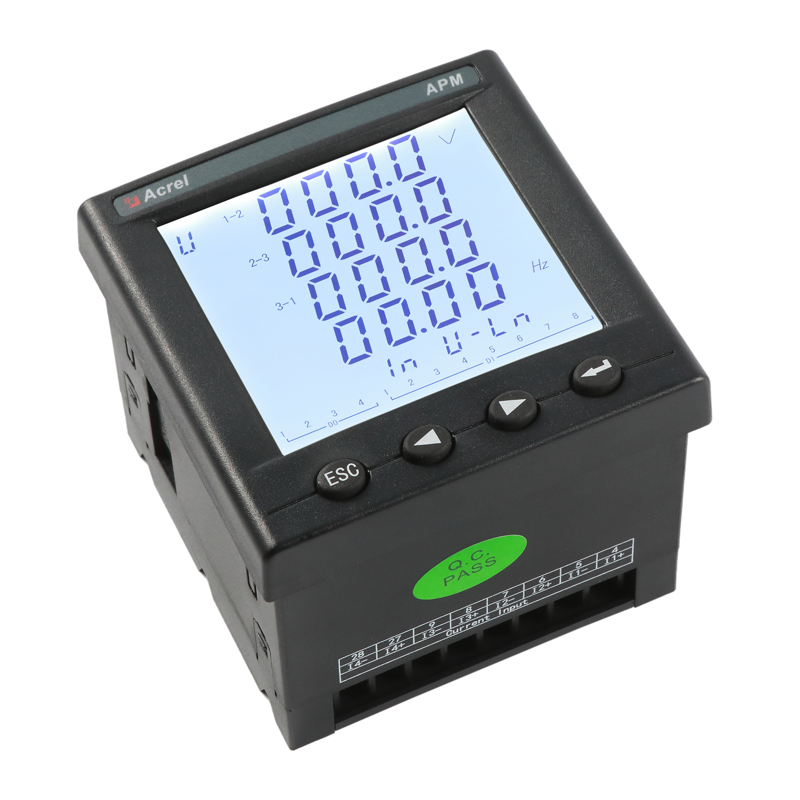

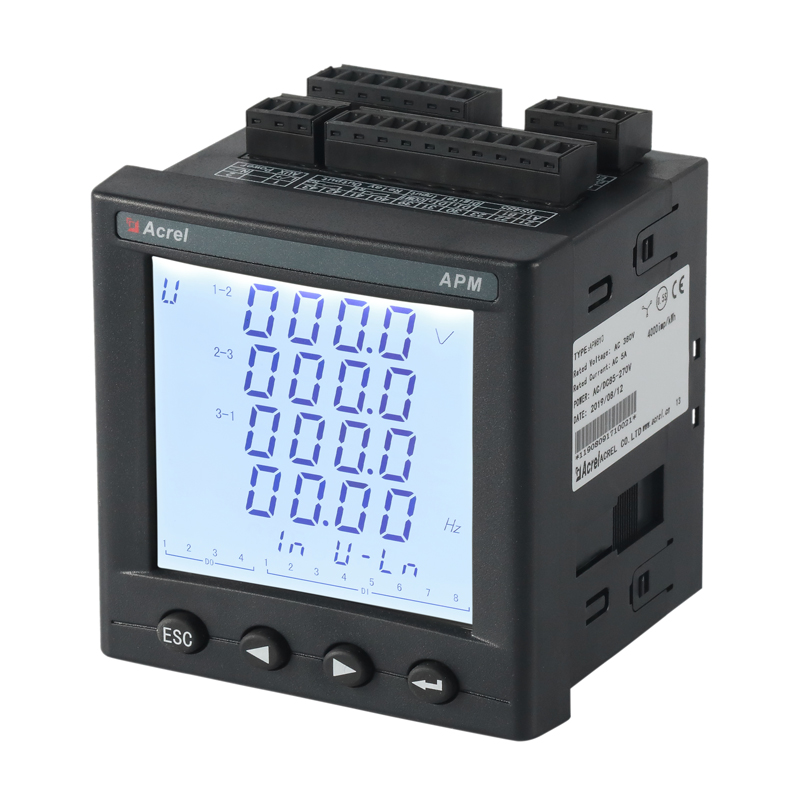

APM810 is a 0.2S-class three-phase AC multifunction panel meter engineered for precise energy monitoring, power-quality diagnostics and tenant sub-billing in industrial, commercial and data-center switchboards. The compact 96×96 mm DIN enclosure hosts a color TFT touchscreen that displays true RMS voltage to 690 V, current, frequency, active/reactive/apparent power, PF, demand, harmonics to 63rd, THD and four-quadrant kWh/kvarh. Dual RS485 Modbus-RTU, Ethernet TCP/IP, BACnet/IP, SNMP and optional Wi-Fi/LoRa deliver seamless BMS/EMS integration, while 4 MB onboard memory logs 12-month load profiles for energy audits. Configurable over/under voltage, current, PF and harmonic alarms drive relay outputs or digital inputs for smart breaker control; pulse, SOE and tariff TOU registers support utility AMI, solar net-metering and EV charging applications. Wide 3×57.7–690 V, 0.001–10 A direct or CT/VT connection plus tamper-proof sealing fit any smart-grid or micro-grid deployment.

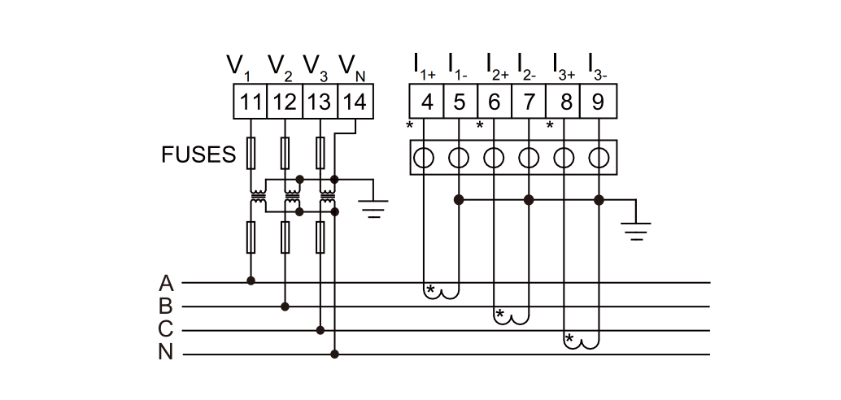

| Technical Parameters | Value | |||
| Input | Connection | Single phase-2-wire, 3-phase-3-wire, 3-phase-4-wire | ||
| Frequency | 45-65Hz | |||
| Voltage | Rating: | |||
| single-phase :AC 100V、400V | ||||
| Three-phase: AC 3×57.7V/100V(100V)、3×220V/380V(400V)、3×380V/660V(660V)(96 size only) | ||||
| Overload:1.2 fold rating {continuous) : 2 fold rating for 1 second | ||||
| Power consumption:< 0.5VA | ||||
| Current | Rating: AC IA、5A | |||
| Overload:1.2 fold rating(continuous);10fold rating for 1 second | ||||
| Power consumption:< 0.5VA | ||||
| Output | Electric energy | Output mode:open-collector photo-coupler pulse | ||
| Pulse constant: 10000imp/kWh(settable)，see wiring diagram for details； | ||||
| Communication | RS485port, Modbus -RTU protocol,DLT645 protocol(versions 07 and 97)， | |||
| baud rate 1200 ~ 38400 | ||||
| Function | Switching input | Dry contact input, built-in power supply;if the model is KA,it is AC 220V active. | ||
| Switching output | Output mode: Relay normally open contact output | |||
| Contact capacity: AC 250V/3A、 DC 30V/3A | ||||
| Analog output | 4 - 20mA | |||
| Accuracy class | Frequency:0.05Hz,Current、Voltage:0.2 class,Reactive power:l .0class,Reactive Electric energy:l .0class, active power:0.5class,active electric energy: 0.5class,2-31th harmonic measurement:±1% | |||
| Power supply | AC/DC 85-265V or DC24V（±20%）or DC48V(±20%) | |||
| power consumption≤10VA | ||||
| Security | Power frequency withstand voltage | Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; | ||
| Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; | ||||
| Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min; | ||||
| Insulation resistance | Input、Output end to machine enclosure >100MΩ | |||
| Environment | Temperature | work: -25°C~+65°C storage: -40°C ~+80°C | ||
| Humidity | ≤93%RH Non-condensing | |||
| Altitude | ≤2500m | |||

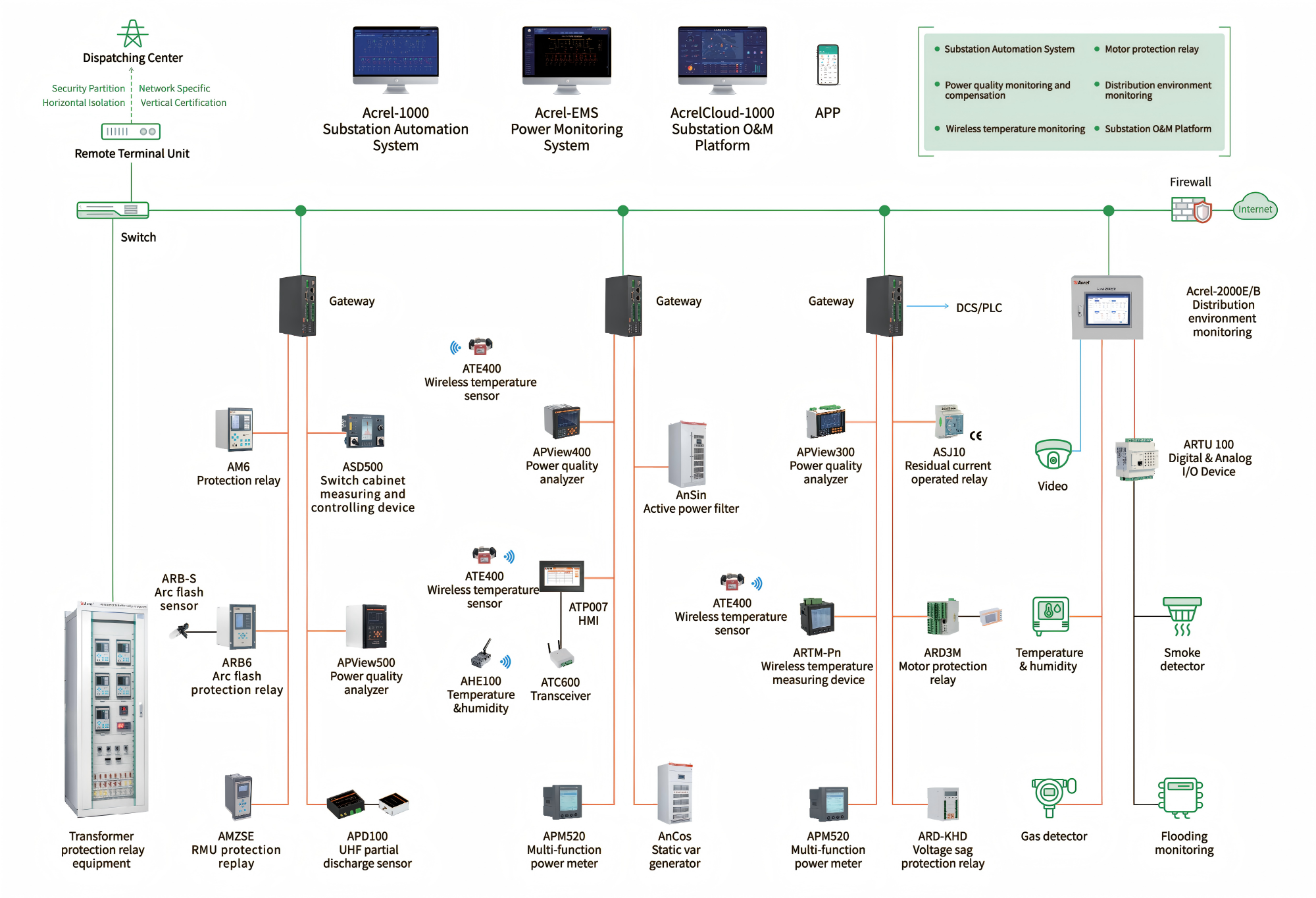

Power Monitoring Solution
Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
For IoT Energy Management, Factory, School
Split Core
Clamp on Installation
High Accuracy Class 0.5
150-1000A Input Current
5A/1A Secondary Output
Application: Renovation Projects
Event recording
Start control function
programmable DI and DO
Profibus-DP communication
Anti-shaking function
Analog output
Event recording
leakage protection
AC380V/690V
programmable DI and DO
Analog output
Anti-shaking function
Split Core
High Accuracy Class 0.5
Current Input 20-6000A
Current Output 5(1)A
Rectangular Hole Design
Measurement of current (I)
Application: Renovation Projects
