BR Series Rogowski Coil Flexible Current Transformer

Rated Current: Up to 10000A

High Accuracy Class 0.5

Excellent Linearity

Split Core Open Type

Zero Power Consumption

No Open-circuit High-voltage Hazard

Send Inquiry Contact Us

PREV: No previous product
NEXT: No next product

Describe

Acrel BR-Series Flexible Rogowski Coils deliver safe, wide-range AC current sensing from 0.1 A up to 500 kA. The lightweight, IP65-rated loop simply snaps around busbars or cables without disconnection, eliminating CT saturation and open-circuit hazards. Exceptional linearity, high bandwidth and minimal position error guarantee accurate power-quality, harmonic, ripple or transient capture when paired with power analyzers, loggers or portable meters. Custom lengths and diameters fit tight panels, large furnaces, welders or retrofits. Zero power draw, DC 4-20 mA / 200 mV outputs and immunity to stray fields make BR coils the go-to choice for energy audits, arc-fault studies and high-frequency inverter monitoring.

Specifications

Model	BR-90	BR-150	BR-200	BR-300
Perimeter	300mm	500mm	650mm	1000mm
Inner Diameter	90mm	150mm	200mm	300mm
Rated Current	1000A	2000-5000A	4000-8000A	5000-10000A
Weight	100-500g
Coil Resistance	50-500Ω
Max. Current	500kA
Cross-sectional Area	12mm
Signal Wire Length	2m, Customizable
Ratio	200±0.5%mV/kA@50Hz, Customizable
Accuracy	±1%
OA Output (Zero Drift)	≤1mV
Phase Angle Difference	≤0.5°
Linearity	±0.2%
Bandwidth	1Hz-10kHz
Working Temp.	-40℃-80℃
Storage Temp.	-50℃-90℃
Flame Retardant	Thermoplastic Rubber for Wires and Cables IEC-60332-1-2 Flame Retardant Class
Shielding	Coil: 100%, Signal Cable: 100%
Insulation Voltage	Coil: 3000V; Signal Wire: 300V

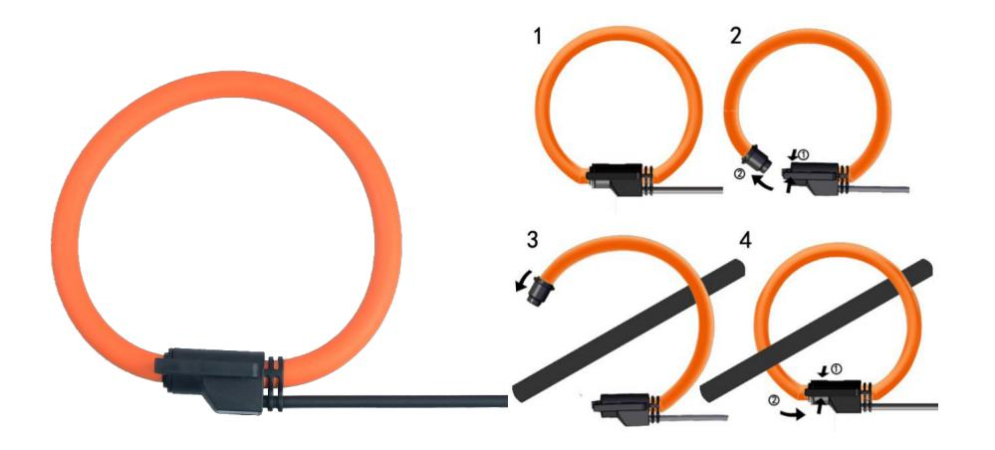

Dimension & Wiring Diagram

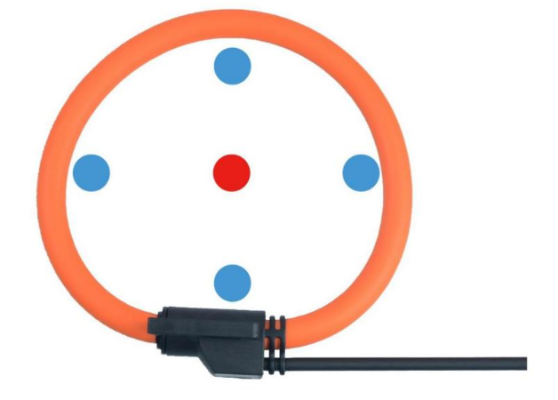

Blue: Class 1
Red: Class 0.5S

Application Scenario
