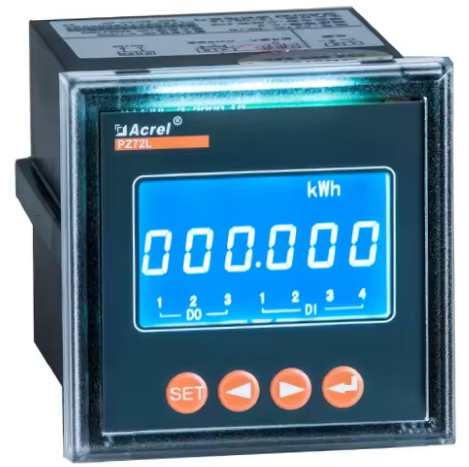

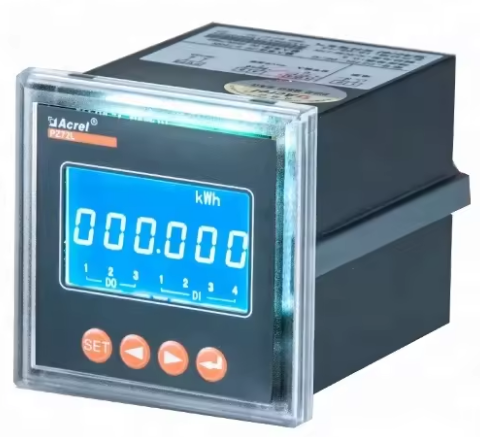

Wholesale PZ Series DC Intelligent Panel Mounted Energy Meter Company, Suppliers

Home / Products / Energy Meter / Panel Mounted Energy Meter / PZ Series DC Intelligent Panel Mounted Energy Meter

PZ-Series Intelligent DC Energy Meter – the compact, panel-mounted solution that turns any DC source into a revenue-grade data node. Engineered for solar arrays, battery racks, EV charging piles, telecom shelters and DC switchboards, it simultaneously tracks voltage, load current, instantaneous power and bi-directional energy with 0.5 % accuracy. A high-contrast LCD gives on-site operators an at-a-glance view of kWh, kW, Ah and state-of-charge, while the built-in RS-485 port speaks Modbus-RTU for seamless SCADA, PLC or cloud-gateway integration. Two configurable digital inputs (2DI) monitor breaker status or door contacts; two solid-state outputs (2DO) drive local alarms, contactors or remote-reset relays without extra modules. Need to power transducers or a LoRa radio? The meter’s on-board 12 V / 200 mA auxiliary output eliminates an external supply. Time-of-use billing is built in: program up to four tariff periods and eight seasons through the front-panel buttons to automatically accumulate peak, off-peak and shoulder energy registers. DIN-rail or base-plate mounting, 18–300 V DC or 90–265 V AC universal supply, 4 kV isolation and –25 °C…+70 °C operation make PZ the smartest way to measure, bill and control every watt that moves through modern DC systems.

Technical parameter		index
Signal	DC voltage	input range		0～100V,0～500V,0～1000V,1500V(only PZ96(L))
		Input impedance		≥6kΩ/V
	DC current	input range		0～9999A(External shunt or Hall element, programmable range)
		Diverter		The support output are 50mV and 75mV
		Hall sensor		The support output are 0 ~ 20mA, 0 ~ 5V,4～20mA(unipolar) ,etc
		Consumption		≤1mW
	Overload	1.2 times continuous normal operation, 2 times continuous 1 second
Accuracy class		0.5 class
Pulse constant		Voltage and current specifications：750V、 300A ，default pulse constant：100imp/kWh
		Voltage and current specifications：1000V、300A ，default pulse constant：100imp/kWh
		Voltage and current specifications：1000V、200A ，default pulse constant：100imp/kWh
Functions	Measurement	measure DC voltage U, current I and power P,When the current input is hall sensor(4~20mA output),the current only support unipolar metering.
	Metering	measure current combined energy, forward energy and reverse energy,When the current input is hall sensor(4~20mA output),the electric energy only support unipolar metering.
	Time sharing function	Each year can be divided into 4 time zones. Each time zone table can be set with 12 daily time periods and 4 rates (F1, F2, F3, F4 are SHARP,PEAK,SHOULDER and OFF-PEAK). The minimum interval of time periods is 15 minutes. Time periods can be set across zero（LCD Meter only)
	Historical data statistics function	Count historical energy of last 12 months (energy of each rate)（LCD Meter only)

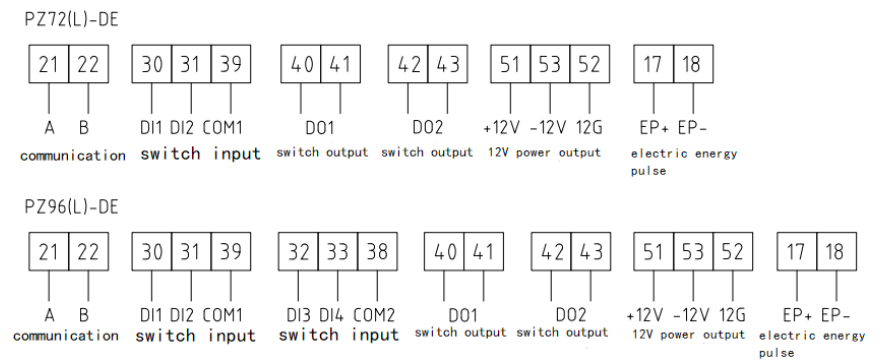

	Switch input/ output function	PZ72 has two switch output and two switch input. PZ96 has two switch output and four switch input. The switch output is relay output, which can realize remote control and alarm output. The switch input can not only collect and display the local switch status information, but also realize the remote transmission function through the RS485 of the instrument, namely the remote signaling function.
	Display	LCD（backlight delay time adjustable）or LED
	Communication	RS485 interface; half duplex, photoelectric isolation; Modbus-RTU protocol; baud rate 1200, 2400, 4800, 9600, 19200, 38400bps optional, modulation infrared fixed 1200bps.
	Switch input/ output	DI	Dry contact input, built-in power supply, photoelectric isolation
		DO	Two relay output, normally open contact, capacity 2A /30VDC or 2A/250VAC
operating voltage	Voltage range	85～265VAC、50/60Hz; 20～60VDC; 12VDC; 100～350VDC(declare in order)
	consumption	≤2W
Insulation resistance		≥100MΩ
Withstand voltage		3KV / 1min between power supply terminal group and signal input / output terminal group（RMS）
Environment	temperature	Operating temperature：-40℃～+60℃；Storage temperature：-40℃～+70℃
	humidity	≤ 93%RH，no condensation，no corrosive gas
	altitude	≤ 2500m
