AC Three Phase Measurement:U，I，kWh，kVar and etc
Bidirectional Metering
Input Current: 5A/1A by CTs
Communication：RS485,Modbus-RTU
Application：Inverter，Switchgear，Distribution Panel
+86-18702106858 / +86-21-69156352

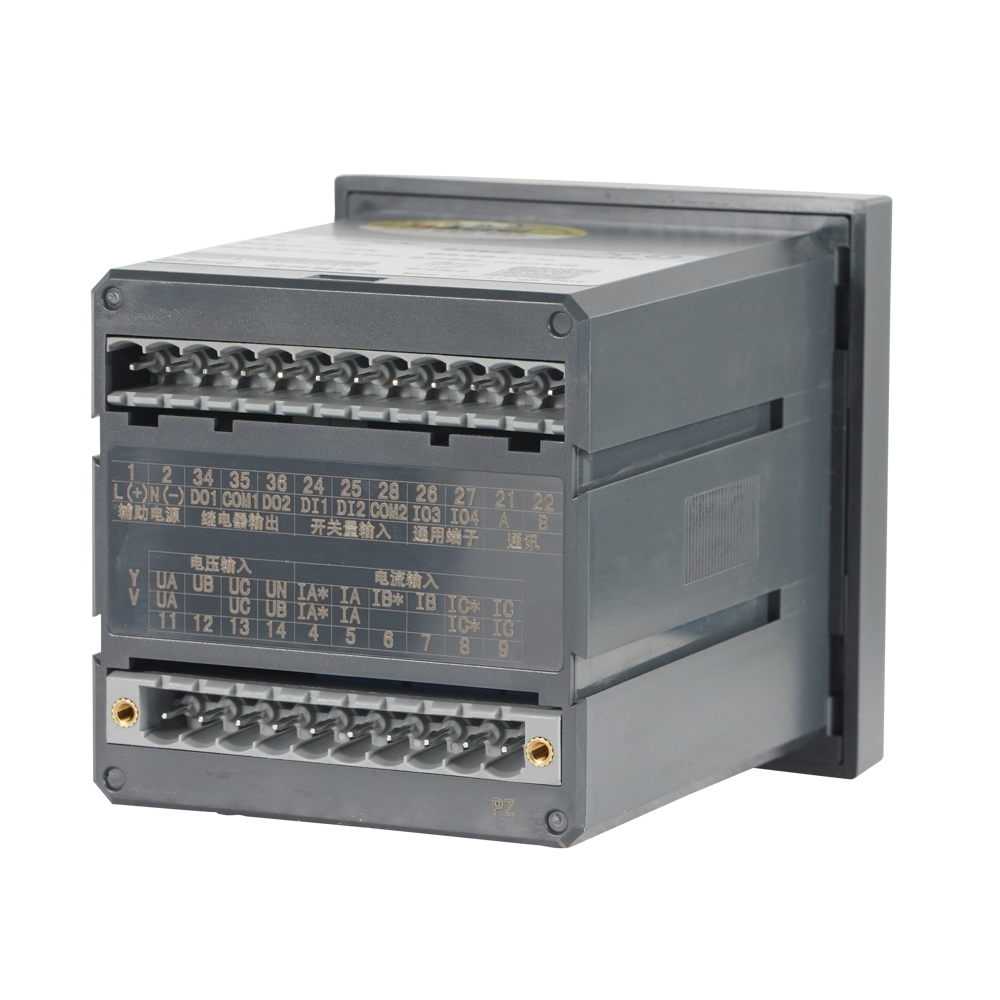

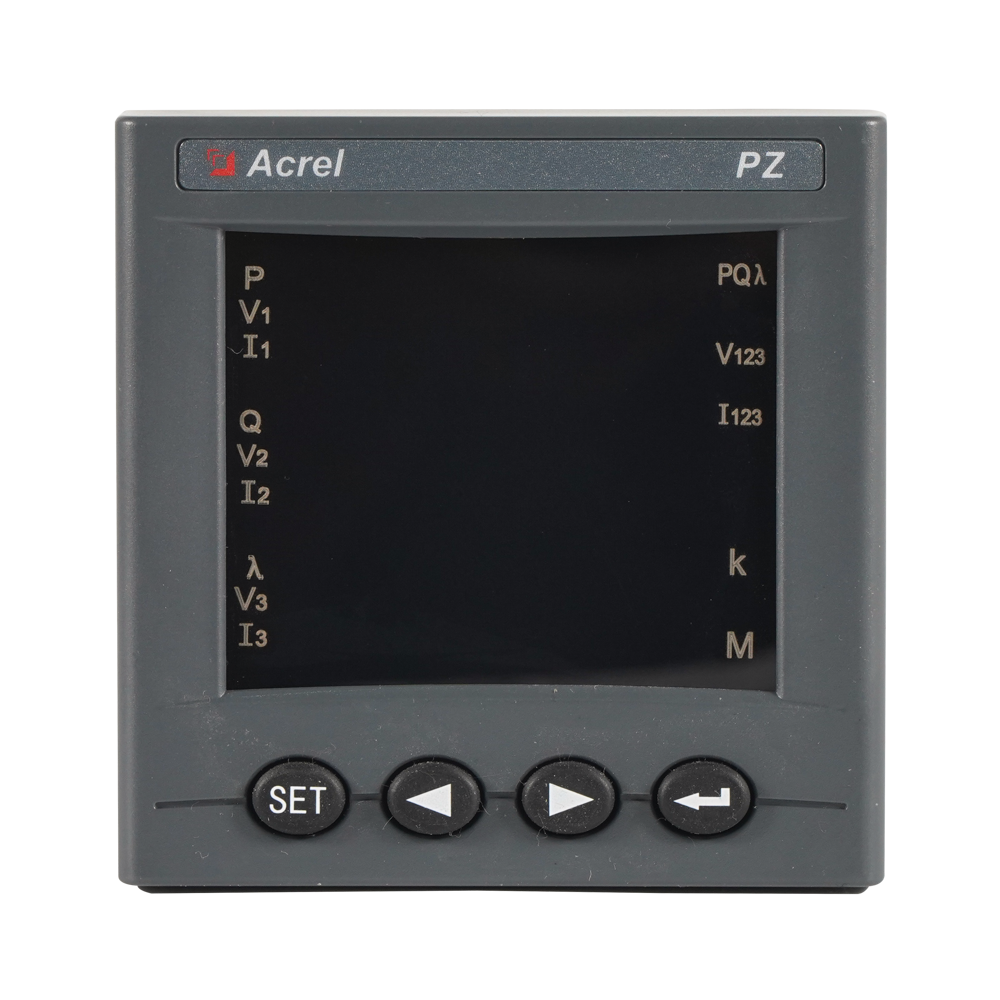

PZ96L-E4/C 3-phase smart meter samples AC directly and streams current, voltage, power and bidirectional energy via a single RS-485 (Modbus-RTU). It integrates 2DI, 2 DO ; all scaling, alarms and comms are configured from the front panel. Compact and cost-effective, it slots into Huawei inverters for real-time, bidirectional metering and connects seamlessly to SCADA or EMS platforms.
| Technical Parameters | Value | |||
| Input | Connection | 3-phase-3-wire, 3-phase-4-wire | ||
| Frequency | 45-65Hz | |||
| Voltage | Rating: | |||
| single-phase :AC 100V、400V | ||||
| overload： 1.2 fold rating {continuous) : 2 fold rating for 1 secon | ||||
| power consumption ： < 0.2VA | ||||
| Current | Rating: AC IA、5A | |||
| Overload:1.2 fold rating(continuous);10fold rating for 1 second | ||||
| power consumption ： < 0.2VA | ||||
| Output | Electric energy | Output mode: 2 channel open-collector photo coupler pulse | ||
| pulse constant: 10000 , 40000, 160000 imp/kWh | ||||
| Communication | RS485port, Modbus -RTU protocol | |||
| Display | LCD display, set multiplying power, alarm, switching indication at will |
|||
| Function | Switching input | 2channel passive dry contact input mode | ||
| Switching output |
Output mode： 2 channel relay NO contact output |
|||
|
contact capacity- 1A/30VDC 1A/250VAC |
||||
| Accuracy class | Frequency 0.05Hz, reactive electric energy 1 class, others 0.5class | |||
| Power supply |
DC100~350V;AV 85~265V; （In order to instrument wiring shall prevail ） |
|||
| power consumption<5VA | ||||
| Security |
Equipment withstand voltage= power supply, voltage input circuit 2kVAC； power supply,current circuit 2.5kV/1min(RMS) Insulation resistance- input, output end to housing >100MΩ |
|||
| Environment | Temperature |
work: -10°C~+55°C storage: -25°C ~+75°C |
||
| Humidity |
≤93%RH Non-condensing |
|||
| Altitude |
≤2500m |
|||
| Outline （ unit ： mm） |
faceplate size | housing size | cutout size | ||||
| width | height | width | height | depth | width | height | |
| 72 square | 75 | 75 | 66 | 66 | 98 | 67 | 67 |
installation method
Terminal arrangement and connection
Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
For IoT Energy Management, Factory, School
Split Core
Clamp on Installation
High Accuracy Class 0.5
150-1000A Input Current
5A/1A Secondary Output
Application: Renovation Projects
Event recording
Start control function
programmable DI and DO
Profibus-DP communication
Anti-shaking function
Analog output
Event recording
leakage protection
AC380V/690V
programmable DI and DO
Analog output
Anti-shaking function
Split Core
High Accuracy Class 0.5
Current Input 20-6000A
Current Output 5(1)A
Rectangular Hole Design
Measurement of current (I)
Application: Renovation Projects
