6 Circuits 3 Phase Measurement
RJ12 Connection, Easy Installation
High Accuracy Class 0.5S
Work with SCADA System
CE Certificated
Application: Data Center
+86-18702106858 / +86-21-69156352

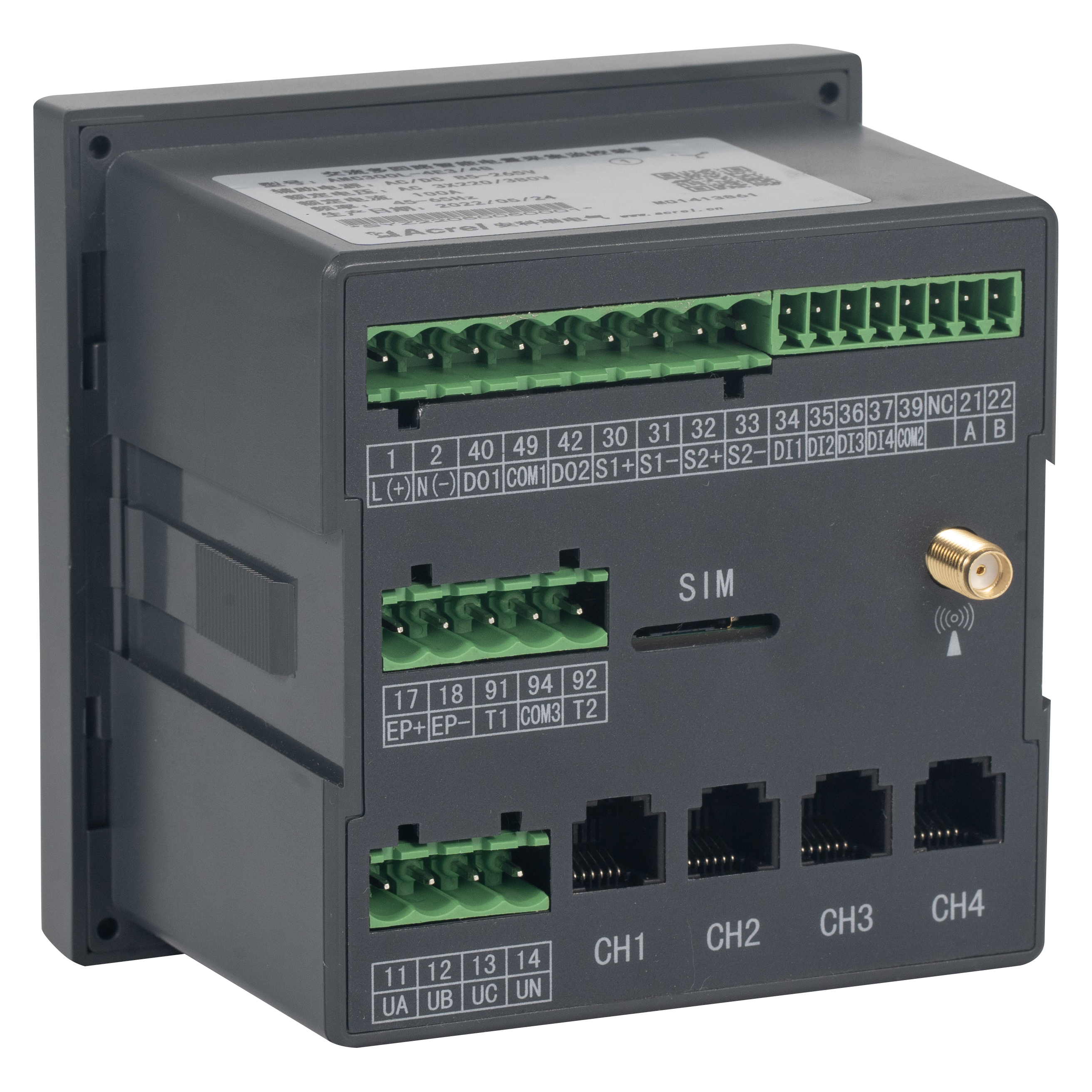

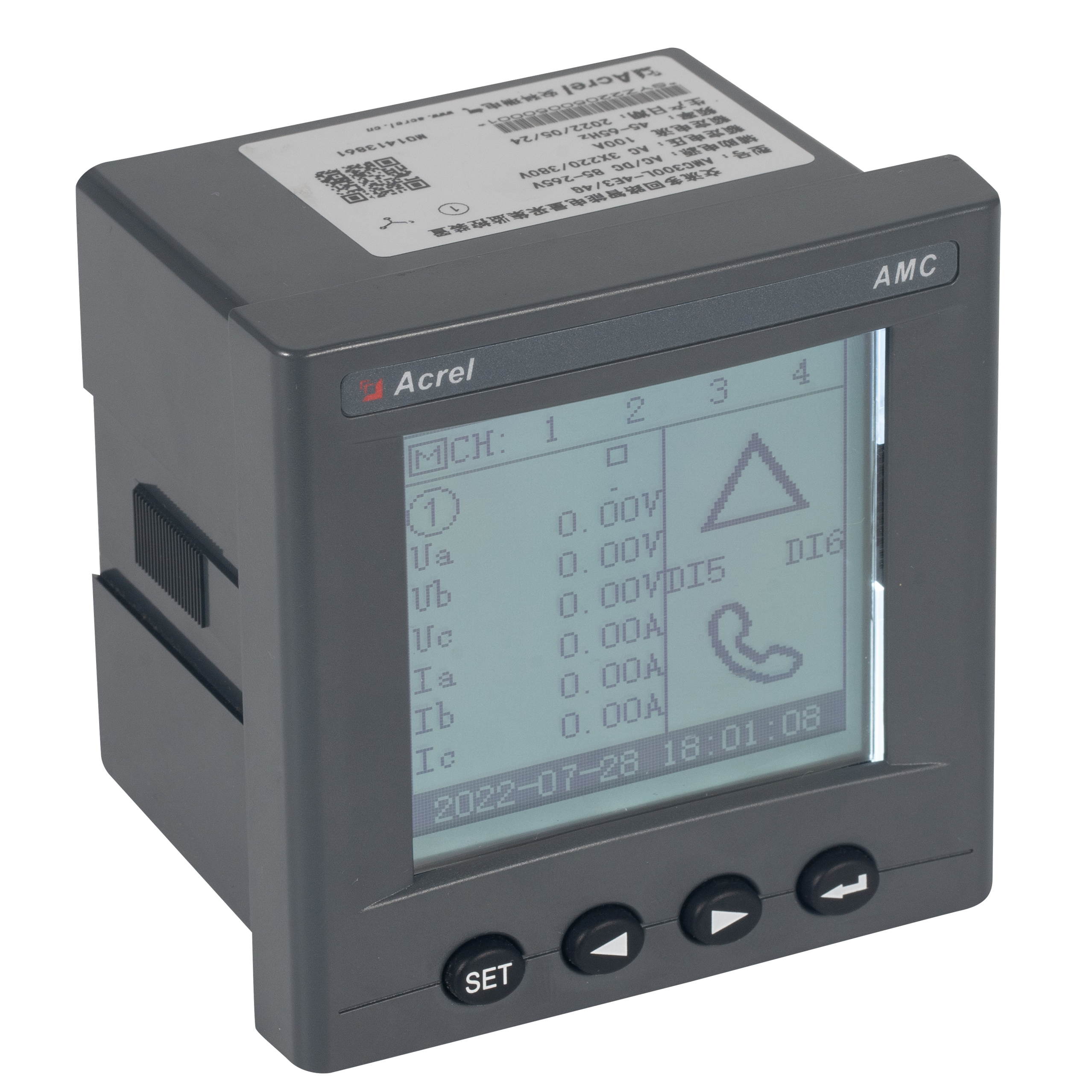

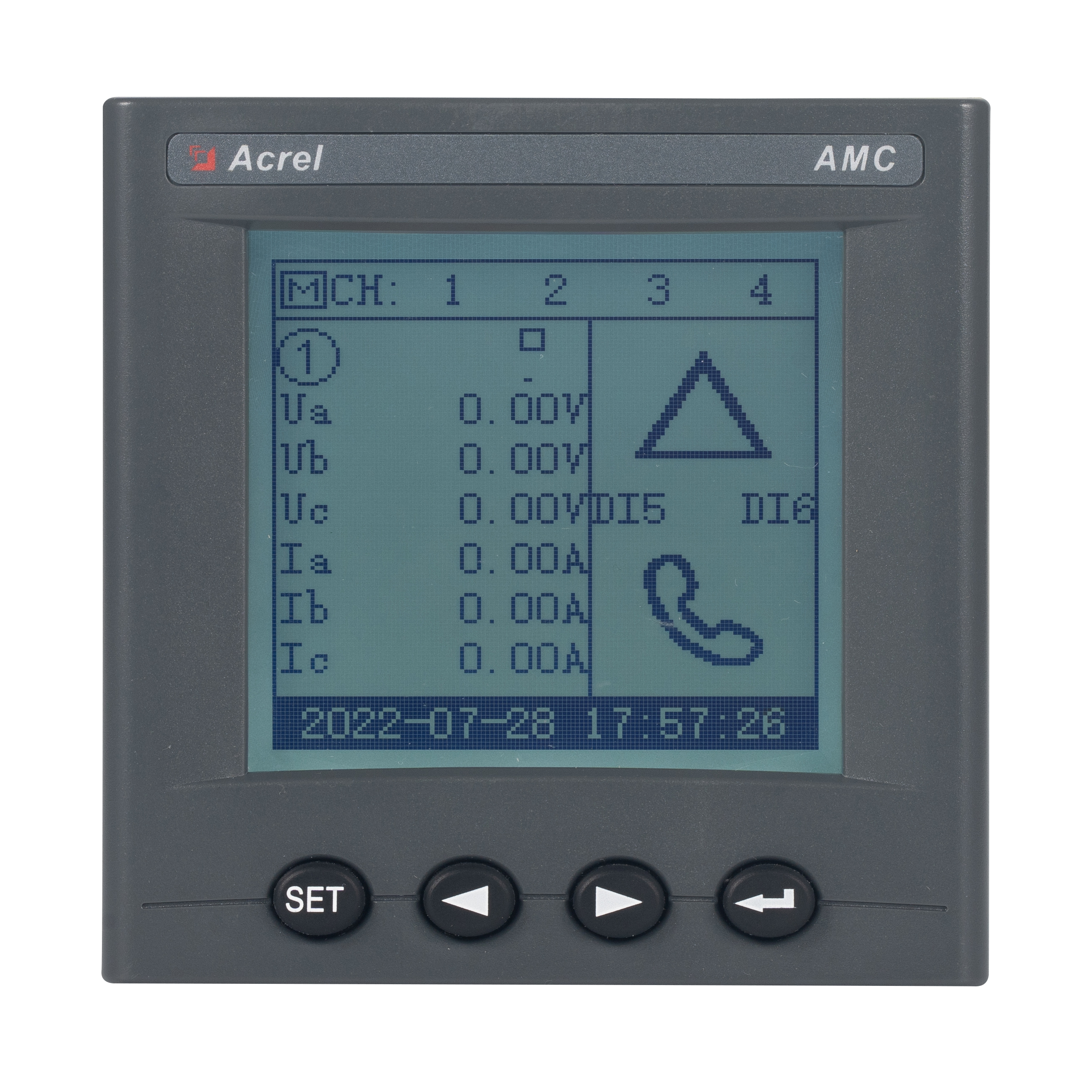

Acrel AMC300L-6E3 from Acrel is a high-density multi-loop power monitoring solution engineered for simultaneous, independent surveillance of up to six three-phase AC circuits within a compact 96x96mm panel footprint. It delivers comprehensive electrical parameter measurement—including per-phase voltage, current, active/reactive/apparent power, power factor, frequency, and zero-sequence current—with Class 0.5 accuracy for V/I and Class 1 for energy metering. The unit features six configurable digital inputs (two active AC220V, four passive dry contacts) and two relay outputs for real-time alarm signaling on overvoltage, overcurrent, and phase loss conditions. Integrated dual NTC temperature channels enable critical ambient monitoring, while versatile communication options—standard RS485/Modbus-RTU plus optional 4G/NB-IoT connectivity—facilitate seamless integration with cloud-based EMS and SCADA platforms. With robust local storage for 5,000 historical data points per circuit and 500 alarm events, the AMC300L-6E3 provides predictive analytics that optimize OPEX and asset lifecycle management in mission-critical data centers, telecommunications facilities, and industrial power distribution networks.
| Technical Parameter | Indicators | |||
| Input | Frequency | 45～65Hz; | ||
| Voltage | Rated value: AC 3×220V/380V； | |||
| Overload: 1.2 times the rated value (continuous); 2 times the rated value/1 second; | ||||
| Power consumption: ≤ 0.5VA (per circuit); | ||||
| Current | Rated value: AC 100A; | |||
| Overload: 1.2 times the rated value (continuous); 10 times rated value/1 second; | ||||
| Power consumption: ≤ 0.5VA (per circuit); | ||||
| Function | Reserved pulse output | Output mode: optocoupler pulse with Open collector; | ||
| Communication | Modbus RTU protocol ; Baud 1200~38400 | |||
| Switch-ing | input | 4 dry contact inputs, 2 active (AC 220V input) | ||
| output | Output method: relay normally open contact output; Contact capacity: AC 250V/3A DC 30V/3A； | |||
| Temperature | Temperature: -20-100 ℃ (accuracy ± 2 ℃) | |||
| Measurement accuracy | Frequency 0.05Hz, voltage and current level 0.5, active energy level 1 | |||
| Auxiliary power supply | AC/DC 85 to 265V; power consumption ≤ 10VA; | |||
| Security | power-frequency withstand voltage | >AC 2kV/1min; | ||
| insulation resistance | Input and output terminals to casing>100M Ω; | |||
| Environment | Working temperature:-20℃～+60℃； | |||
| Storage temperature:-40℃～+70℃； | ||||
| Relative humidity:≤ 95% without condensation; | ||||
| Altitude: ≤ 2500m; | ||||
| Electromagnetic compatibility | Surge (impact) immunity test level 4; | |||
| Electrostatic discharge immunity test level 3 | ||||
| Electrical fast transient pulse group immunity test level 3 | ||||
