Smart Gateway
Data Tranfer Unit (DTU)
Ethernet Communication
CE Certificated
Downstream RS485 Communication
Max. Access 25 Devices
Optional Power Supply
+86-18702106858 / +86-21-69156352

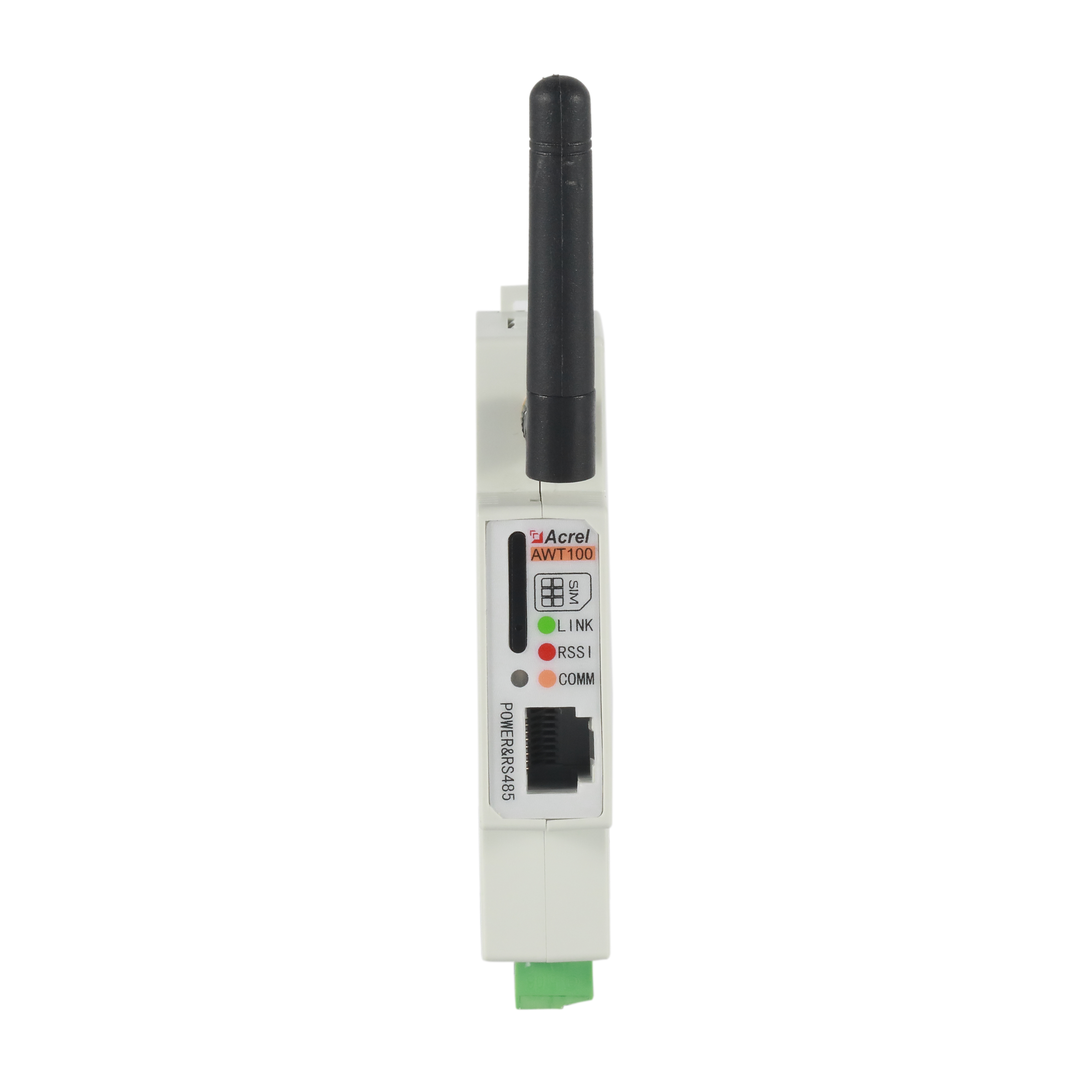

AWT100-CEHW, a high-performance Smart Gateway designed to streamline seamless data transmission and device connectivity. Fully CE Certificated, this reliable gateway meets stringent European standards for quality and safety, making it ideal for industrial and commercial applications. Equipped with both Ethernet Communication for fast, stable wired network access and a Data Transfer Unit (DTU) for flexible data transmission, it ensures efficient connectivity across diverse environments. Supporting Downstream RS485 Communication, it enables easy integration with a wide range of RS485-enabled sensors, controllers, and instruments. With a Max. Access of 25 Devices, the AWT100-CEHW efficiently manages multi-device networks, optimizing data collection and distribution. Additionally, it offers an Optional Power Supply to adapt to various installation scenarios, enhancing its versatility.
| Parameter | AWT100-4G | AWT100-LoRa | AWT100-LW | AWT100-LW868 | AWT100-LW923 | AWT100-LORAHW | AWT100-WiFi | AWT100-CE |
| Working Frequency |
LTE-FDD B1 B3 B5 B8 | 460～510MHz | 470MHZ | 863-870MHZ | 920-928MHZ | 860-935MHZ | support 2.4G frequency band | Ethernet Rate 10/100M Adaptive |
| LTE-TDD B34 B38 B39 B40 B41 | ||||||||
| CDMA B1 B5 B8 | WiFi rate: 115200bps | |||||||
| GSM 900/1800M | ||||||||
| Transmission Rate |
LTE-FDD Maximum downlink rate 150Mbps Maximum uplink rate 50Mbps |
LoRa 62.5kbps | / | / | ||||
| LTE-TDD Maximum downlink rate130Mbps Maximum uplink rate 35Mbps |
||||||||
| CDMA Maximum downlink rate 3.1Mbps Maximum uplink rate 1.8Mbps |
||||||||
| GSM Maximum downlink rate 107Kbps Maximum uplink rate 85.6Kbps |
||||||||
| Downlink | RS485 Communication | |||||||
| SIM Card Voltage | 3V，1.8V | LoRa Communication | WiFi Communication | Ethernet Communication | ||||
| Working Current | Static power：≤1W Transient power consumption：≤3W |
|||||||
| Antenna Interface | 50Ω/SMA（Faucet） | RJ45 | ||||||
| Baud Rate | 4800bps、9600bps、19200bps、38400bps（Default 9600bps） | |||||||
| Operating Voltage |
DC24V or AC/DC220V① | |||||||
| Operating Temperature | -10℃～55℃ | |||||||
| Storage Temperature | -40℃～85℃ | |||||||
| Humidity Range | 0～95% Non-condensing | |||||||
