Ethernet Communication RJ45 Port
Modbus-TCP Protocol
AC Three Phase Measurement
Rated Current: 5A by CTs or 80/120/200A by External CTs
Rated Voltage: AC 3*230/400V
CE Certificated
+86-18702106858 / +86-21-69156352

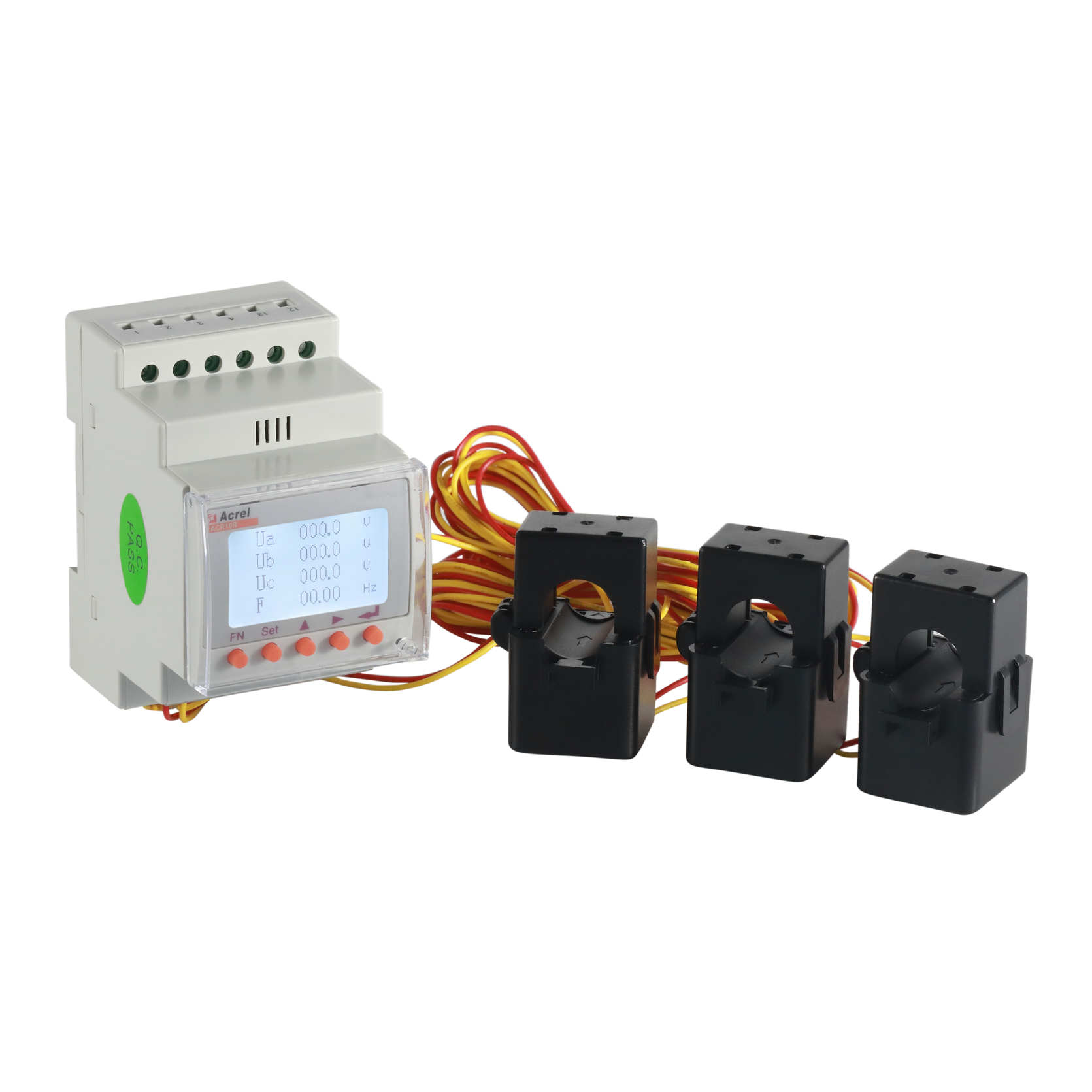

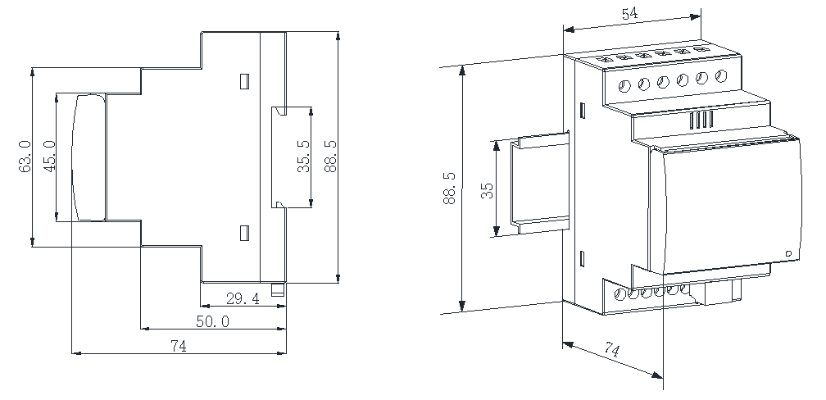

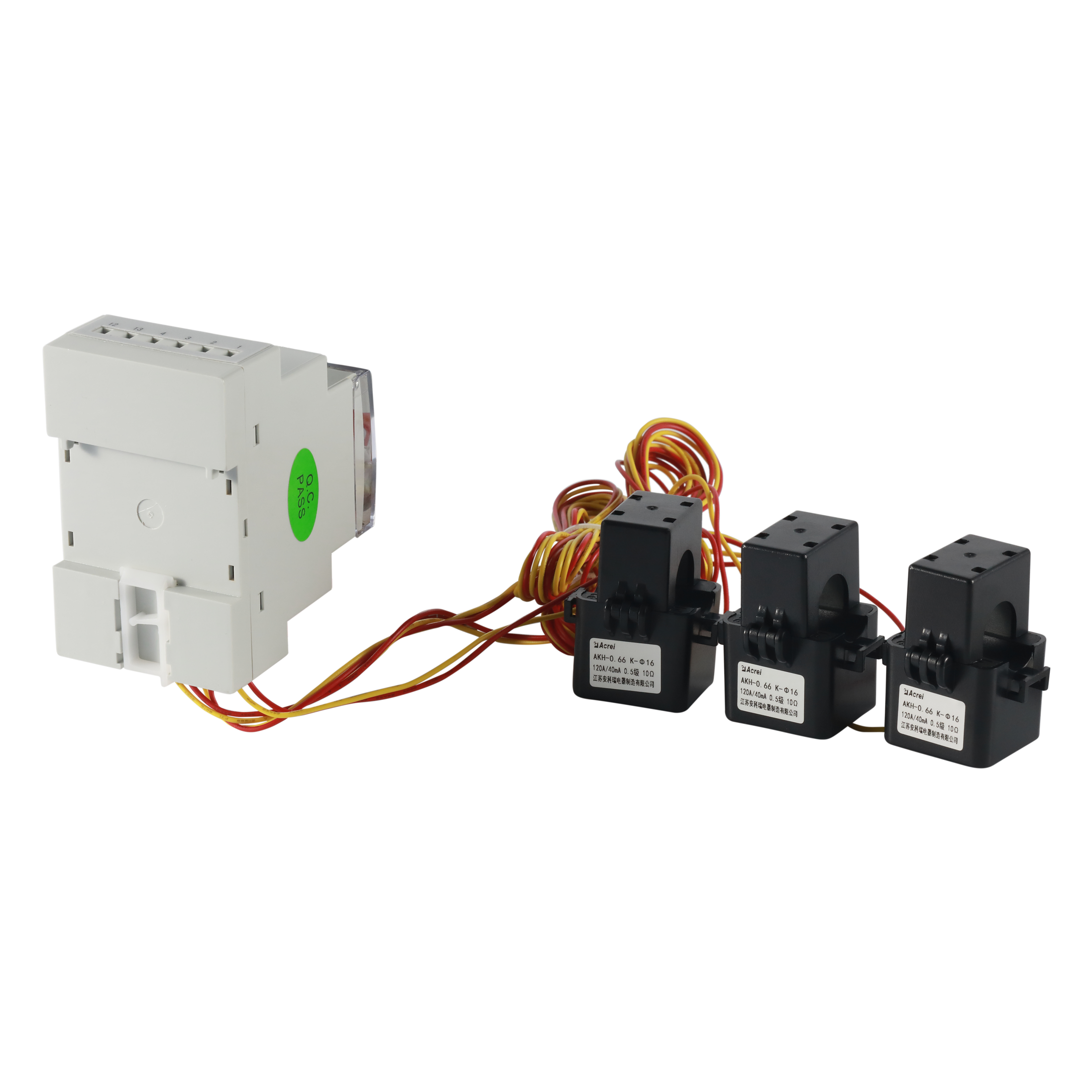

ACR10R Rail-type Multi-function Electrical Instrument is an intelligent device designed for comprehensive energy monitoring and power management. It integrates precise measurements of electrical parameters such as single-phase/three-phase current, voltage, active power, reactive power, apparent power, frequency, and power factor, offering real-time data for energy management systems. One of its standout features is support for Ethernet Communication with the Modbus-TCP Protocol, enabling seamless integration into modern industrial automation networks. The instrument can be easily installed on-site using DIN rail mounting and a split-core current transformer, eliminating the need for busbar removal and reducing installation time and labor costs. Its LCD display and intuitive button interface allow users to configure parameters and monitor operations locally, while relay outputs and switch inputs provide remote signaling and control capabilities. Designed for demanding industrial environments, it is ideal for energy-efficient retrofits in high-energy-consumption industries such as smelting, iron and steel production, and semiconductors. Additionally, it supports applications like distributed photovoltaic power monitoring and energy demand management. With a wide operating temperature range and high safety standards, the ACR10R combines reliability, versatility, and ease of use for diverse power monitoring needs.
Functions:

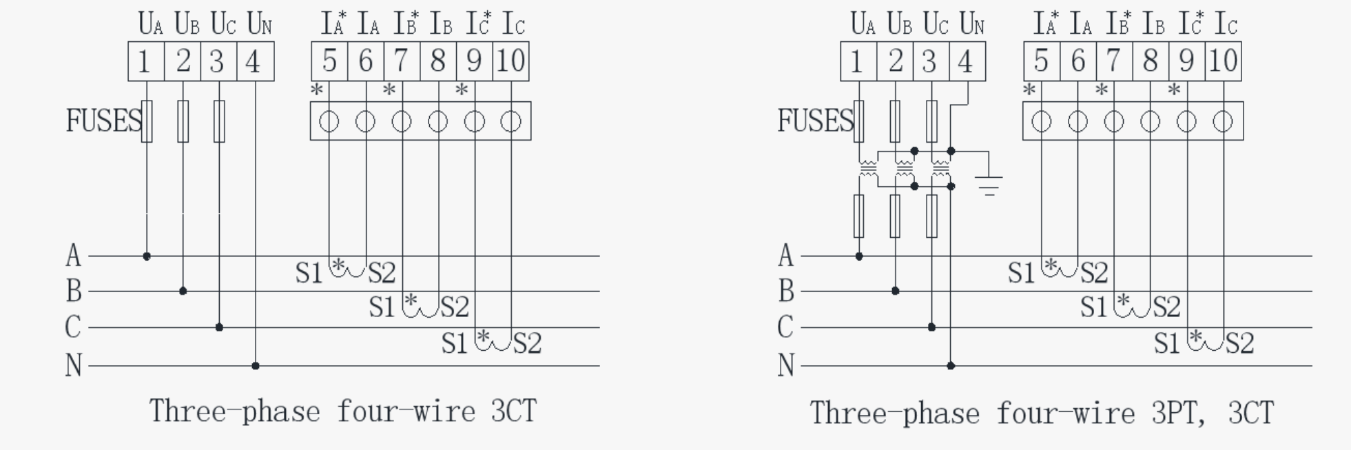

| Model | ACR10R-(DxxT)E4S | ACR10R-(DxxT)ES | |
| Function | |||
| Display method | LCD (field LCD) | ■ | ■ |
| Measurement parameters | Current/voltage/frequency/power factor | ■ | ■ |
| Active/reactive power/apparent power | ■ | ■ | |
| Four-quadrant power measurement | ■ | ■ | |
| Maximum demand | ■ | ■ | |
| Complex rate power metering | ■ | ■ | |
| Data logging | Event logging | □ | |
| Alarm | □ | ||
| Built-in clock | ■ | ■ | |
| Communication | RS485 interface | ■ | ■ |
| Ethernet interface | □ | ||
| RJ45 interface | □ | ||
| Optional function (choose one) | Relay output (2DO) | A1+（B1 or C1） | |
| (4DI+2DO or 4DI+EP)* | |||
| Communication | Switching input (4DI) | ■ | |
| Optional function (choose one) | Pulse output (2 channels) | A1+（B1 or C1） | |
| (4DI+2DO or 4DI+EP)* | |||
| Technical parameters | Indicators | |||
| Input | Grid | three-phase four-wire | ||
| Frequency | 45～65Hz | |||
| Voltage | Rated voltage:220V/380V(400V) | |||
| Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second | ||||
| Power consumption: less then 0.2VA | ||||
| Current | Rating: with external transformer 80A/26.7mA，120A/40mA，200A/66.66mA | |||
| With built-in mutual sensor：5A | ||||
| Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second | ||||
| Power consumption: less then 0.2VA | ||||
| Output | Electricity | Output mode:Open collector optocoupler pulse, 2-way output | ||
| Three-phase | Pulse constant:100imp/kWh | |||
| Communication | RS485 interface, Modbus-RTU、Ethernet（Optional） | |||
| Display | LCD | |||
| Function | On Off Volume | Input | 4 dry contact inputs（Optional） | |
| Output | Output mode: 2-way relay normally open contact output（Optional） | |||
| Contact capacity：AC 250V/3A、DC 30V/3A | ||||
| Measurement precision | 0.5 level, Reactive energy: 2 level、Other: 1 level | |||
| Power supply | AC85～265V power consumption≤10VA | |||
| Safety | Power frequency withstand voltage | AC2kV between power//switching output//current input and voltage input//communication//pulse output//switching input 1min. | ||
| Power supply//switching output//current input and voltage input between two two AC2kV 1min. | ||||
| AC1kV between communication//pulse output//switching input two by two 1min. | ||||
| Insulating resistor | Input and output to chassis >100MΩ | |||
| Environment | Working temperature: -10℃～+55℃（Limit working temperature: -20℃～+65℃）；Storage temperature: -25℃～+70℃ | |||
| Relative humidity: 5%～95% non-condensing; altitude: ≤2500m | ||||
