Rated Current: 120A by CTs
50ms Fast Response Time
For Multi-Inverter Hybrid System (Photovoltaic + Energy Storage Inverter)
Rated Voltage: AC 3*230/400V
High Accuracy Class 0.5S

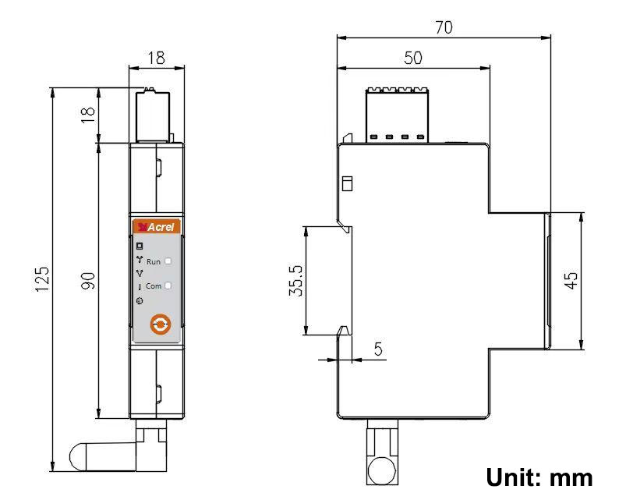

Ultra Thin 1P 18mm
+86-18702106858 / +86-21-69156352

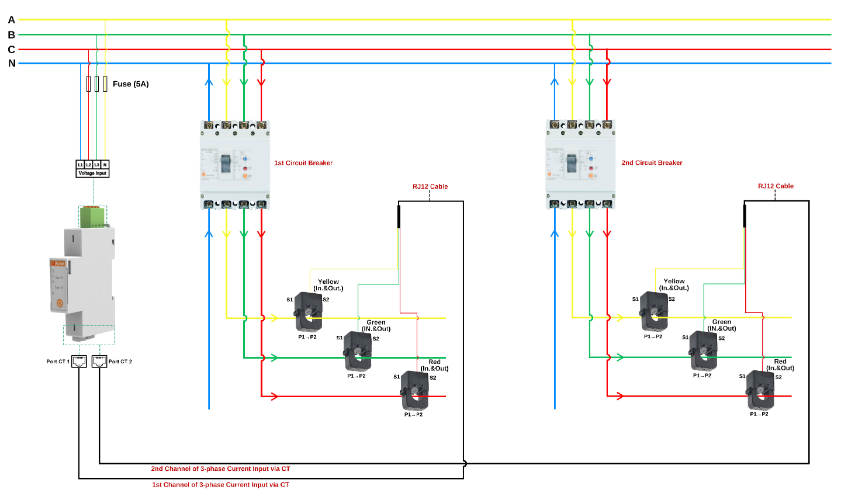

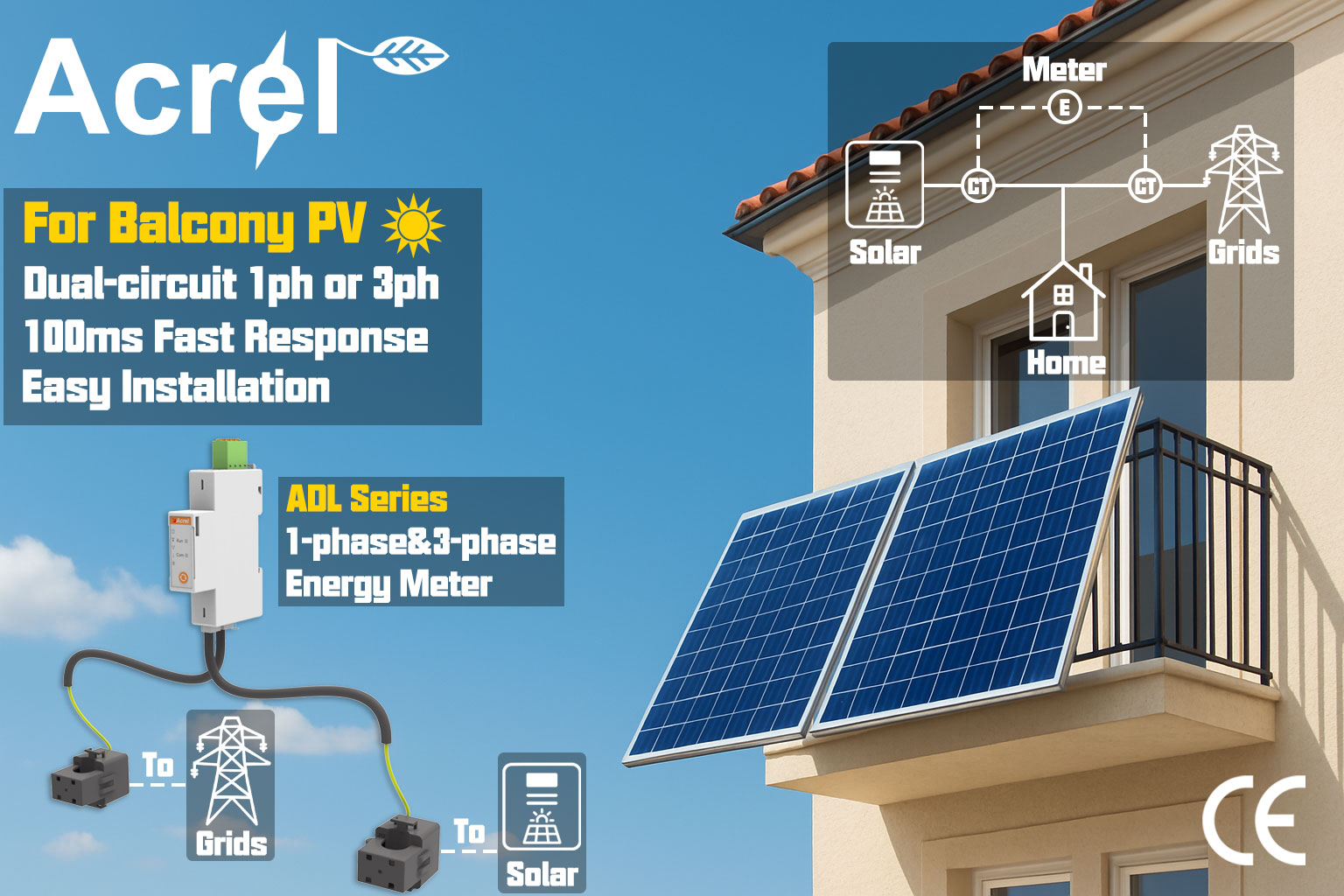

ADL series DIN rail-mounted multifunction energy meter with external CTs is a smart energy meter designed specifically for renewable energy systems such as Multi-Inverter Hybrid System (Photovoltaic + Energy Storage Inverter), micro-inverter systems, energy storage systems, and AC-coupling systems.
The product features high accuracy, small size, fast response, and easy installation. It is capable of sampling, measuring, and monitoring electrical parameters.
The inverter or energy management system (EMS) can communicate with it to achieve anti-reverse flow, adjust power generation, and manage battery charging and discharging based on real-time power and accumulated energy. It supports bidirectional metering and enables household distributed photovoltaic energy management.
| Item | Parameters | ||
| Model Series | ADL400M | ||
| Measurement | Grid | Single-phase | |
| Voltage | Rated voltage | AC 230V | |
| Input Range | ±20% | ||
| Overload | 1.2 times rating (continuous) | ||
| 2 times the rating for 1 second | |||
| Power consumption | <2W， <10VA | ||
| Accuracy class | Error ±0.5% | ||
| Current | Input current | AC 0.5-10(80)A， AC 0.5-10(120)A | |
| Overload | 1.2 times rating (continuous) | ||
| 2 times the rating for 1 second | |||
| Power consumption | <1W， <1VA | ||
| Accuracy class | Error ±0.5% | ||
| Power | Active, reactive, apparent power, error ±0.5% | ||
| Grid frequency | 50/60Hz, error ±0.5% | ||
| Response Rate | ≤100ms (voltage, current, power) | ||
| ≤1s (electrical energy) | |||
| Measurement category | CAT III | ||
| Overvoltage level | OVC III | ||
| Metering | Electric energy | Active energy ：Class B | |
| Reactive energy (Class 2 accuracy) | |||
| Power consumption | ≤2W | ||
| Electromagnetic Compatibility | E2 | ||
| Security | Power frequency withstand voltage | Between communication and signal input, AC3kV 1min | |
| Insulation resistance | Input and output terminals to casing >100MΩ | ||
| Communication | Interface and communication protocol | RS485 interface and Modbus RTU protocol | |
| Communication address range | Modbus RTU:1~ 247； | ||
| Baud rate | Support 1200bps-38400bps | ||
| Environment | Operating temperature | -40℃～+70℃ | |
| Storage temperature | -40℃～+80℃ | ||
| Relative humidity | ≤95% (without condensation) | ||
| "Not suitable for damp environments" | |||
| Altitude | ≤2000m | ||
| Standard | EN IEC 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements | ||
| EN IEC 61010-2-030:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits | |||
| EN IEC 61326-1:2021 Electrical equipment for measurement, control, and laboratory use - EMC requirements - Part 1: General requirements | |||
| EN IEC 61326-2-1:2021 Electrical equipment for measurement, control, and laboratory use - EMC requirements - Part 2-1: Particular requirements for electromagnetic compatibility testing for electrical equipment for measurement, control, and laboratory use | |||
| EN 50470-3 Electricity metering equipment (a.c.) - Part 3: Particular requirements - Static meters for active energy (class indexes A, B and C) | |||
| IP Protection | IP 51（Must be installed in a suitable IP rated enclosure） | ||
| Pollution Degree | II | ||
| UC Degree | III | ||
| Installation environment | Indoor use | ||
| Protect Degree | Class II (Double Insulation) | ||
| Usage environment | Cabinet mounted(The outer shell cannot be touched) | ||
| Level | M1 | ||
| CT Safety | Insulation resistance: greater than 1000 MΩ under normal conditions； | ||
| Electric strength resistance: It can withstand 4000V, 50Hz power frequency for 1 minute； | |||
| Flame retardancy: Conforms to UL94-V0 level； | |||
