MID Certificated
Rated Current 360A
Rated Voltage DC 0-1000V
Accuracy Class B (Class 1)
RS485 Communication
Pulse Output
+86-18702106858 / +86-21-69156352

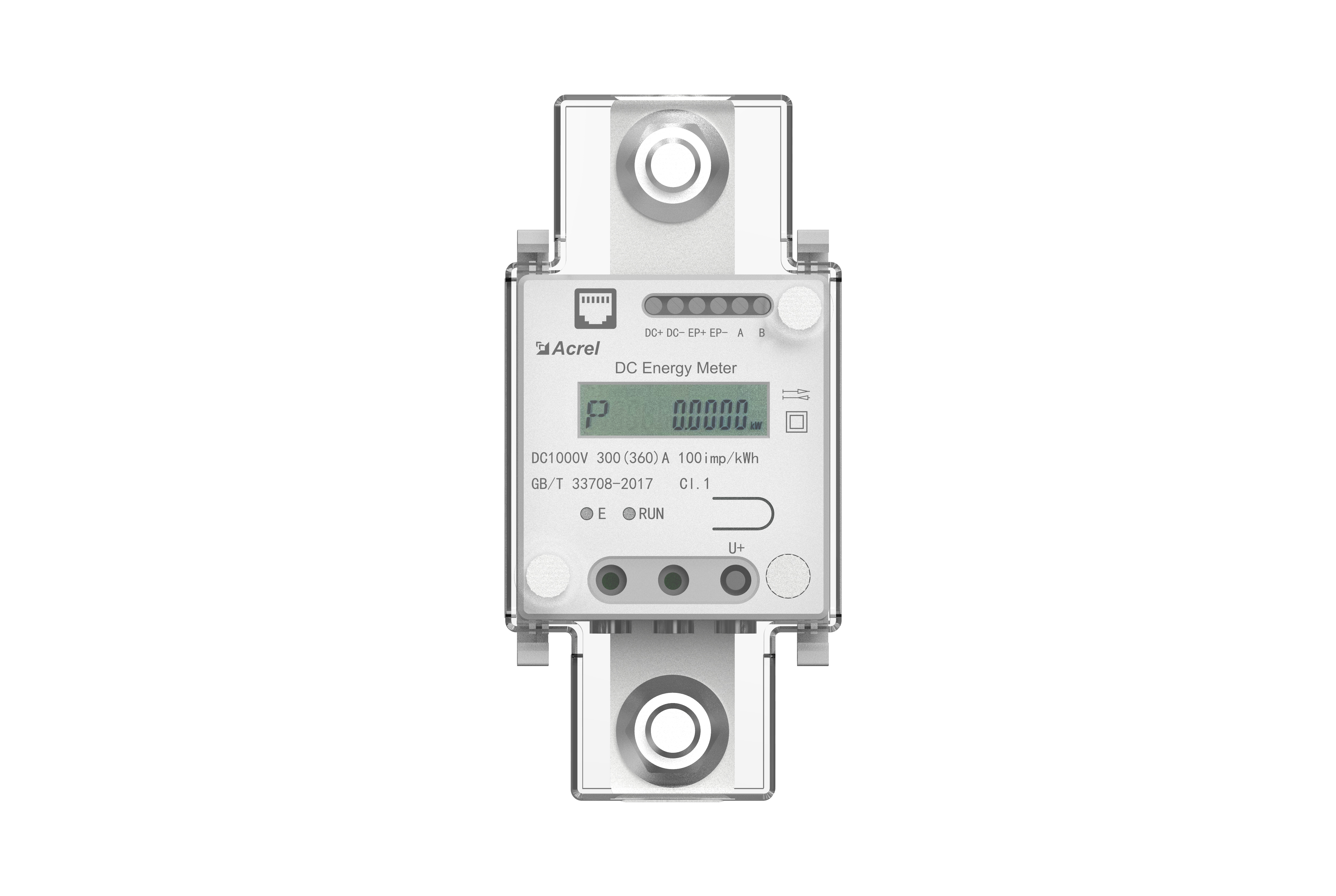

Acrel DJSF1352-D-360 is a DIN-rail DC energy meter engineered for 360A EV-charging, photovoltaic, and battery-storage applications. It simultaneously measures, displays, and records DC voltage (0–1000 V), bi-directional current (360A), instantaneous power (kW), and cumulative active energy (kWh) with Class-1/B accuracy. A segment LCD and optional DJSF1352-L remote display module provide real-time readings of voltage, current, power, date/time, internal temperature, and both forward and reverse energy registers.
Power-supply flexibility is ensured by a 9–36 Vdc auxiliary input consuming ≤3 W. Two galvanically-isolated RS-485 ports (RJ12 + screw terminals) support Modbus-RTU, DL/T 645-2007, and DL/T-698 protocols, allowing daisy-chain integration with EMS, SCADA, or OCPP back-ends. Programmable pulse outputs (100–300 imp/kWh) enable revenue-grade metering and MID certification workflows.
Designed for harsh environments, the meter withstands –40 °C to +70 °C, 95 %RH non-condensing, 4.4 kV/1 min Hi-Pot, 6 kV surge, and ≥40 MΩ insulation. DIN-35 rail mounting, 0.5 N·m terminal torque, and shielded-twisted-pair cabling instructions simplify installation while minimizing EMI. Parameters—address, baud rate, parity, energy decimals, anti-tamper flags—are password-protected (0001 default) via on-board buttons or remote register writes.
DJSF1352-D-360 delivers reliable sub-metering for solar combiner boxes, DC fast EV chargers, and industrial UPS systems.
| DJSF1352-D-360 | Parameters | |
| Input | Value | Voltage Input DC 0-1000V |
| Current Input 360A | ||
| Power Consumption | Voltage: ≤0.2VA, current ≤0.1VA | |
| Accuracy | Class B(Class 1) | |
| Function | Display | Segment LCD screen (LCD) |
| Communication | RS485 | |
| Modbus-RTU,DL/T 645-2007,DLT698 | ||
| Pulse Output | A second pulse output, a energy pulse output | |
| See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH |
||
| Power Supply | Voltage range | DC 9—36V |
| Power consumption | ≤ 3W | |
| Power frequency withstand voltage |
Power supply // Signal input / / Other circuits 4.4kV/1min | |
| Impulse withstand voltage | ±6KV | |
| Insulation resistance | ≥ 40M Ω | |
| Average barrier-free working hours | ≥50000h | |
| Environment | Temperature | Working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃~+70℃ |
| Humidity | ≤95%RH, no condensation, no corrosive gas | |
| Altitude | ≤2000m | |
、
