Real-time data display
Charging/Discharging records
Basic information management functions
Group batteries SOC, SOH estimation
Regular inspection
Indicator light
+86-18702106858 / +86-21-69156352

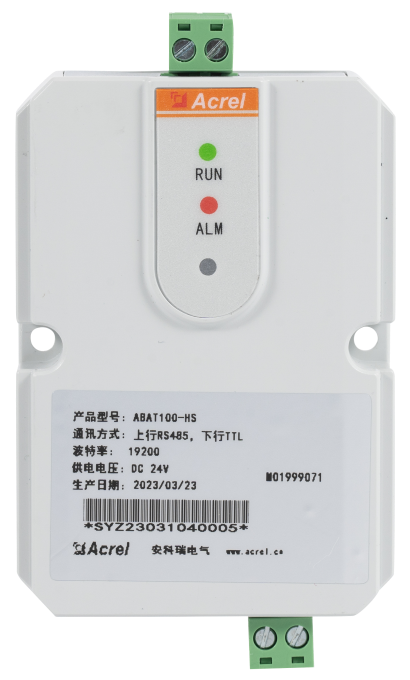

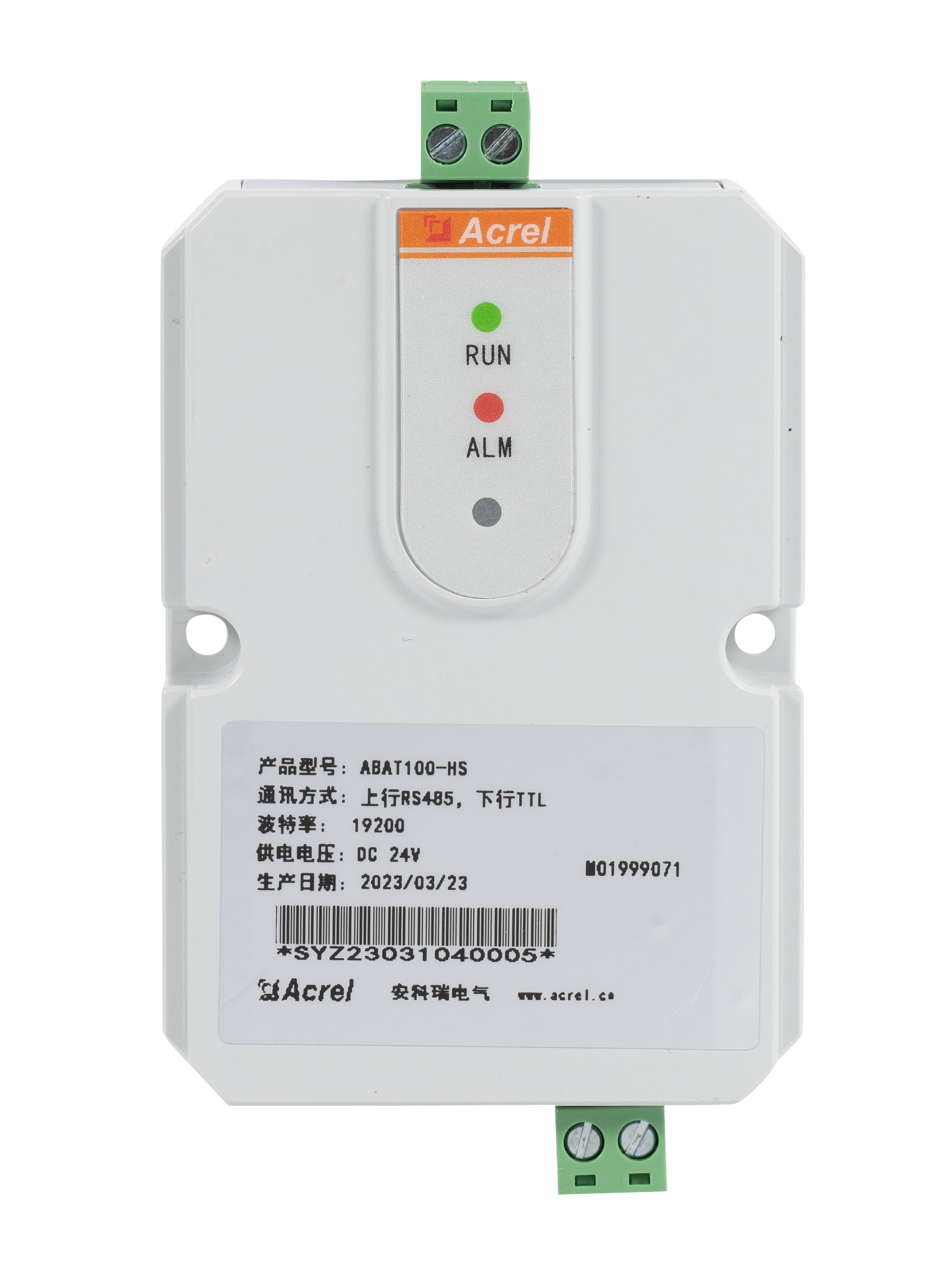

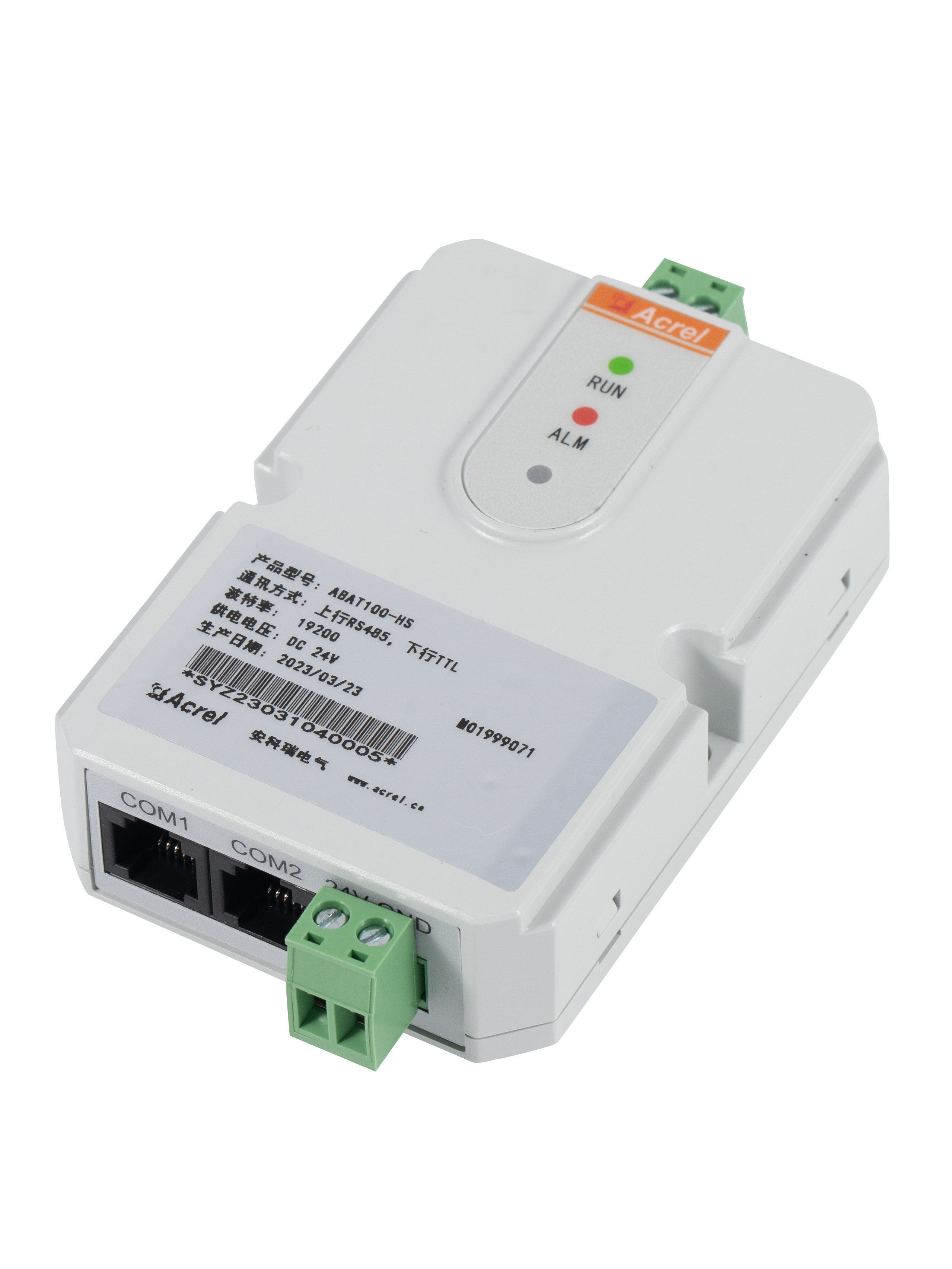

ABAT100-HS acts as the brain of a battery string, gathering micro-level data from up to 120 ABAT100-S cell modules and one ABAT100-C current probe every second. Encased in a 90 g DIN-rail housing, it runs on 24 V DC, stores six months of trend files locally, and publishes everything through an isolated RS-485 port using Modbus-RTU—address, speed and parity are menu-selectable via the linked touch-screen. An integrated Coulomb-counter couples voltage, resistance and temperature samples to deliver individual and group SOC/SOH estimates accurate to 0.1 %. Built-in logic triggers local equalization, audible alarms or SMS notifications the moment any parameter drifts outside user thresholds, safeguarding back-up time and extending service life. With 2 kV isolation, short-circuit protection and plug-in terminal blocks, ABAT100-HS turns stand-alone batteries into a self-diagnosing, cloud-ready power bank.
|
Technical parameters |
Description |
|
Working Environment |
Operating temperature: -10℃～50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa |
|
Management Capability |
One collector can monitor a maximum of total 120 batteries |
|
Alarm Type |
Group voltage overcharge/discharge, single voltage overcharge/discharge, current overcharge/discharge, high internal resistance of single unit, abnormal communication, etc. |
|
Power Supply |
DC24V |
|
Protection |
With overvoltage and short circuit protection |
|
Communication Interface |
With RS485 communication port, support MODBUS/RTU |
|
Insulation withstand voltage |
2000VAC |
|
Installation method |
Tie-down mounting or adhesive mounting |
|
Weight |
90g |
