Rated Current: 80A Direct Input
Bulit-in Relay
For Prepaid/Postpaid Billing System
Wireless WiFi/4G Communication Optional
RS485 Communication
+86-18702106858 / +86-21-69156352

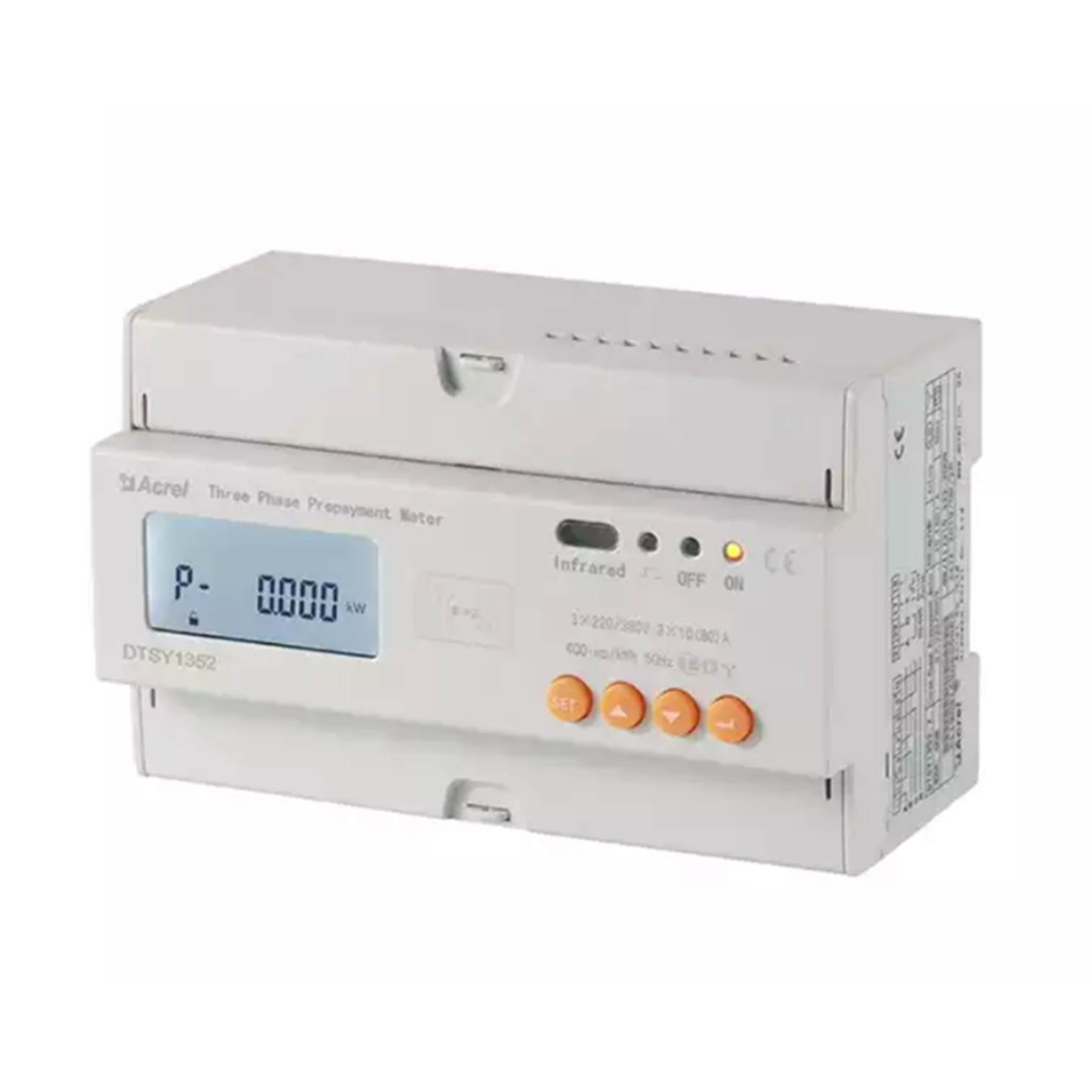

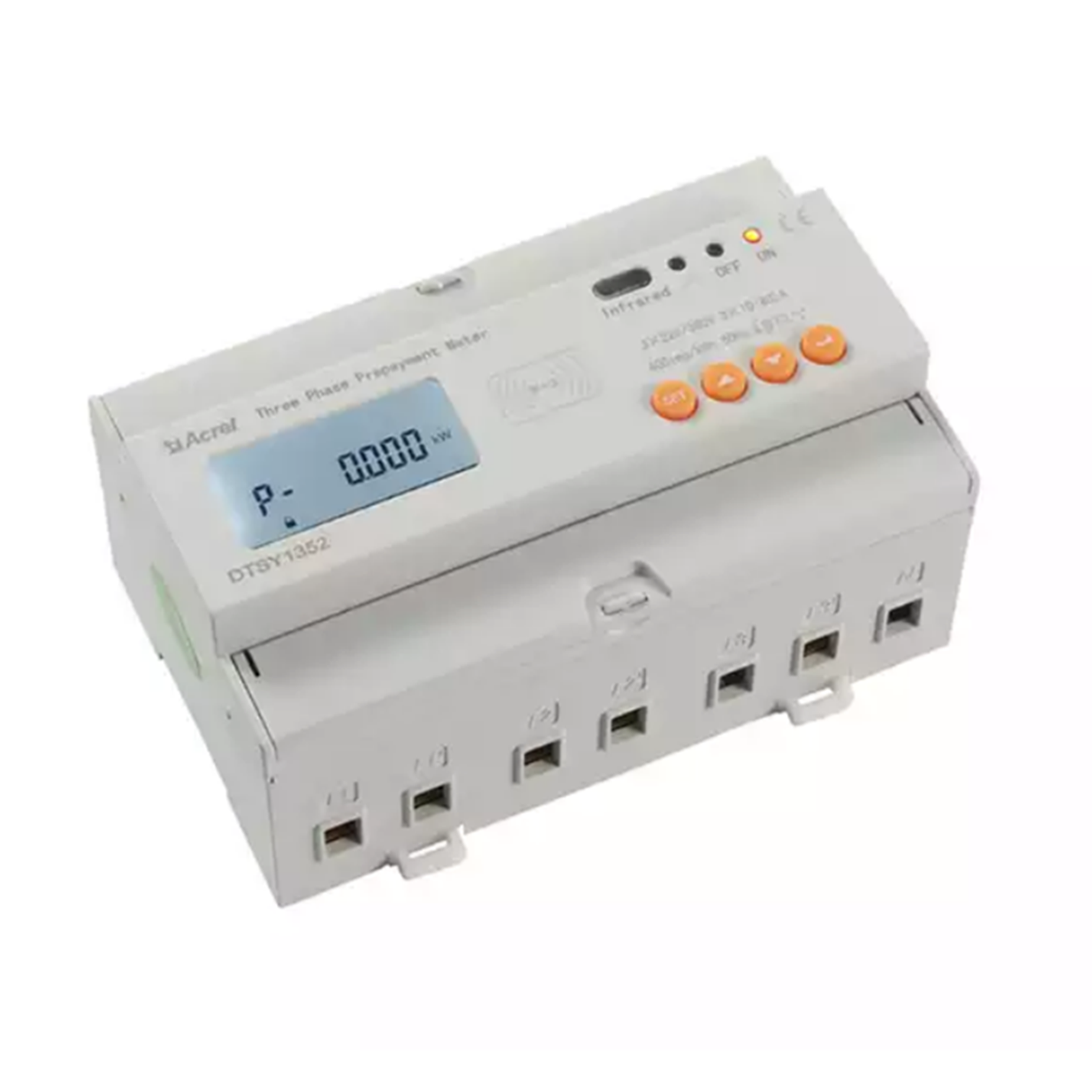

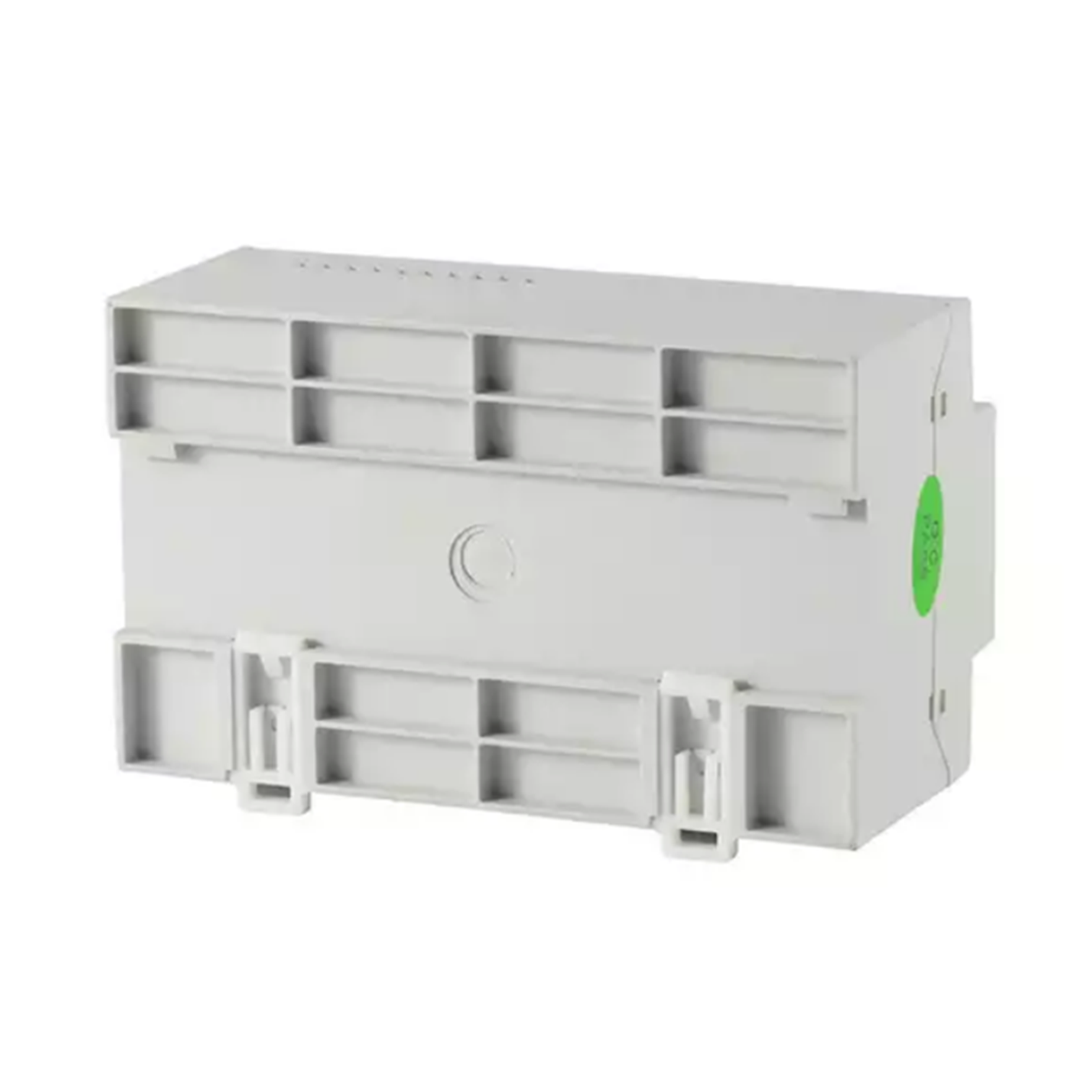

ADL300-EY is a cutting-edge energy meter designed for precision and versatility. With a rated current of three phase 80A direct input, it's ideal for high-load applications. Its built-in relay enables automatic circuit control and protection, enhancing safety and efficiency.
The device supports both prepaid and postpaid billing systems, making it adaptable to various business models. It offers optional wireless communication via WiFi/4G, alongside reliable RS485 wired communication, ensuring flexible and robust data transmission.
This combination of features makes ADL100-EY perfect for energy management in commercial buildings, industrial facilities, and more, providing accurate monitoring and efficient control.
| Technical Parameter | ADL100-EY | ADL300-EY | |||
| Voltage | Reference voltage | 220V | 3×220/380V | ||
| Reference frequency | 50Hz | ||||
| Consumption | <4VA(Each phase) | ||||
| Current | Input current | 10(60)A | 1(6)A ,10(80)A | ||
| Starting current | Connect directly: 0.004 Ib, connect via CT: 0.002In | ||||
| Consumption | <4VA (Maximum current) | ||||
| Measurement performance | Accuracy of measuring | 1 Class | 0.5s Class | ||
| Clock accuracy | Error ≤0.5s/d | ||||
| Active pulse | Pulse width | 80ms±20ms | |||
| Pulse constant | 1600imp/kWh | 6400imp/kWh,400 imp/kWh | |||
| Communication | Interface | RS485(A+、B-) | |||
| Connection mode | Shielded twisted pair conductors | ||||
| Protocol | MODBUS-RTU | ||||
| Temperature range | Work temperature | -25℃~55℃ | |||
| Storage Temperature | -40℃~70℃ | ||||
| Relative humidity | ≤95%(No condensation) | ||||
| Altitude | <2000m | ||||
