Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output

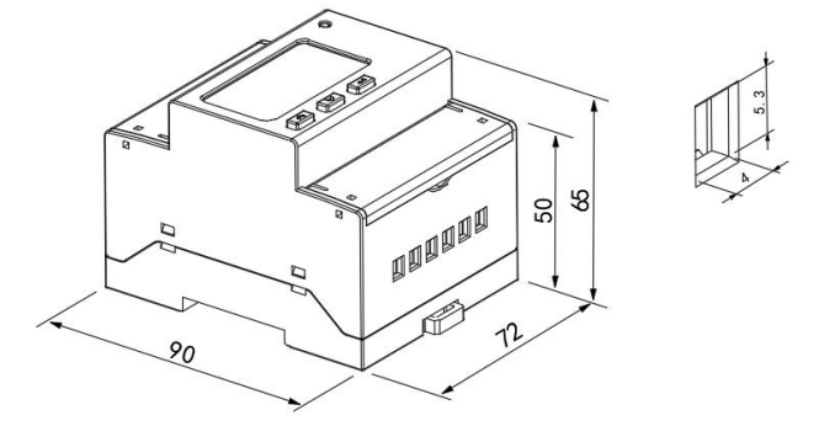

4 Modules 72mm Width
MID Certificated

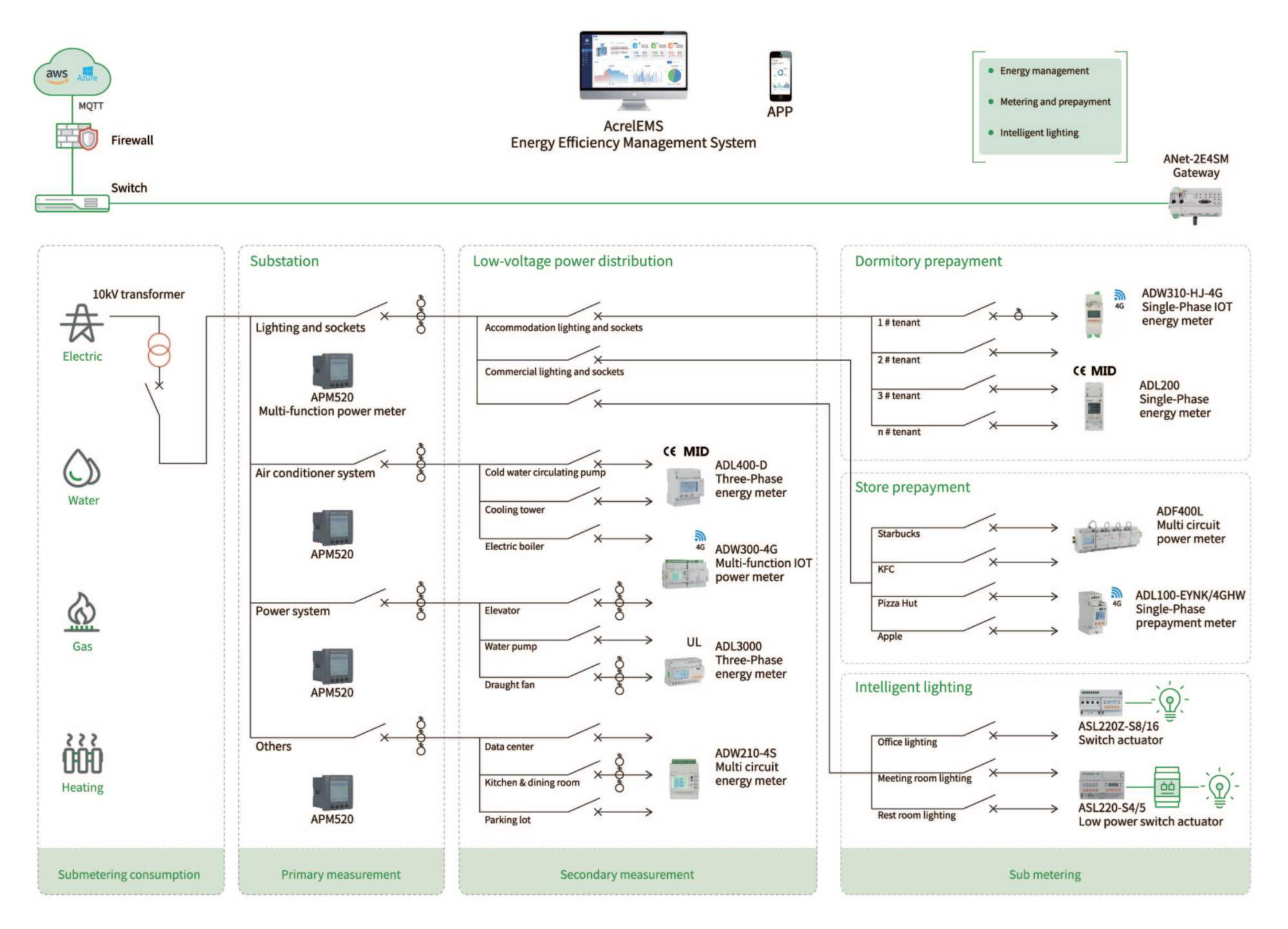

For IoT Energy Management, Factory, School
+86-18702106858 / +86-21-69156352

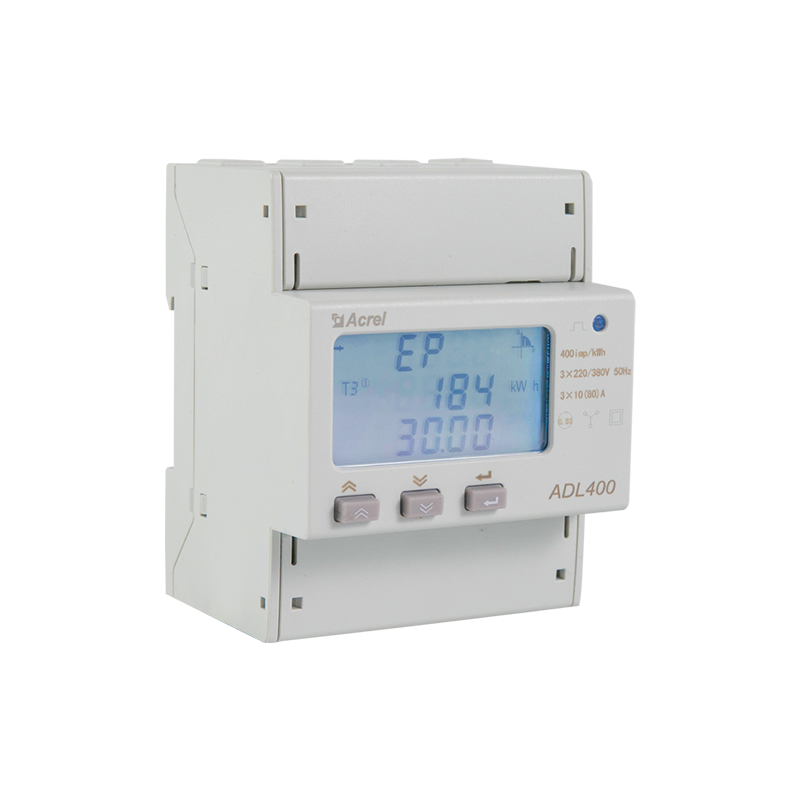

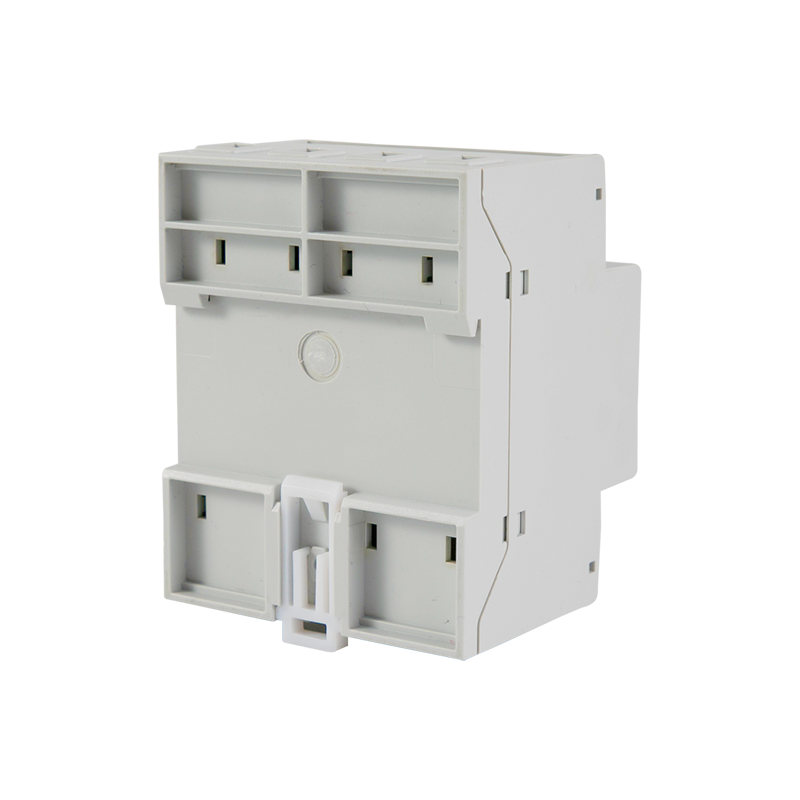

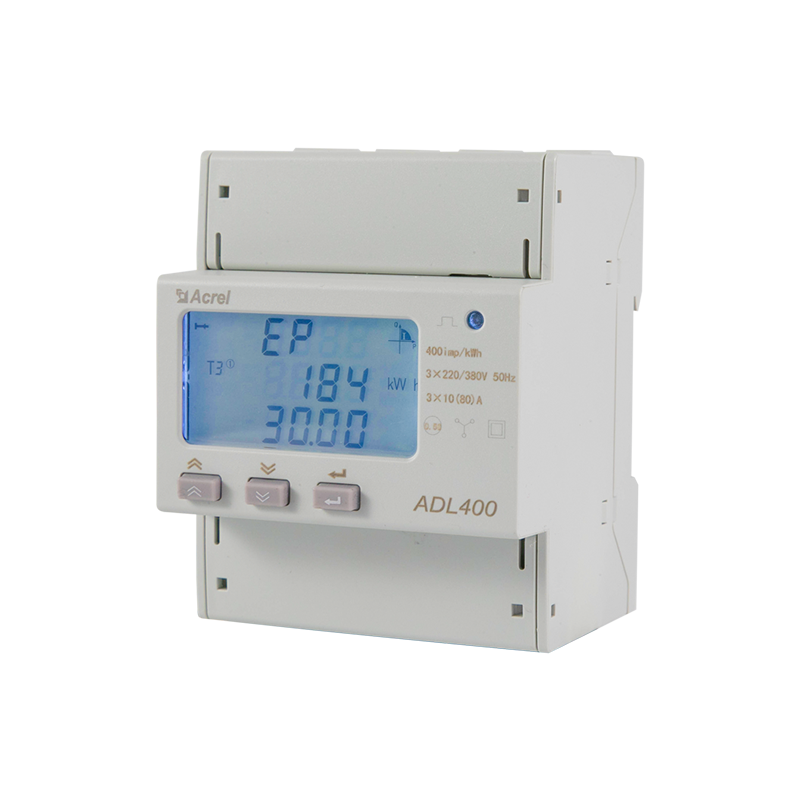

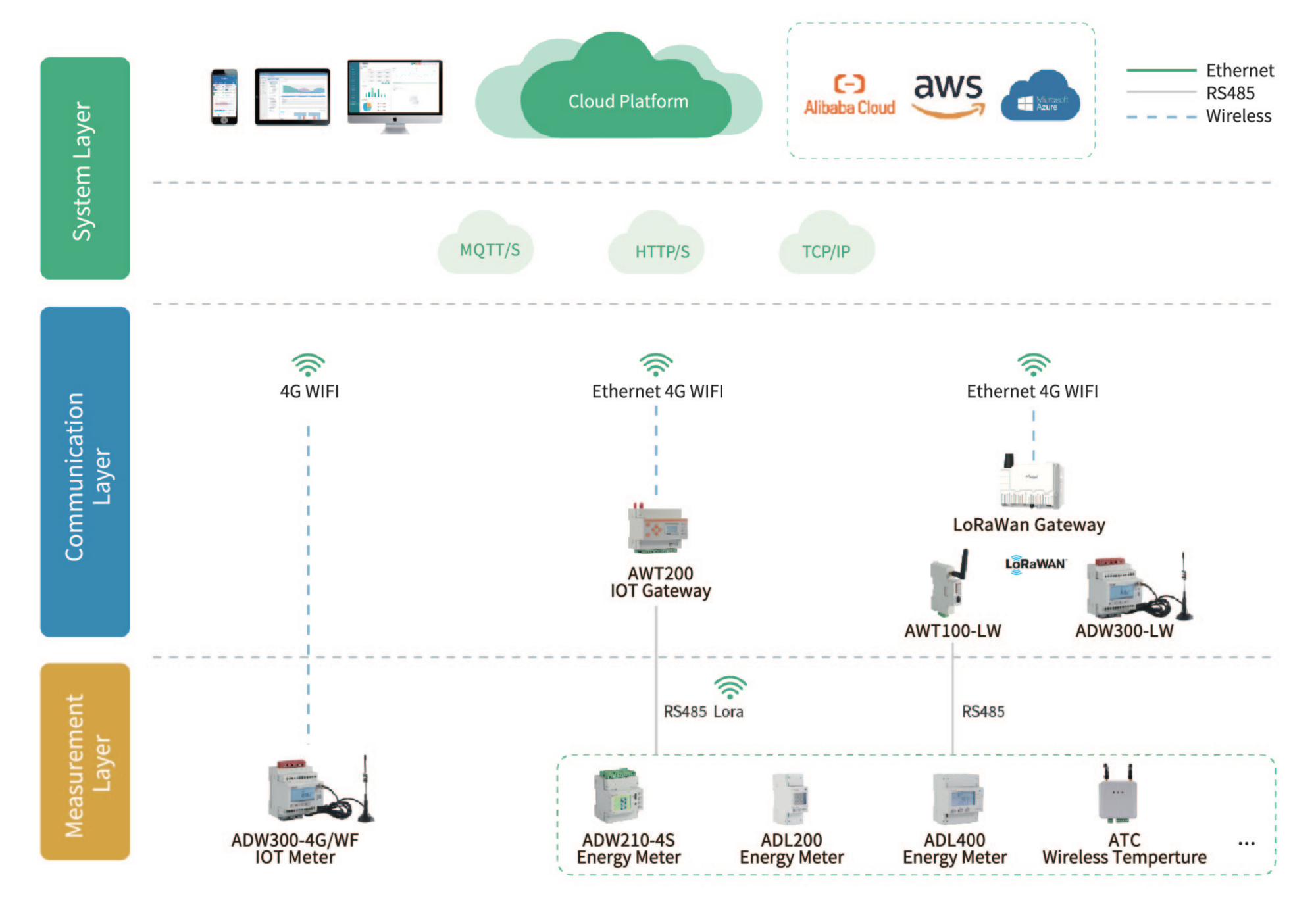

ADL400 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 48 months, checks the 2nd-32nd subharmonics and the total harmonic content. It is fitted with RS485 communication port and adapted to MODBUS-RTU. ADL400 can be used in all kinds of control systems, SCADA systems and energy management systems. The meter meet the related technical requirements of electricity meter in the IEC62053-21 standards.

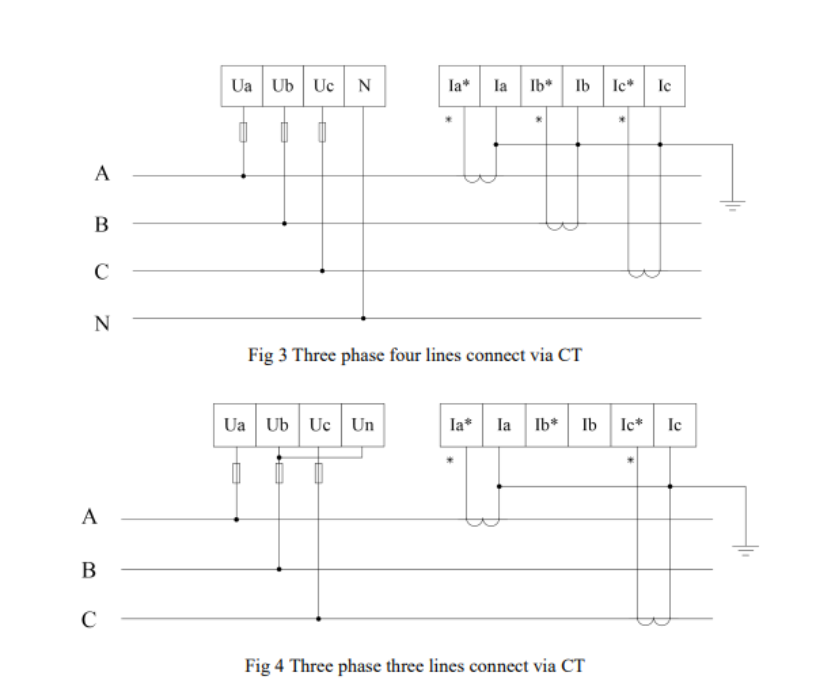

| Project | Performance Parameter | ||
| Specification | 3 Phase 3 Wires, 3 Phase 4 Wires | ||
| Measurement | Voltage | Reference Voltage | 3*230/400V |
| Consumption | <10VA (Single Phase) | ||
| Inpedance | >2MΩ | ||
| Accuracy Class | Error ±0.2% | ||
| Current | Input Current | 80A/100A Directly Access | |
| Consumption | <1VA Single Phase Rated Current | ||
| Accuracy Class | Error ±0.2% | ||
| Power | Active, Reactive, Apparent, Power, Error ±0.2% | ||
| Frequency | 45-65Hz, Error ±0.2% | ||
| Metering | Active Energy Class (kWh) | Class C | |
| Clock | ≤0.5s/d | ||
| Digit Signal | Energy Pulse Output | 1 Active Photocoupler Output | |
| Pulse | Width of Pulse | 80±20ms | |
| Pulse Constant | 10000 imp/kWh | ||
| Communication | Interface and Communication Protocol | RS485: Modbus-RTU | |
| Range of Communication Address | Modbus-RTU: 1-247 | ||
| Environment | Working Temperature | -25℃ to +55℃ | |
| Relative Humidity | ≤95% (No Condensation) | ||
