AC Single Phase Measurement
80A Direct Input Current
CE-MID Certificated
High Accuracy Class 1

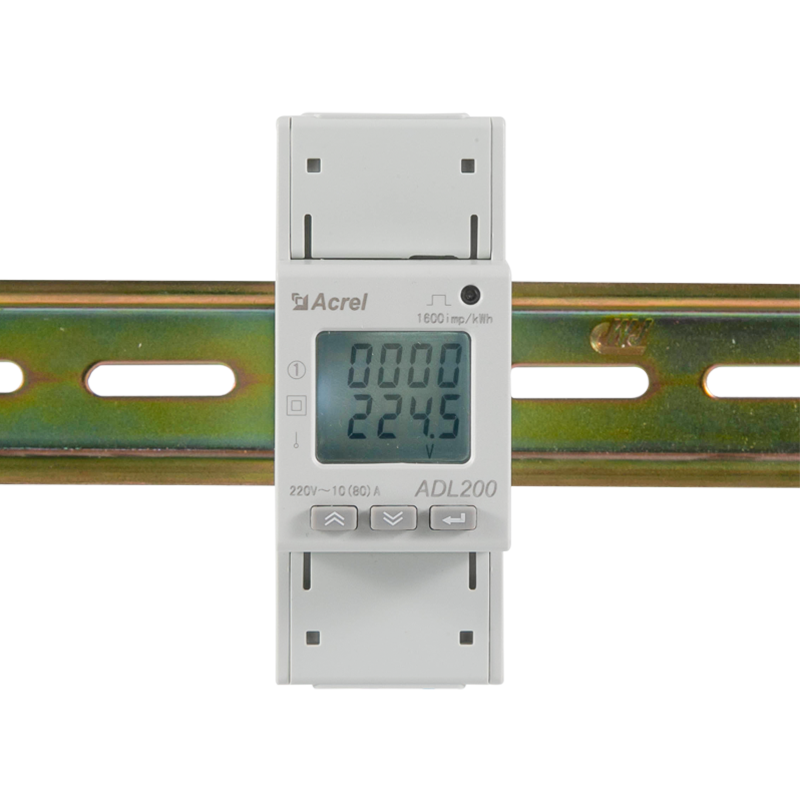

DIN Rail Installation
RS485 Communication

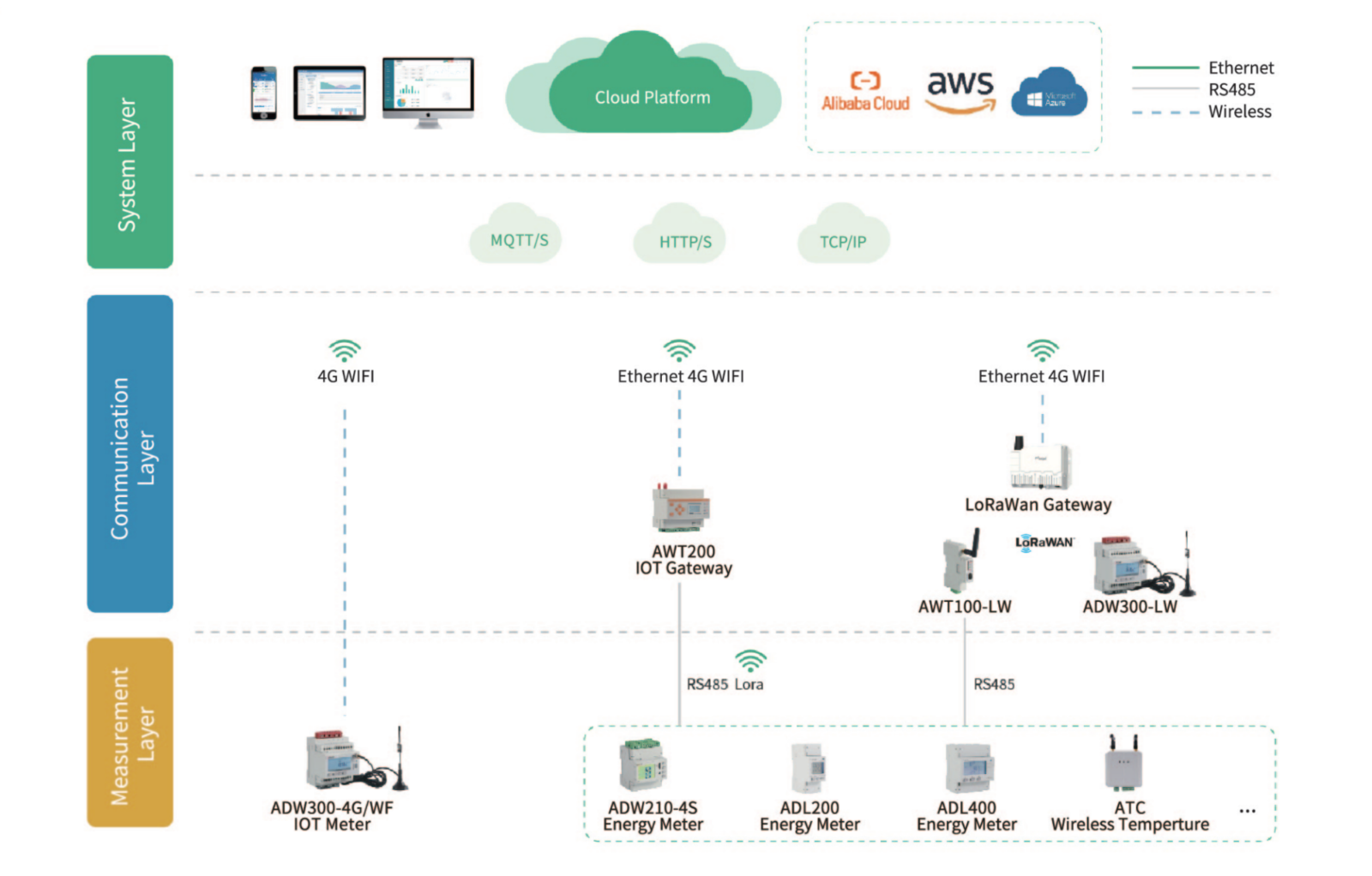

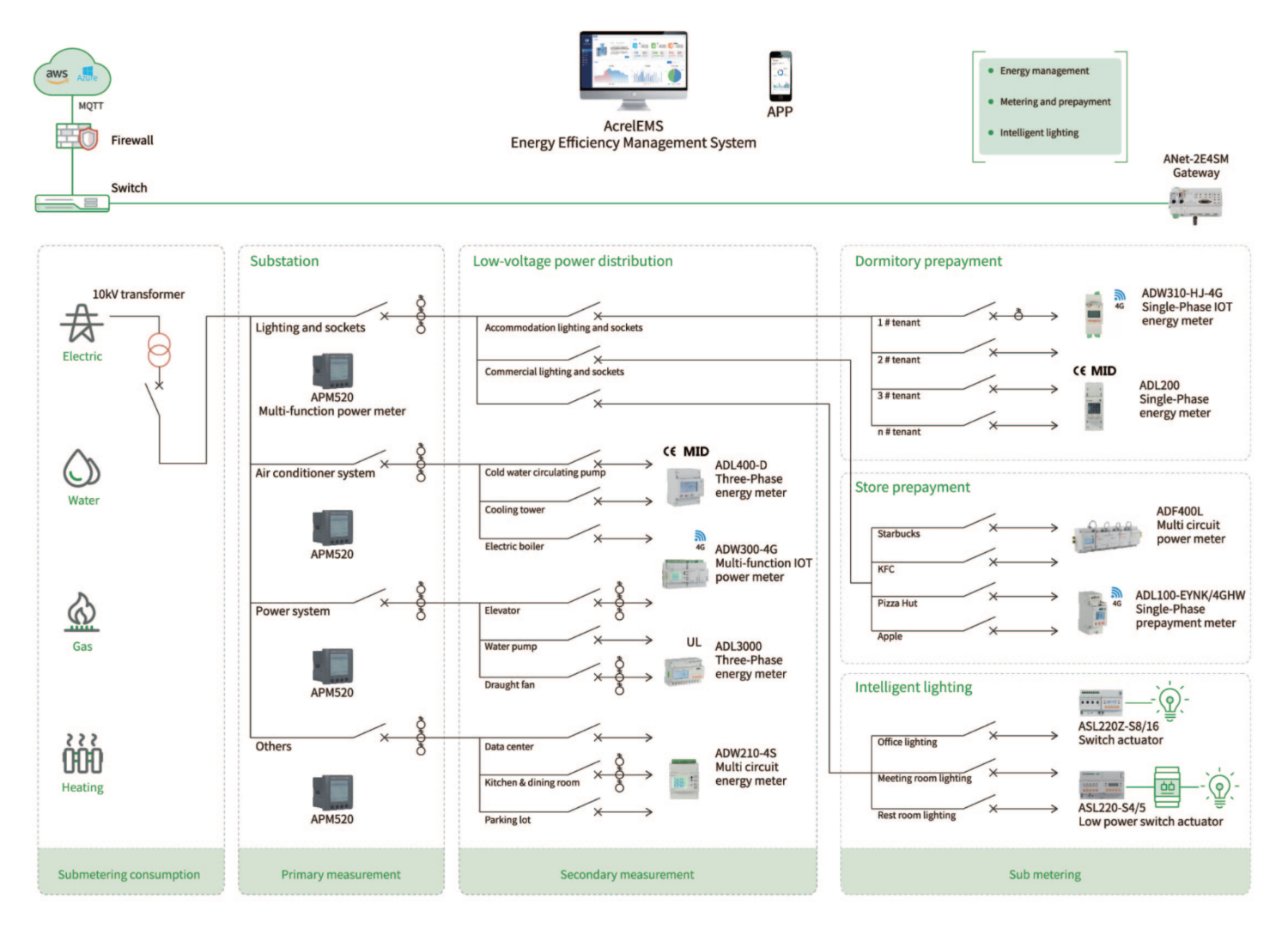

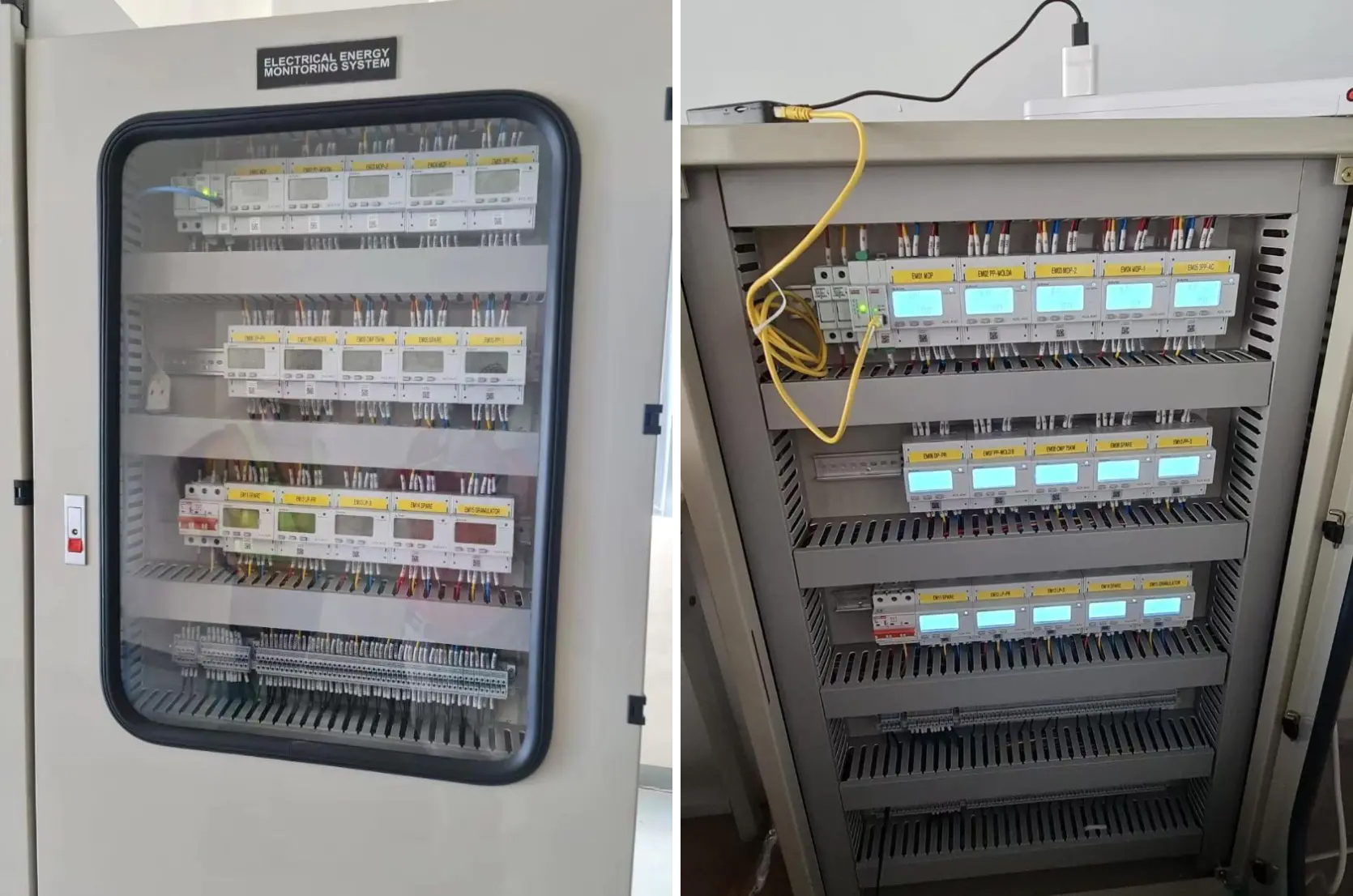

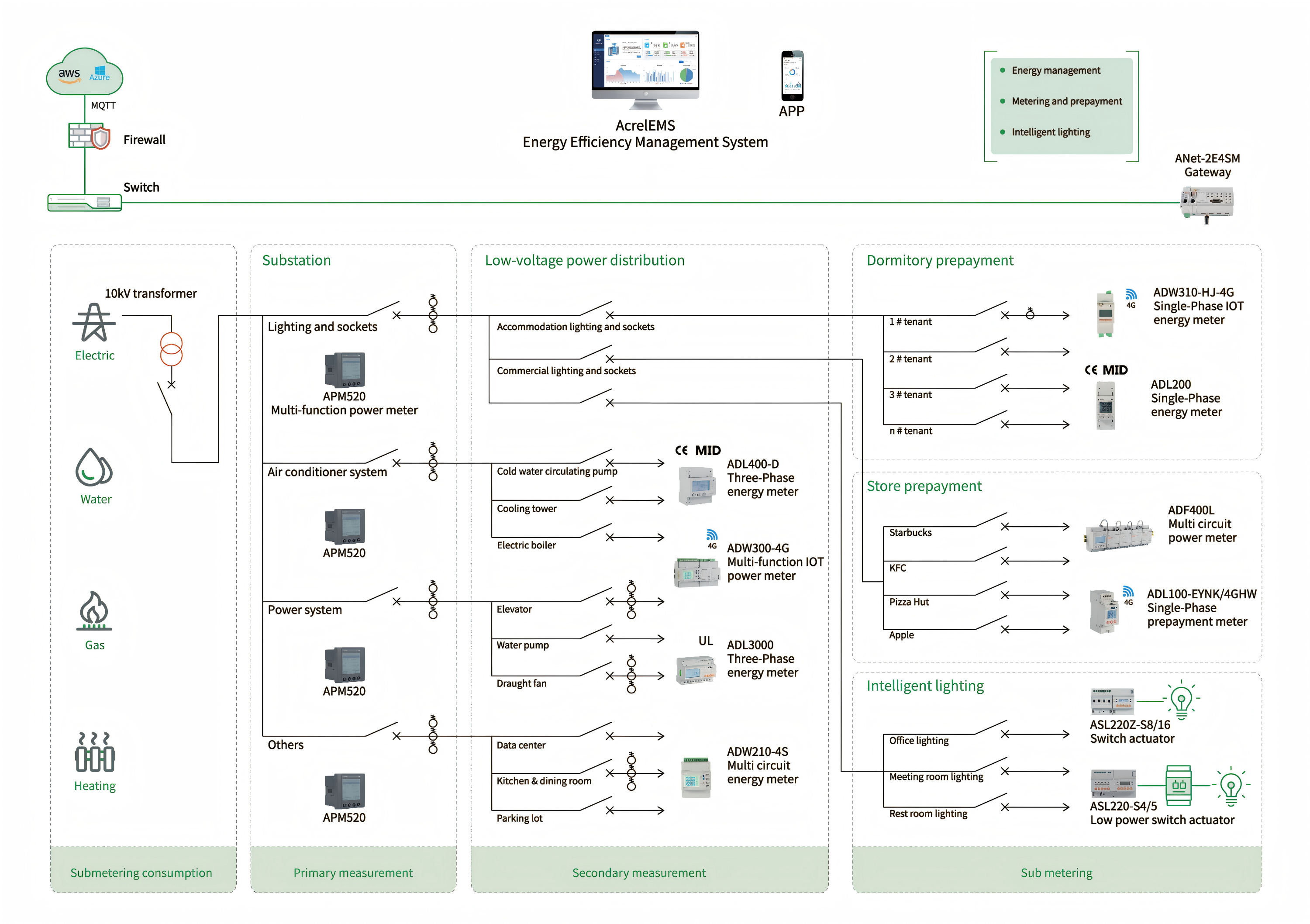

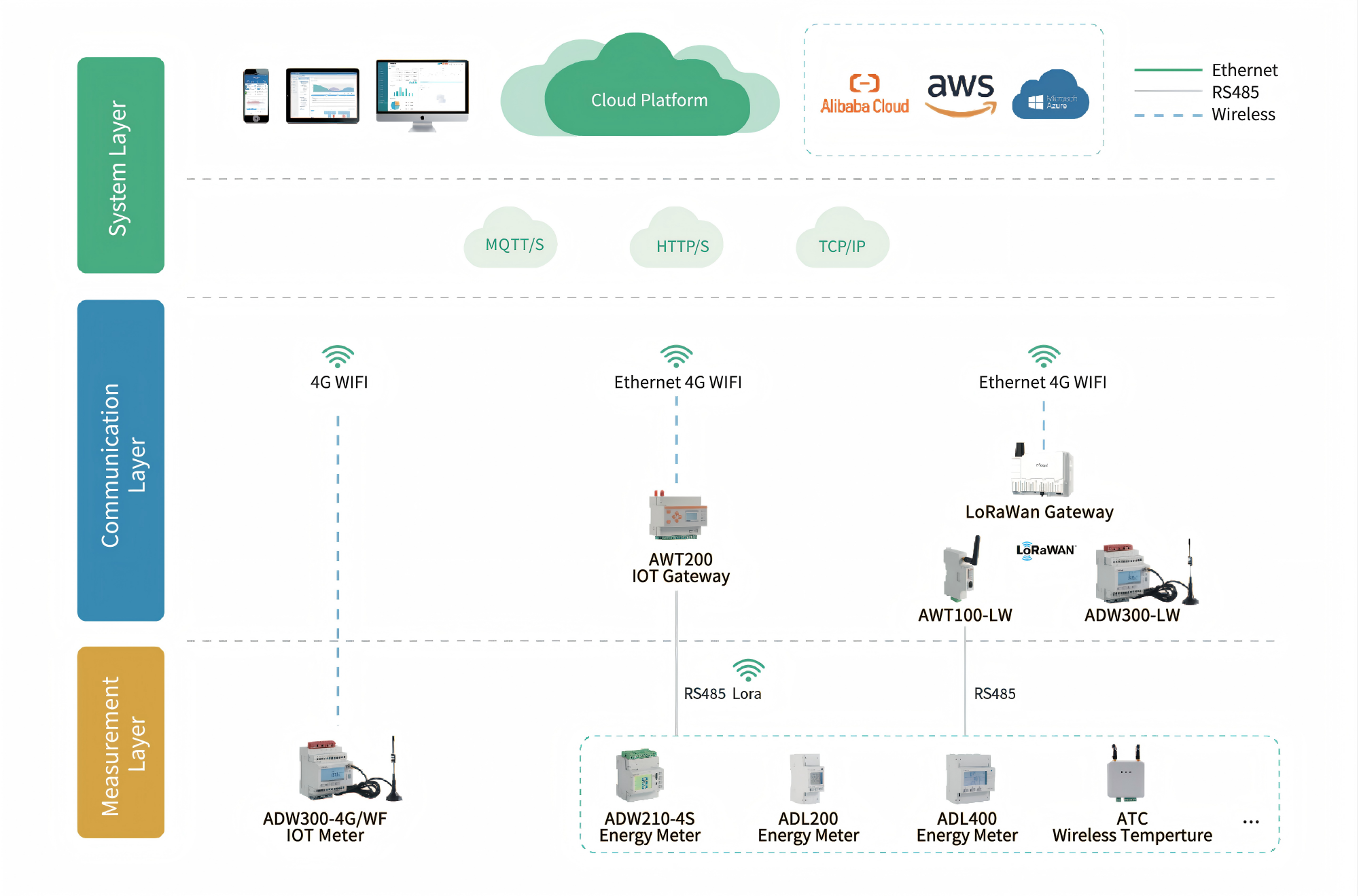

Application: IoT Energy Management, Factory, School
+86-18702106858 / +86-21-69156352

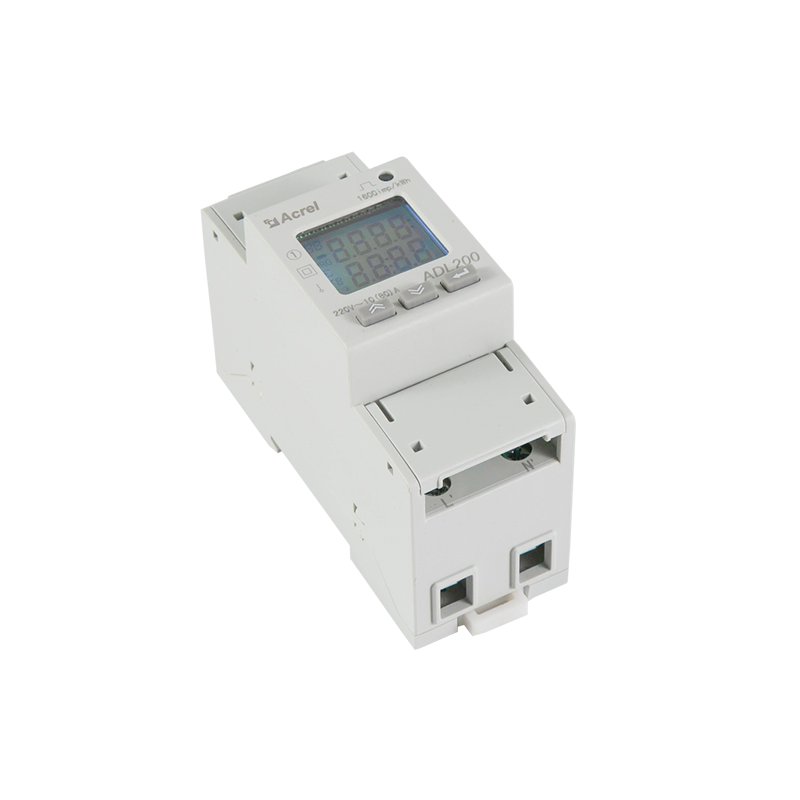

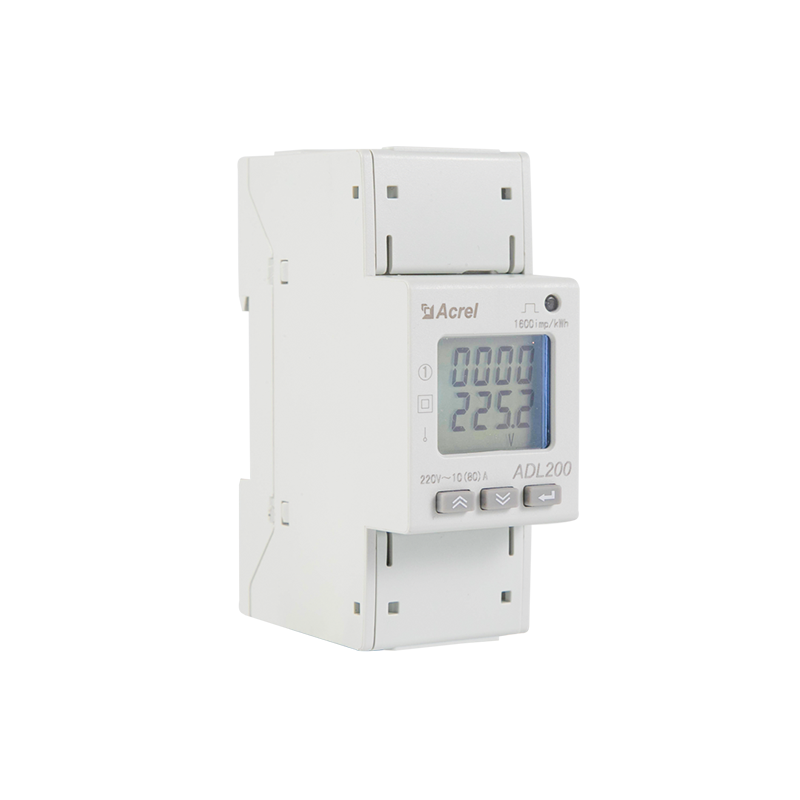

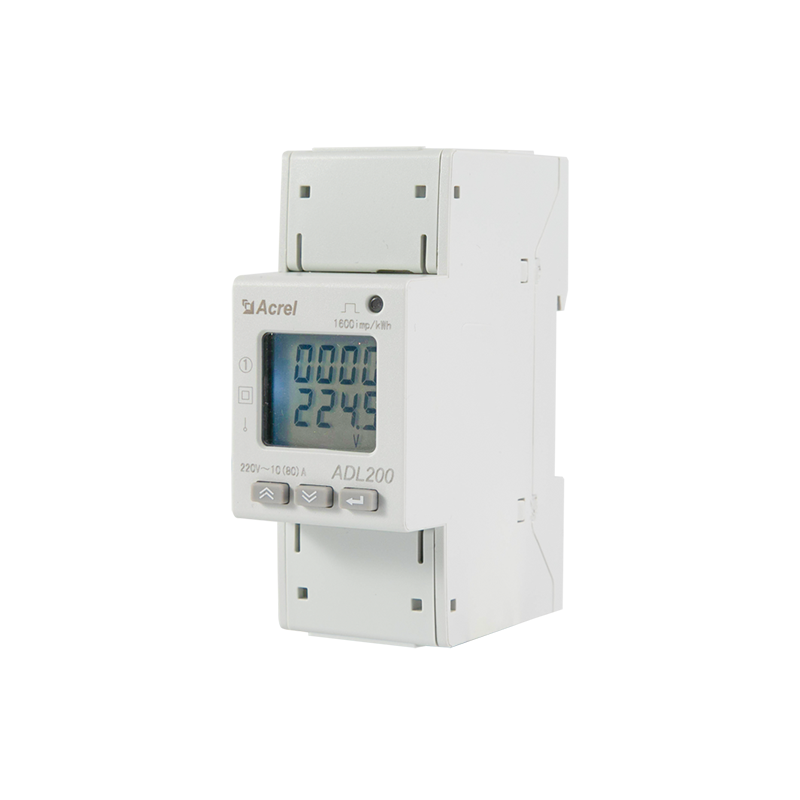

The ADL200 single-phase electric meter is a compact and high-precision energy meter designed for low-voltage systems. It measures single-phase active energy and various electrical parameters such as voltage, current, power, and power factor. With an 8-bit LCD display, it offers clear readings of active energy in both positive and negative kWh. The meter features an RS485 communication interface with a MODBUS-RTU protocol, making it ideal for integration into IoT platforms and energy management systems. Certified to IEC62053-21 and IEC62053-22 standards, it ensures reliable performance and accuracy. Its DIN rail installation and small form factor make it easy to deploy in various applications.
| Technical Parameters | Value | |
| Input Voltage | Reference Voltage | AC 220V |
| Reference Frequency | 50Hz | |
| Power Consumption | <10VA | |
| Input Current | Basic Current | 10A |
| Maximum Current | 80A | |
| Starting Current | 4‰ lb | |
| Consumption | <4VA | |
| Measurement Performance | Accuracy of Measuring | 1 Class |
| Range of Measuring | 000000.00-999999.99 kWh | |
| Clock Accuracy | Error ≤0.5s/d | |
| Output | Pulse Width | 80±20ms |
| Pulse Constant | 1000imp/kWh | |
| Auto-reclosing Brake | Interface | RS485 (A+ B-) |
| Connection Mode | Shiel | |
| ded Twisted Pair Conductors | ||
| Protocol | Modbus-RTU | |

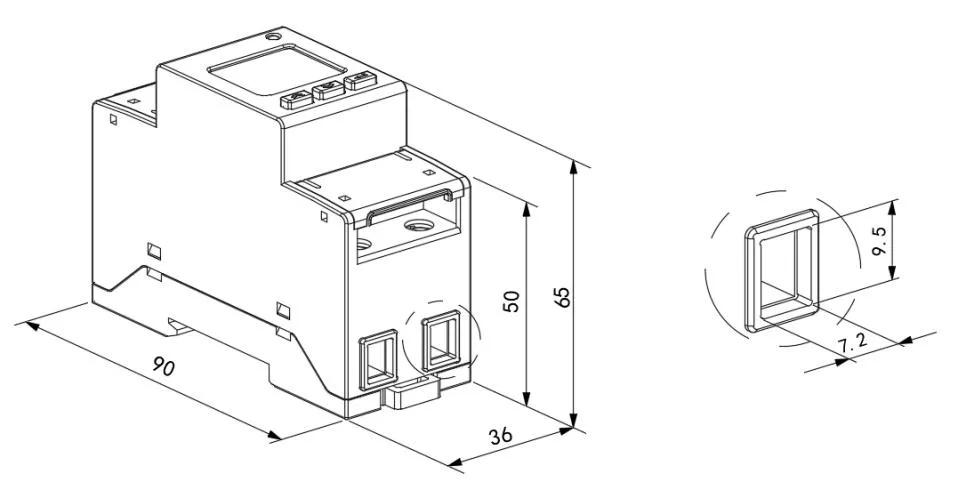

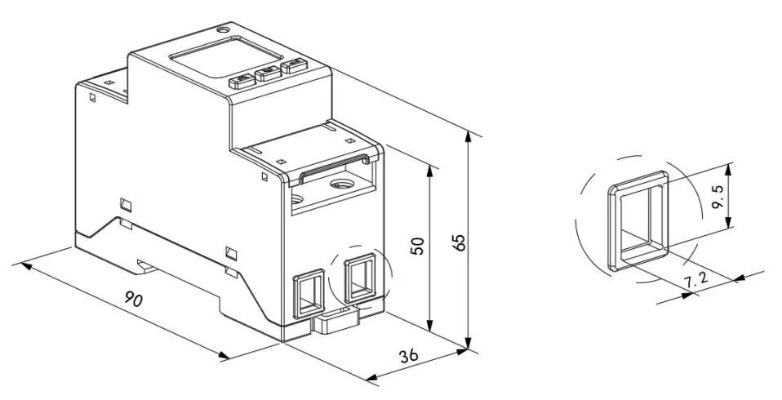

| L*W*H | 90*36*65mm | |
| Strong Current Terminal Torque | <1.8Nm | |
