Single Phase Three Wire (1Φ3W)
UL1741 Safety Certification
Zero Export Bidirection Energy Meter
Rated Current 100A/200A
High Accuracy Class 0.5S
Fast Response Time
RS485 Communication with Solar Inverter
+86-18702106858 / +86-21-69156352

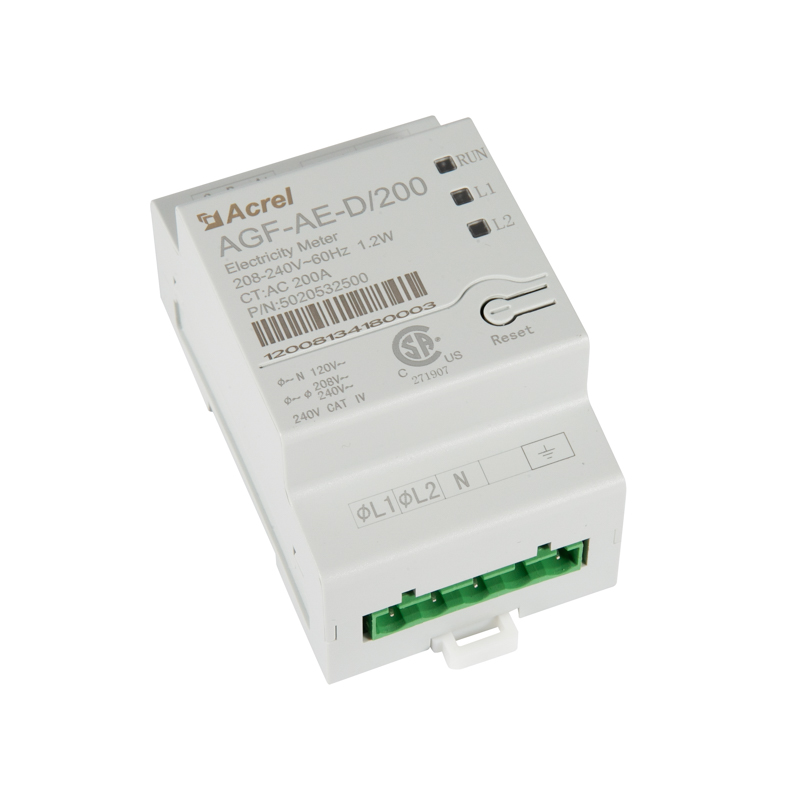

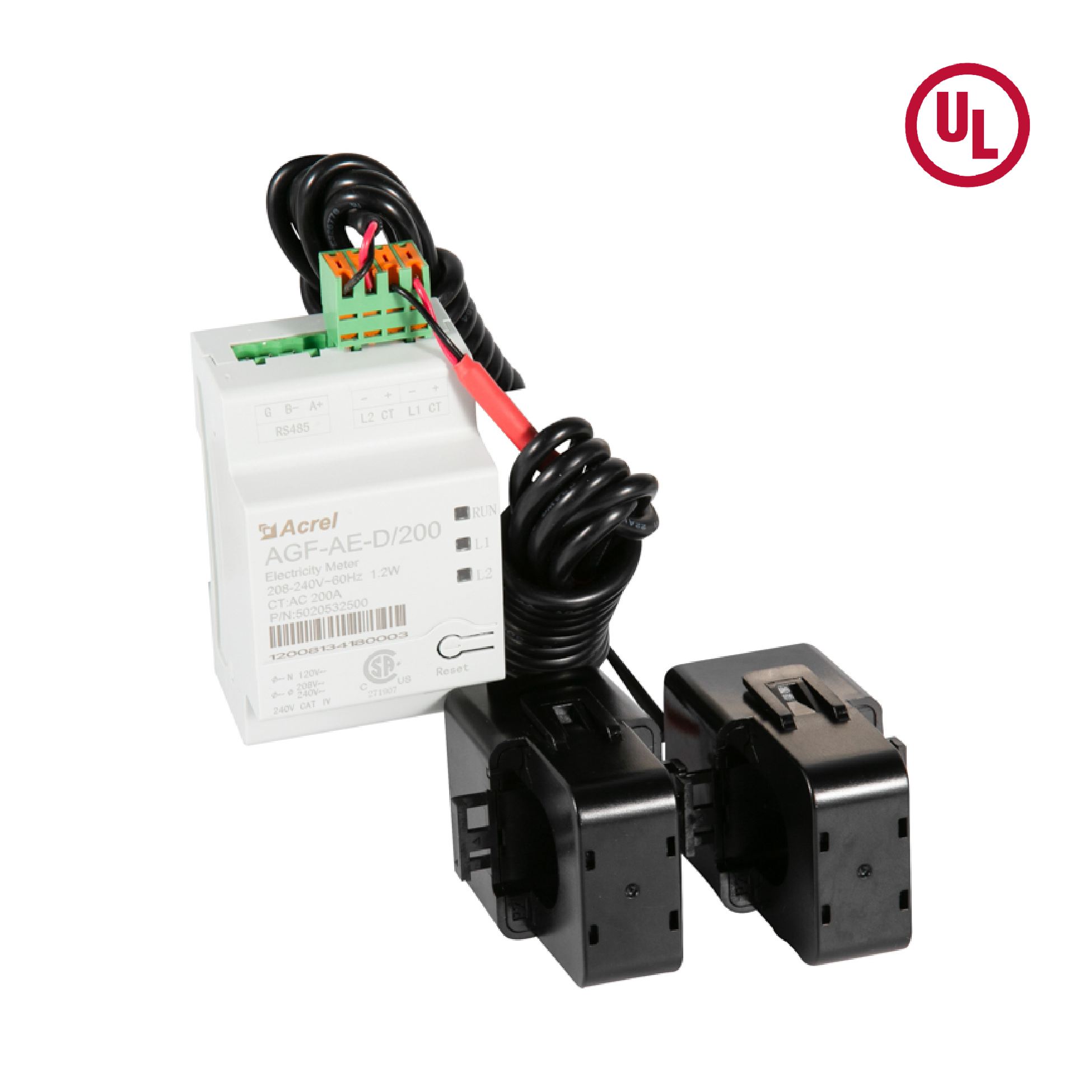

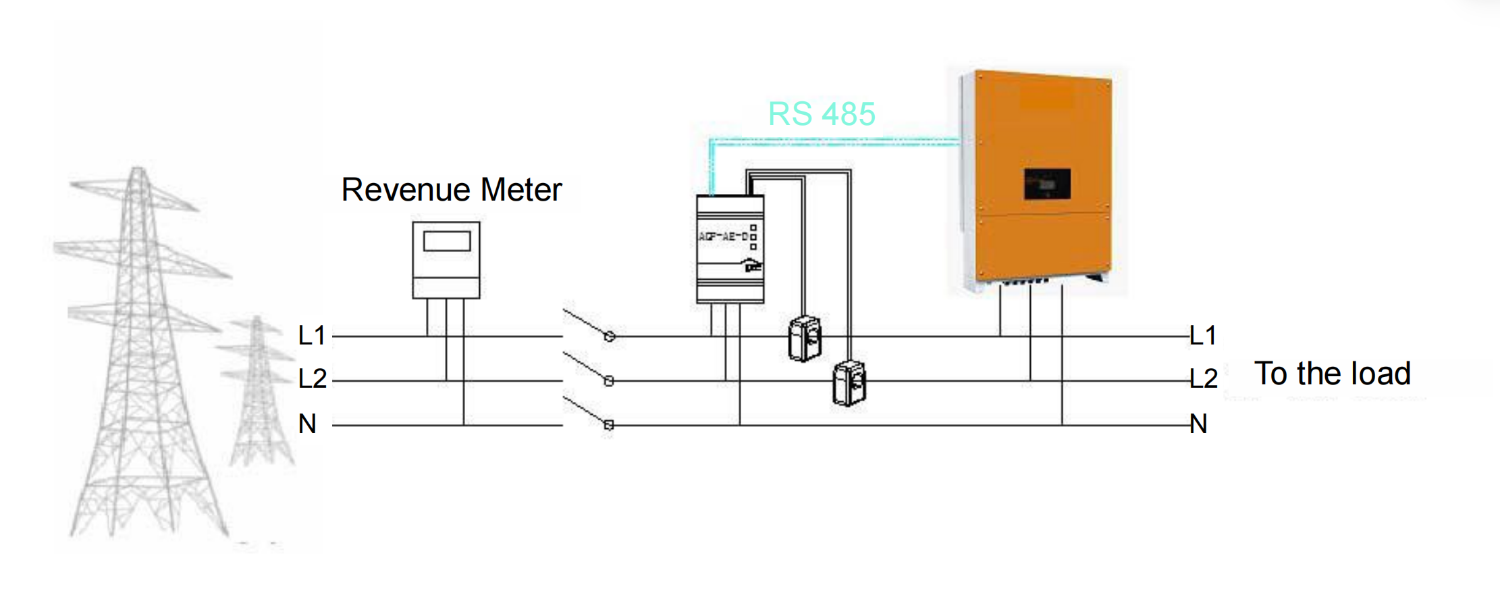

The AGF-AE-D is a high-performance revenue-grade electricity meter by Acrel, engineered for single inverter systems with direct inverter connection via RS485 communication, ideal for Bi-directional energy measurement and Zero Export applications. Available in 100A/200A rated current models, it delivers ±0.5%/±1% high accuracy for 1%-100% CT current measurement, complying with UL1741 safety standards and ANSI/NFPA 70 electrical codes. Designed for 35mm DIN-Rail mounting as permanently connected equipment, it supports 120V line-to-N and 208/240V line-to-line voltages (60Hz AC), an 88%-110% extended voltage range and -30~70℃ operating temperature. Fitted with split-core CTs and multi-status LED indicators for real-time fault troubleshooting, it features ≤1s response time, 1.2W low power consumption, and compatibility with two-phase two-wire (no neutral) and L1/L2/N/PE single-phase three-wire systems.
Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
For IoT Energy Management, Factory, School
Split Core
Clamp on Installation
High Accuracy Class 0.5
150-1000A Input Current
5A/1A Secondary Output
Application: Renovation Projects
Event recording
Start control function
programmable DI and DO
Profibus-DP communication
Anti-shaking function
Analog output
Event recording
leakage protection
AC380V/690V
programmable DI and DO
Analog output
Anti-shaking function
Split Core
High Accuracy Class 0.5
Current Input 20-6000A
Current Output 5(1)A
Rectangular Hole Design
Measurement of current (I)
Application: Renovation Projects
Founded in 2003, Acrel Co., Ltd.【Stock Code: 300286.SZ】 is a high-tech enterprise specializing in energy management solutions and electrical safety. Headquartered in Shanghai, Acrel offers innovative and sustainable solutions for microgrid energy efficiency and electrical safety. With over 600 patents and software copyrights, Acrel has deployed more than 28,000 system solutions globally, forming a comprehensive "cloud-edge-end" energy internet architecture.
Acrel Co., Ltd. is China Wholesale UL Certified Single Phase Three Wire Energy Meter Manufacturers and UL Certified Single Phase Three Wire Energy Meter Factory. Acrel's integrated product ecosystem spans from cloud platform software to end-user components, covering sectors such as power, renewable energy, data centers, smart buildings, transportation, and smart cities. These solutions enable intelligent, real-time energy management, enhancing energy security and reducing operational costs. We offer UL Certified Single Phase Three Wire Energy Meter for sale.
The company's production facility, Jiangsu Acrel Electric Manufacturing Co., Ltd., adheres to strict quality standards and environmental guidelines, with advanced testing centers and a commitment to lead-free production processes. Acrel's team of over 500 engineers delivers cutting-edge energy efficiency systems and smart energy solutions.
With a strong domestic presence, Acrel is actively expanding internationally, supported by a global network of sales and technical teams and an e-commerce platform that ensures seamless service experiences worldwide. Acrel is proud to help businesses improve efficiency, reduce consumption, and achieve sustainability goals.
Together, we are building a smarter, greener future.
