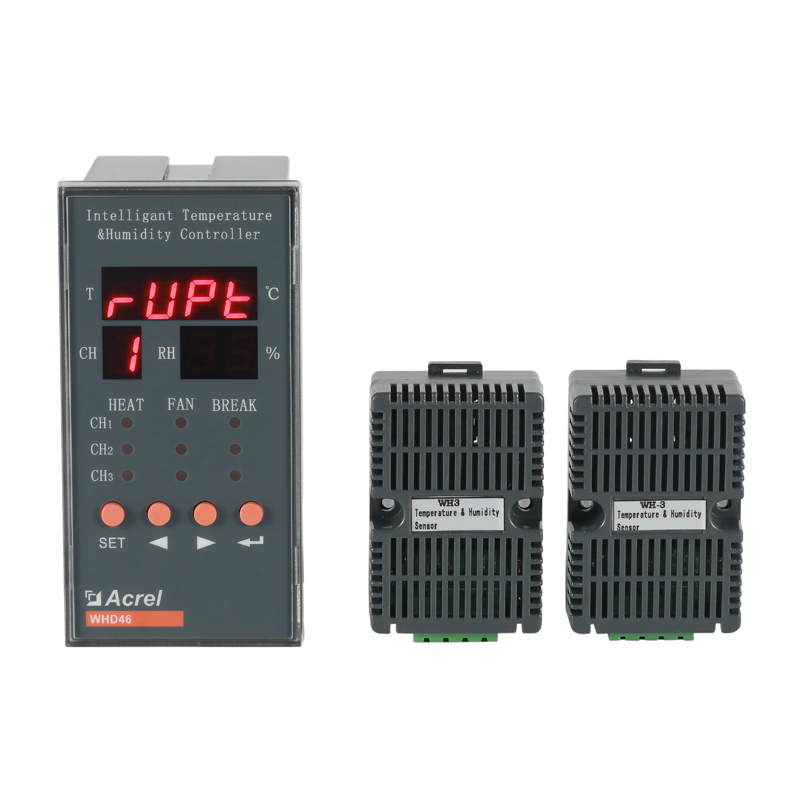

Three Channel Temperature & Humidity Measurement
Measuring temperature range: -40~+99℃
Measuring temperature range: 20%RH~90%RH
Display: LED display
RS485(Modbus-RTU) Communication
+86-18702106858 / +86-21-69156352
Acrel WHD72-22 intelligent temperature and humidity controller delivers dual-channel environmental regulation for critical electrical infrastructure. Engineered for 67*67mm panel cutout installation, this robust unit actively manages climate conditions within high-voltage switchgear, terminal boxes, and substation enclosures.
Featuring two independent WH-3 sensor inputs, it concurrently monitors separate zones across -40°C to 99.9°C temperature span and 0-99% relative humidity spectrum with ±1°C and ±5%RH measurement accuracy. Each channel autonomously operates heating and fan-based cooling through dedicated 5A relay outputs, proactively preventing moisture-induced flashover and thermal degradation of sensitive components.
Enhanced functionality includes optional fault alarming and RS485 MODBUS RTU communication for centralized monitoring. Supporting wide-range AC/DC supply voltage flexibility, the WHD72-22 delivers dependable, localized protection that ensures equipment longevity and uninterrupted operation in demanding electrical environments.
| Technical parameter | Value | |||
| Measuring range | Temperature | -40.0℃～99.9℃ | ||
| Humidity | 0%RH～99%RH | |||
| Precision | Temperature | ±1℃ | ||
| Humidity | ±5%RH | |||
| Transmitting output | DC 4～20mA或DC 0～20mA | |||
| Set range of controlling parameter | Heating for | -40.0℃～40.0℃ | ||
| Temperature rising | ||||
| Blowing for | 0.0℃～99.9℃ | |||
| temperature | ||||
| decreasing | ||||
| Humidity control | 20%RH～90%RH | |||
| output contact capacity | 5A/AC250V | |||
| Start/stop gap | 5 | |||
| Communication port | RS485,MODBUS(RTU)协议 | |||
| Auxiliary power | Voltage | AC 85～265V | ||
| DC 100～350V | ||||
| Consumption | Basic power consumption(≤0.8w)； | |||
| relay power consumption(each channel≤0.7w) | ||||
| Insulation resistance | ≥100MΩ | |||
| power-frequency withstand voltage | power with shell,touchable metal parts/ | |||
| power with other terminal group 2kV/1min(AC,RMS) | ||||
| average work time without stoppage | ≥50000h | |||
| Working condition | Temperature | -20℃～+60℃ | ||
| (controller) | Humidity | ≤95%RH，without condensation and corrosive gas | ||
| Altitude | ≤2500 m | |||
