24 Channels Temperature Measurement
Support PT100/PT1000/NTC Sensors
High Accuracy Class 1
2 Channels Alarm Outputs
RS485 Communication
+86-18702106858 / +86-21-69156352

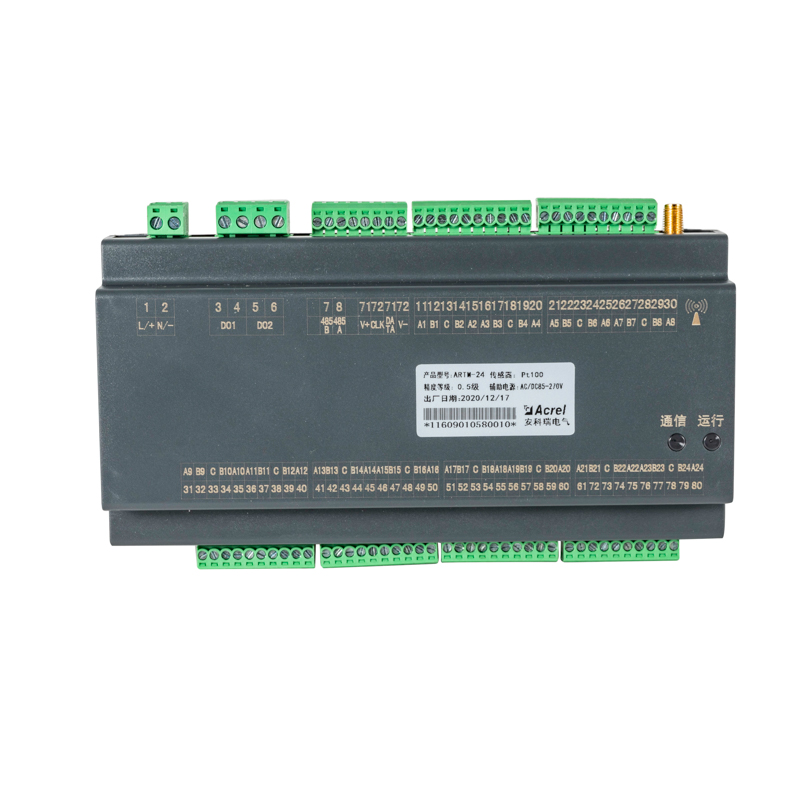

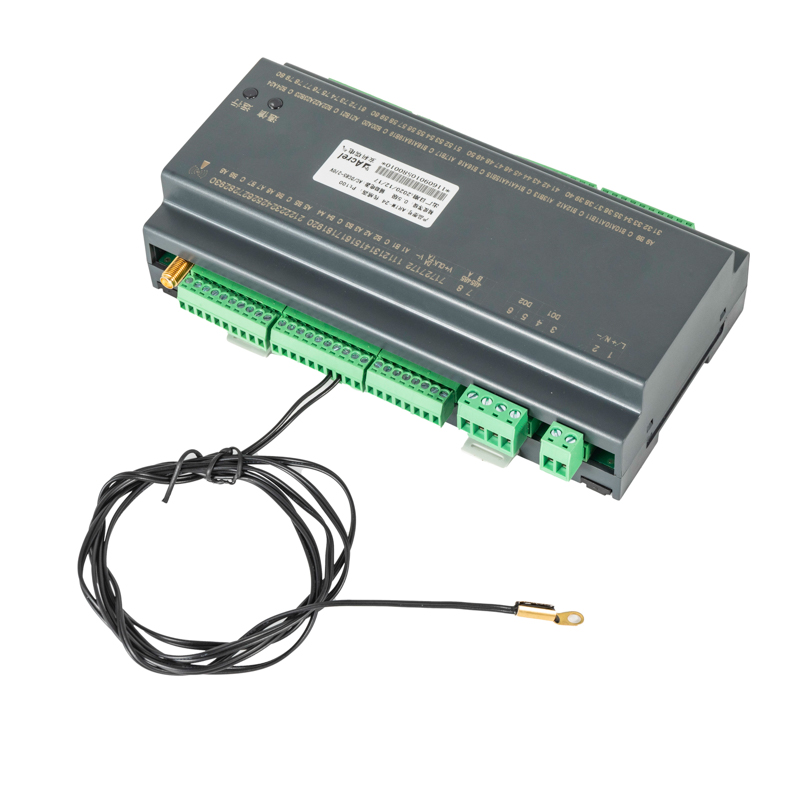

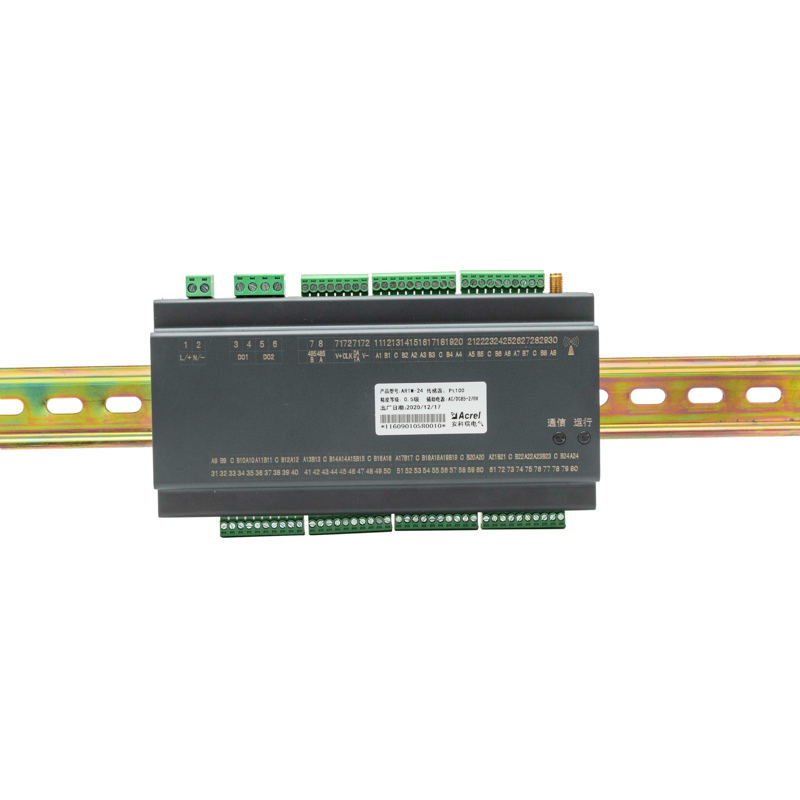

The ARTM-24 is a 24-channel temperature measuring instrument designed for comprehensive thermal monitoring of electrical equipment. It supports multiple sensor types including NTC thermistors (10kΩ to 100kΩ), PT100/PT1000 three-wire RTDs, and K/T/J/E/N thermocouples, covering measurement ranges from -200°C to 1372°C. The device features DIN35mm rail mounting, dual independent relay outputs for AL1/AL2 alarm functions, and RS485 communication via Modbus-RTU protocol for seamless industrial integration. Each channel offers individual enable/disable control and configurable high/low temperature thresholds with hysteresis settings through dedicated debug software. Optional wireless communication extends flexibility while an integrated ambient temperature/humidity sensor provides environmental context. With wide auxiliary power support (AC/DC 85-300V or DC 12-30V) and ±1°C measurement accuracy, the ARTM-24 is ideal for continuous temperature surveillance in transformer windings, motor bearings, and low-voltage electrical connections.
|
Technical Features Function |
Features |
|
|
ARTM-24 |
||
|
Number of measurement channels |
24 |
|
|
Input signal |
NTC：R25=10.00kΩ；B25/50=3380K； NTC：R25=50.00kΩ；B25/50=4150K； NTC：R25=100.00kΩ；B25/50=3950K； PT100/PT1000：Three-wire system; Thermocouple supports K, T, J, E, N types. |
|
|
Measurement Range |
NTC：-40℃～140℃； PT100: Maximum support -200℃～850℃, the actual range depends on PT100; PT1000: Maximum support -200℃～850℃, the actual range depends on PT1000; Thermocouple: maximum support -200℃～1372℃, the actual range depends on the thermocouple model. |
|
|
Accuracy class (standard signal) |
NTC：±1℃； PT100/PT1000：-200℃~200℃，±1℃；+200℃~850℃，±1%； Thermocouple: 1%. |
|
|
Auxiliary power |
voltage range |
AC85~265V、DC100-300V,DC12~30V |
|
Power consumption |
<=2W |
|
|
Alarm Output |
Channel |
2 groups of normally open |
|
Capacity |
AC250V/5A,DC30V/5A |
|
|
Temperature and humidity input |
Channel |
1 (optional) |
|
Temp |
±1℃ |
|
|
HUM |
±3% |
|
|
Communication |
Protocol |
Modbus-RTU |
|
Interface |
RS485 |
|
|
Baud rate |
2400,4800,9600,19200 |
|
|
Environment |
TEMP |
-20℃~55℃ |
|
HUM |
<=95% |
|
