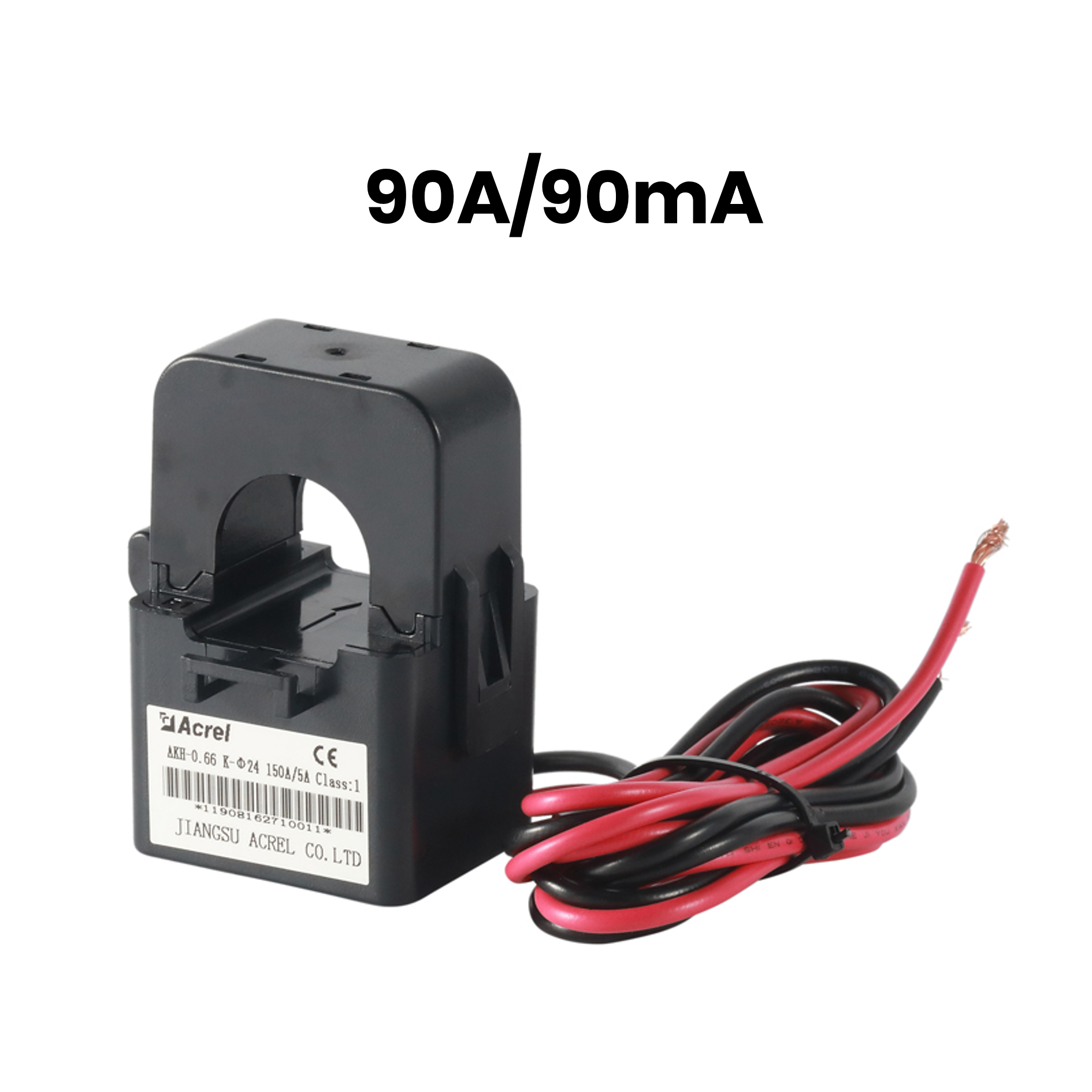

Split Core Clamp on Installtion
High Accuracy Class 0.5
90A/90mA Ratio
Measurement of current (I)
Application: Renovation Projects、Solar PV Projects
+86-18702106858 / +86-21-69156352
The AKH-0.66/K-Φ series split core current transformers are designed for urban and rural power grid renovation projects, as well as photovoltaic (PV) power systems. With a compact design, high accuracy, and strong load capacity, these CTs are easy to install without interrupting existing wiring. They convert high AC currents into small, manageable signals (in mA range), making them ideal for connecting to meters or relays for current measurement and equipment protection. In PV applications, they are commonly used with solar inverters to monitor output currents, enhance system safety, and support energy management. These CTs are well-suited for both traditional electrical systems and renewable energy environments.
| Spcification | Rared curant matio | Precision degree | Straight- | Max. cable | |
| (A) | through | outer diameter | |||
| 0.5 | 1 | tums | (mm | ||
| K-Φ10 | 5A/1.25mA | 10 | 1 | Φ10 | |
| 5A/2.5mA | 10 | ||||
| (40-60)A/20mA | 10 | ||||
| (50-60)A/50mA | 10 | ||||
| K-Φ16 | (20-50)A/10mA | 10 | 1 | Φ16 | |
| (40-100)A/20mA | 10 | ||||
| (80-120)A/40mA | 10 | ||||
| 100A/50mA | 10 | ||||
| K-Φ24 | (50-100)A/20mA | 10 | 1 | Φ24 | |
| (100-300)A/40mA | 10 | ||||
| (100-300)A/50mA | 10 | ||||
| (200-400)A/100mA | 10 | ||||
| K-Φ36 | (100-200)A/20mA | 10 | 1 | Φ33 | |
| (100-600)A/40mA | 10 | ||||
| (100-600)A/50mA | 10 | ||||
| (200-600)A/100mA | 10 | ||||
| K-Φ50 | (400-600)A/50mA | 10 | 1 | Φ50 | |
| (300-1000)A/100mA | 10 | ||||
