Dual Circuits Three Phase Measurement
Equipped with 3-in-1 Split Core CTs
RJ12 Connection, Easy Installation
Rated Current: 100A
CE Certificated
Application: Renewbale Energy
+86-18702106858 / +86-21-69156352

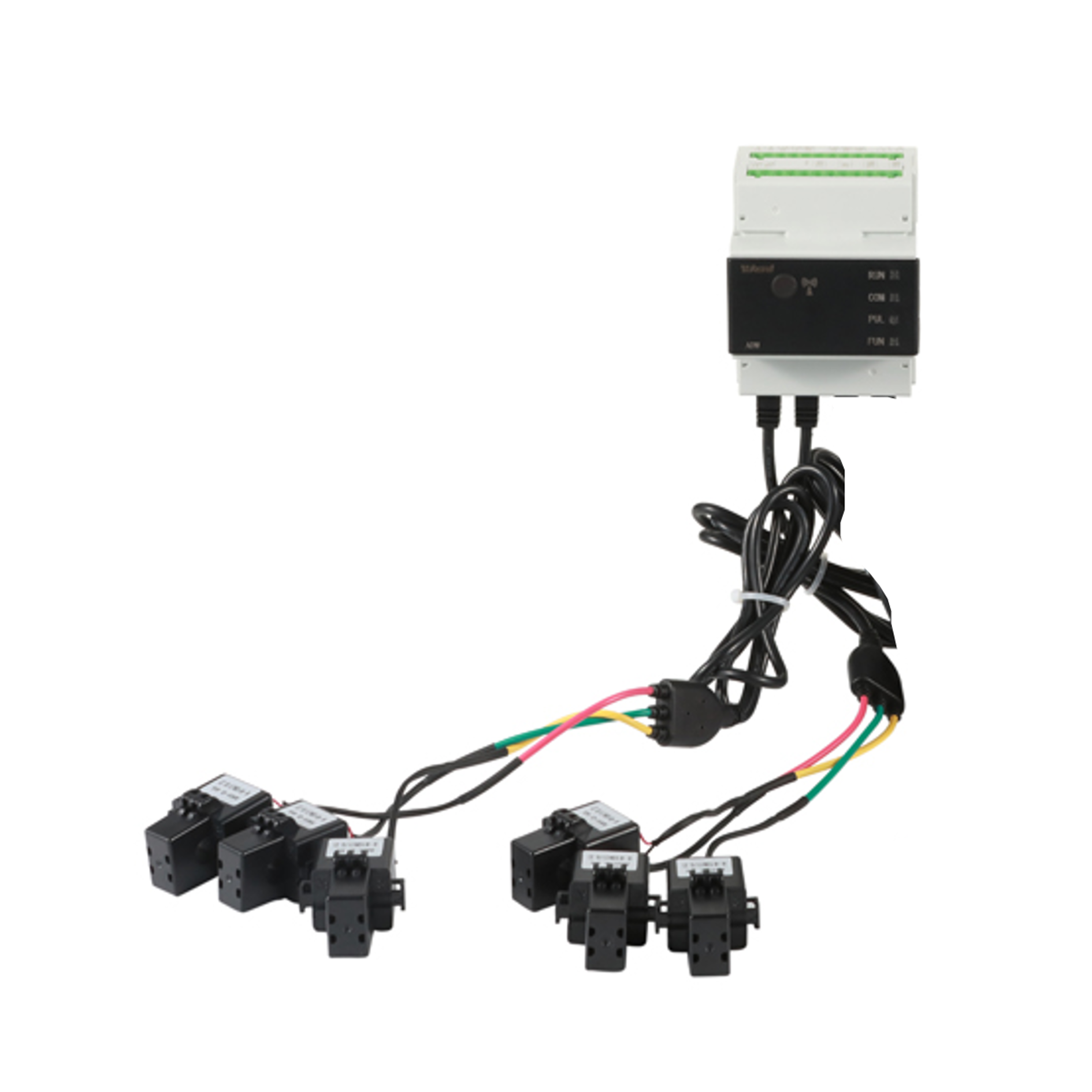

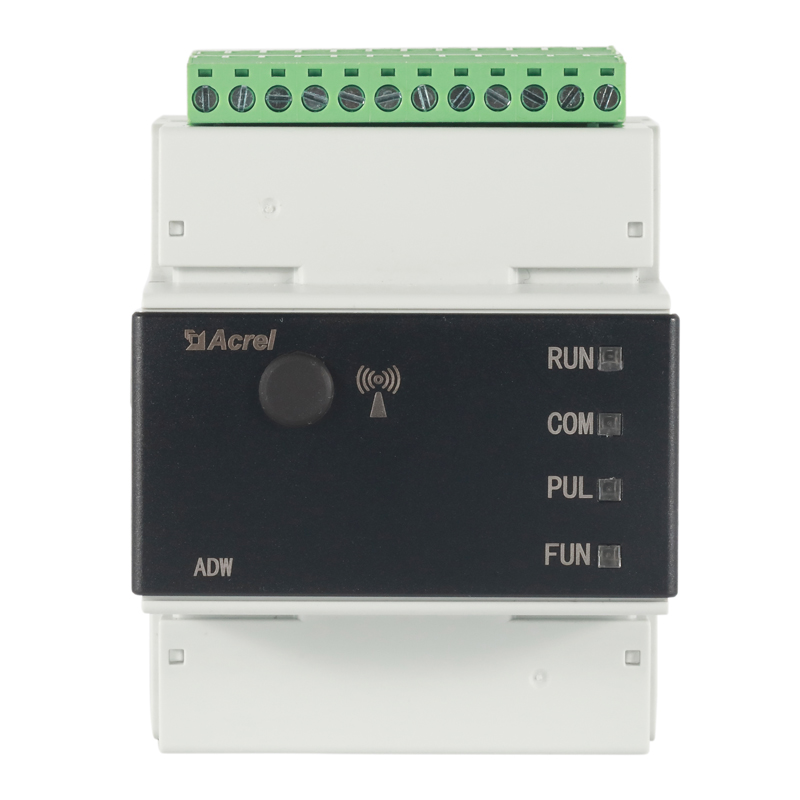

Acrel ADW200-D16-2S Dual Circuits Energy Meter is a highly versatile and advanced meter designed for efficient energy monitoring. It can support Wireless Communication (eg. 4G/WiFi/Ethernet/LoRa/LoRaWAN) by external module.
Equipped with 3 - in - 1 CTs, it supports multiple rated currents including 5A, 100A, 400A, and 600A, enabling flexible application in various scenarios and easily installed.
It can measure up to 4 channels of three - phase circuits or 12 channels of single - phase circuits simultaneously. With RS485 communication based on the Modbus - RTU protocol, it ensures reliable data transmission.
The device is CE certificated, guaranteeing safety and quality. It is widely applicable in apartments, factory production lines, schools, and other settings, providing precise and comprehensive energy monitoring. Its powerful functions and reliable performance make it an excellent choice for energy management.
| ADW210 | Parameters | ||
| Auxiliary power | AC/DC 85～265V,DC 48V,AC 380V;consumption≤10VA; | ||
| Input | Frequency | 45～65Hz; | |
| Voltage | AC 3×220V/380V; | ||
| Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s; | |||
| Power consumption:≤ 0.5VA; | |||
| Current | AC 5A、100A、400A、600A;(External opening transformer) | ||
| Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s; | |||
| Power consumption:≤ 0.5VA; | |||
| Measurement Accuracy | Frequency 0.05Hz, voltage and current 0.5 level, active electric energy level 1, reactive electric energy level 2; | ||
| 2-31 times harmonic accuracy: ± 1%; | |||
| Features | Pulse output | Output mode: optocoupler pulse with open collector; | |
| Communication | RS485、Modbus-RTU;Baud rate 1200～38400; | ||
| Switching | input | Dry contact input、Built in power supply; | |
| output | Output mode:Relay normally open contact output; | ||
| contact rating:AC 250V/3A DC 30V/3A; | |||
| Safety | Power frequency withstand voltage | >AC 2kV/1min; | |
| Insulation resistance | >100MΩ; | ||
| Environment | working temperature:-20℃～+60℃; | ||
| Storage temperature:-40℃～+70℃; | |||
| relative humidity:≤95% No condensation; | |||
| Altitude:≤2500m; | |||
| Electromagnetic Compatibility | Better than grade 3; | ||
