Input：DC0~500A
Ouput：DC 4~20mA
Power Supply：DC12V/24V
Application：Solar，Energy storage , Wind energy, UPS, BMS, EV charging pile
+86-18702106858 / +86-21-69156352

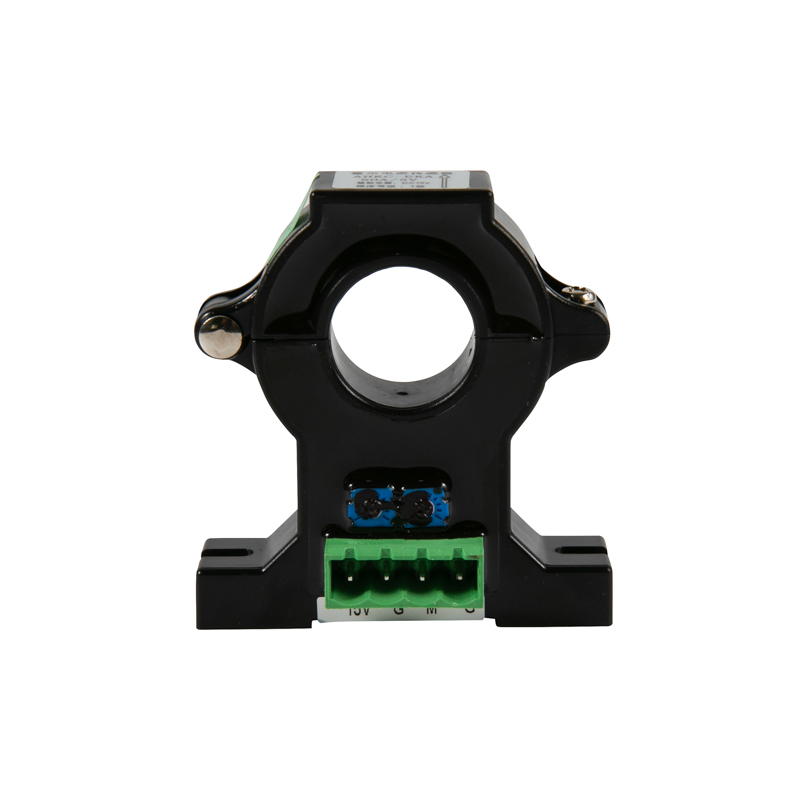

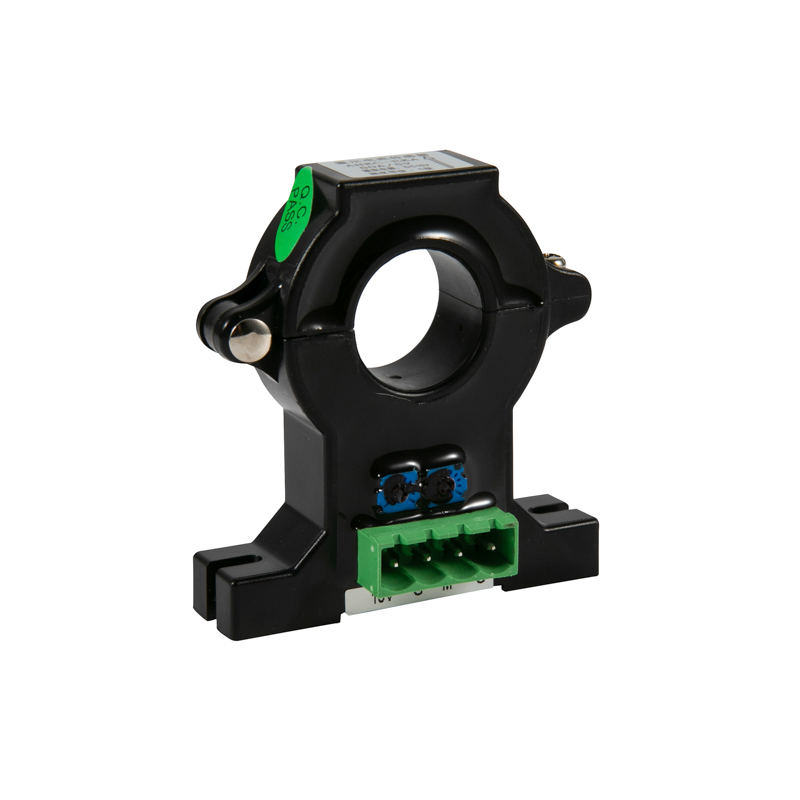

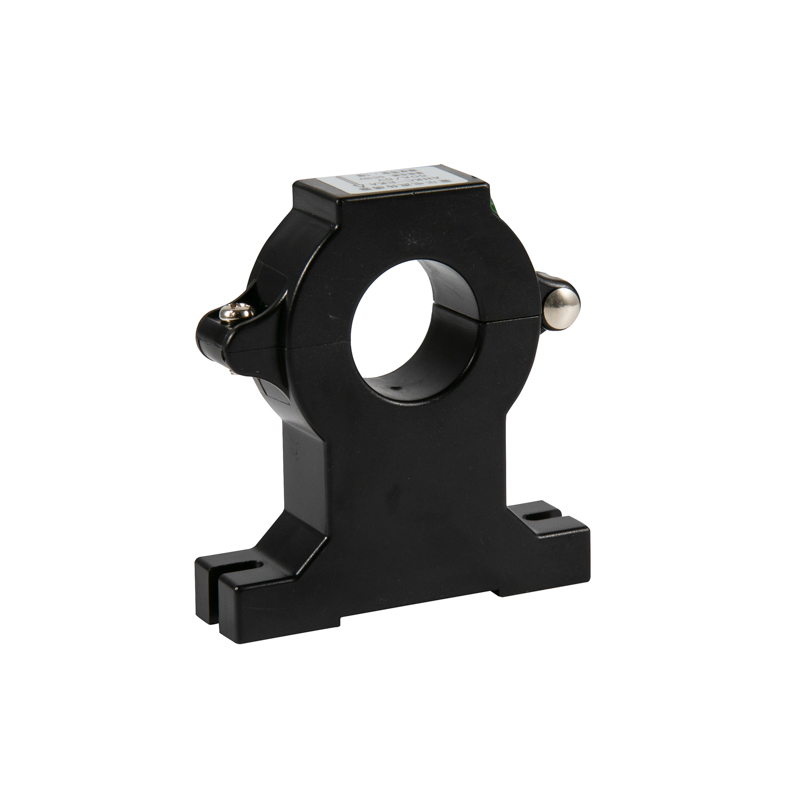

AHKC-EKAA hall sensors detect current via electromagnetic principles, offering nanosecond response, MHz bandwidth, 10× overload rating and kilovolt isolation. They accurately measure complex waveforms at any frequency, making them ideal for variable-frequency drives, inverters, UPS, PV systems, telecom power, CNC machines, microcomputer monitoring, grid supervision and every application that demands isolated current measurement.
|
Parameters |
Index |
|
Rated Input Current |
0～(50-500)A |
|
Rated Output Voltage |
±5V/±4V |
|
Accuracy Class |
1.0 |
|
Power Voltage |
DC±15V（allowable fluctuation±20%） |
|
Zero Offset Voltage |
±20mV |
|
Offset Voltage Drift |
≤±1.0mV/℃ |
|
Linearity |
≤0.2%FS |
|
Response Time |
≤5us |
|
Bandwidth |
0～20kHz |
|
Isolation Voltage |
3.5kV/50Hz/1min |
|
Operating Temperature |
-40℃~85℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Consumption |
≤0.5W |
Rated Current 80A Directly
MID Certificated
High Accuracy Class C
35mm DIN Rail Mounted
Pulse Output
4 Modules 72mm Width
For IoT Energy Management, Factory, School
Split Core
Clamp on Installation
High Accuracy Class 0.5
150-1000A Input Current
5A/1A Secondary Output
Application: Renovation Projects
Event recording
Start control function
programmable DI and DO
Profibus-DP communication
Anti-shaking function
Analog output
Event recording
leakage protection
AC380V/690V
programmable DI and DO
Analog output
Anti-shaking function
Split Core
High Accuracy Class 0.5
Current Input 20-6000A
Current Output 5(1)A
Rectangular Hole Design
Measurement of current (I)
Application: Renovation Projects
Founded in 2003, Acrel Co., Ltd.【Stock Code: 300286.SZ】 is a high-tech enterprise specializing in energy management solutions and electrical safety. Headquartered in Shanghai, Acrel offers innovative and sustainable solutions for microgrid energy efficiency and electrical safety. With over 600 patents and software copyrights, Acrel has deployed more than 28,000 system solutions globally, forming a comprehensive "cloud-edge-end" energy internet architecture.
Acrel Co., Ltd. is China Wholesale AHKC-EKAA Split Loop Hall Current Sensor Manufacturers and AHKC-EKAA Split Loop Hall Current Sensor Factory. Acrel's integrated product ecosystem spans from cloud platform software to end-user components, covering sectors such as power, renewable energy, data centers, smart buildings, transportation, and smart cities. These solutions enable intelligent, real-time energy management, enhancing energy security and reducing operational costs. We offer AHKC-EKAA Split Loop Hall Current Sensor for sale.
The company's production facility, Jiangsu Acrel Electric Manufacturing Co., Ltd., adheres to strict quality standards and environmental guidelines, with advanced testing centers and a commitment to lead-free production processes. Acrel's team of over 500 engineers delivers cutting-edge energy efficiency systems and smart energy solutions.
With a strong domestic presence, Acrel is actively expanding internationally, supported by a global network of sales and technical teams and an e-commerce platform that ensures seamless service experiences worldwide. Acrel is proud to help businesses improve efficiency, reduce consumption, and achieve sustainability goals.
Together, we are building a smarter, greener future.
