IEC61557-8
Resistance monitoring
Overvoltage and undervoltage alarm
Warning and alarm
LED indication/LCD display
3 channels relay output
Event record
+86-18702106858 / +86-21-69156352

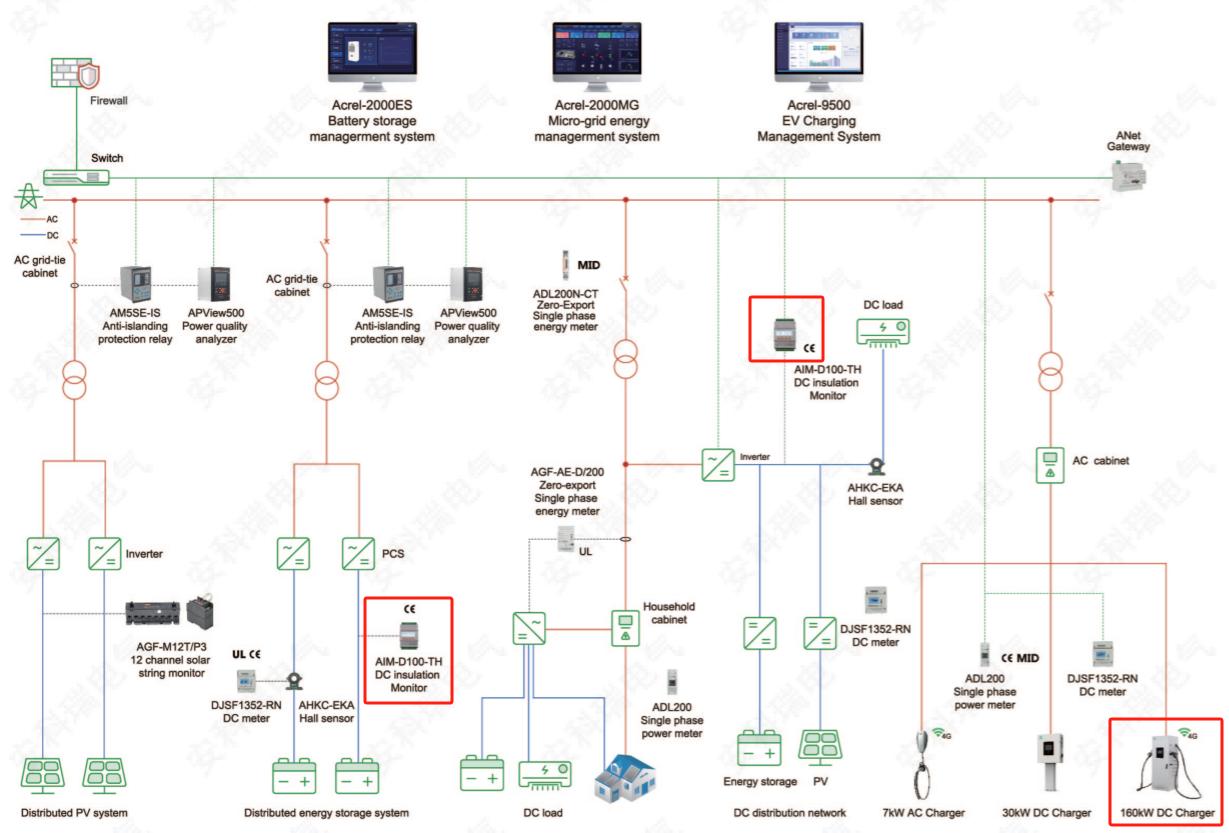

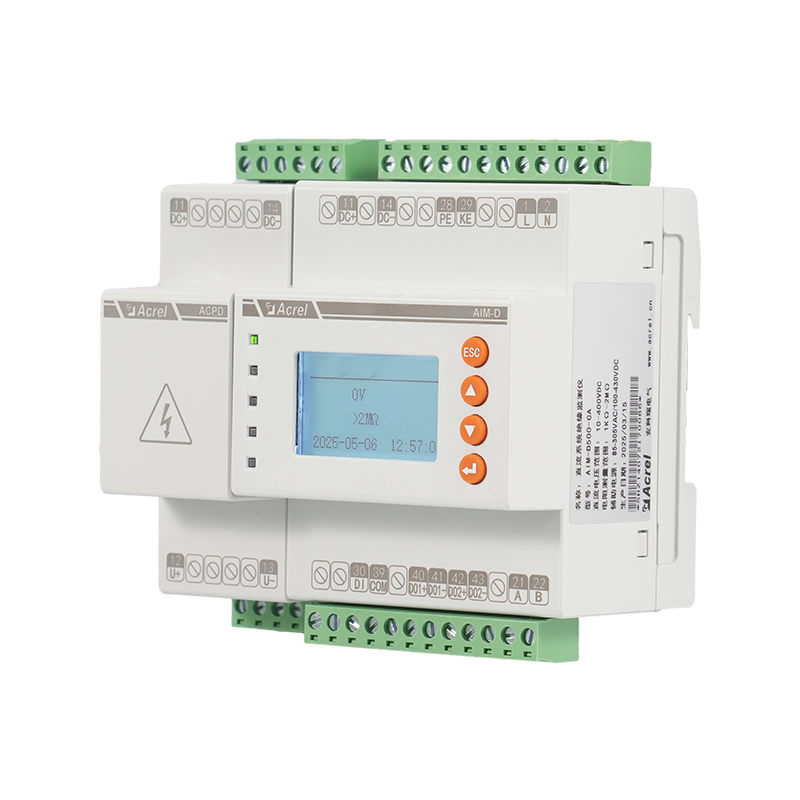

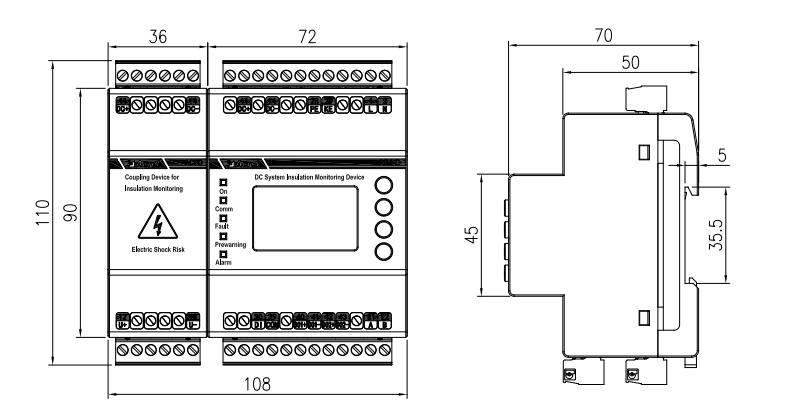

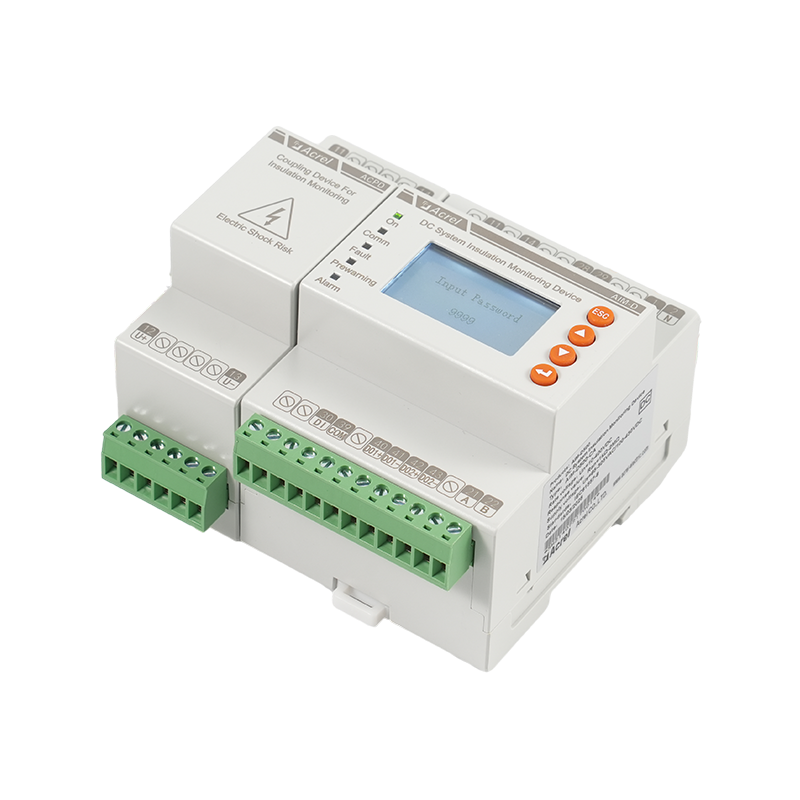

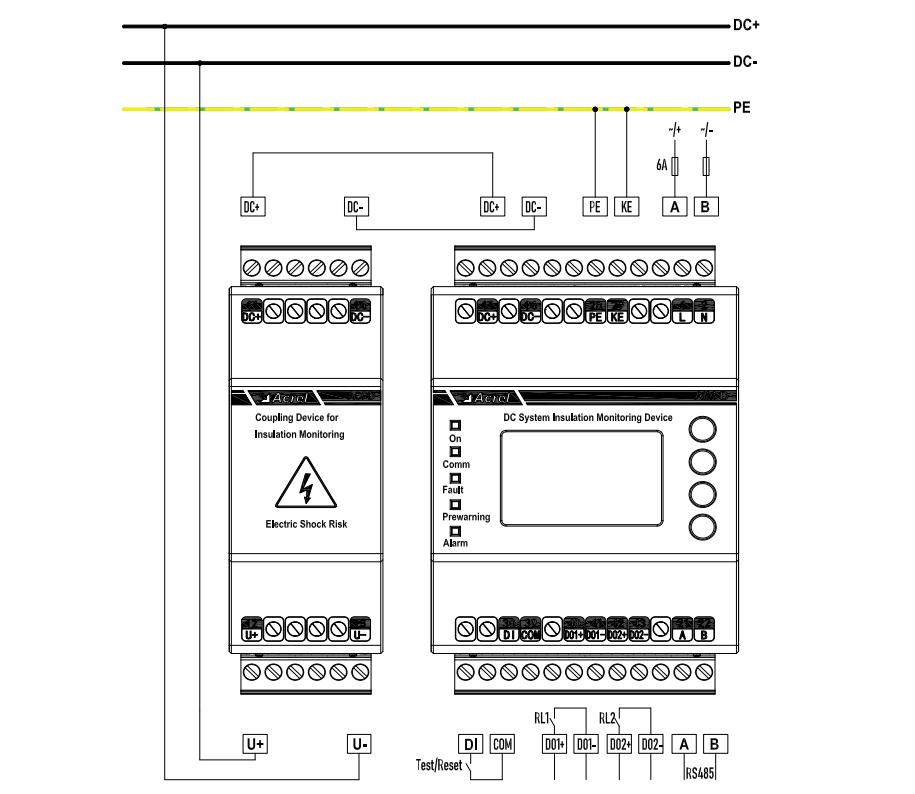

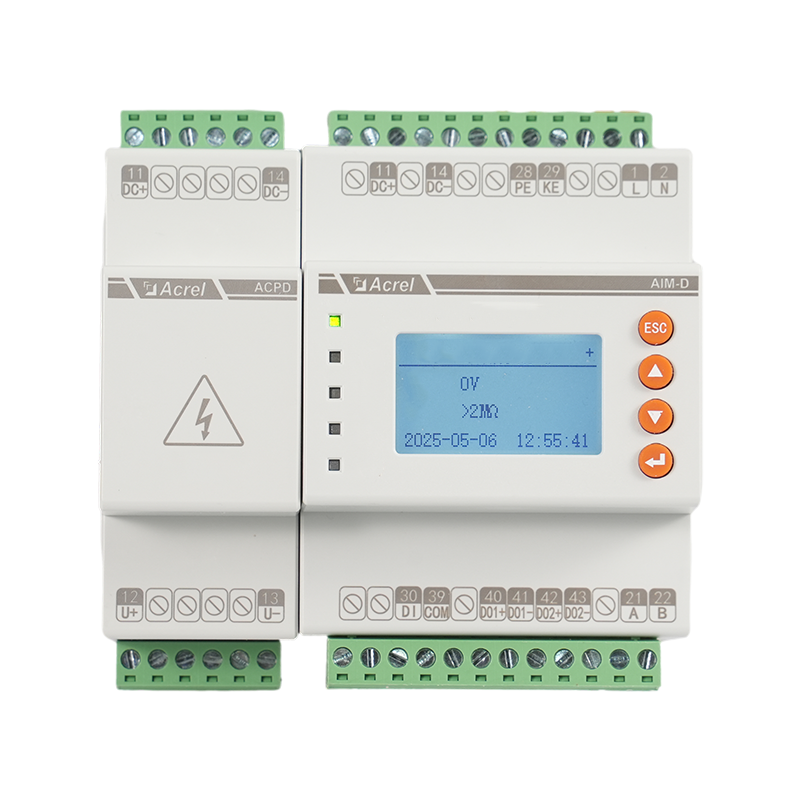

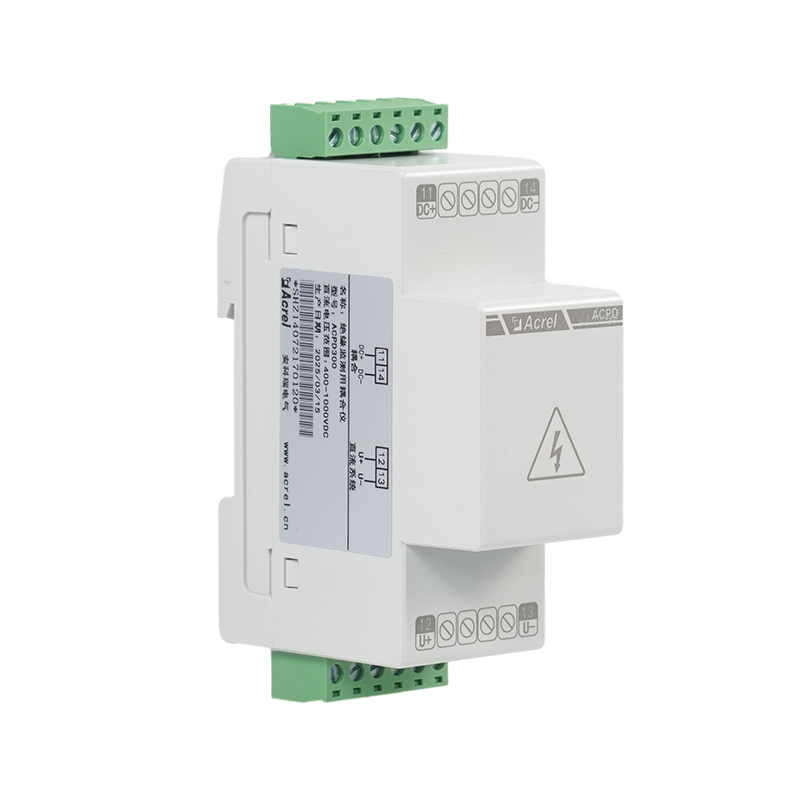

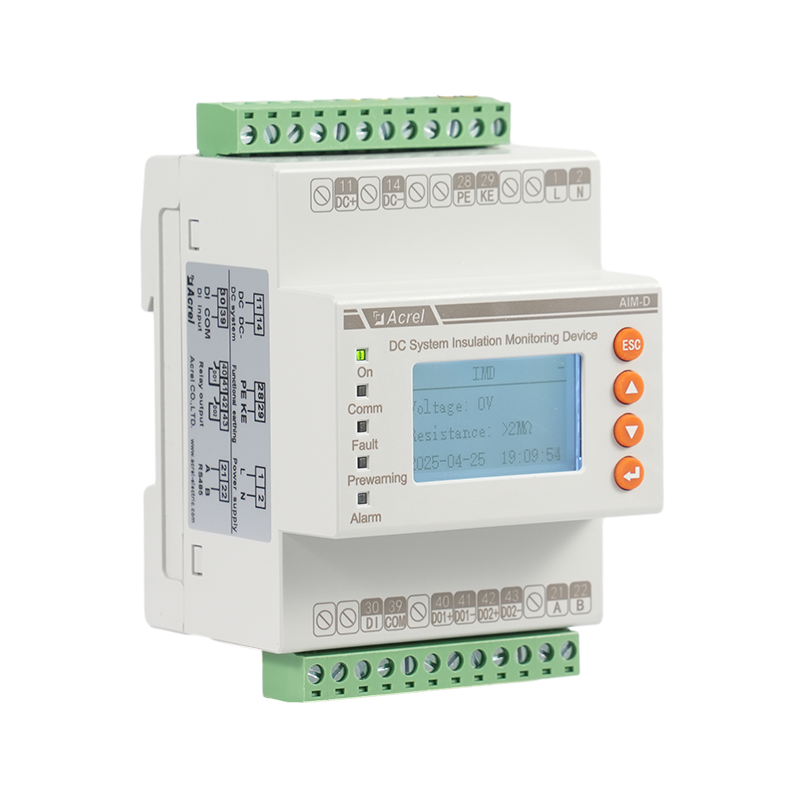

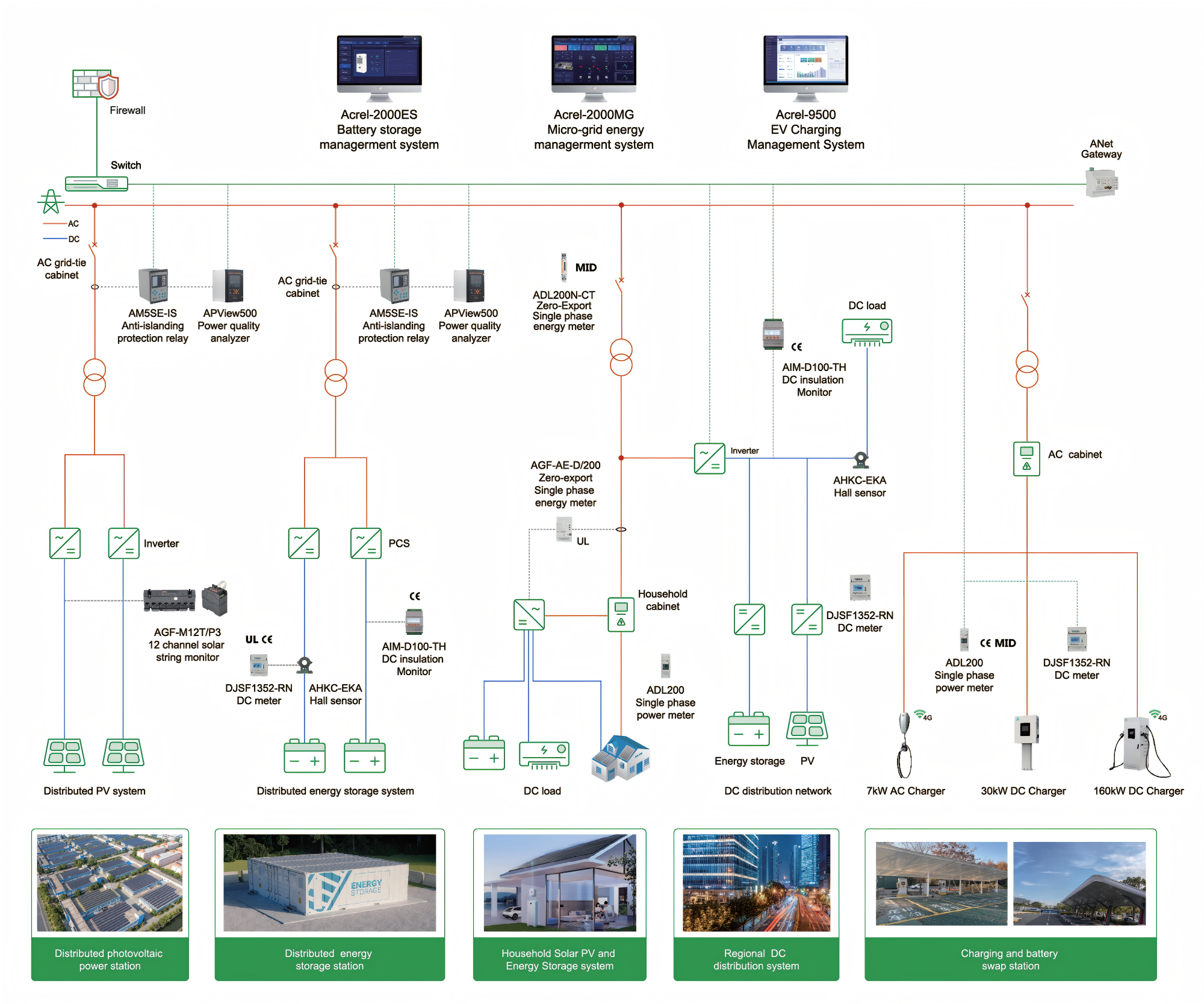

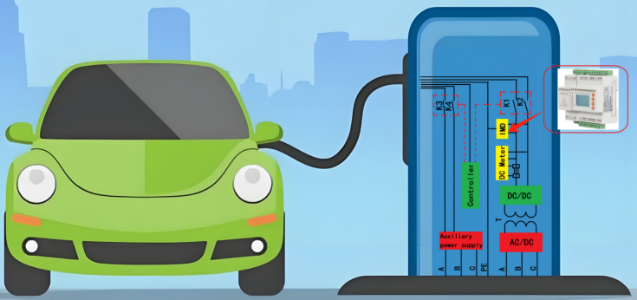

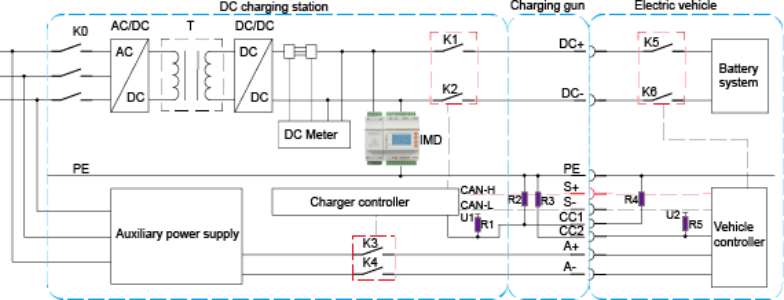

AIM-D500-CA DC insulation monitor is designed for 0-1000V DC systems. It ensures power supply safety by continuously monitoring insulation resistance in IT systems. It warns of potential issues when insulation resistance falls below set values, making it ideal for applications like power plants, substations, EV chargers, UPS, and solar systems.
| Technical Parameter | Technical Specifications | |
| Auxiliary power | 85-305VAC/100-430VDC | |
| Maximum power consumption | ≤5W | |
| IT system being monitored | Nominal system voltage with ACPD300, Un | DC 0…1000V |
| Nominal system voltage without ACPD300, Un | DC 0…400V | |
| Tolerance | 20% | |
| Response values | Response value (Insulation prewarning) | Insulation alarm limit value…2MΩ |
| Response value (Insulation alarm) | 1kΩ…2MΩ | |
| Relative uncertainty | ±15%,±2kΩ | |
| Undervoltage detection | (80%~100%) Un(off) | |
| Overvoltage detection | (100%~120%) Un(off) | |
| accuracy | 1%,±1V | |
| System voltage | Measuring range | 0V…1200V |
| Relative uncertainty | 1%,±1V | |
| Internal DC impedance | ＜1MΩ | |
| CCS and CHAdeMO 3.0 mode | Permissible system leakage capacitance | ≤20μF |
| Measuring and display range of insulation resistance | 1kΩ…2MΩ | |
| Measurement uncertainty / Relative uncertainty | ||
| Ce≤5μF | ±15%,±2 kΩ | |
| Ce>5μF and RF>100 kΩ | ±15% | |
| Ran = 2.0X RF and Ce =1μf | ≤10s | |
| acc. to IEC 61557-8 | ||
| Display | Password | 0000…9999(0001) |
| Display | LCD,128x64 dot matrix | |
| Time response | Start-up delay | 0…10s(0s) |
| Response time | 0…99s(0s)* | |
| Delay on release | 0…99s(0s)* | |
| Interface | Interface / protocol | RS485/Modbus-RTU |
| Baud rate | 4800,9600,115200,19200,38400bps(115200bps) | |
| Cable length(9600bps) | ≤1200m | |
| Cable: twisted pairs | Min. J(St)Y 2x0.75 | |
| Terminating resistor | 120Ω (0.25W), external, can be connected | |
| Device address | 1…30 (1) | |
| Switching elements | Switching elements | 2 x 1 n/o contact |
| Operating principle | n/c, n/o operation(n/o) | |
| Electrical endurance ender rated operating condition | 20,000,000 cycles | |
| Contact data | Rated operational voltage | AC 250V, DC 30V |
| Rate operational current | AC 250V,3A, DC 30V,5A | |
| Environment | Operating temperature | -10℃ ~ +55℃ |
| Storage temperature | -20℃ ~ +70℃ | |
| Humidity | ≤95%RH, no condensation and corrosive gas | |
| Altitude | ≤2000m | |
| Other | Operating mode | Continuous operation |
| Degree of protection internal components | IP30 | |
| Degree of protection terminals | IP20 | |
| Pollution degree | III | |
| Installation | DIN rail mounting | |
| weight | 244.3g | |
