Resistance monitoring
Over-voltage and under-voltage alarm
Warning and alarm
LED indication/LCD display
3 channels relay output
Event record
+86-18702106858 / +86-21-69156352

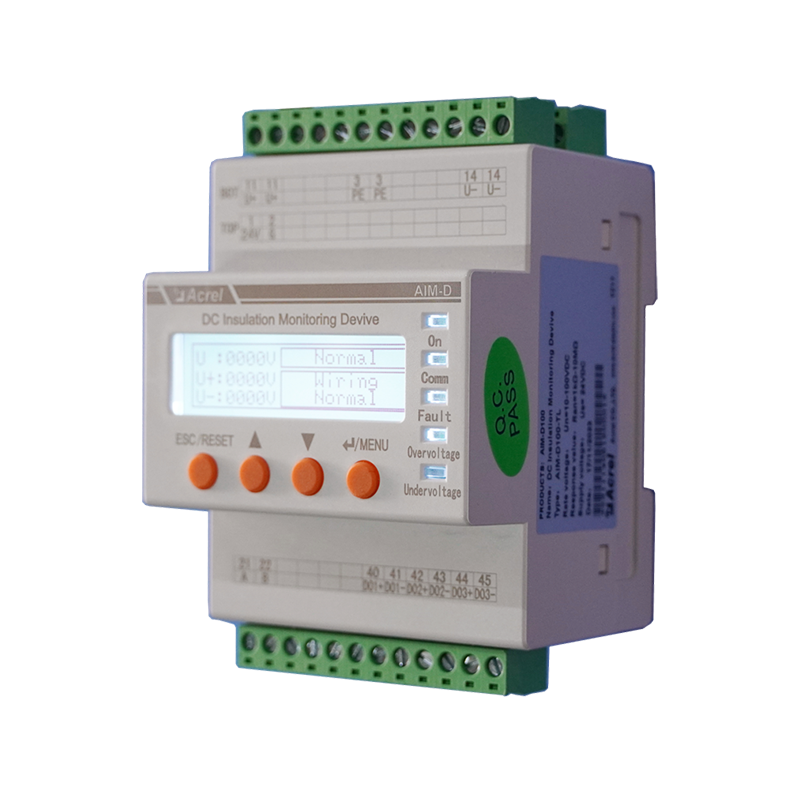

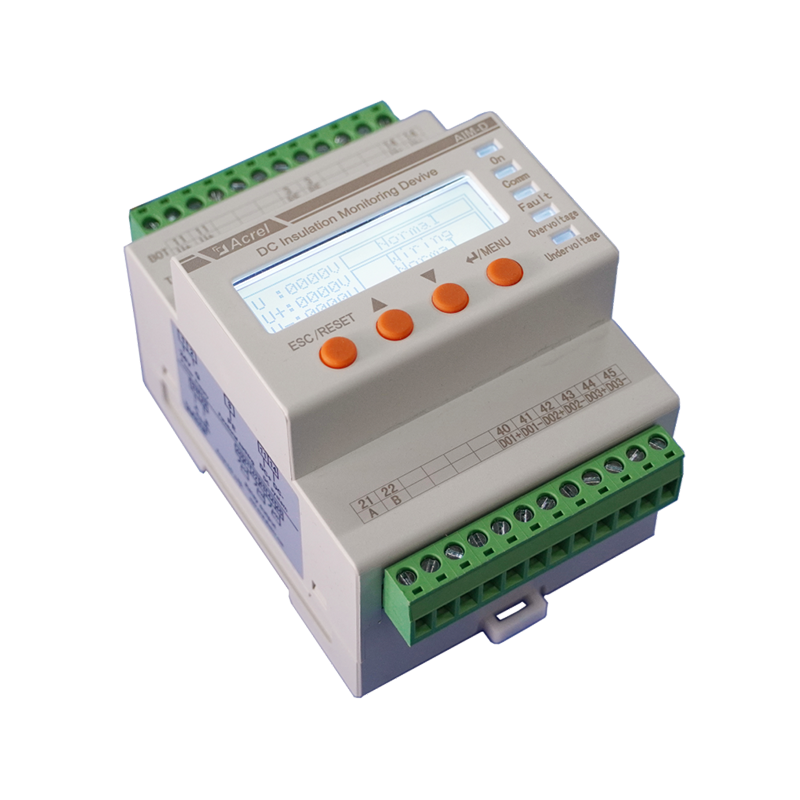

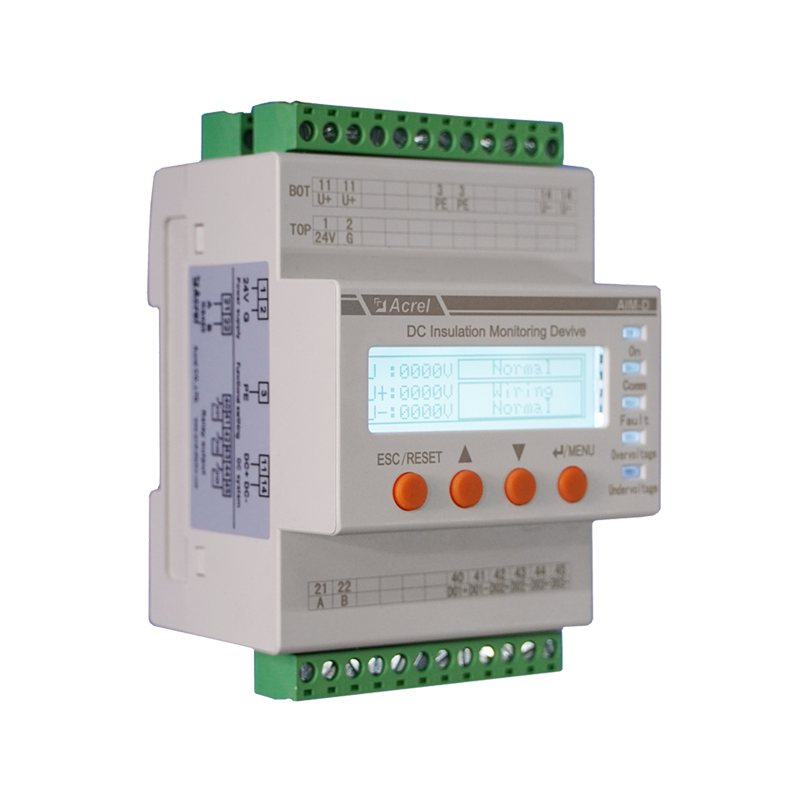

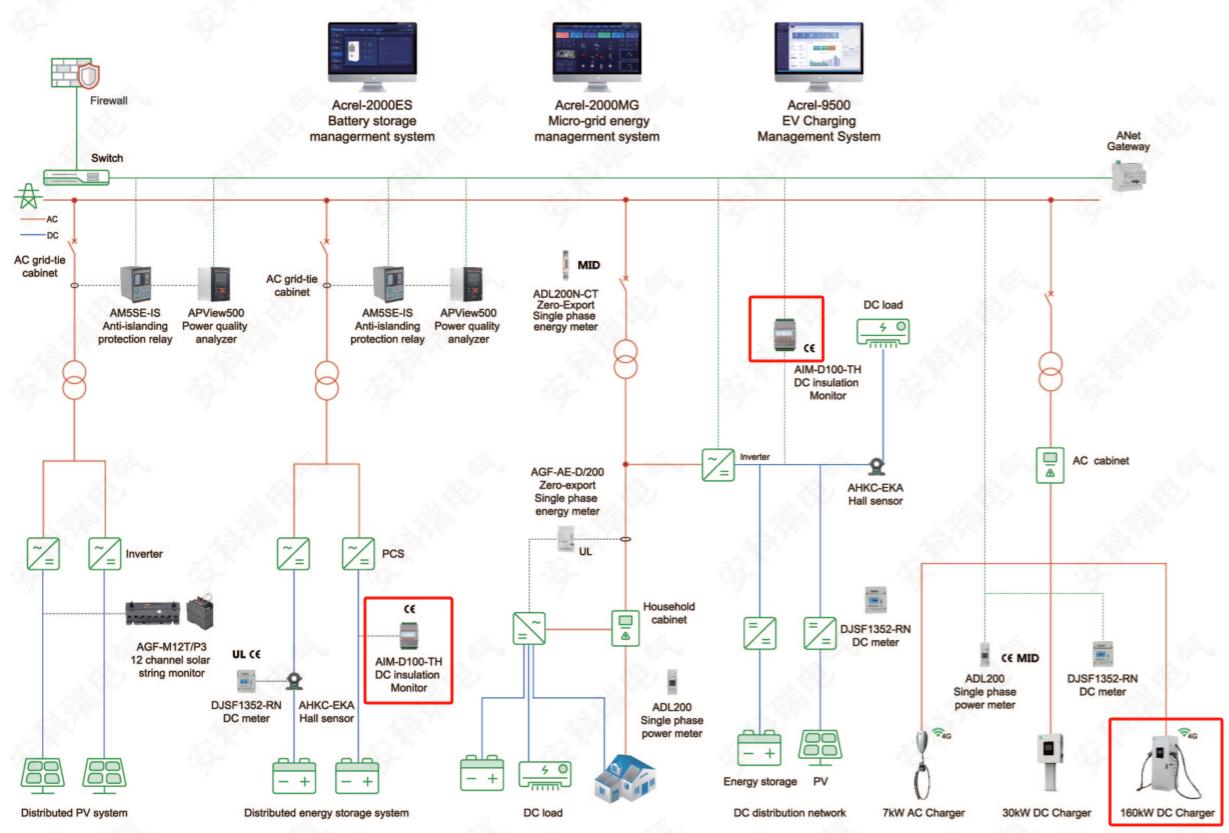

AIM-D100-TH DC insulation monitor is designed for 10-1000V DC systems. It ensures power supply safety by continuously monitoring insulation resistance in IT systems. It warns of potential issues when insulation resistance falls below set values, making it ideal for applications like power plants, substations, EV chargers, UPS, and solar systems.
| Technical Parameter | Technical Specifications | |
| Auxiliary power | DC 12~36V | |
| Maximum power consumption | ≤6W | |
| Voltage monitor | Voltage range | AIM-D100-TH: DC 100~1000V； |
| AIM-D100-TL: DC 10~100V | ||
| Accuracy | 0.5 | |
| Overvoltage threshold | ≥ Rated Voltage * 120% | |
| Undervoltage threshold | ≤ Rated Voltage * 80% | |
| Insulation monitoring | Insulation resistance range | 1kΩ~10MΩ |
| Warning and alarm range | 10kΩ~10MΩ | |
| Accuracy | 1~10kΩ: ±1k; 10k~500k: ≤3% | |
| System leakage capacitance | ≤5μF | |
| Monitoring method | Cycle trigger: 5~500s delay can be set; | |
| Communication trigger: read on demand | ||
| Insulation monitoring speed | 500ms/cycle; 1000ms/cycle | |
| Internal DC impedance | ＜1MΩ | |
| Alarm method | LCD, LED indicator, relay output | |
| Alarm output | 3 relay outputs, N/O or N/C can be set | |
| Contact capacity | AC 250V 5A； | |
| DC 30V 5A | ||
| Fault Record | 20 fault records | |
| Communication | RS485 interface, Modbus-RTU protocol | |

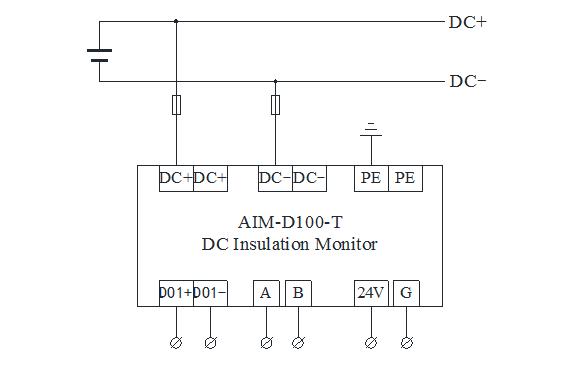

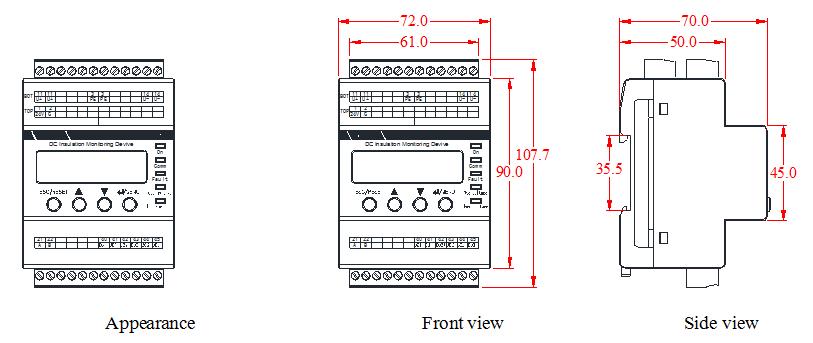

| Installation | DIN-rail installation | |
| Protection level | IP30 | |
| Environment | Operating temperature | -20~+60℃ |
| Storage temperature | -25~+75℃ | |
| Relative humidity | <95%, without condensation | |
| Altitude | < 2000m | |
